2017 Sumitomo SH210-5

1/9

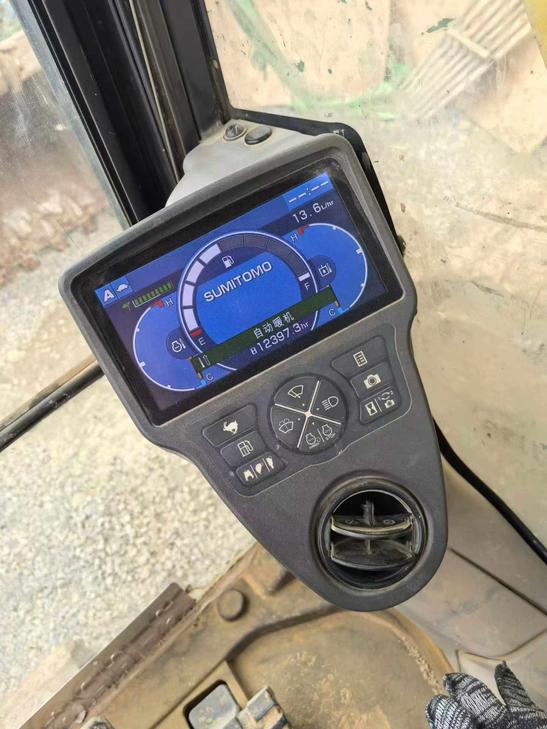

Buy Sumitomo SH210-5 Used Excavator / 1

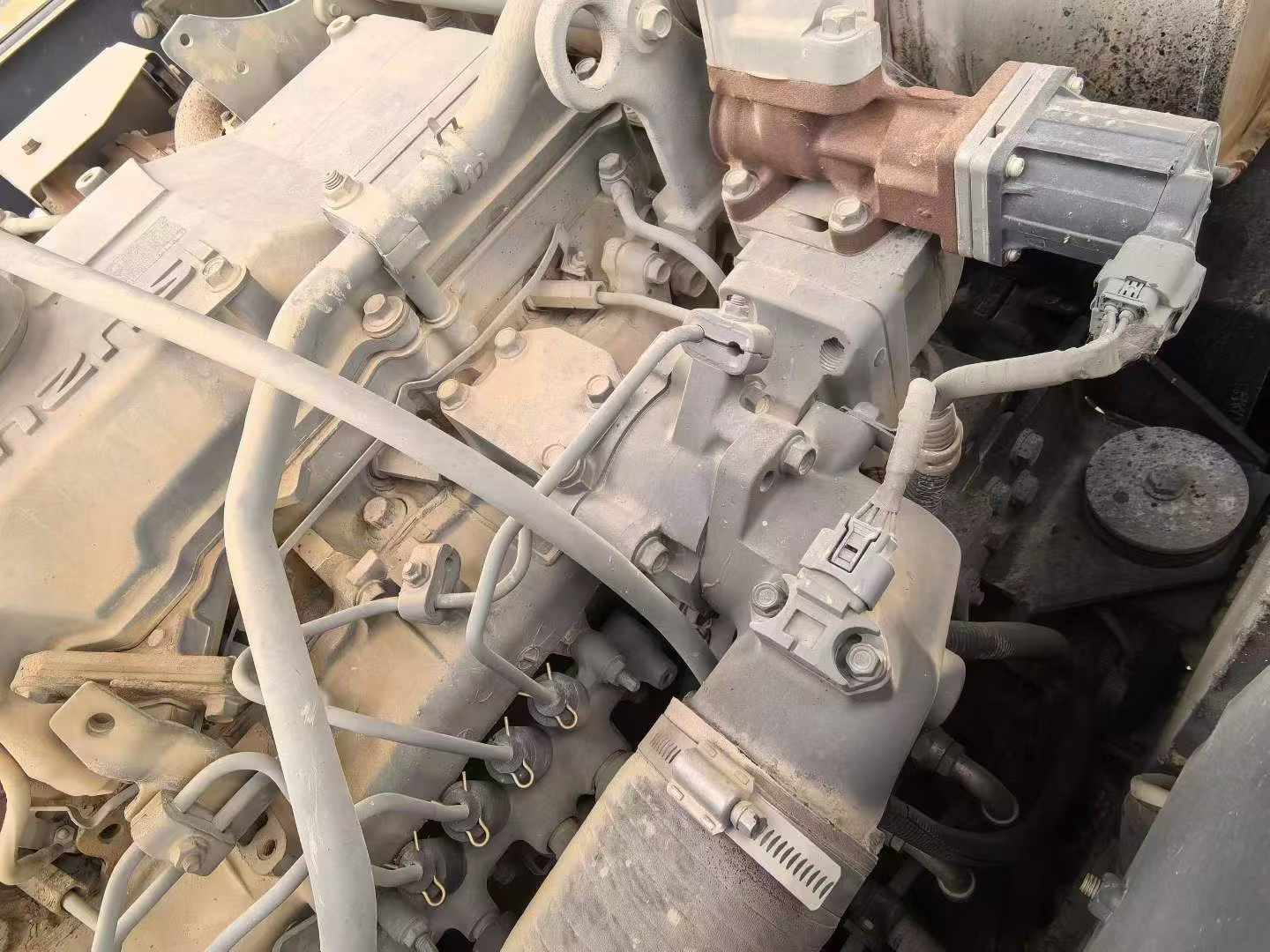

Buy Sumitomo SH210-5 Used Excavator / 2
Buy Sumitomo SH210-5 Used Excavator / 3
Buy Sumitomo SH210-5 Used Excavator / 4
Buy Sumitomo SH210-5 Used Excavator / 5

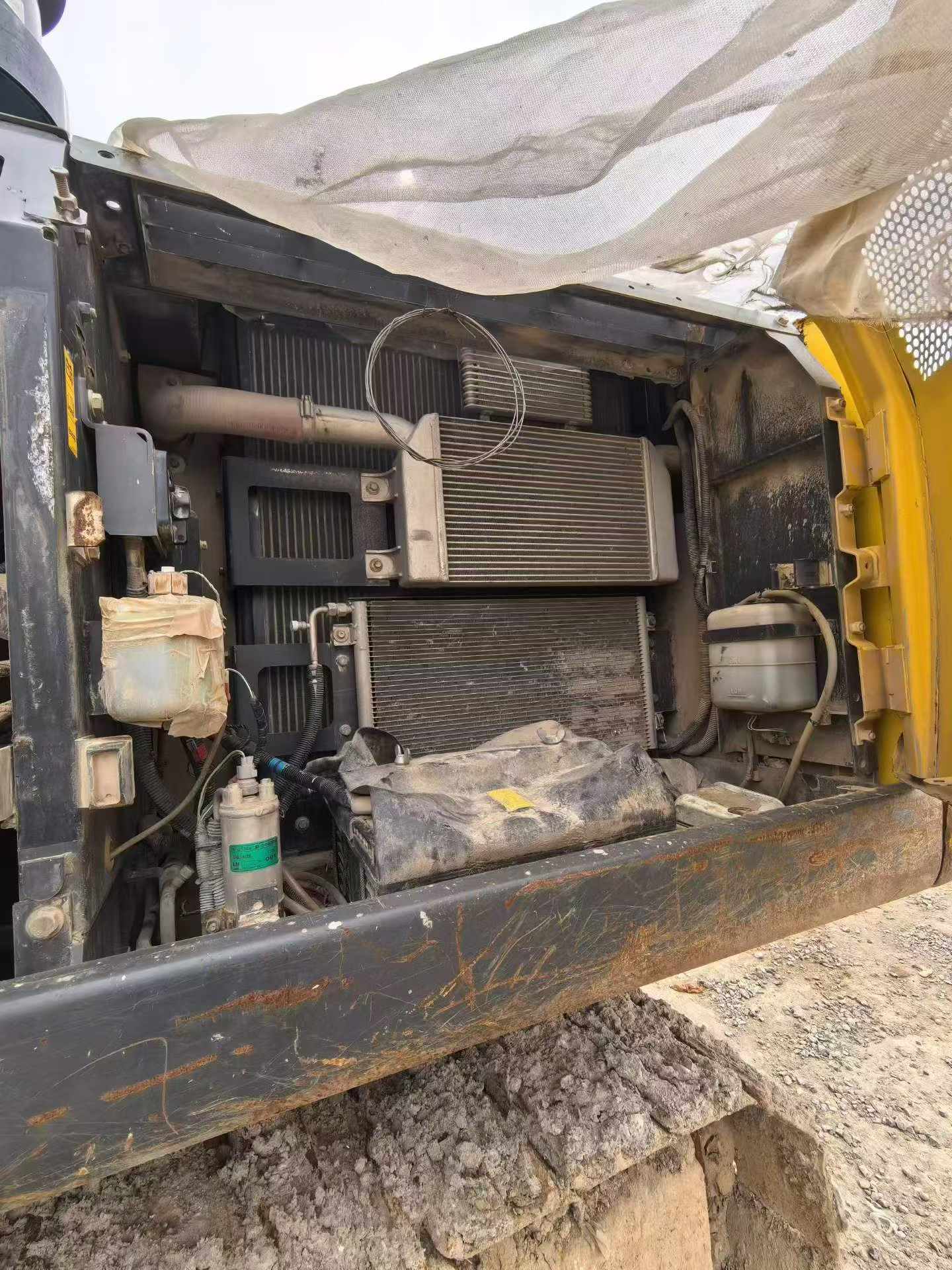

Buy Sumitomo SH210-5 Used Excavator / 6
Buy Sumitomo SH210-5 Used Excavator / 7
Buy Sumitomo SH210-5 Used Excavator / 8
Buy Sumitomo SH210-5 Used Excavator / 9

Product Description

This 2017 Sumitomo SH210-5 hydraulic excavator represents a well-maintained example of Sumitomo's proven 21-ton class platform. Currently located in Zhejiang, China, this machine is available for immediate inspection and delivery. The SH210-5 series is recognized in the industry for its fuel-efficient Isuzu engine, robust undercarriage design, and reliable hydraulic systems suited for general earthmoving, trenching, and site development applications.

Key features include:

  • Operating weight approximately 21,000 kg
  • Isuzu diesel engine with proven durability
  • Standard boom and arm configuration
  • Enclosed operator cabin with climate control
  • Well-documented service history

Additional photos and operational video are available upon request. Suitable for contractors seeking dependable mid-size excavation capacity with established parts support across Asian and international markets.

SpecificationsValue
No.1073454
Tonnage (tons)21
Working weight (kg)20600
Bucket capacity (m³)0.9-1.0
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Ground specific pressure (Kpa)45
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142
Rod digging force (kN)103
Travel speed (km/h)3.4/5.6
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)422
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1460
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)410
Hydraulic Tank (L)147
Engine Oil changes (L)23.1
Coolant (L)26
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
see more

Overview

No.1073454

Brand Name:

Sumitomo

Model Number:

SH210-5

Year:

2017

Location:

Zhejiang China

Pub Date

Are you interested in this machine?

Please contact us
