2019 Sumitomo SH210-5

1/5

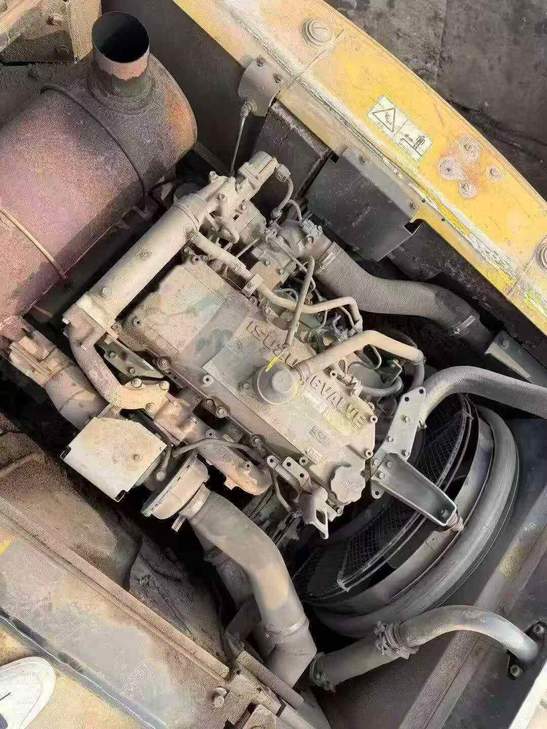

Buy Sumitomo SH210-5 Used Excavator / 1
Buy Sumitomo SH210-5 Used Excavator / 2
Buy Sumitomo SH210-5 Used Excavator / 3
Buy Sumitomo SH210-5 Used Excavator / 4
Buy Sumitomo SH210-5 Used Excavator / 5

Product Description

Built for high-output earthmoving and excavation, this 2019 Sumitomo SH210-5 delivers 21 tons of operational power with a 117.3 kW engine and 0.9-1.0 m³ bucket capacity. Currently located in Luzhou, Sichuan, this joint venture-manufactured excavator combines proven hydraulic performance with fuel-efficient traditional power systems designed for continuous jobsite operation.

Engineered for precision digging and material handling across construction, demolition, and grading projects. Maximum digging depth reaches 6,650 mm while maintaining a 9,900 mm working radius, allowing operators to tackle trenching, foundation work, and mass excavation without repositioning. The 142 kN bucket digging force and 103 kN arm force cut through compacted soil and fractured rock efficiently.

  • 20,600 kg working weight with 70% climbing capability for sloped terrain
  • 422 L/min hydraulic flow supports responsive multi-function control
  • 5,700 mm boom and 2,900 mm arm provide versatile reach configurations
  • 410 L fuel tank extends operating hours between refills
  • 3.4/5.6 km/h travel speeds optimize productivity during site navigation

Inspection-ready machine suitable for contractors requiri

SpecificationsValue
No.1041734
Tonnage (tons)21
Working weight (kg)20600
Bucket capacity (m³)0.9-1.0
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Ground specific pressure (Kpa)45
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142
Rod digging force (kN)103
Travel speed (km/h)3.4/5.6
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)422
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1460
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)410
Hydraulic Tank (L)147
Engine Oil changes (L)23.1
Coolant (L)26
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
