2020 Sumitomo SH210-5

1/9
Buy Sumitomo SH210-5 Used Excavator / 1
Buy Sumitomo SH210-5 Used Excavator / 2
Buy Sumitomo SH210-5 Used Excavator / 3
Buy Sumitomo SH210-5 Used Excavator / 4
Buy Sumitomo SH210-5 Used Excavator / 5
Buy Sumitomo SH210-5 Used Excavator / 6
Buy Sumitomo SH210-5 Used Excavator / 7
Buy Sumitomo SH210-5 Used Excavator / 8
Buy Sumitomo SH210-5 Used Excavator / 9

Product Description

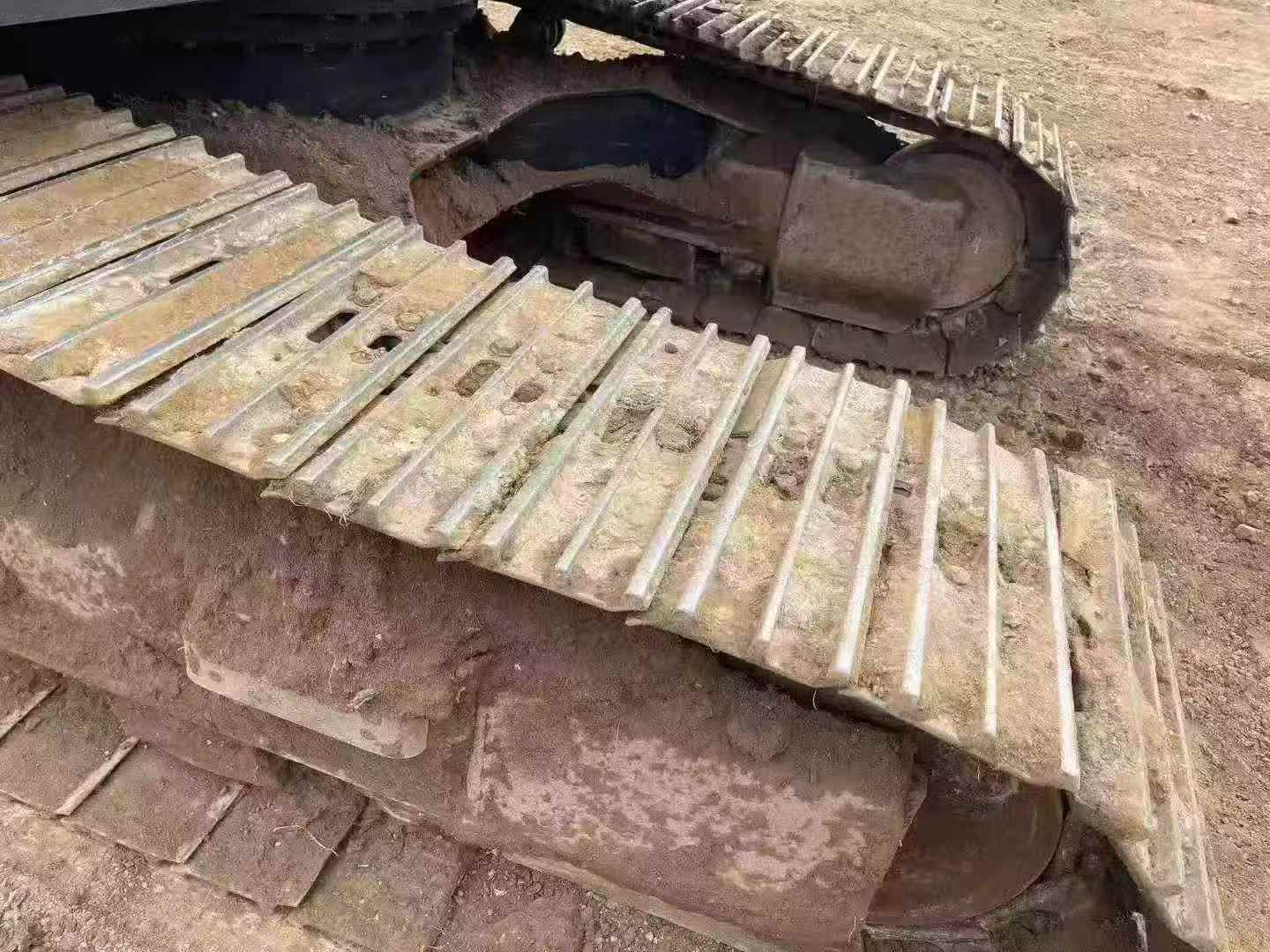

Discover the reliability and performance of the 2020 Sumitomo SH210-5, available in Hebei, China. This used excavator is in excellent condition, rated at 90% new, ensuring a robust and efficient addition to your fleet. The undercarriage is in perfect condition, and the machine is free from any significant oil leaks, highlighting its well-maintained nature. Ideal for demanding construction and excavation tasks, this model offers superior durability and operational efficiency.

  • Year: 2020
  • Brand: Sumitomo
  • Model: SH210-5
  • Condition: 90% New
  • Location: Hebei, China
SpecificationsValue
No.1100188
Tonnage (tons)21
Working weight (kg)20600
Bucket capacity (m³)0.9-1.0
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Ground specific pressure (Kpa)45
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142
Rod digging force (kN)103
Travel speed (km/h)3.4/5.6
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)422
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1460
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)410
Hydraulic Tank (L)147
Engine Oil changes (L)23.1
Coolant (L)26
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
