Product Description

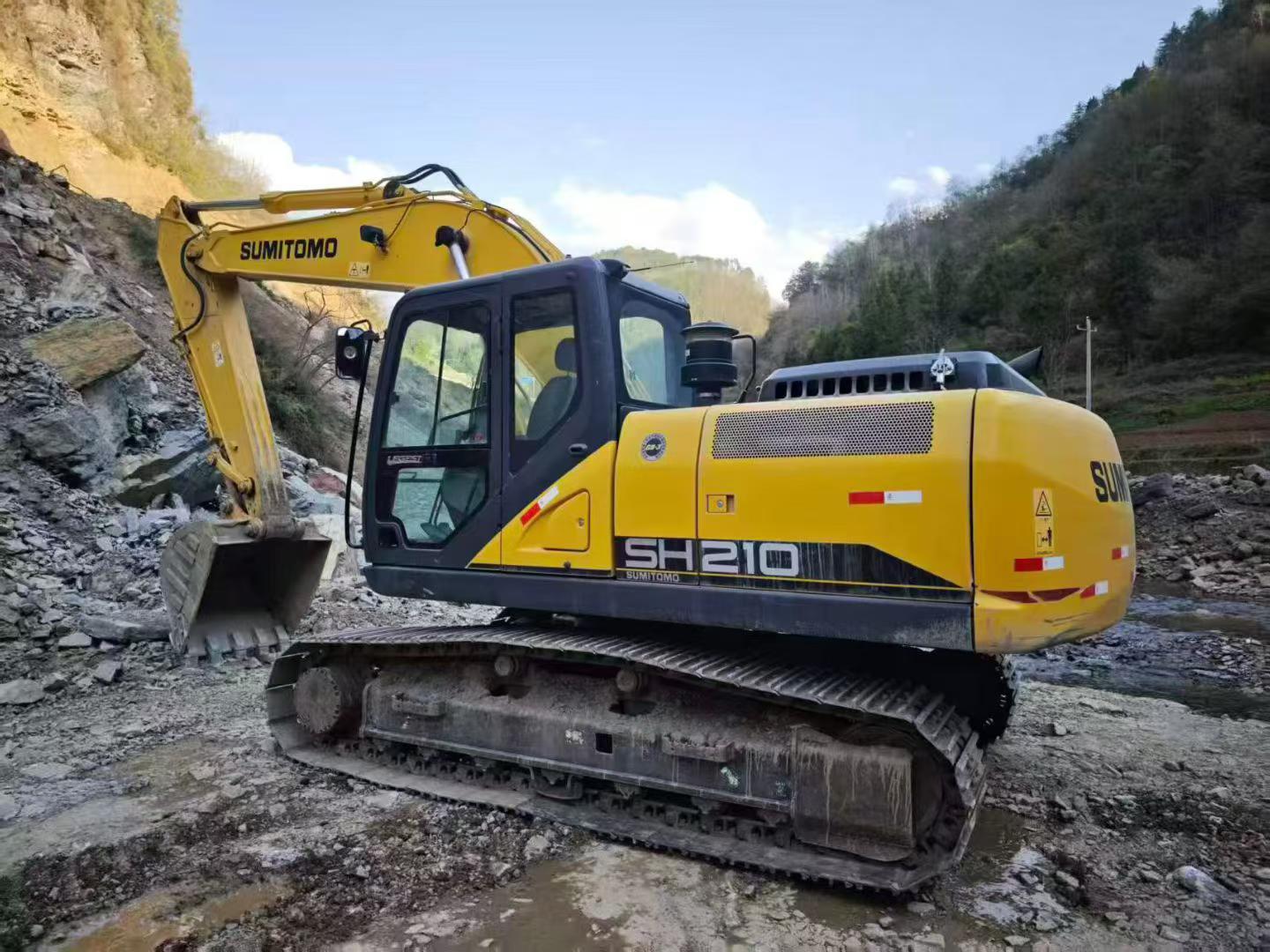

Available now in Shaanxi, this 2021 Sumitomo SH210-5 excavator eliminates factory wait times and delivers immediate productivity to your jobsite. Operating at 21 tons with a robust 117.3 kW engine, this machine combines proven Japanese engineering with the rapid deployment your project demands. Skip months of lead time—this backhoe-equipped crawler is ready for fast delivery across China and international markets.
- Working Weight: 20,600 kg with 0.9-1.0 m³ bucket capacity
- Digging Performance: 9,900 mm max reach, 6,650 mm max depth, 142 kN bucket force
- Hydraulic Power: 422 L/min main pump flow for efficient cycle times
- Fuel Capacity: 410 L tank supports extended operation between refills
- Dimensions: 9,400 mm transport length, 2,800 mm width for standard trailer shipping
Positioned in Shaanxi for rapid logistics throughout Western China, this SH210-5 offers immediate availability without compromising on quality. Secure your equipment today and keep your project schedule on track.
| Specifications | Value |
|---|---|
| No. | 1043381 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.9-1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 3.4/5.6 |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1460 |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
