Product Description

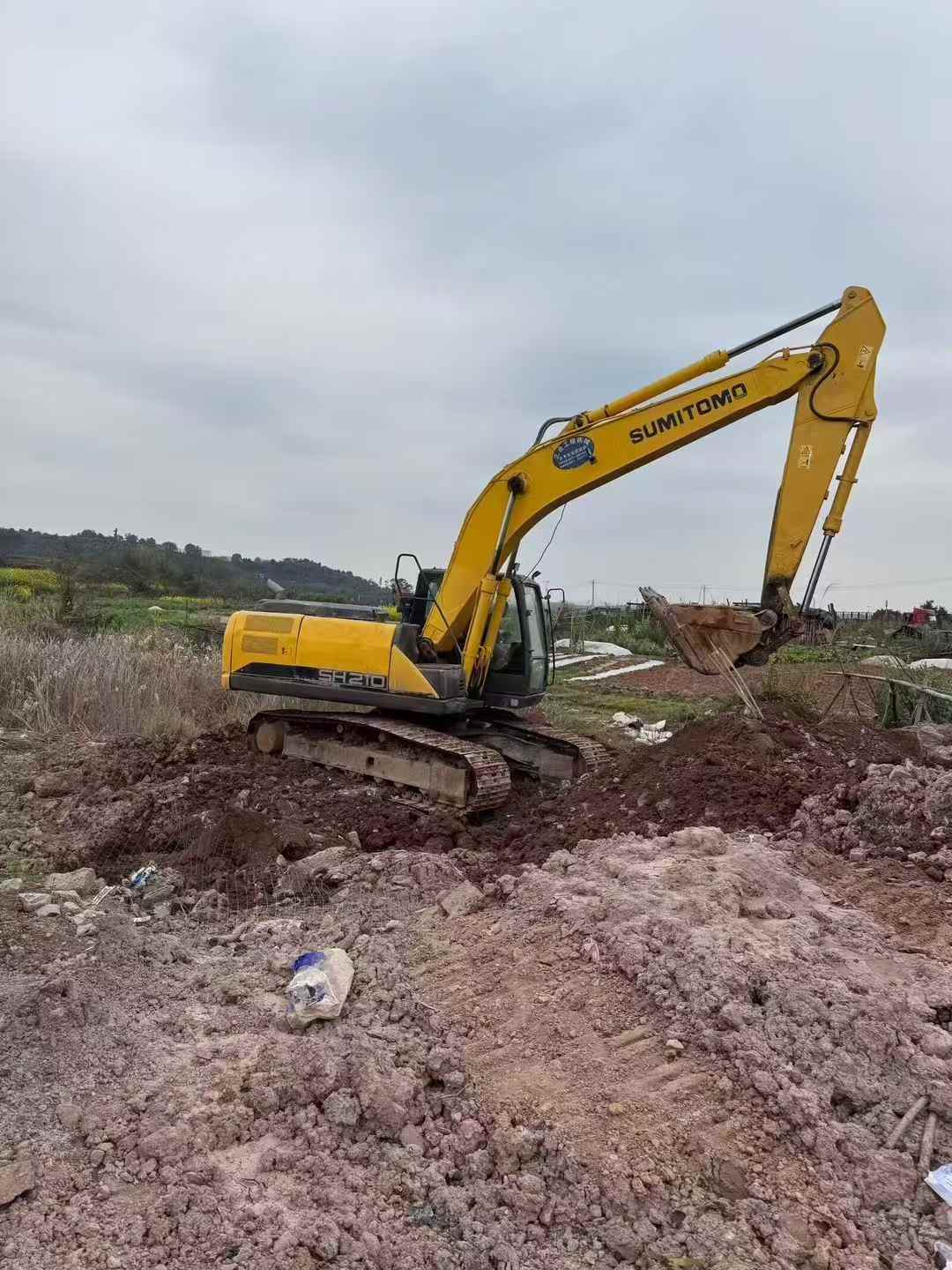

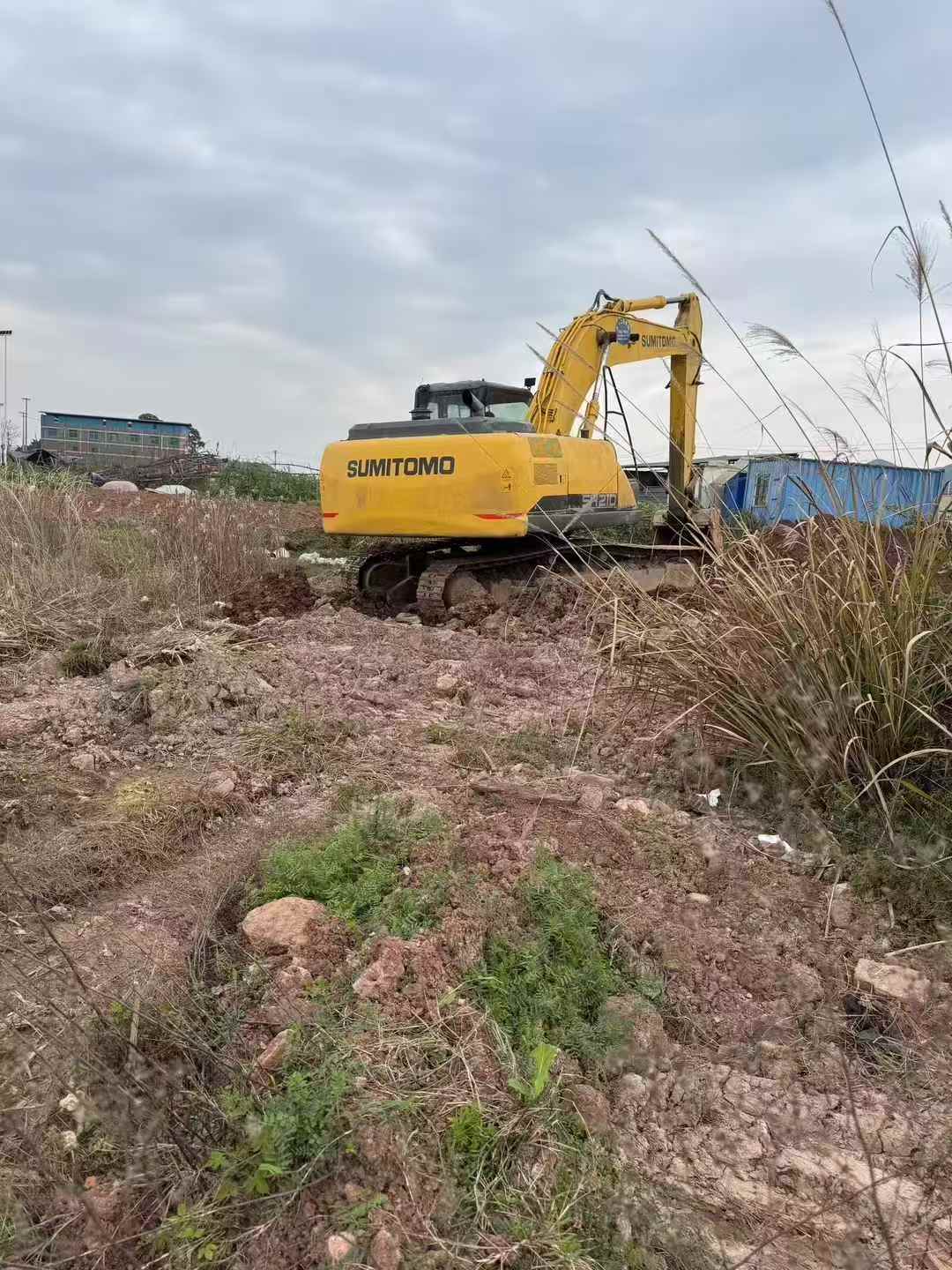

Built in 2016, this Sumitomo SH210-6 excavator delivers proven reliability backed by one of the industry's most trusted joint-venture manufacturers. Operating at 21 tons with a robust 117.3 kW engine, this machine offers exceptional digging performance—maximum reach of 9900mm and bucket force up to 152 kN—making it ideal for demanding construction and earthmoving projects. Currently located in Guizhou, this model features a 0.85-1.0 m³ bucket capacity and efficient hydraulic systems designed for extended service life.
Sumitomo excavators maintain strong resale value due to widespread parts availability and straightforward maintenance protocols. The SH210-6 series is particularly valued for its durable construction and compatibility with aftermarket components, reducing downtime and repair costs. Key specifications include:
- Working weight: 21,000 kg with 5700mm boom and 2900mm arm
- Maximum digging depth: 6650mm; maximum digging height: 9610mm
- Travel speed: 5.6 km/h with 70% climbing ability
- Fuel capacity: 410L for extended operational shifts
- Transport dimensions: 9400mm × 2800mm × 2970mm
Invest in a machine engineered for longevity and supported by global service
| Specifications | Value |
|---|---|
| No. | 1024234 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21000 |
| Bucket capacity (m³) | 0.85~1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 / 2400 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 47 / 36 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 / 152 |
| Rod digging force (kN) | 103 / 110 |
| Travel speed (km/h) | 5.6 / 3.4 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 / 36.8 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4180 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900/9420 |
| Maximum digging depth (mm) | 6650/6110 |
| Maximum excavation height (mm) | 9610/9410 |
| Maximum unloading height (mm) | 6810/6590 |
| Maximum vertical digging depth (mm) | 5960/5500 |
