2016 Sumitomo SH210-6

1/9
Buy Sumitomo SH210-6 Used Excavator / 1

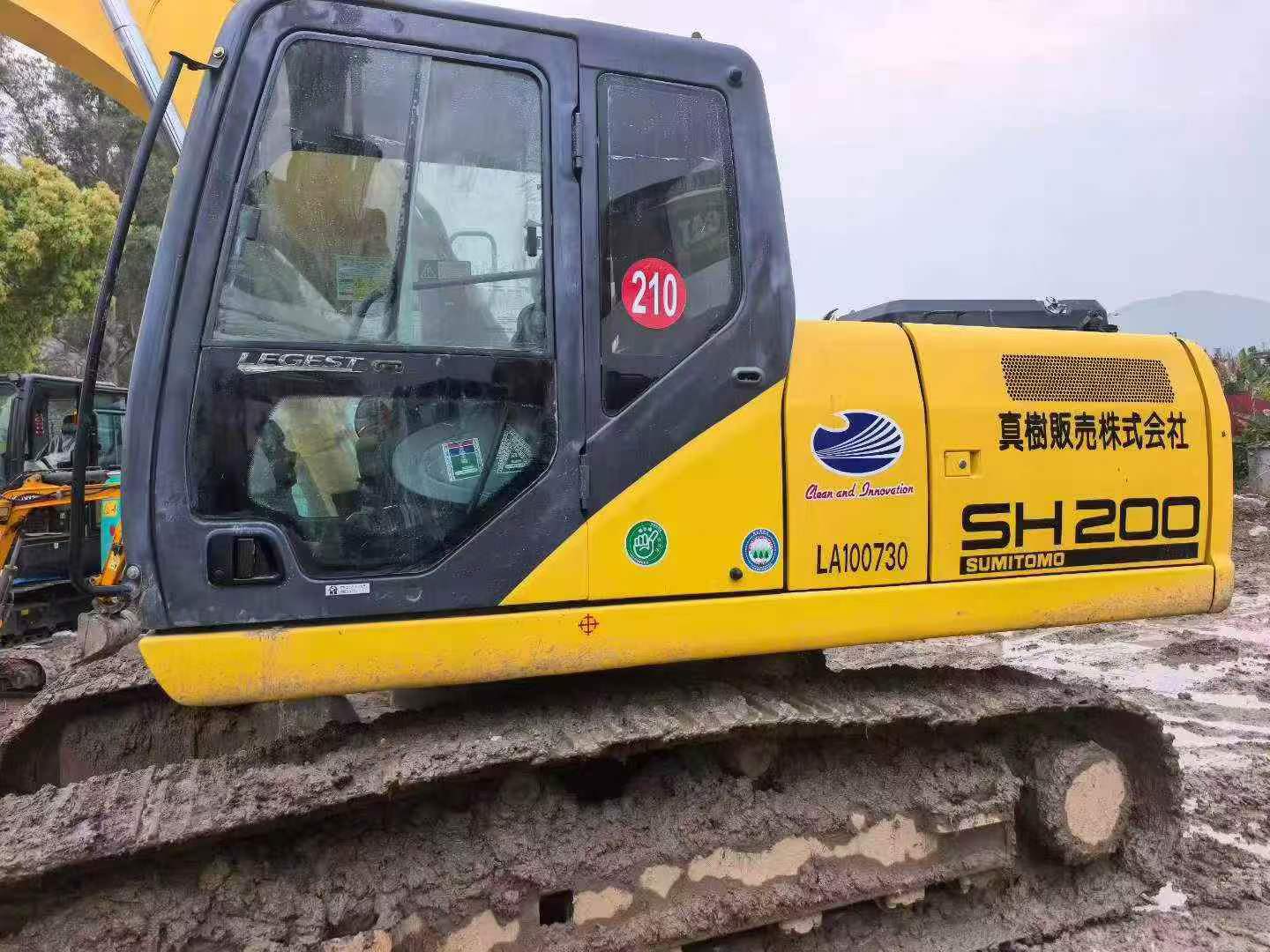

Buy Sumitomo SH210-6 Used Excavator / 2

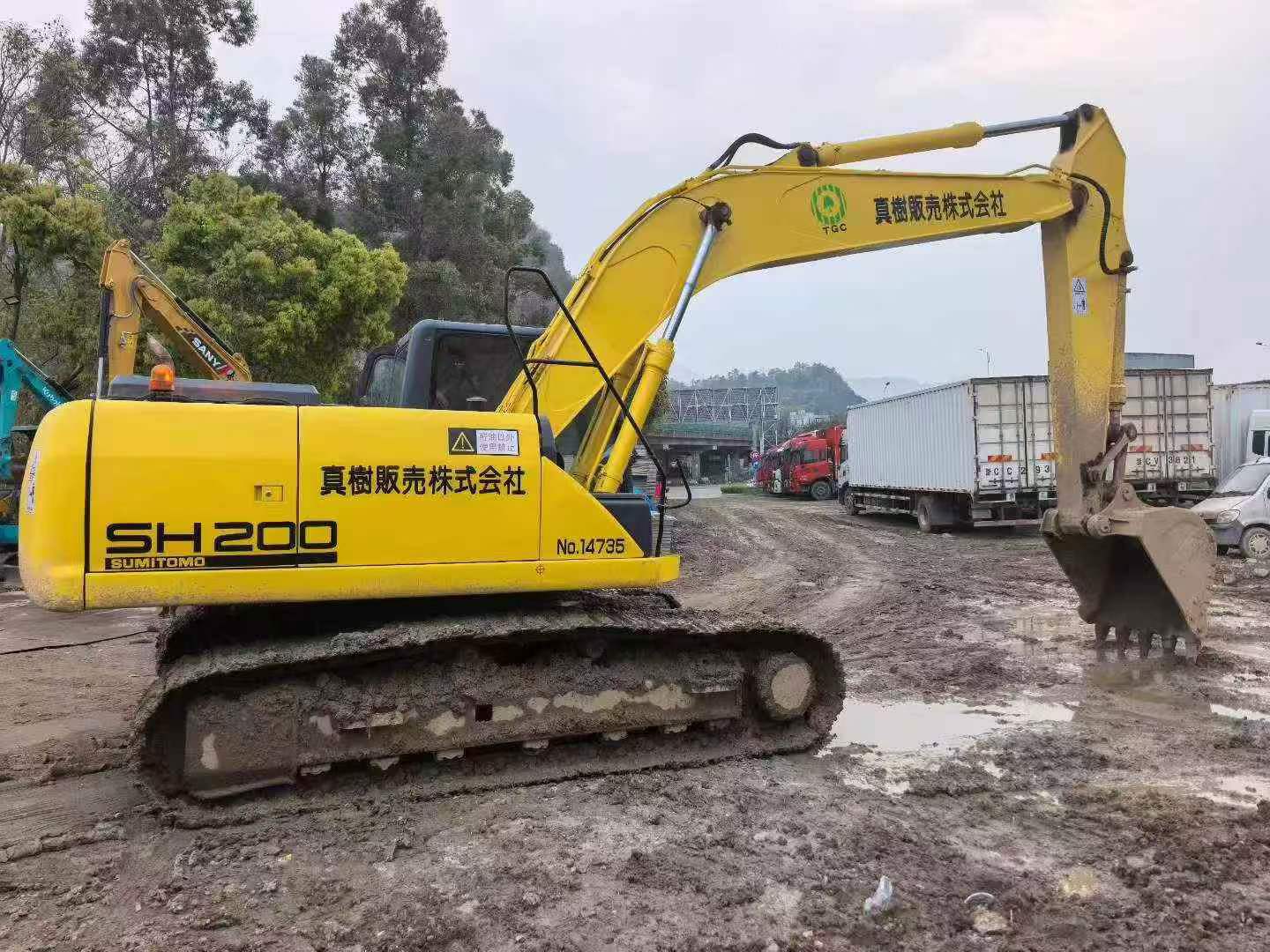

Buy Sumitomo SH210-6 Used Excavator / 3

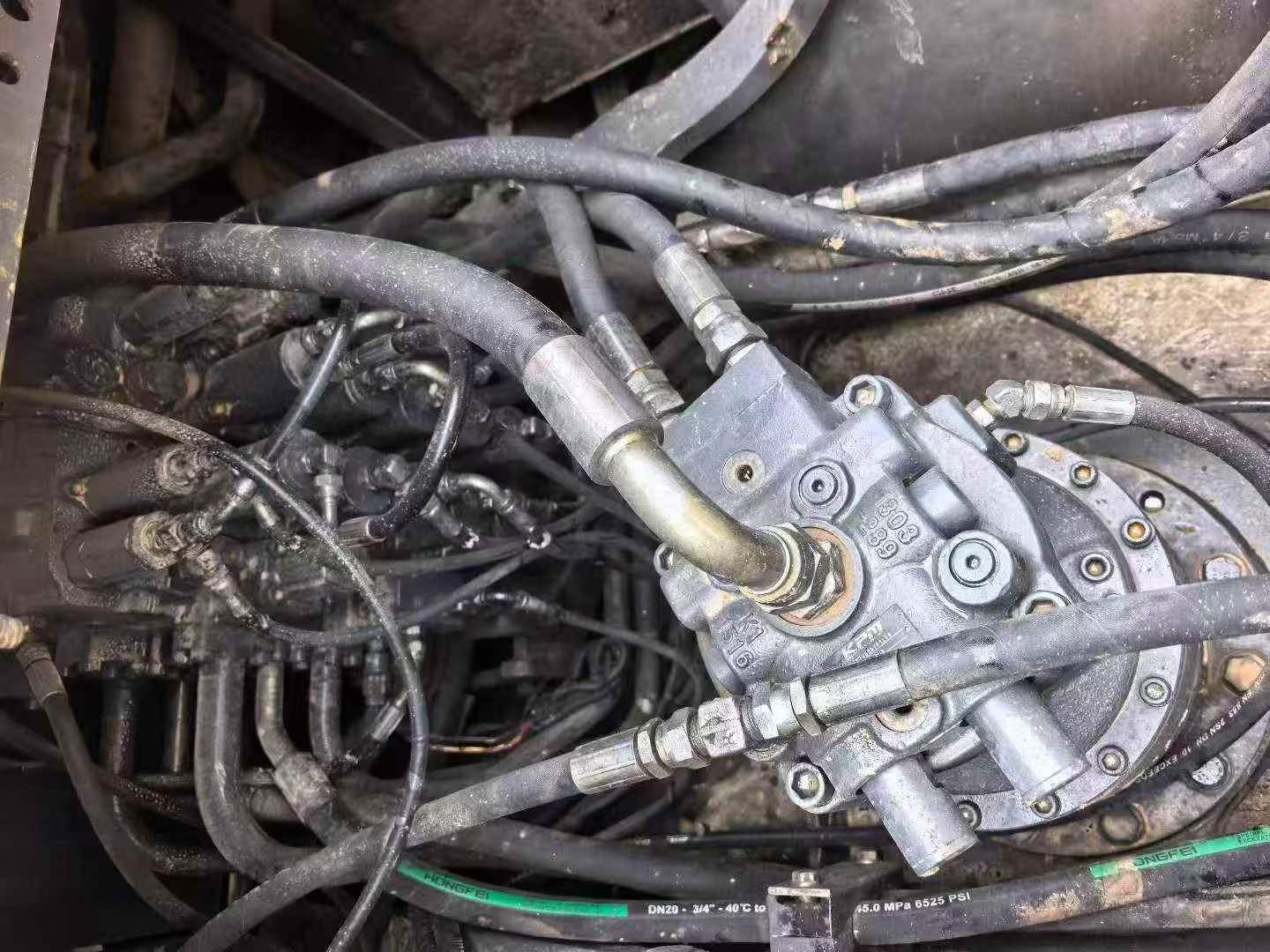

Buy Sumitomo SH210-6 Used Excavator / 4

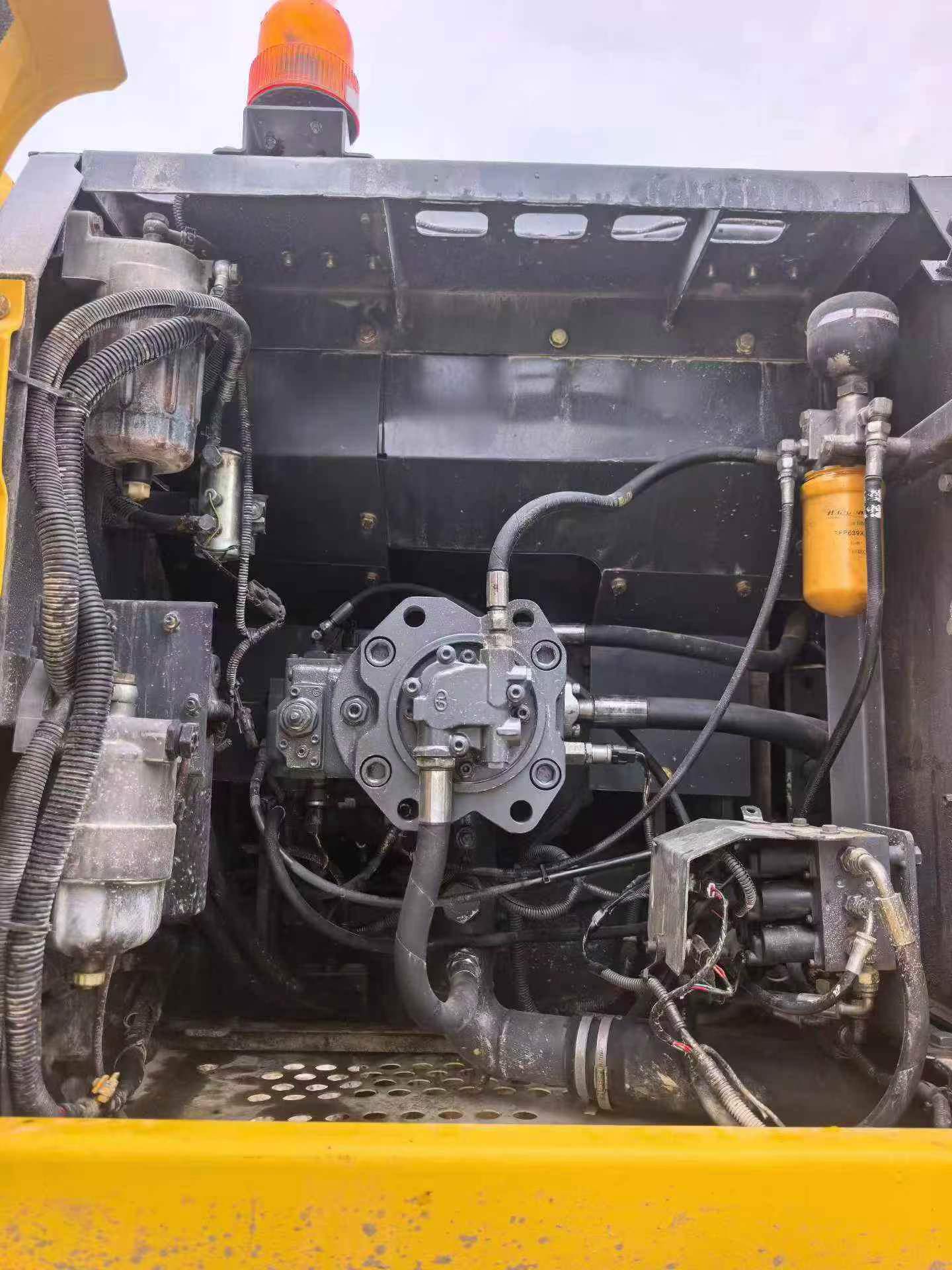

Buy Sumitomo SH210-6 Used Excavator / 5

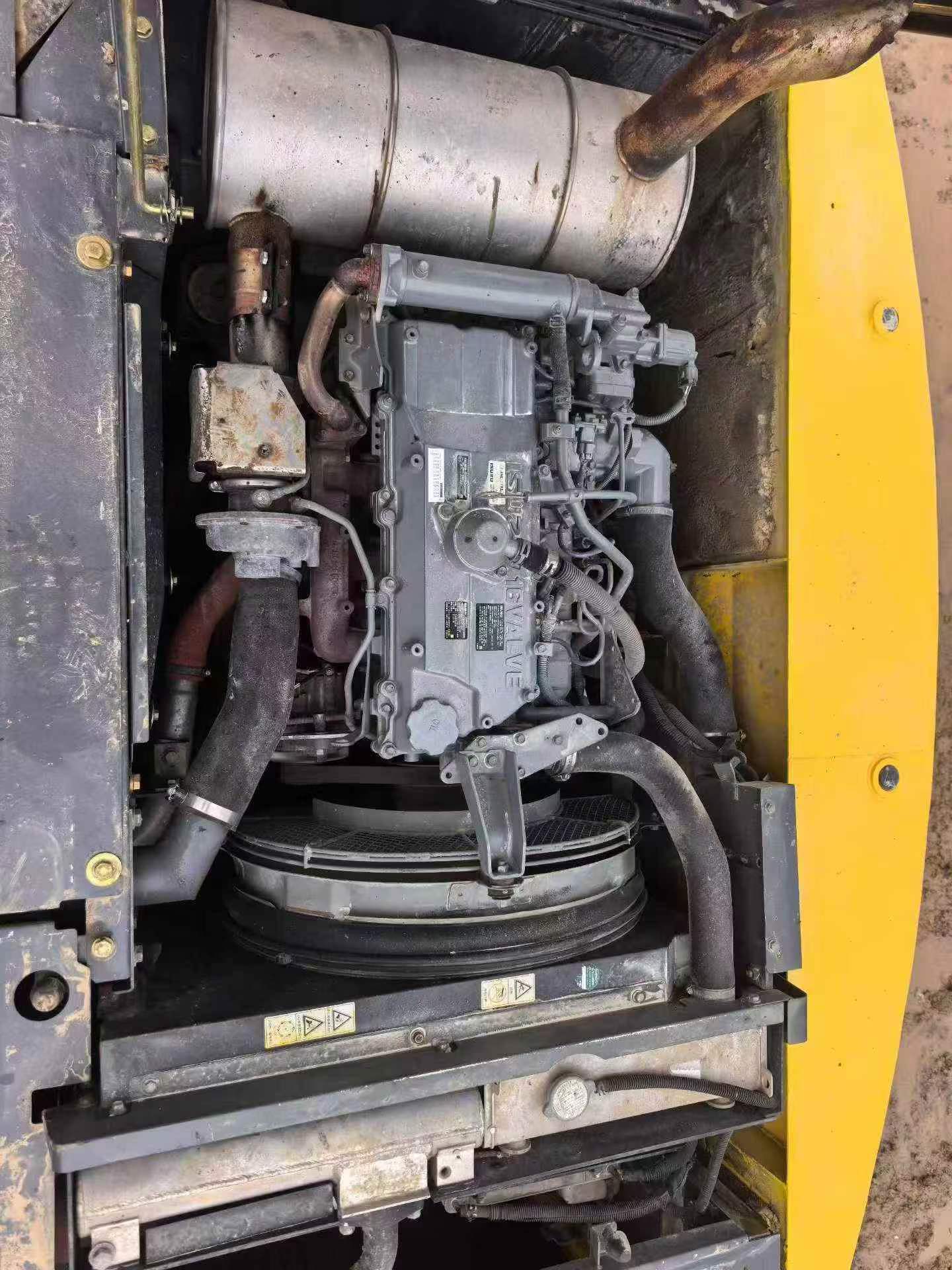

Buy Sumitomo SH210-6 Used Excavator / 6

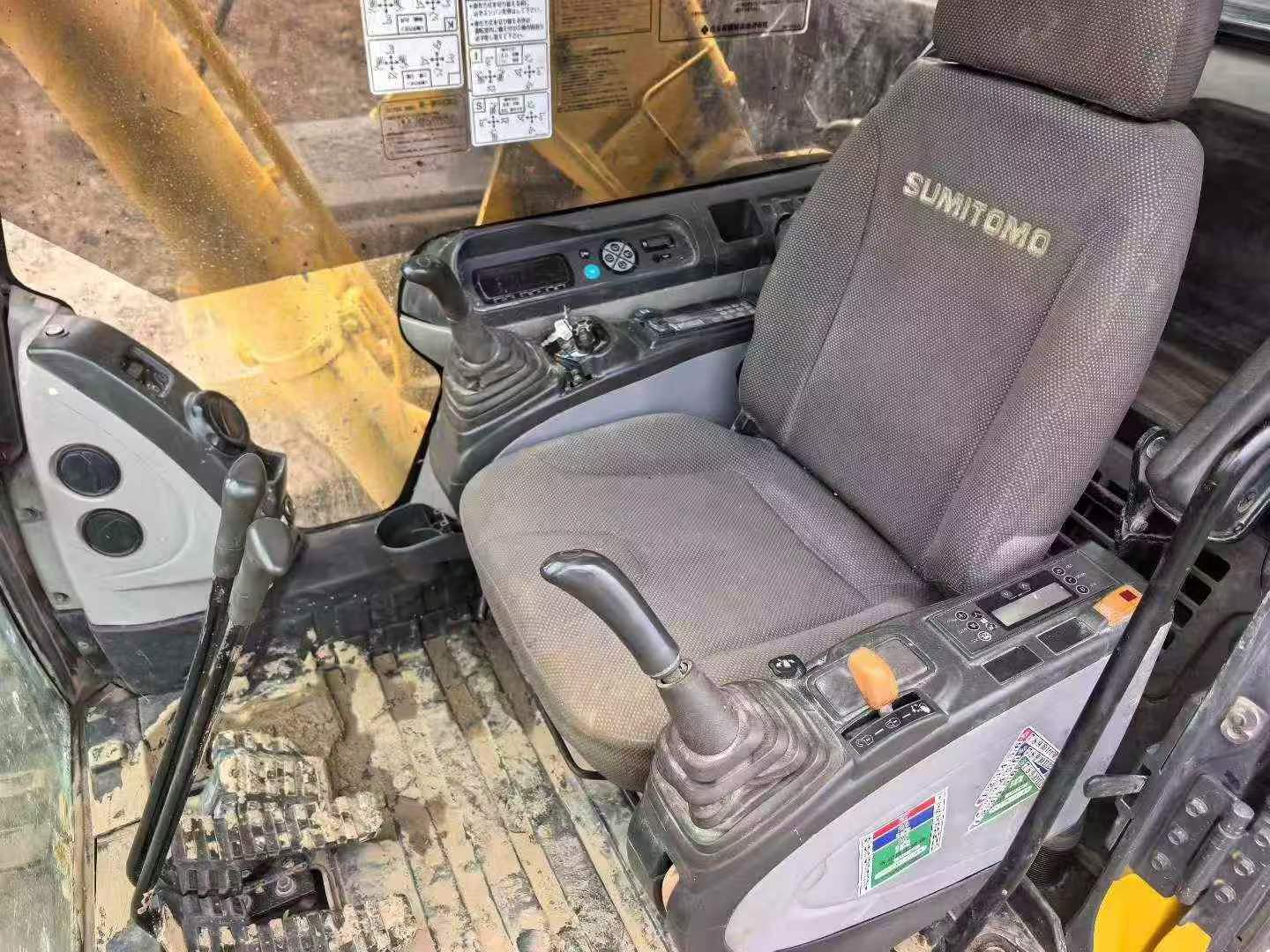

Buy Sumitomo SH210-6 Used Excavator / 7

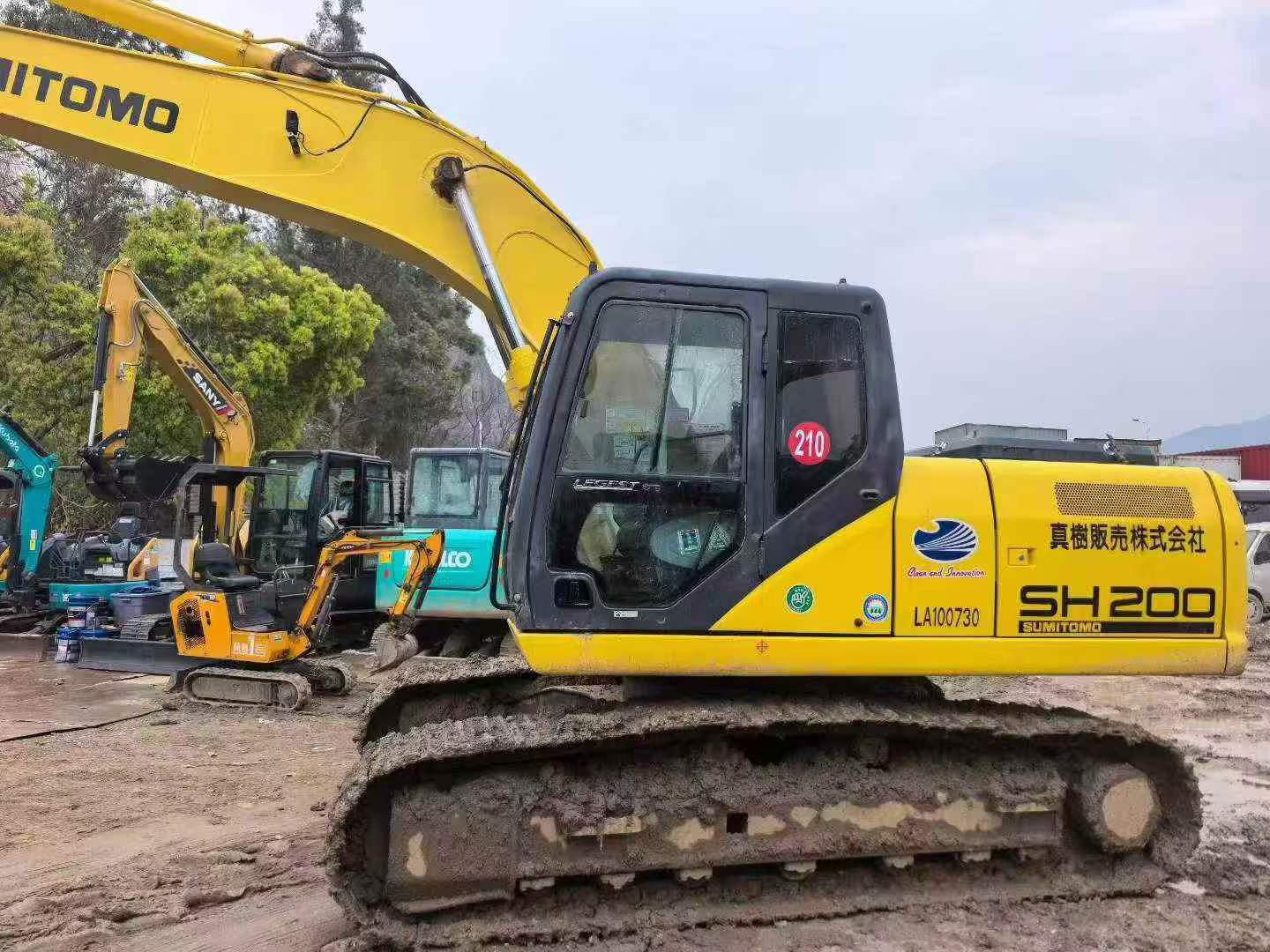

Buy Sumitomo SH210-6 Used Excavator / 8

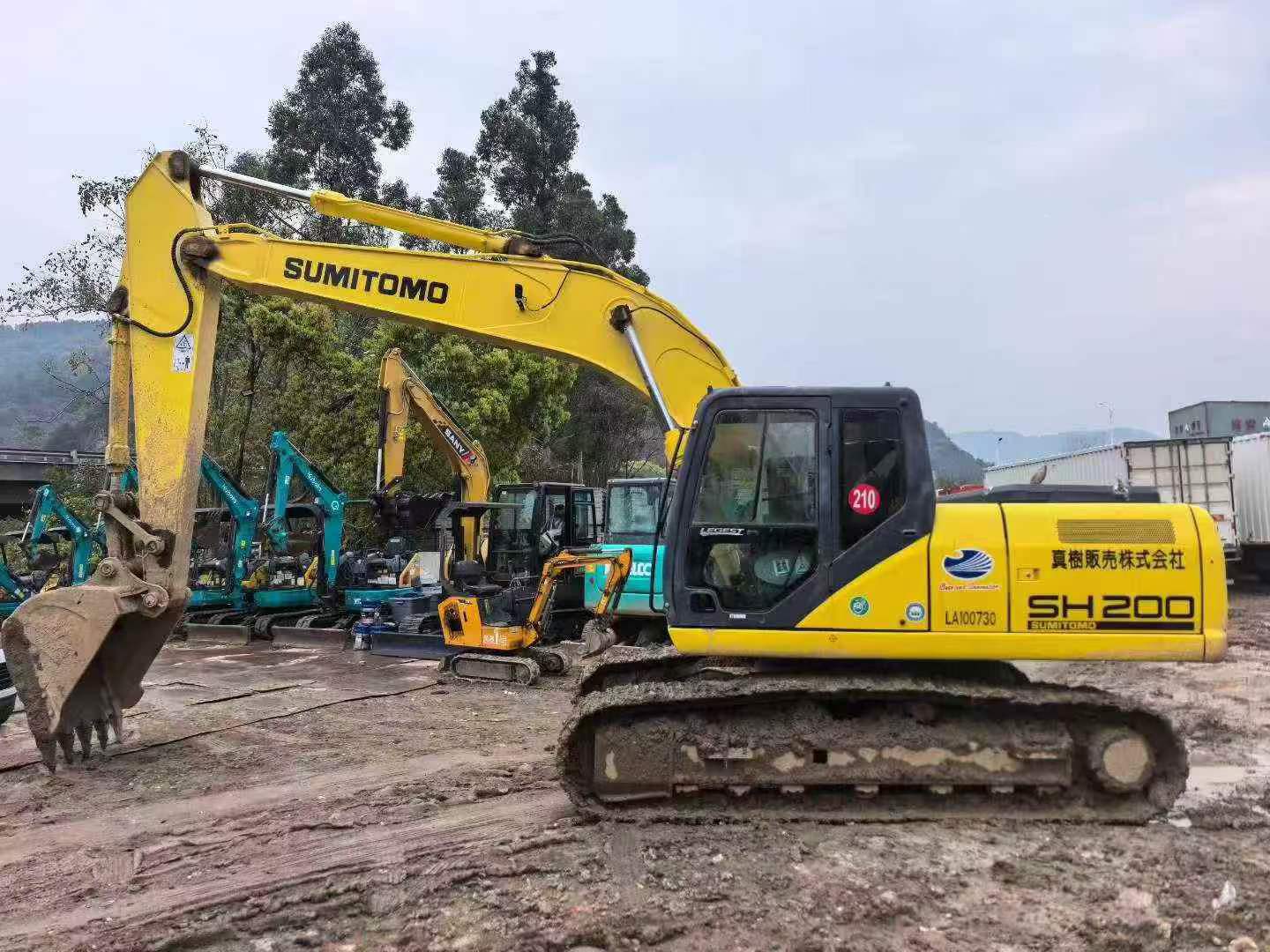

Buy Sumitomo SH210-6 Used Excavator / 9

Product Description

Built for heavy-duty excavation and grading, this 2016 Sumitomo SH210-6 delivers 21 tons of proven performance on demanding job sites. Powered by a reliable engine generating 117.3 kW at 1800 rpm, this crawler excavator handles deep foundation work, mass excavation, and material loading with precision and efficiency.

Equipped with a 0.85-1.0 m³ backhoe bucket, 5700mm boom, and adjustable arm configurations (2900mm/2400mm), this machine achieves a maximum digging depth of 6650mm and an impressive reach of 9900mm. The robust hydraulic system operates at 34.3 MPa, providing 142 kN bucket digging force and 103 kN arm digging force—ideal for breaking through compacted soil and demolition applications.

Key Performance Specifications:

  • Operating weight: 21,000 kg with 600mm track plates for stable ground contact
  • 410L fuel capacity supports extended shifts without refueling interruptions
  • 70% grading capability and 11.5 rpm swing speed maximize productivity
  • Compact 2750mm rear turning radius enables work in confined spaces
  • Currently located in Wenzhou, Zhejiang—ready for immediate deployment
SpecificationsValue
No.1050979
Tonnage (tons)21
Working weight (kg)21000
Bucket capacity (m³)0.85~1.0
Boom length (mm)5700
Rod length (mm)2900 / 2400
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Displacement (L)5.193
Ground specific pressure (Kpa)47 / 36
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142 / 152
Rod digging force (kN)103 / 110
Travel speed (km/h)5.6 / 3.4
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3 / 36.8
Fuel Tank (L)410
Hydraulic Tank (L)147
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2750
Total track length (mm)4180
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900/9420
Maximum digging depth (mm)6650/6110
Maximum excavation height (mm)9610/9410
Maximum unloading height (mm)6810/6590
Maximum vertical digging depth (mm)5960/5500
see more

Overview

No.1050979

Brand Name:

Sumitomo

Model Number:

SH210-6

Year:

2016

Location:

Zhejiang China

Pub Date
