Product Description

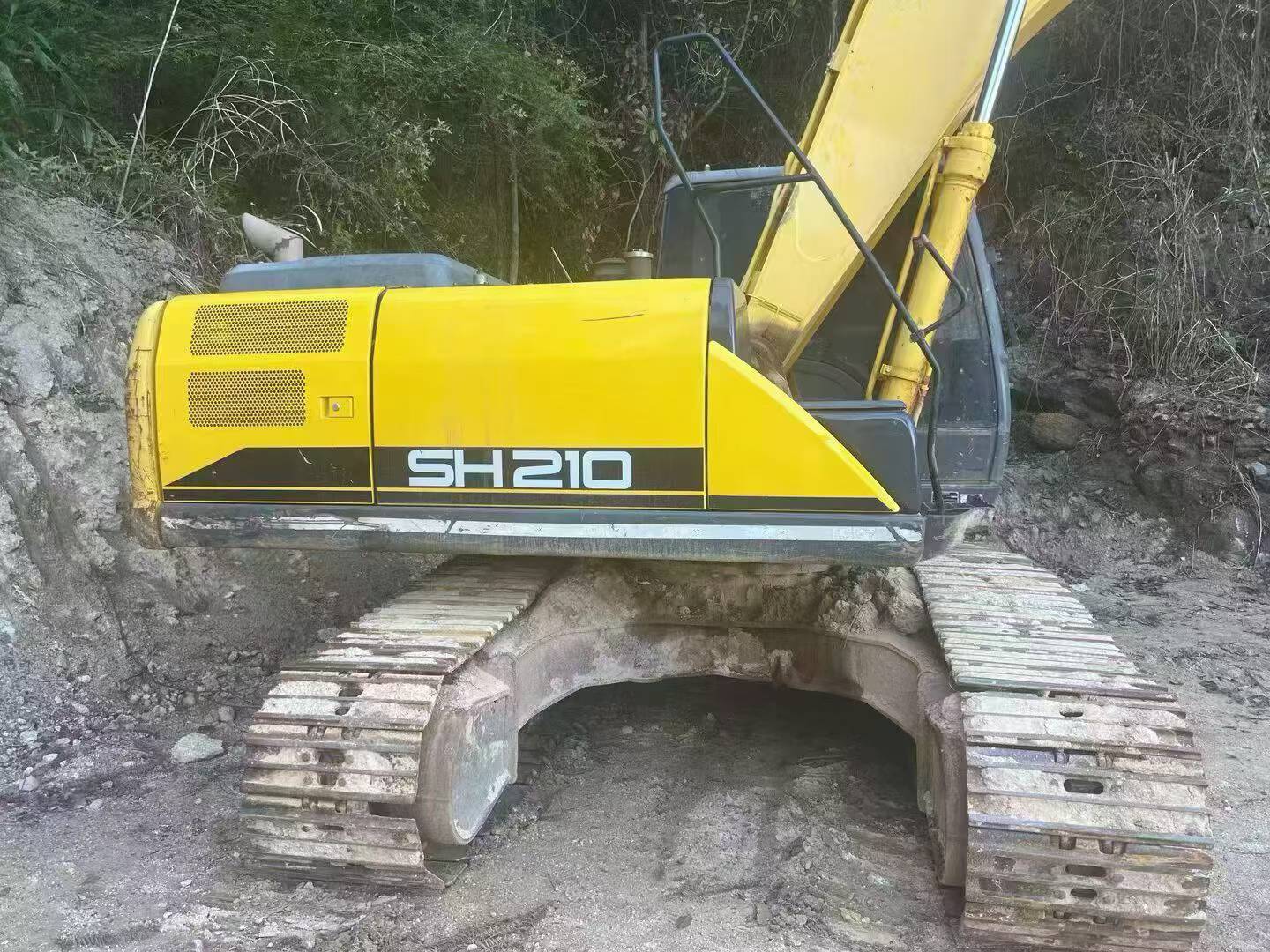

Expand your fleet capacity with this 2017 Sumitomo SH210-6 excavator, a proven 21-ton workhorse engineered for contractors managing multiple job sites. Powered by a robust 117.3kW engine and variable capacity piston hydraulic system, this joint-venture machine delivers consistent performance across demanding applications. With a 0.85–1.0m³ bucket capacity and maximum digging depth of 6,650mm, it matches the productivity of your primary units while serving as reliable backup during peak seasons or scheduled maintenance windows.
- Fleet-Ready Specs: 21,000kg operating weight, 9,900mm max reach, 142kN bucket force
- Versatile Boom Options: 2,900mm or 2,400mm stick configurations adapt to varying site conditions
- Operational Efficiency: 410L fuel tank, 34.3MPa hydraulic circuit, 5.6km/h travel speed
- Compact Transport: 9,400mm length fits standard lowboy trailers for quick mobilization
- Proven Reliability: Sumitomo-engineered hydraulics and climbing ability up to 70% grade
Currently located in Hunan, this SH210-6 integrates seamlessly into existing Sumitomo fleets or complements mixed-brand opera
| Specifications | Value |
|---|---|
| No. | 1032812 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21000 |
| Bucket capacity (m³) | 0.85~1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 / 2400 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 47 / 36 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 / 152 |
| Rod digging force (kN) | 103 / 110 |
| Travel speed (km/h) | 5.6 / 3.4 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 / 36.8 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4180 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900/9420 |
| Maximum digging depth (mm) | 6650/6110 |
| Maximum excavation height (mm) | 9610/9410 |
| Maximum unloading height (mm) | 6810/6590 |
| Maximum vertical digging depth (mm) | 5960/5500 |
