HOME>>Sumitomo>>Sumitomo SH210-6

2018 Sumitomo SH210-6

1/7
Buy Sumitomo SH210-6 Used Excavator / 1

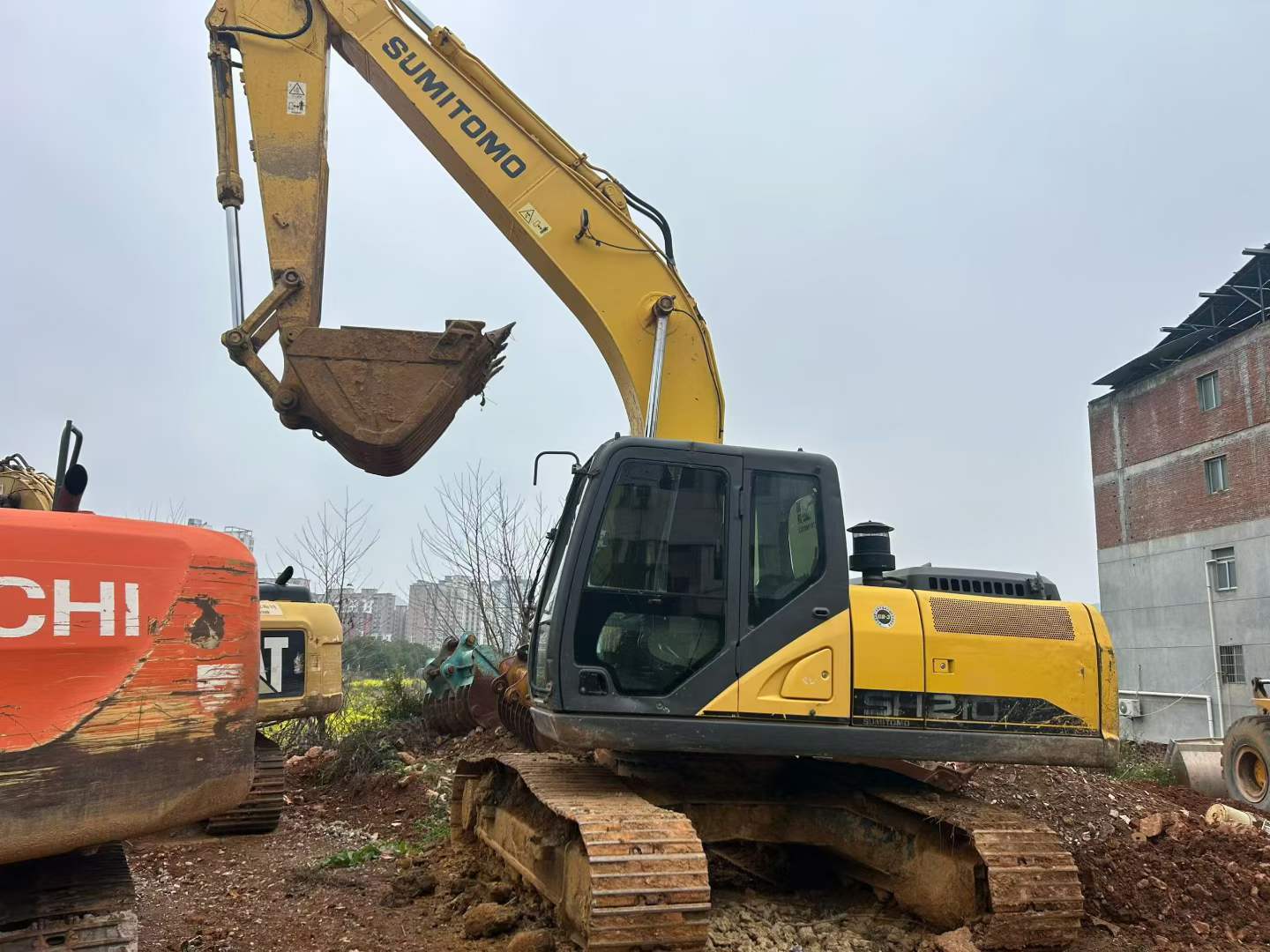

Buy Sumitomo SH210-6 Used Excavator / 2

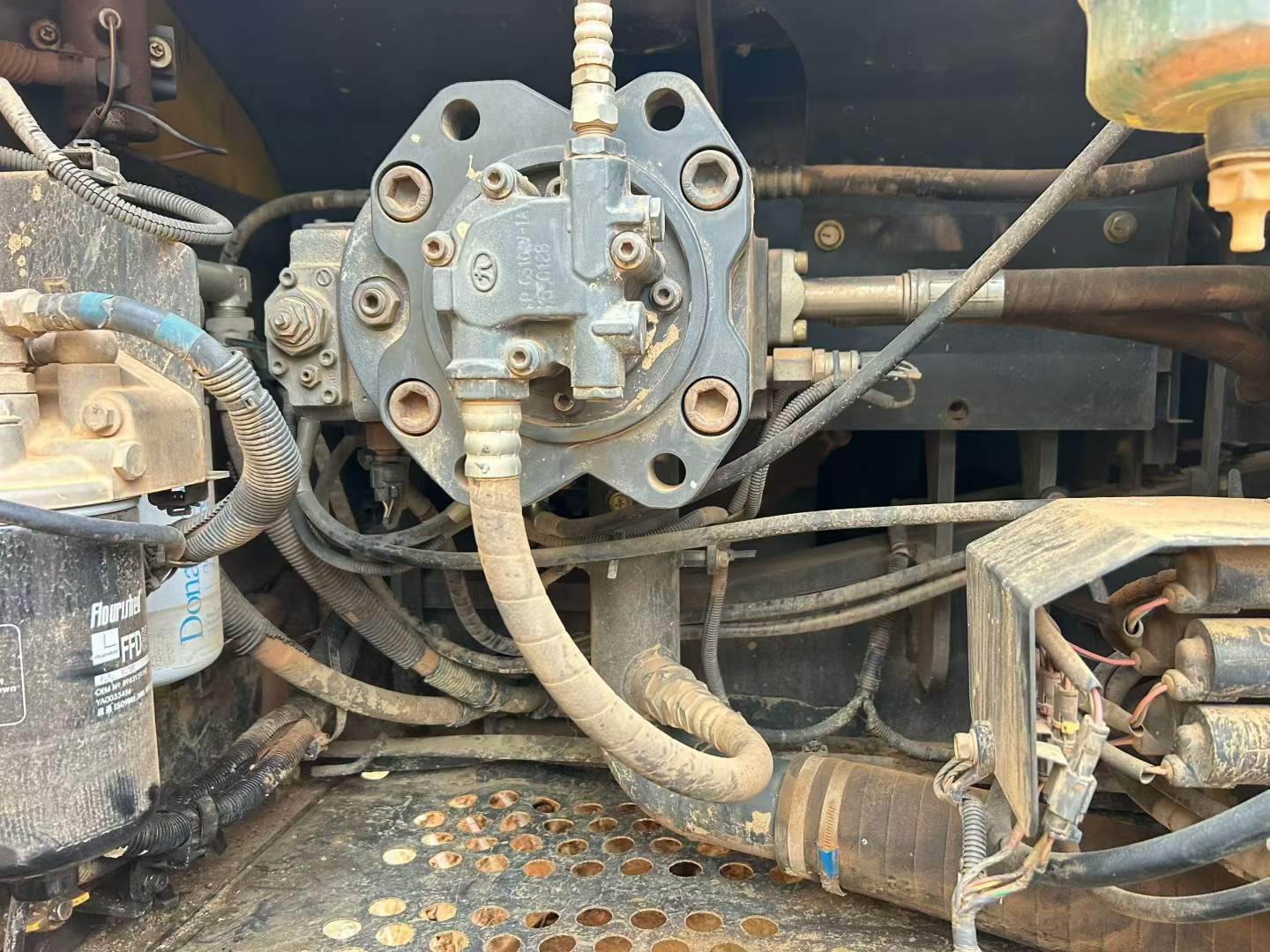

Buy Sumitomo SH210-6 Used Excavator / 3

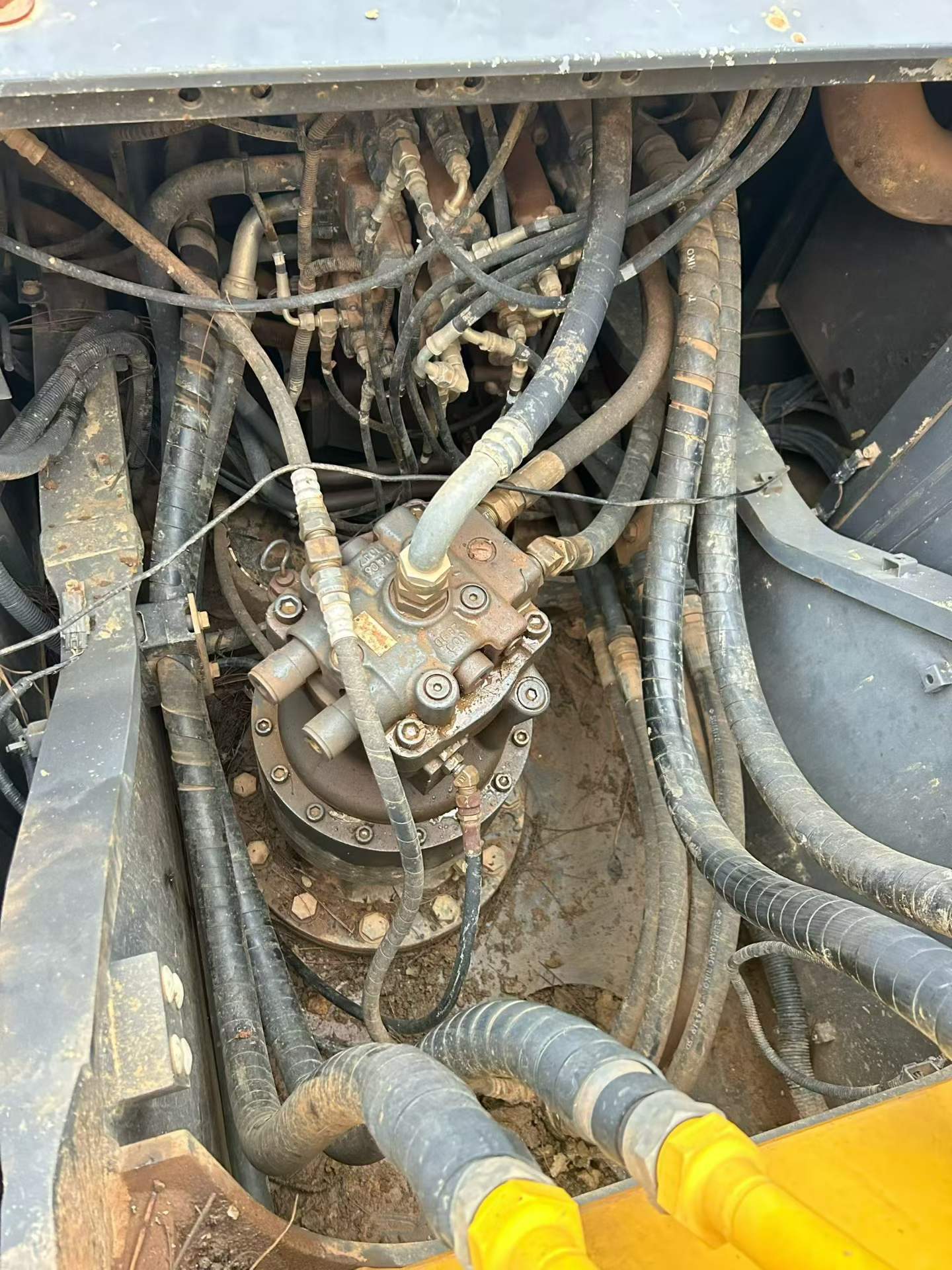

Buy Sumitomo SH210-6 Used Excavator / 4

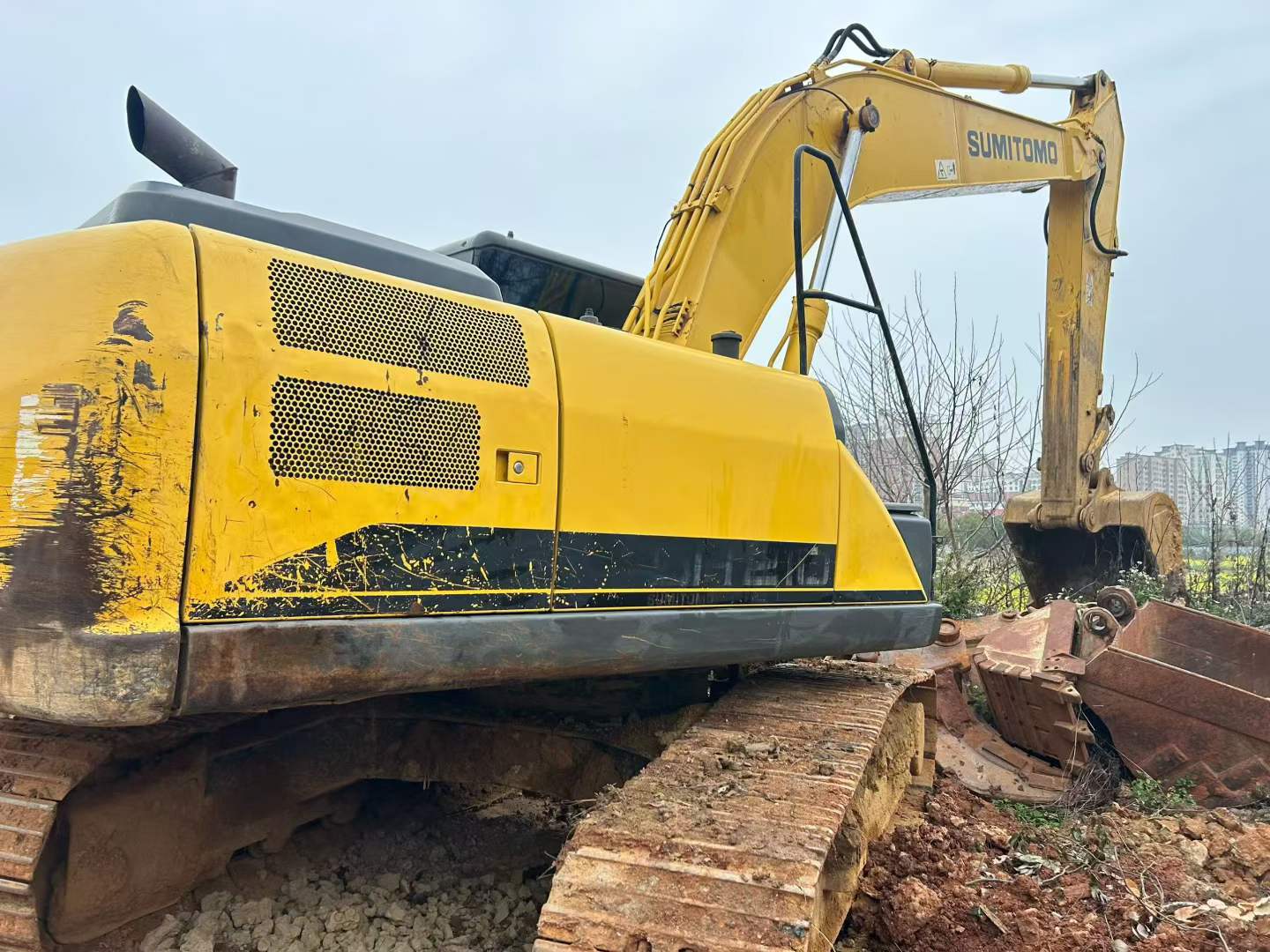

Buy Sumitomo SH210-6 Used Excavator / 5

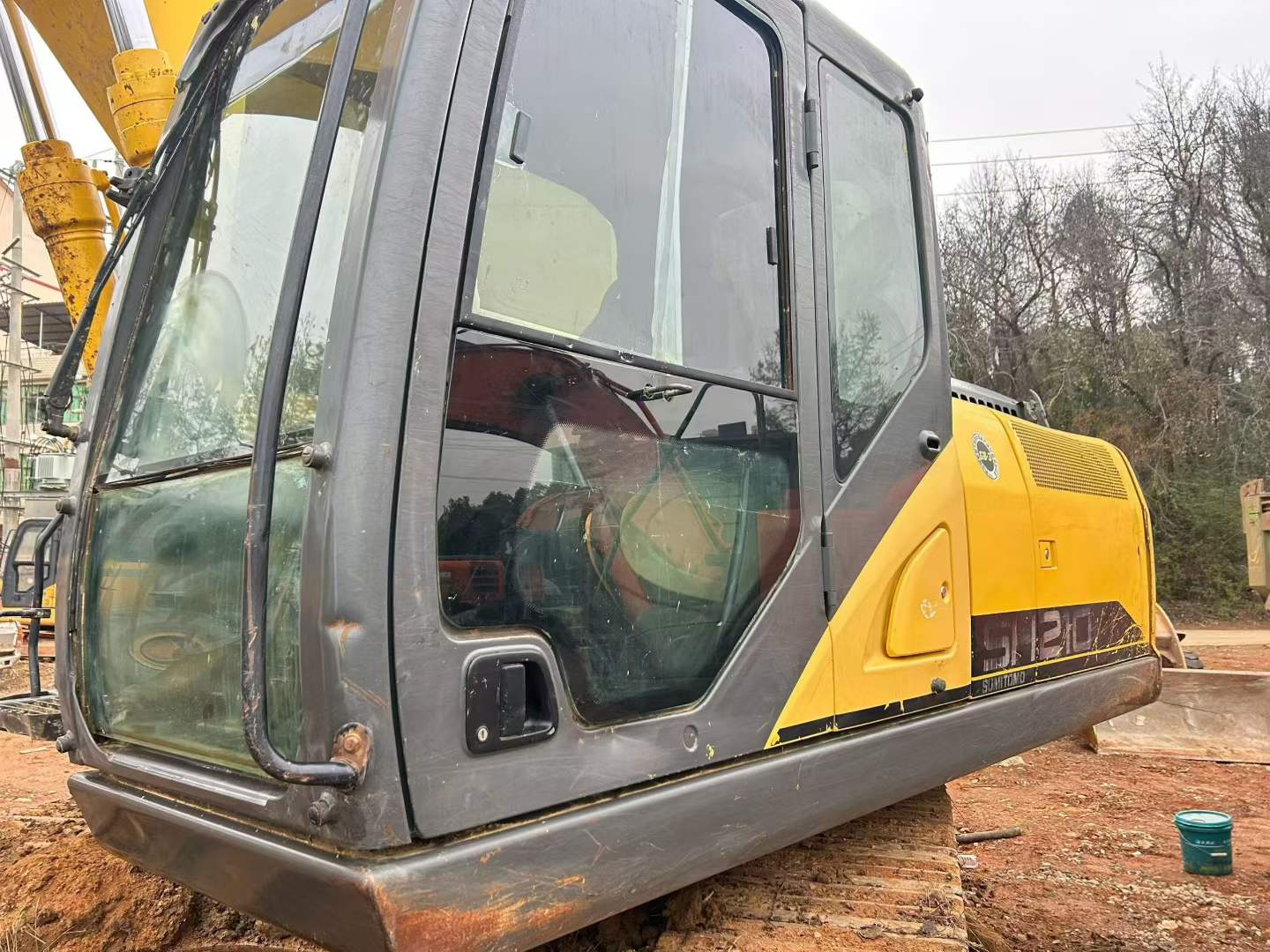

Buy Sumitomo SH210-6 Used Excavator / 6

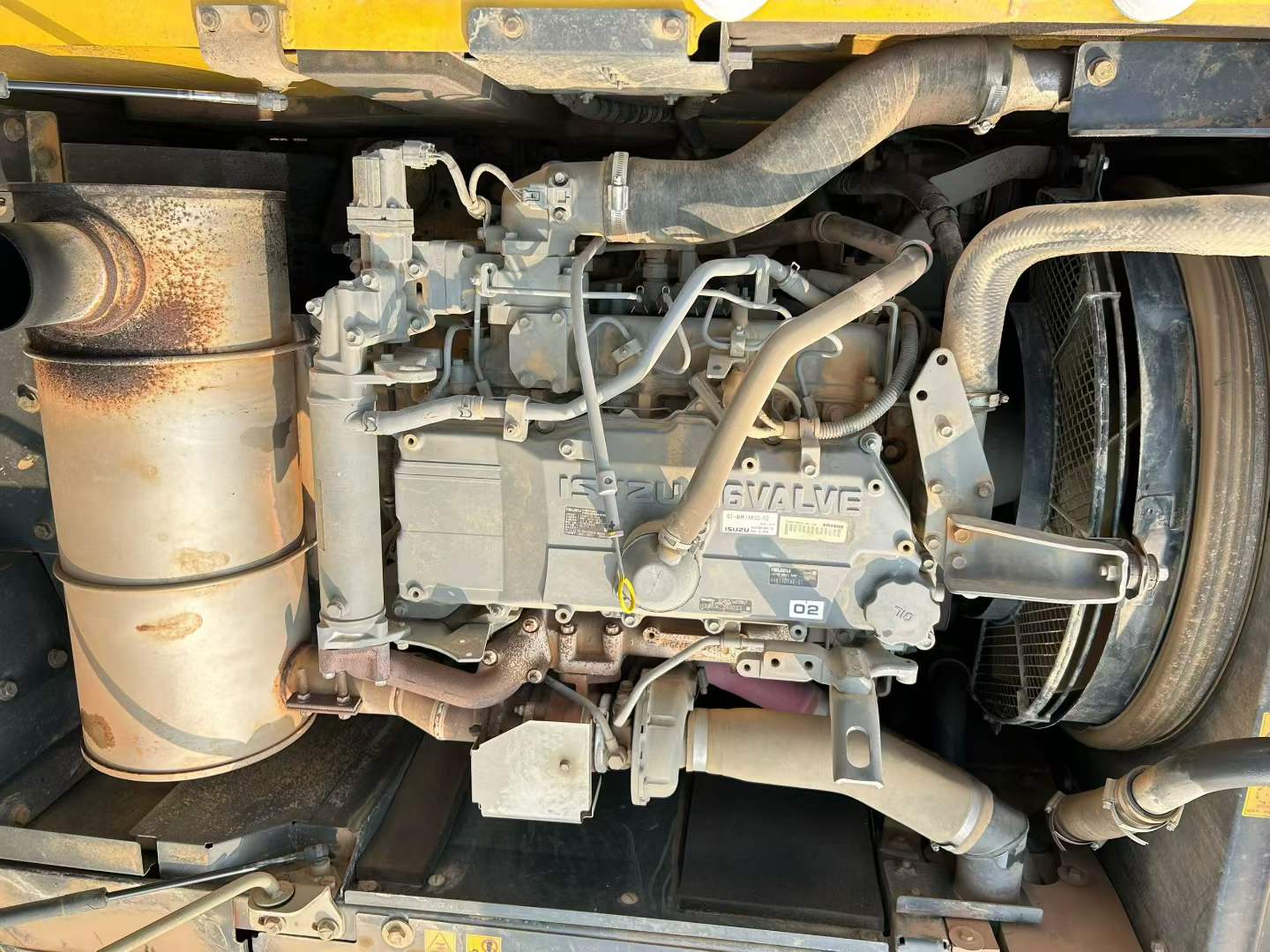

Buy Sumitomo SH210-6 Used Excavator / 7

Product Description

Built to endure the toughest jobsites, this 2018 Sumitomo SH210-6 excavator delivers proven performance backed by Japanese engineering excellence. With a robust 21-ton operating weight and powerful 117.3kW engine, this workhorse tackles demanding excavation tasks with unwavering reliability. The 0.85-1.0m³ bucket capacity paired with impressive 142kN bucket digging force ensures maximum productivity across diverse applications.

Engineered for longevity, this model features a variable capacity piston pump hydraulic system and 5700mm boom reach, providing exceptional digging depth up to 6650mm. The proven track record of the SH210-6 series makes this machine a dependable investment for contractors seeking consistent output. Currently located in Jiangxi Ji'an, this excavator combines durability with operational efficiency—delivering 9900mm maximum digging radius and 70% climbing ability for challenging terrain.

  • 21-ton proven workhorse with 117.3kW rated power
  • Maximum digging depth: 6650mm | Reach: 9900mm
  • 410L fuel capacity for extended operation
  • Durable joint venture/import construction quality
  • Ready for immediate deployment from Jiangxi Ji'an
SpecificationsValue
No.1043039
Tonnage (tons)21
Working weight (kg)21000
Bucket capacity (m³)0.85~1.0
Boom length (mm)5700
Rod length (mm)2900 / 2400
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Displacement (L)5.193
Ground specific pressure (Kpa)47 / 36
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142 / 152
Rod digging force (kN)103 / 110
Travel speed (km/h)5.6 / 3.4
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3 / 36.8
Fuel Tank (L)410
Hydraulic Tank (L)147
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2750
Total track length (mm)4180
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900/9420
Maximum digging depth (mm)6650/6110
Maximum excavation height (mm)9610/9410
Maximum unloading height (mm)6810/6590
Maximum vertical digging depth (mm)5960/5500
see more

Overview

No.1043039

Brand Name:

Sumitomo

Model Number:

SH210-6

Year:

2018

Location:

Jiangxi China
