2021 Sumitomo SH210-6

1/9
Buy Sumitomo SH210-6 Used Excavator / 1

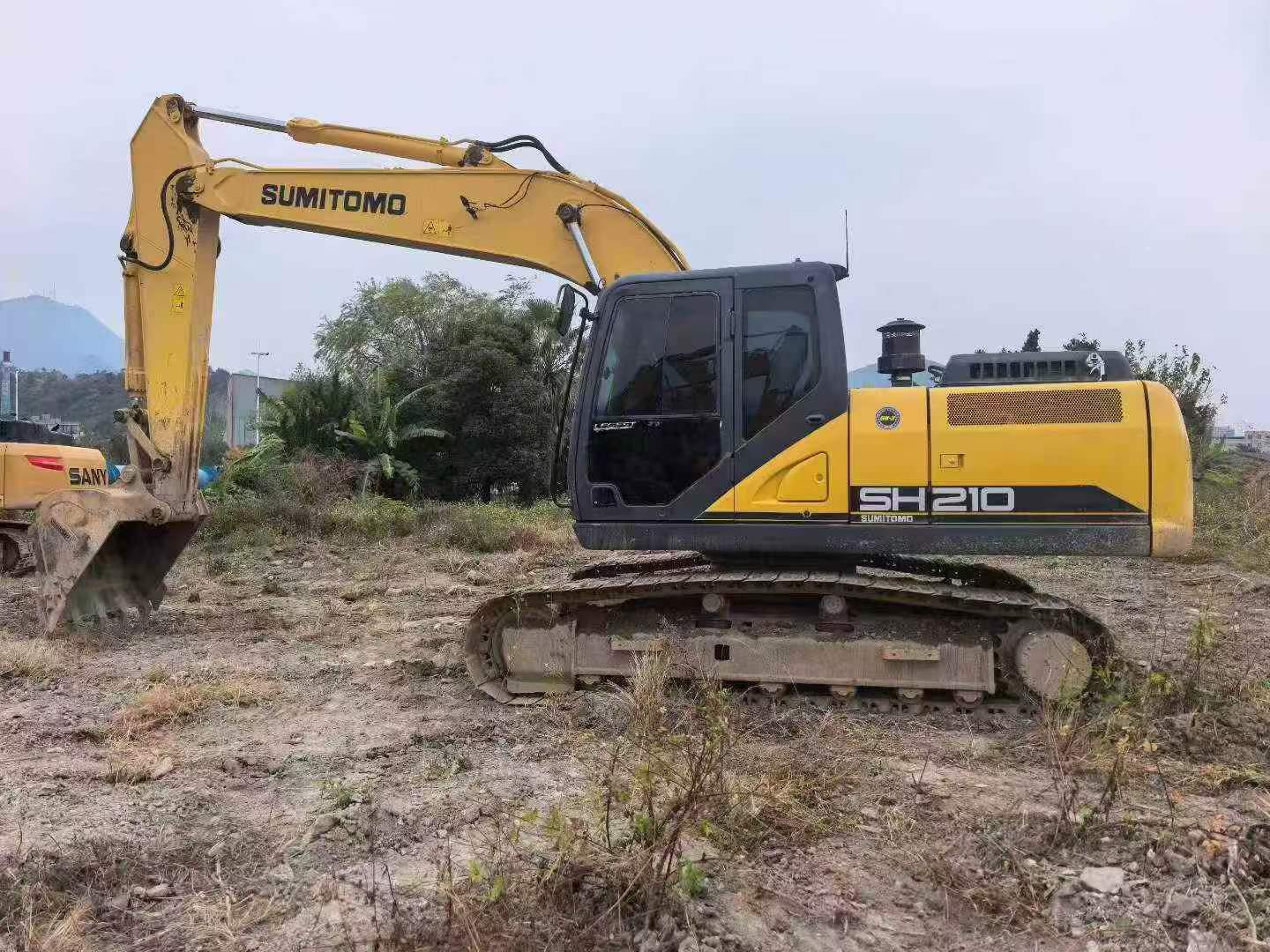

Buy Sumitomo SH210-6 Used Excavator / 2

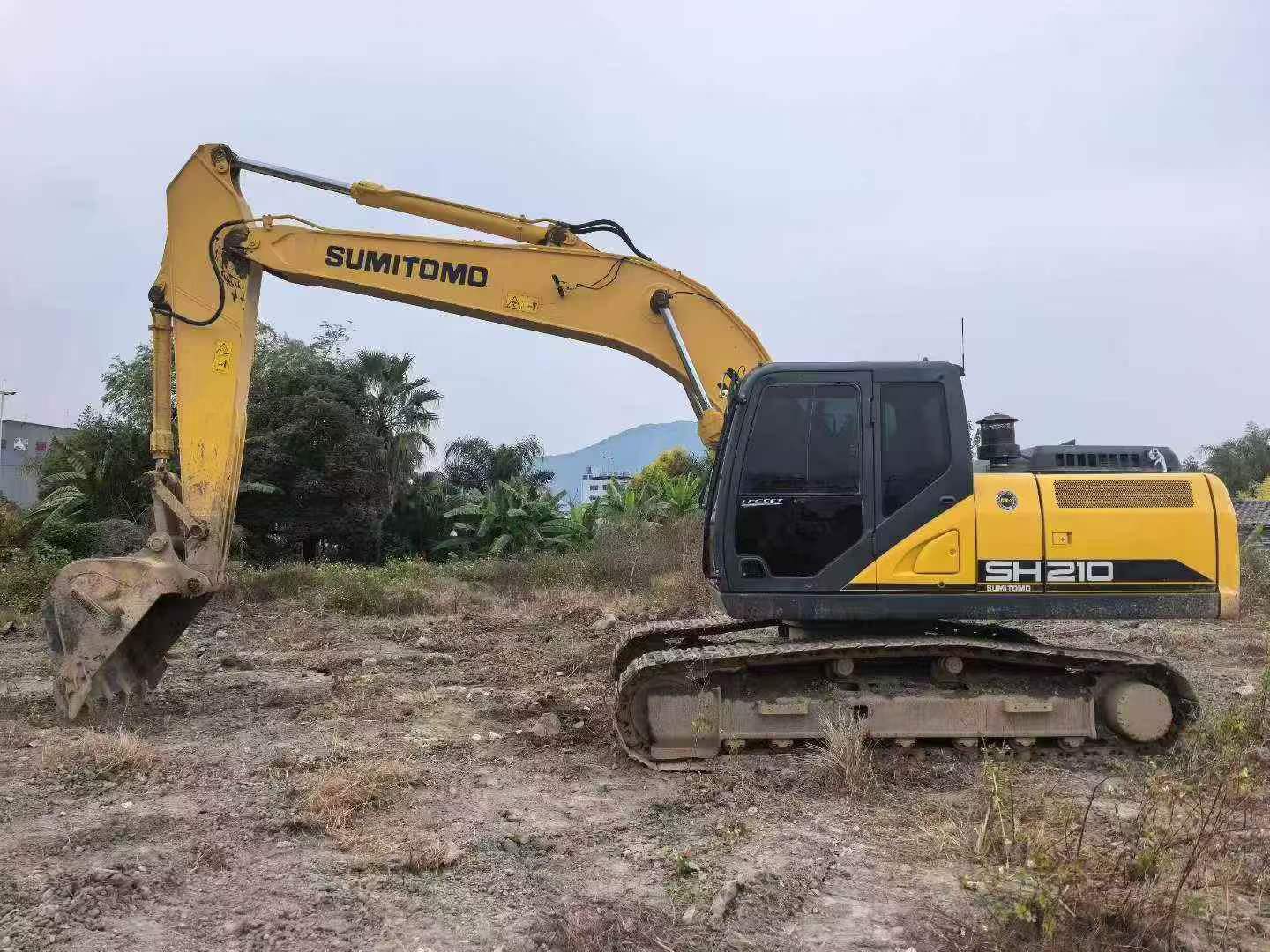

Buy Sumitomo SH210-6 Used Excavator / 3

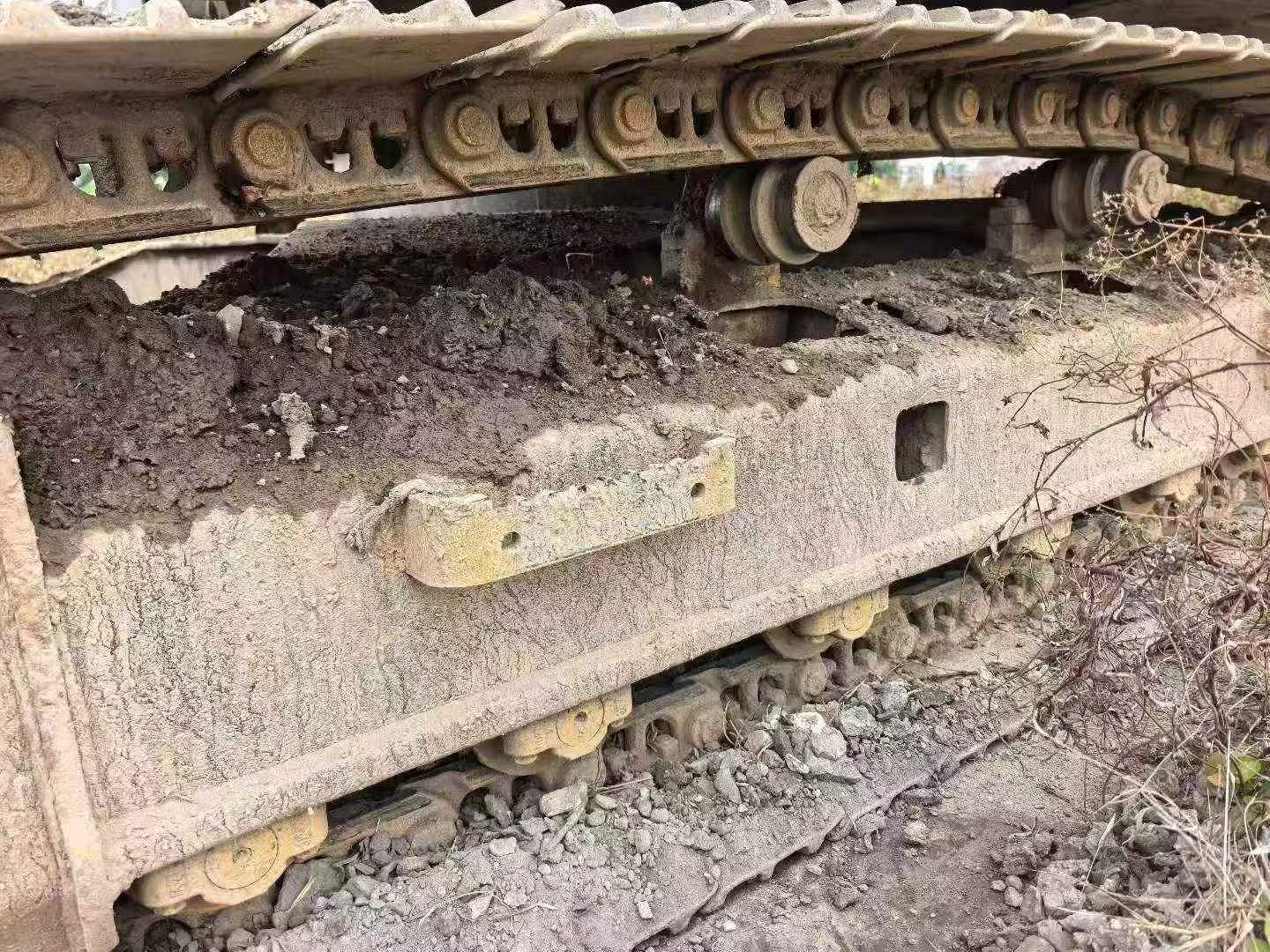

Buy Sumitomo SH210-6 Used Excavator / 4

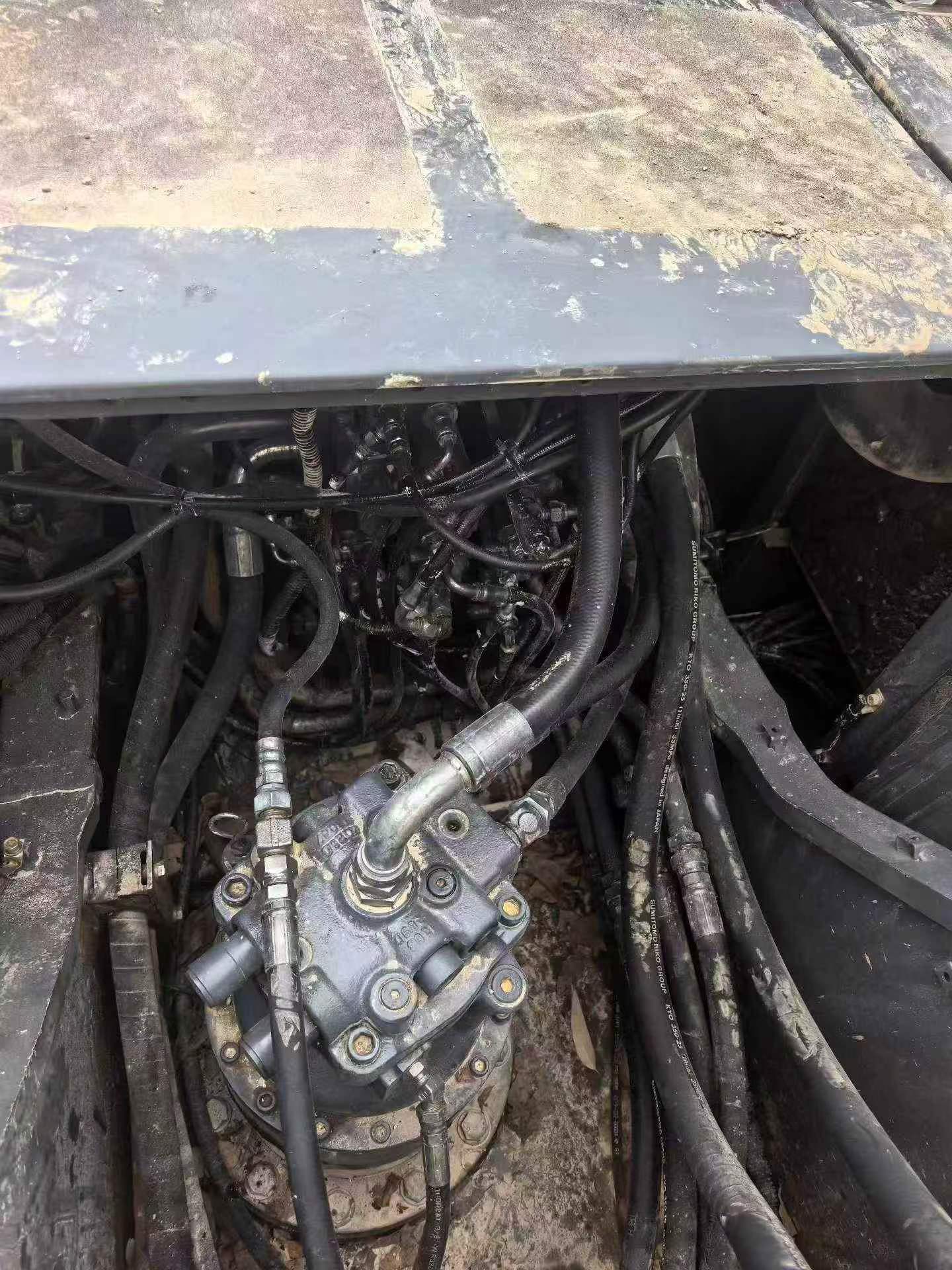

Buy Sumitomo SH210-6 Used Excavator / 5
Buy Sumitomo SH210-6 Used Excavator / 6

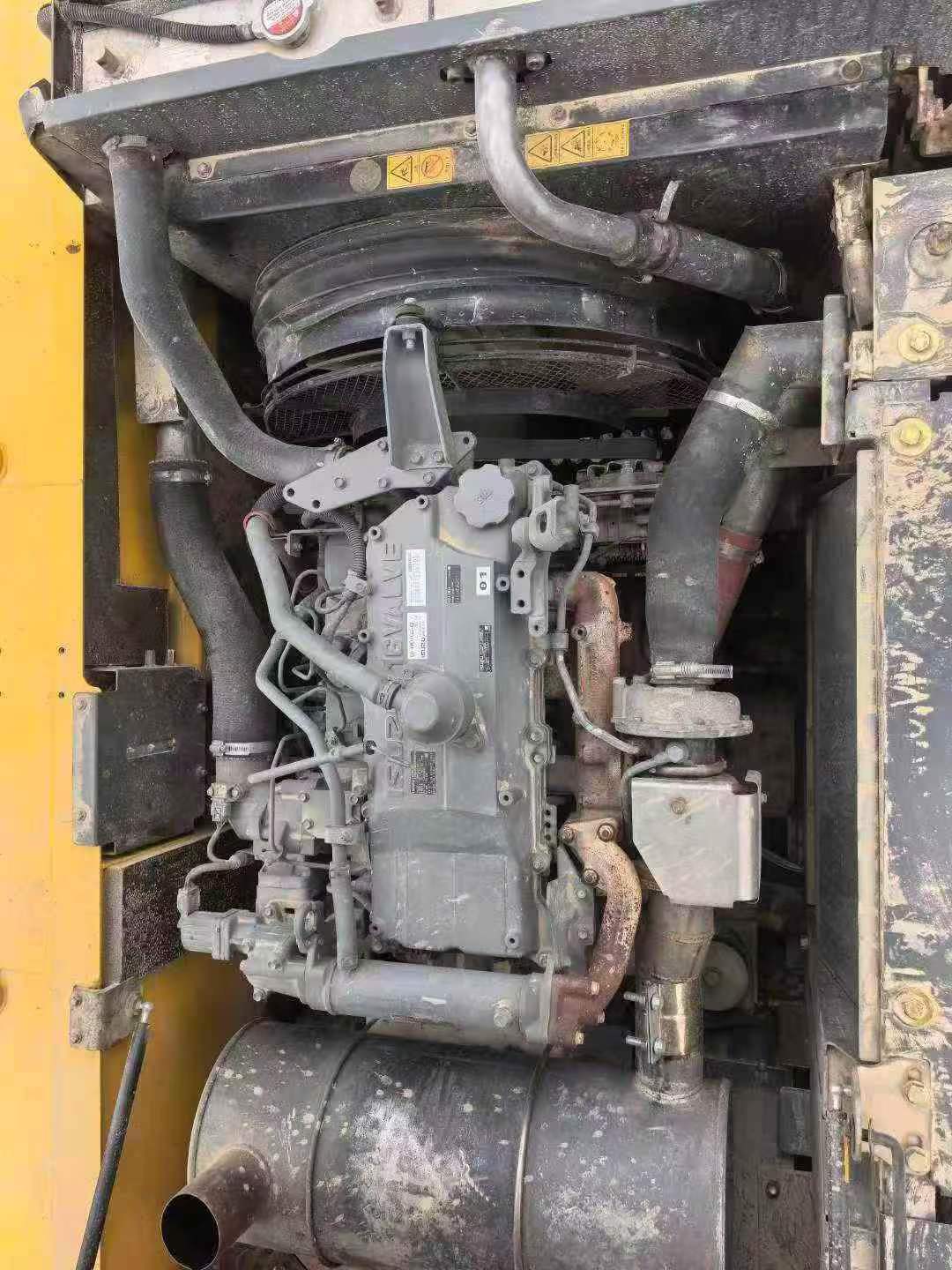

Buy Sumitomo SH210-6 Used Excavator / 7

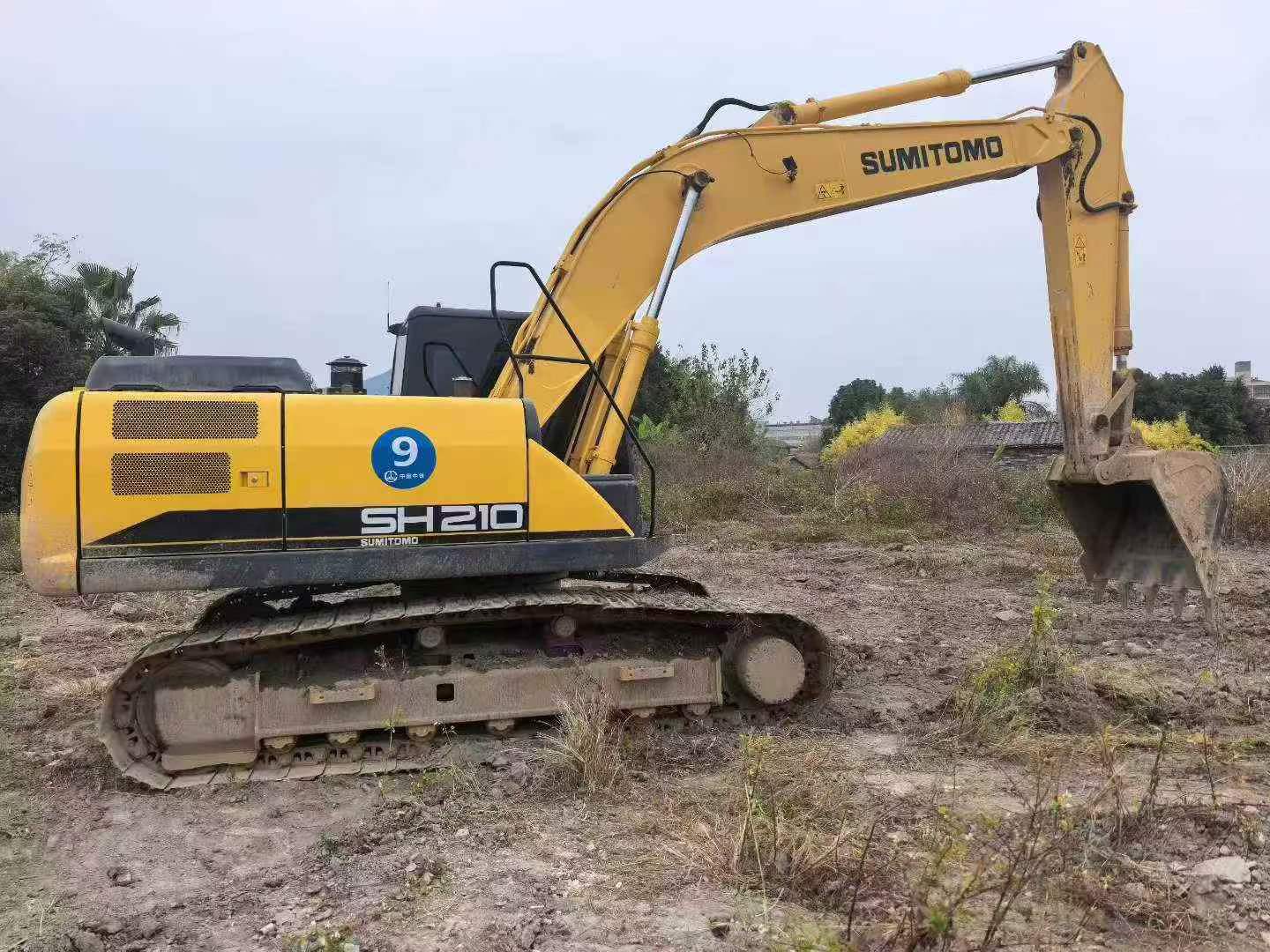

Buy Sumitomo SH210-6 Used Excavator / 8

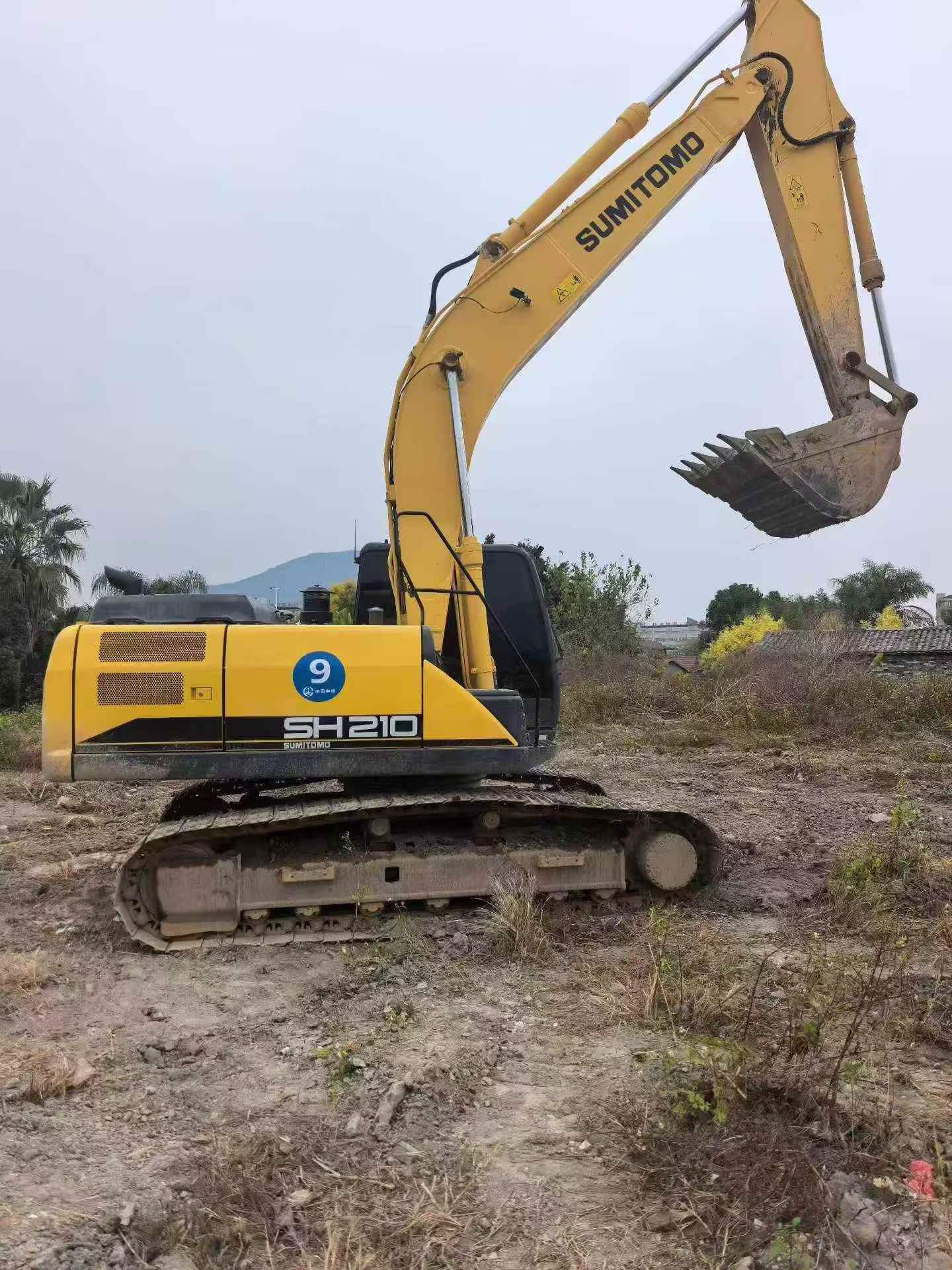

Buy Sumitomo SH210-6 Used Excavator / 9

Product Description

Ready to deploy from Wenzhou, Zhejiang, this 2021 Sumitomo SH210-6 excavator eliminates factory wait times and gets your operation moving immediately. Built as a joint venture/import model, this 21-ton workhorse delivers 117.3 kW of rated power through a proven 5.193L engine, backed by a robust variable capacity piston pump hydraulic system operating at 34.3 MPa.

Engineered for demanding jobsites, the machine offers impressive reach with a 9,900mm maximum digging radius and 6,650mm maximum depth. Bucket capacity ranges from 0.85 to 1.0 m³, supported by formidable digging forces of 142 kN (bucket) and 103 kN (rod). The 5,700mm boom and selectable 2,900mm or 2,400mm rod configurations provide operational flexibility across varied applications.

Key Performance Specifications:

  • Working weight: 21,000 kg with 47 kPa ground pressure
  • Travel speed: 5.6 km/h (high) / 3.4 km/h (low)
  • Fuel capacity: 410L for extended runtime
  • Transport dimensions: 9,400 × 2,800 × 2,970 mm
  • 70% climbing ability for challenging terrain

Available now for fast shipment worldwide. Skip months of lead time and secure proven performance today.

SpecificationsValue
No.1041189
Tonnage (tons)21
Working weight (kg)21000
Bucket capacity (m³)0.85~1.0
Boom length (mm)5700
Rod length (mm)2900 / 2400
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Displacement (L)5.193
Ground specific pressure (Kpa)47 / 36
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142 / 152
Rod digging force (kN)103 / 110
Travel speed (km/h)5.6 / 3.4
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3 / 36.8
Fuel Tank (L)410
Hydraulic Tank (L)147
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2750
Total track length (mm)4180
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900/9420
Maximum digging depth (mm)6650/6110
Maximum excavation height (mm)9610/9410
Maximum unloading height (mm)6810/6590
Maximum vertical digging depth (mm)5960/5500
see more

Overview

No.1041189

Brand Name:

Sumitomo

Model Number:

SH210-6

Year:

2021

Location:

Zhejiang China

Pub Date
