2021 Sumitomo SH210-6

1/9
Buy Sumitomo SH210-6 Used Excavator / 1

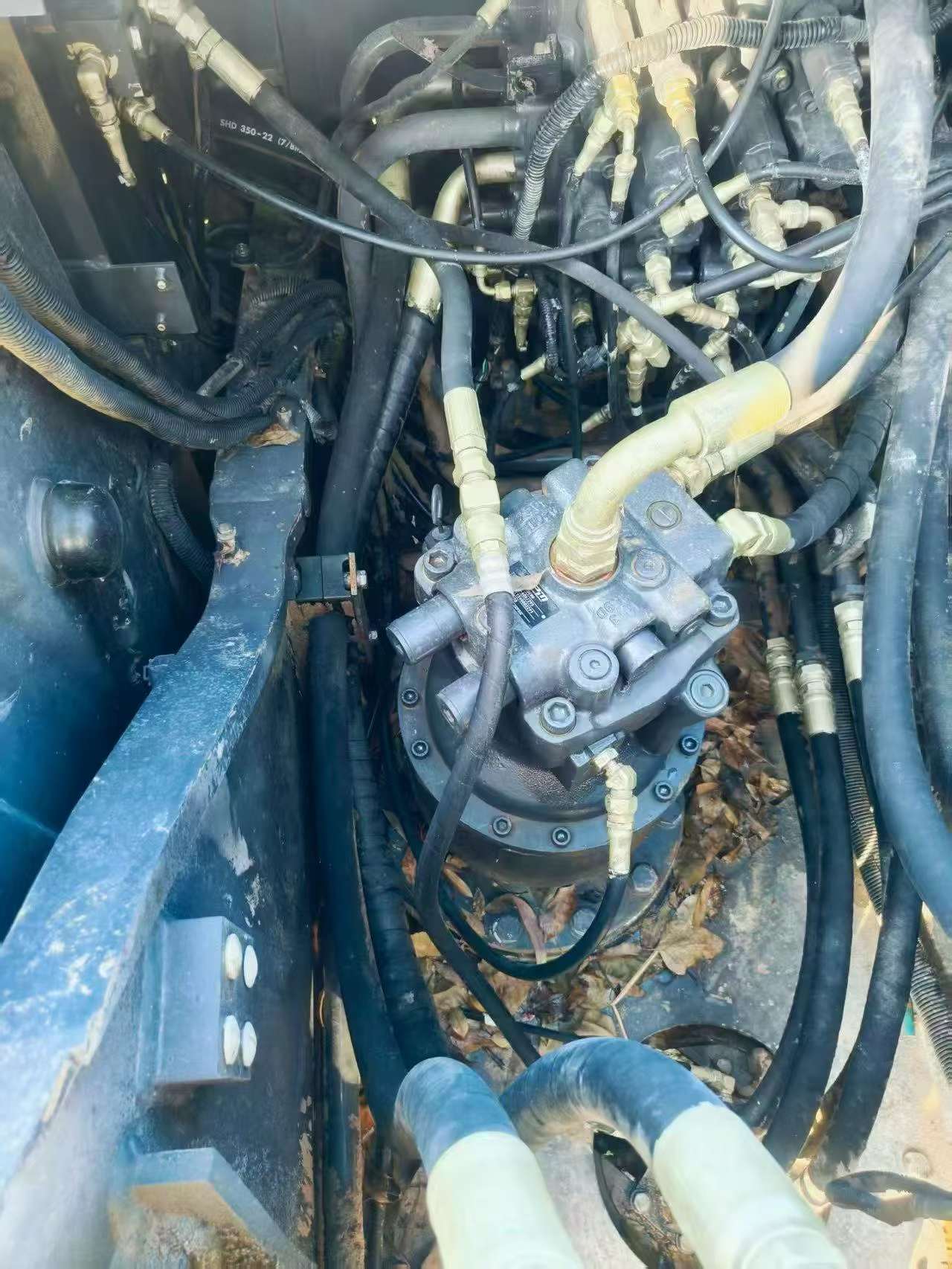

Buy Sumitomo SH210-6 Used Excavator / 2

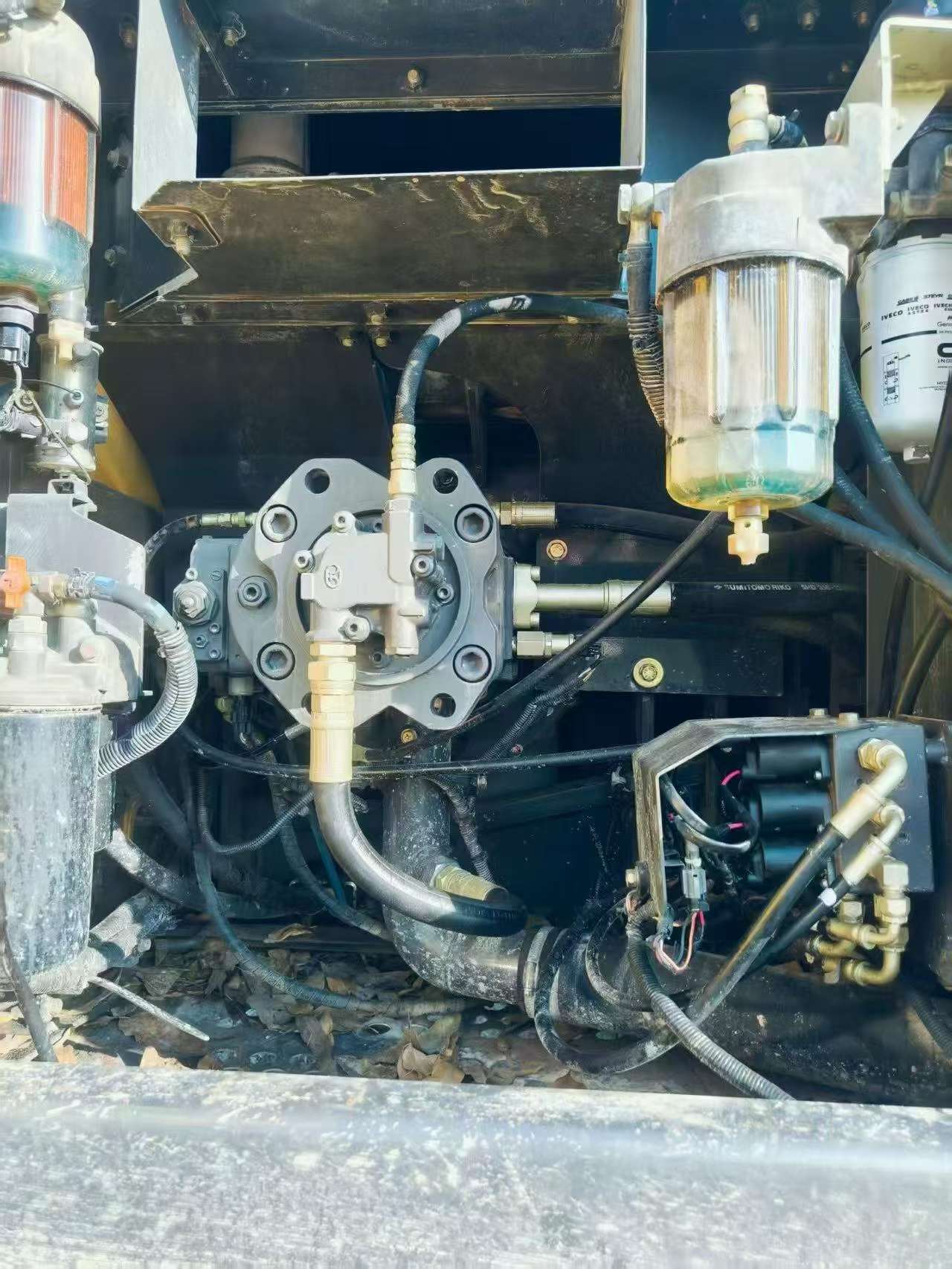

Buy Sumitomo SH210-6 Used Excavator / 3

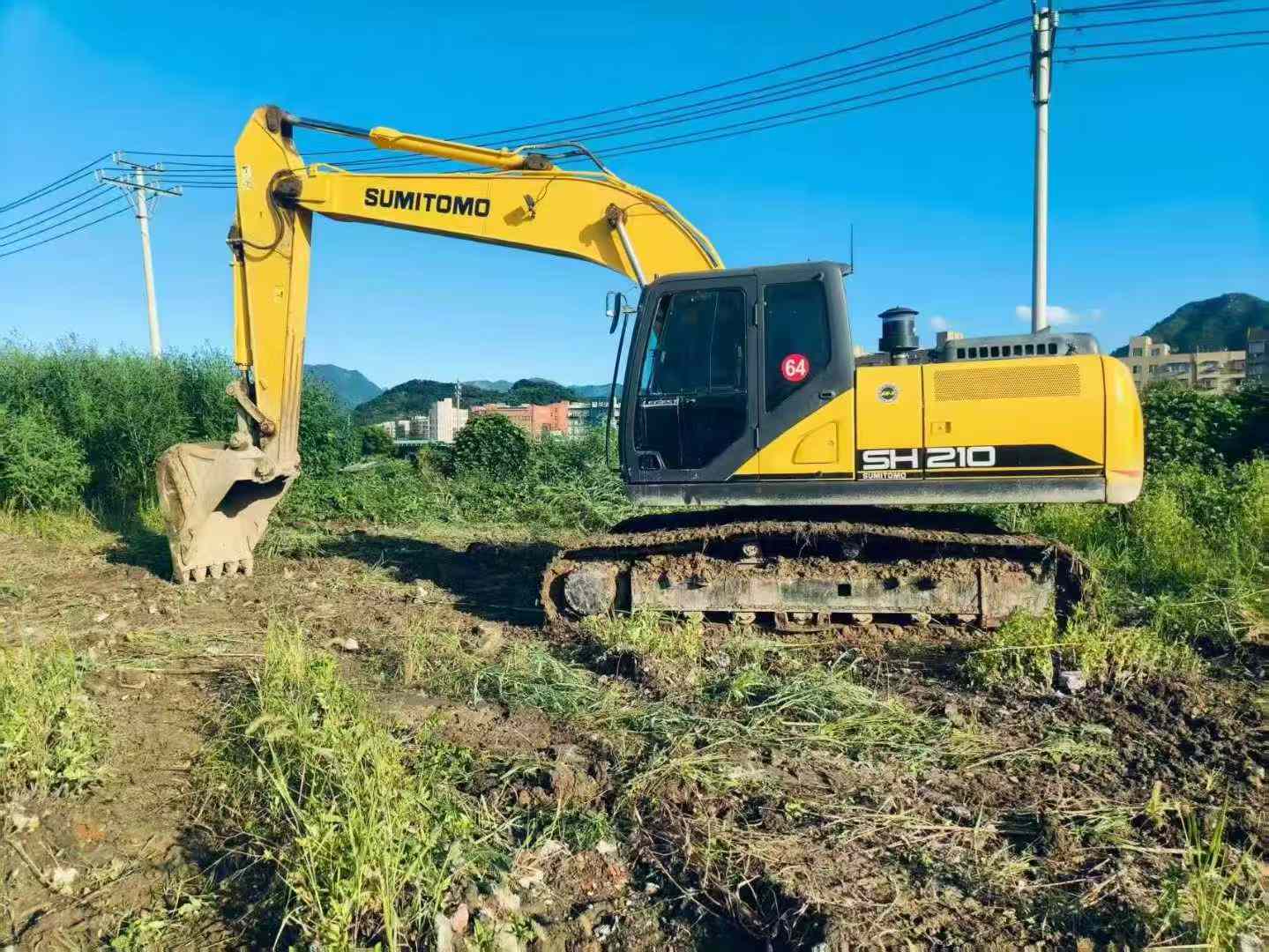

Buy Sumitomo SH210-6 Used Excavator / 4

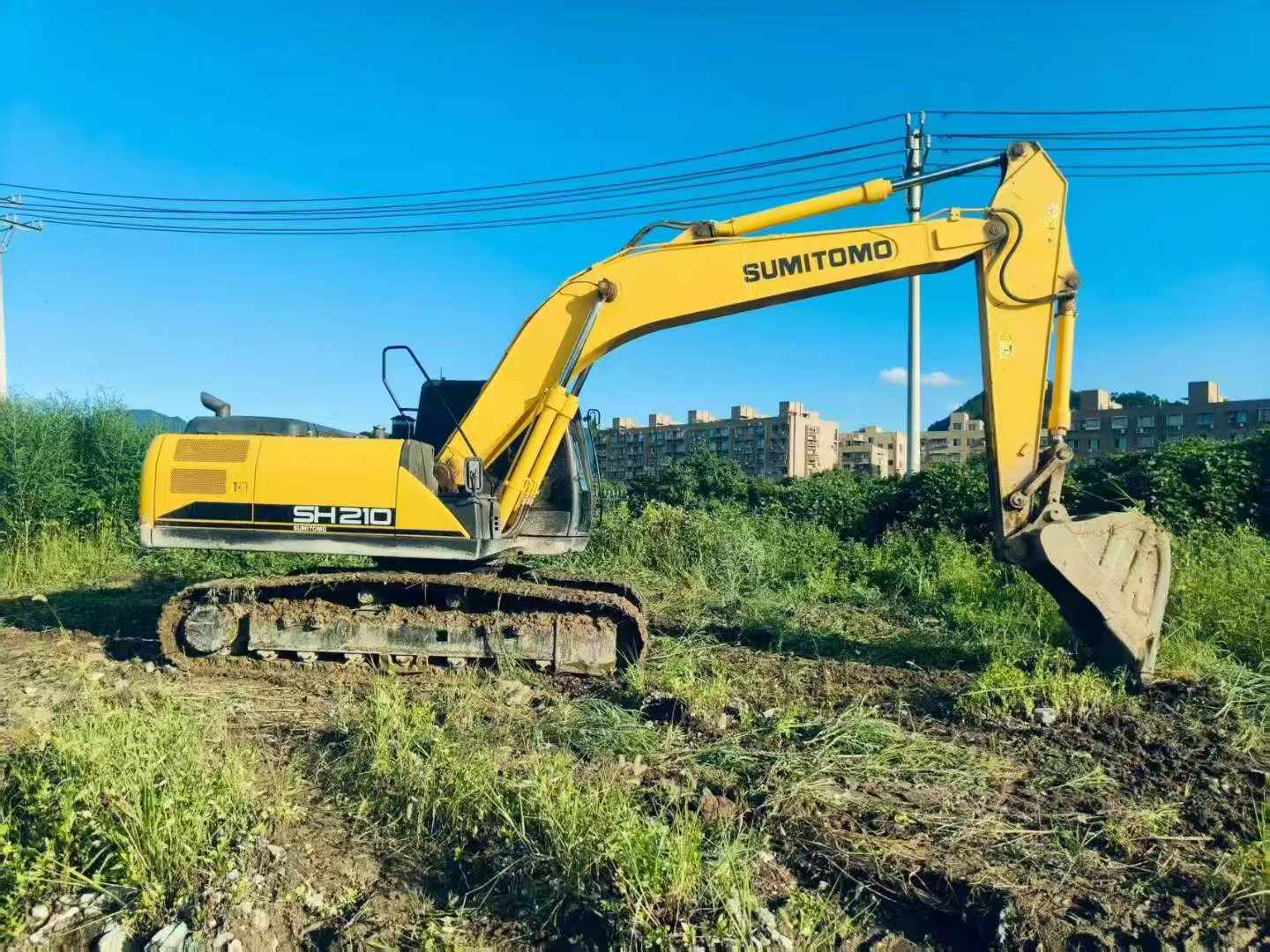

Buy Sumitomo SH210-6 Used Excavator / 5

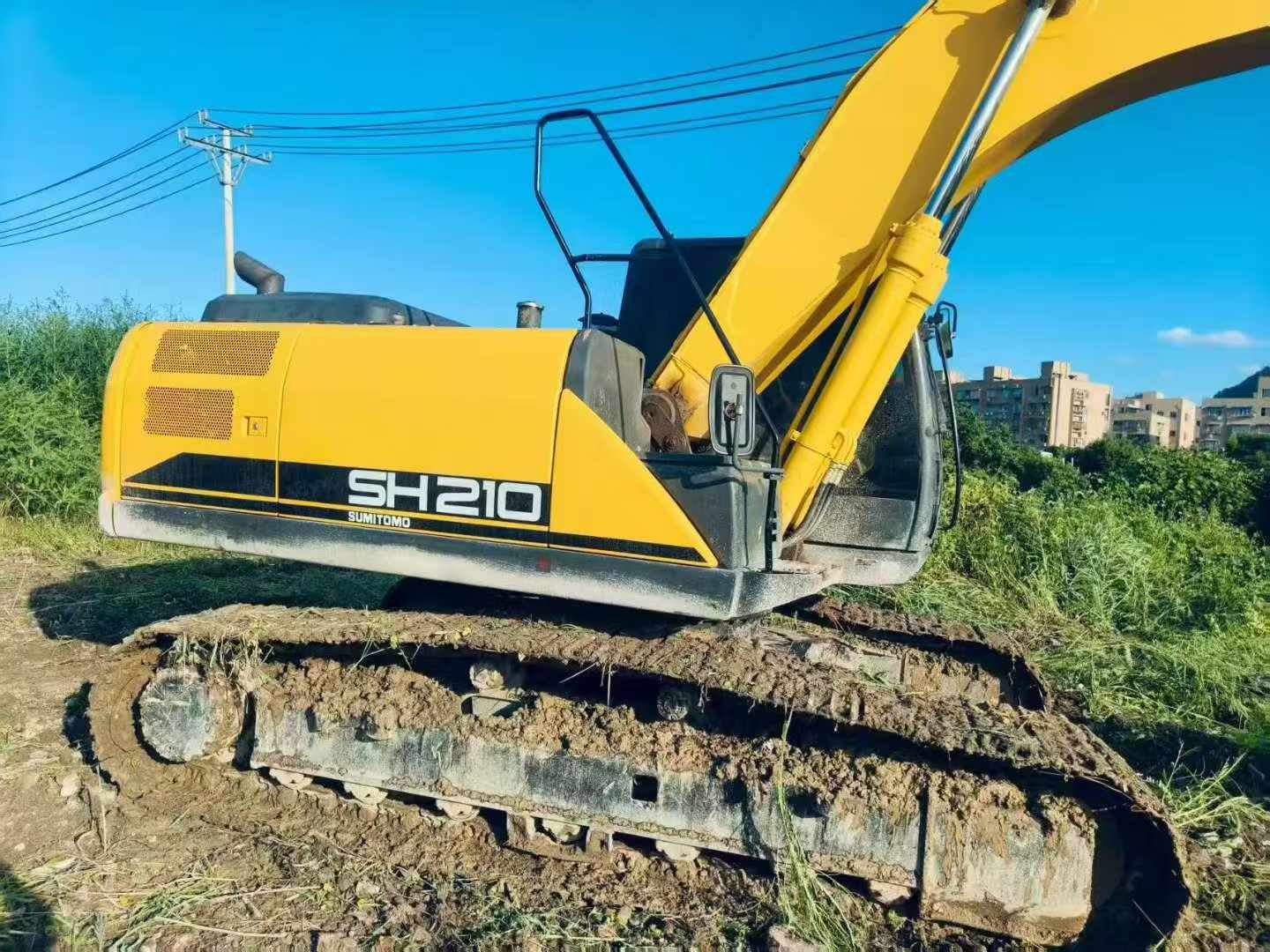

Buy Sumitomo SH210-6 Used Excavator / 6

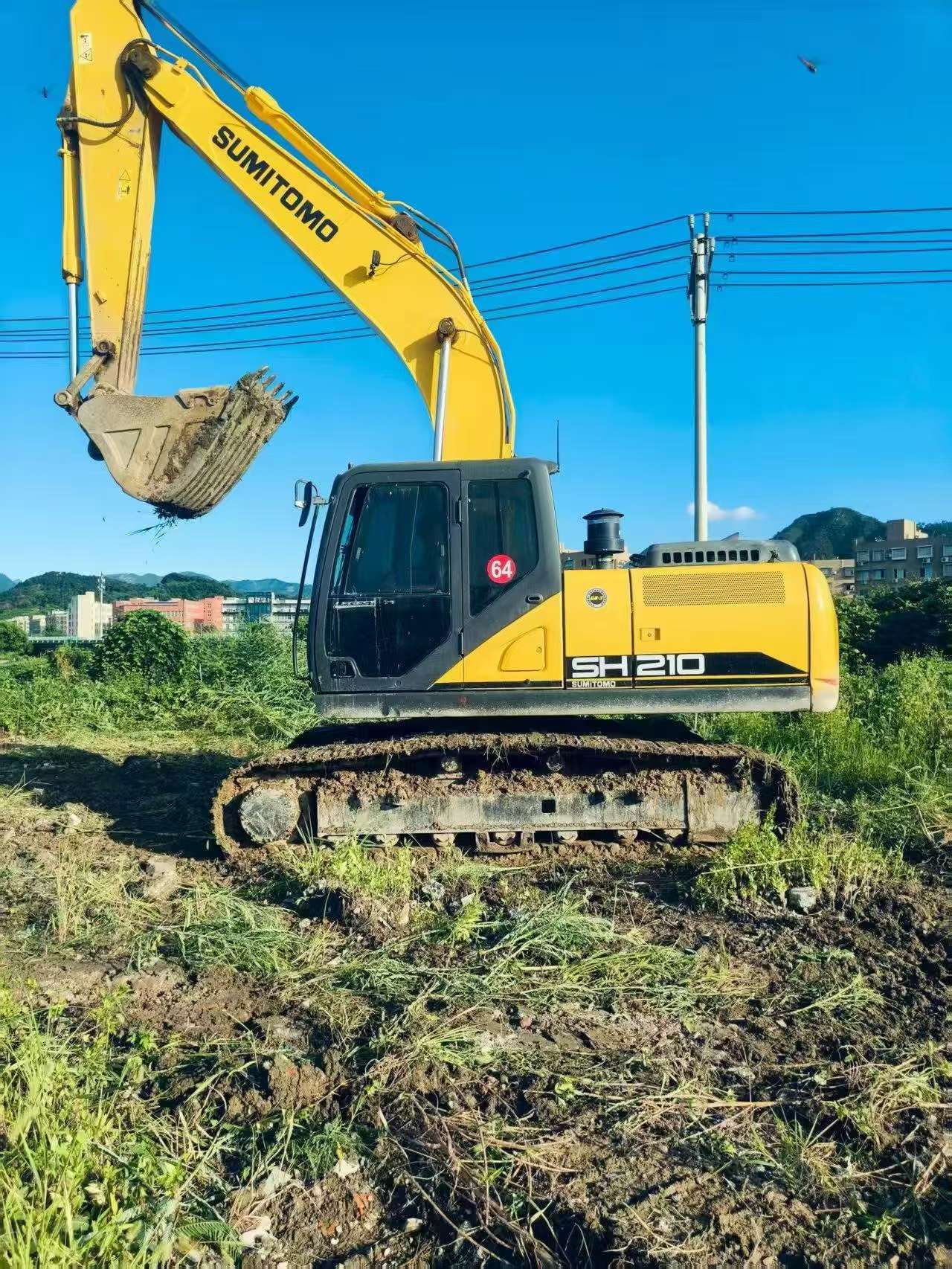

Buy Sumitomo SH210-6 Used Excavator / 7

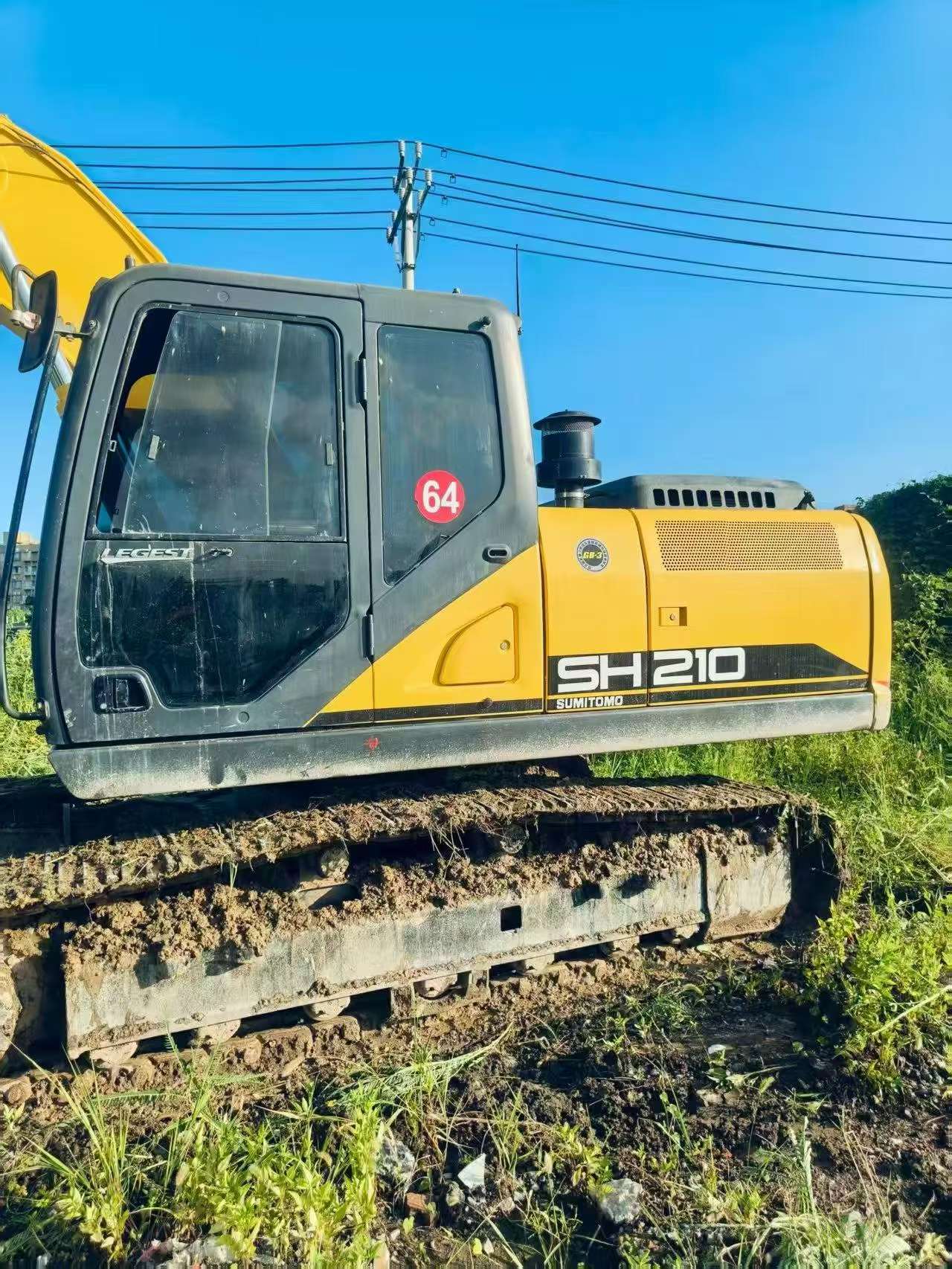

Buy Sumitomo SH210-6 Used Excavator / 8

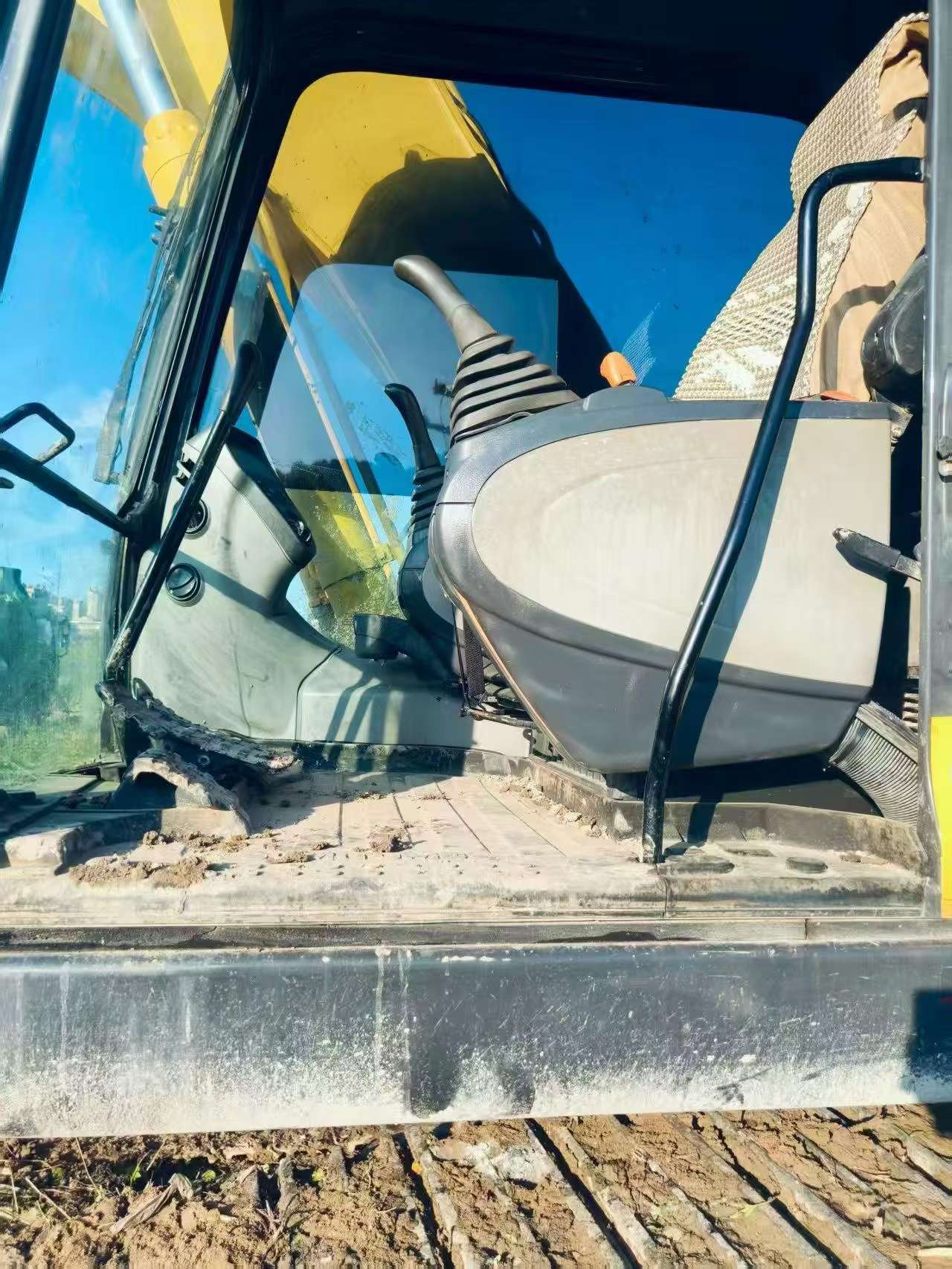

Buy Sumitomo SH210-6 Used Excavator / 9

Product Description

Built for serious excavation work, the 2021 Sumitomo SH210-6 is a 21-ton hydraulic excavator that carries one of the strongest reputations in the used equipment market. Sumitomo's joint-venture manufacturing heritage means parts are widely available globally, and resale values hold firm — making this machine a low-risk acquisition whether you're expanding a fleet or sourcing a single reliable unit out of Zhejiang, China.

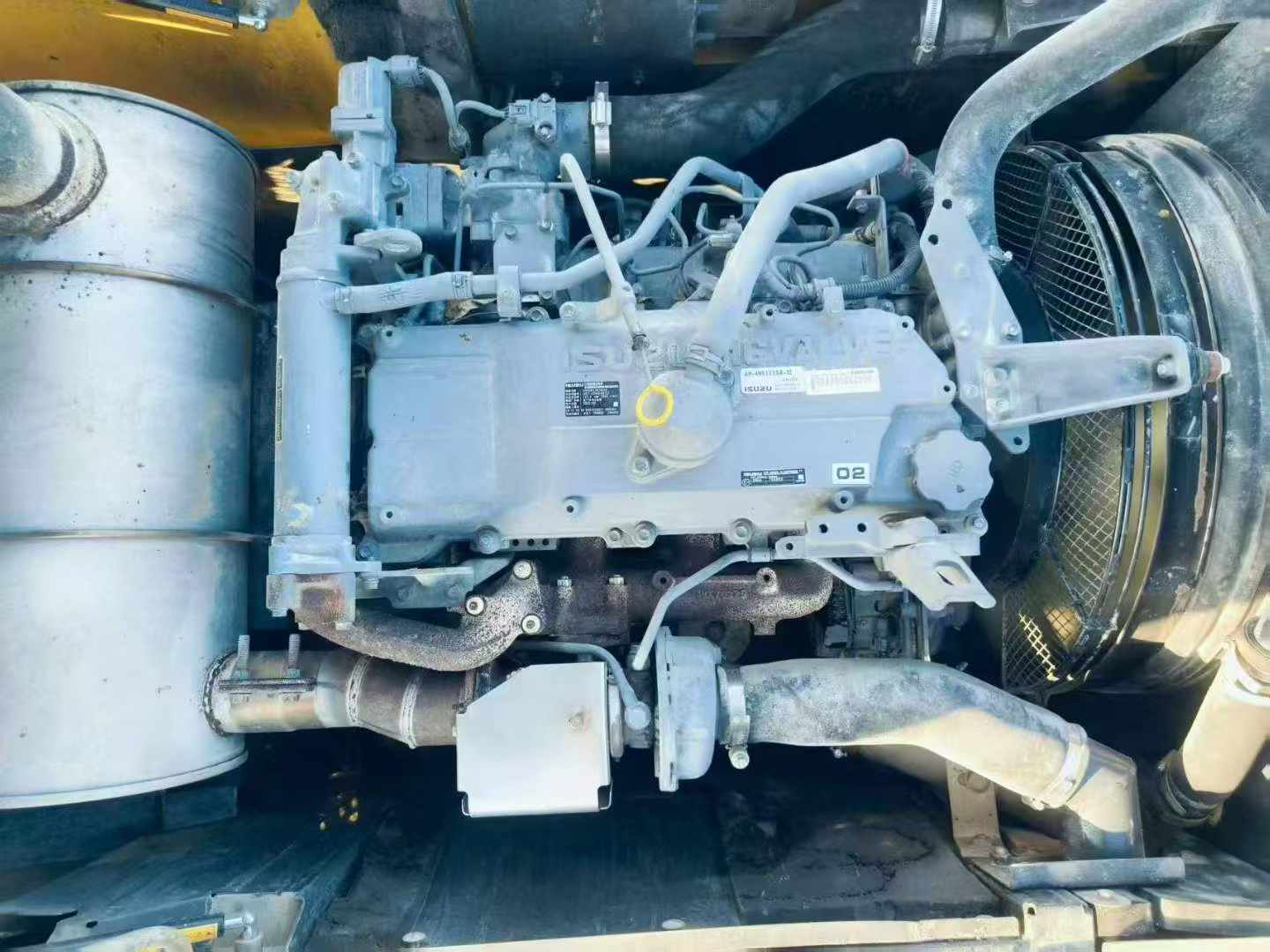

Powered by a 117.3 kW engine at 1,800 rpm with a 5.193L displacement, this excavator delivers consistent performance across demanding job sites. A bucket digging force of up to 152 kN and maximum digging depth of 6,650 mm make it well-suited for foundation work, trenching, and general earthmoving.

  • Working weight: 21,000 kg
  • Bucket capacity: 0.85–1.0 m³ (backhoe)
  • Rated power: 117.3 kW / 1,800 rpm
  • Max digging depth: 6,650 mm
  • Max digging radius: 9,900 mm
  • Bucket digging force: 142–152 kN
  • Travel speed: 5.6 / 3.4 km/h
  • Fuel tank: 410 L
  • Track plate width: 600 mm
  • Climbing ability: 70%

Sumitomo excavators are known for hydraulic efficiency and structural durability, and the SH210-6 generation is no exception. With a broad global parts network and strong aftermarket support, downtime risk stays low — a key factor when evaluating used iron for long-term deployment.

SpecificationsValue
No.1042975
Tonnage (tons)21
Working weight (kg)21000
Bucket capacity (m³)0.85~1.0
Boom length (mm)5700
Rod length (mm)2900 / 2400
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Displacement (L)5.193
Ground specific pressure (Kpa)47 / 36
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142 / 152
Rod digging force (kN)103 / 110
Travel speed (km/h)5.6 / 3.4
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3 / 36.8
Fuel Tank (L)410
Hydraulic Tank (L)147
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2750
Total track length (mm)4180
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900/9420
Maximum digging depth (mm)6650/6110
Maximum excavation height (mm)9610/9410
Maximum unloading height (mm)6810/6590
Maximum vertical digging depth (mm)5960/5500
see more

Overview

No.1042975

Brand Name:

Sumitomo

Model Number:

SH210-6

Year:

2021

Location:

Zhejiang China
