2022 Sumitomo SH210-6

1/9
Buy Sumitomo SH210-6 Used Excavator / 1
Buy Sumitomo SH210-6 Used Excavator / 2
Buy Sumitomo SH210-6 Used Excavator / 3
Buy Sumitomo SH210-6 Used Excavator / 4
Buy Sumitomo SH210-6 Used Excavator / 5
Buy Sumitomo SH210-6 Used Excavator / 6
Buy Sumitomo SH210-6 Used Excavator / 7
Buy Sumitomo SH210-6 Used Excavator / 8

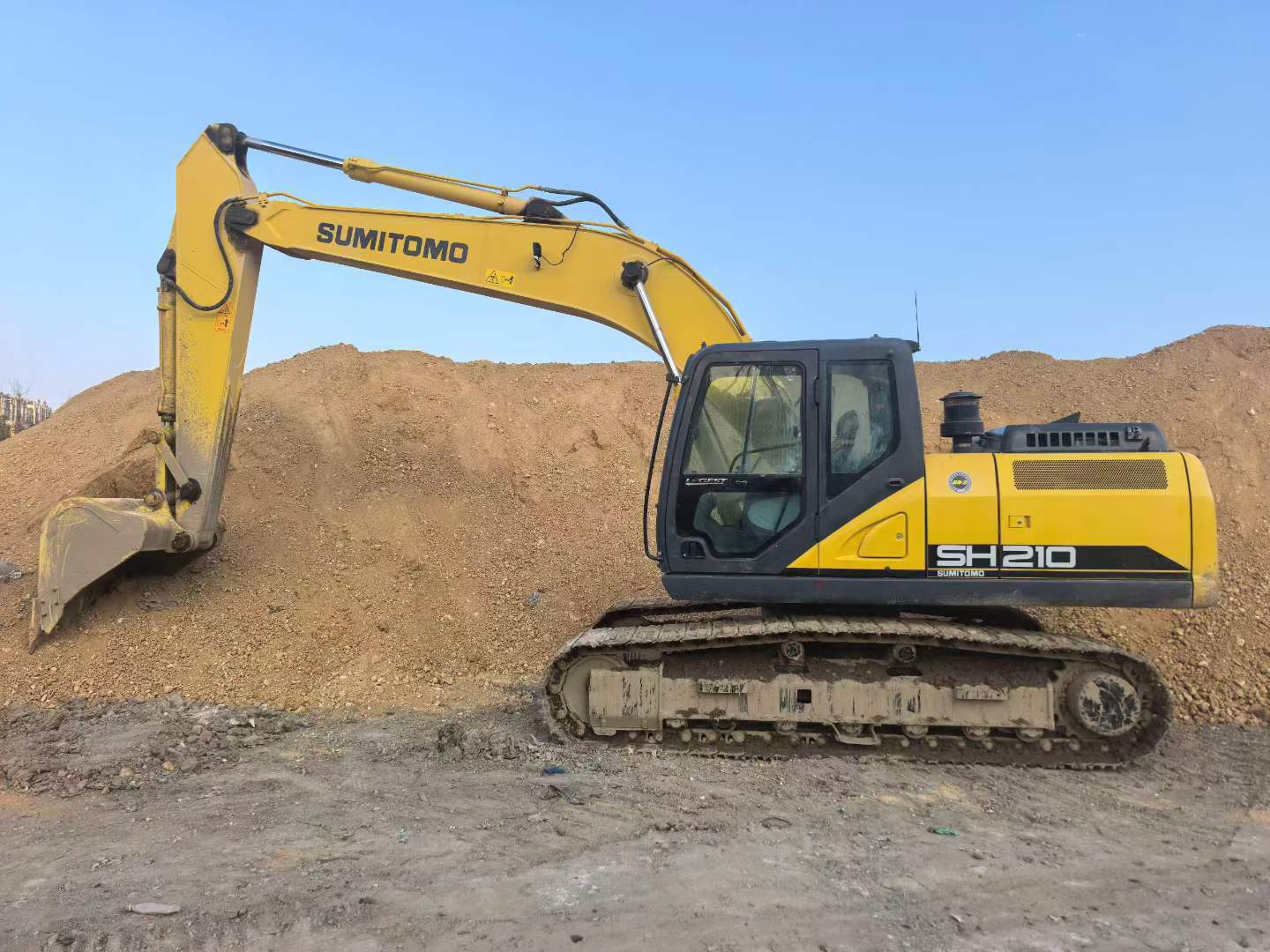

Buy Sumitomo SH210-6 Used Excavator / 9

Product Description

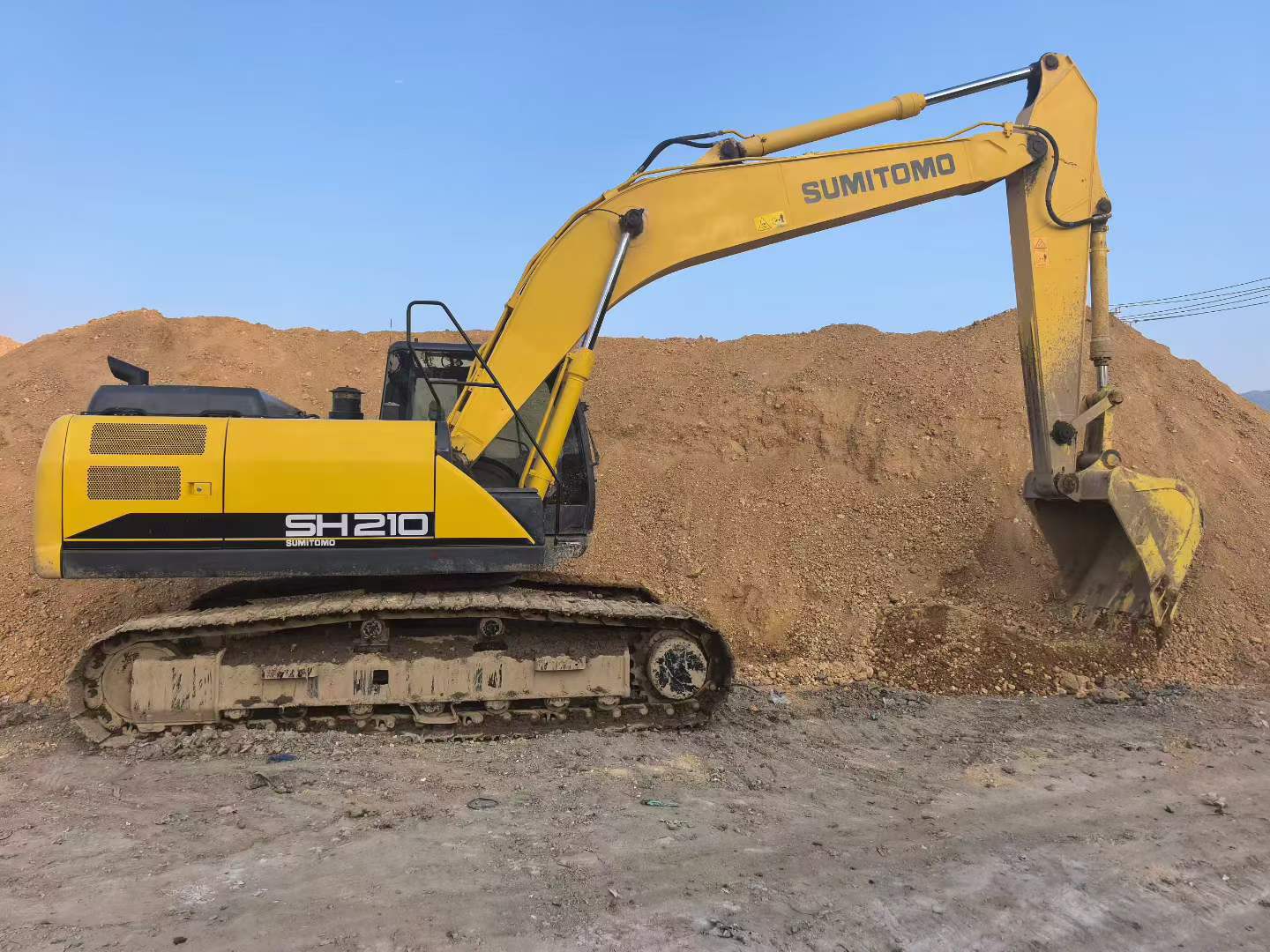

Proven performance meets exceptional reliability in this 2022 Sumitomo SH210-6 excavator, currently located in Wenzhou, Zhejiang. Built by a respected joint venture manufacturer, this 21-ton machine delivers 117.3kW of rated power through its robust 5.2L engine, ensuring consistent productivity across demanding jobsites. With a maximum digging reach of 9,900mm and bucket capacity ranging from 0.85 to 1.0m³, this backhoe-configured excavator handles earthmoving, trenching, and loading operations with precision.

Sumitomo's reputation for engineering excellence translates directly into lower ownership costs. Parts remain readily available through established global distribution networks, minimizing downtime when maintenance is required. Strong resale values protect your investment, as buyers recognize Sumitomo's durability and longevity in the used equipment market. The SH210-6 features advanced hydraulic systems operating at 34.3MPa, variable capacity piston pumps, and a 410L fuel tank for extended operation. Transport dimensions of 9,400mm length and 2,800mm width facilitate efficient logistics.

Specifications include:

  • Working weight: 21,000kg with 0.85-1.0m³ bucket capacity
  • Maximum digging depth
SpecificationsValue
No.1047670
Tonnage (tons)21
Working weight (kg)21000
Bucket capacity (m³)0.85~1.0
Boom length (mm)5700
Rod length (mm)2900 / 2400
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Displacement (L)5.193
Ground specific pressure (Kpa)47 / 36
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142 / 152
Rod digging force (kN)103 / 110
Travel speed (km/h)5.6 / 3.4
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3 / 36.8
Fuel Tank (L)410
Hydraulic Tank (L)147
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2750
Total track length (mm)4180
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900/9420
Maximum digging depth (mm)6650/6110
Maximum excavation height (mm)9610/9410
Maximum unloading height (mm)6810/6590
Maximum vertical digging depth (mm)5960/5500
see more

Overview

No.1047670

Brand Name:

Sumitomo

Model Number:

SH210-6

Year:

2022

Location:

Zhejiang China
