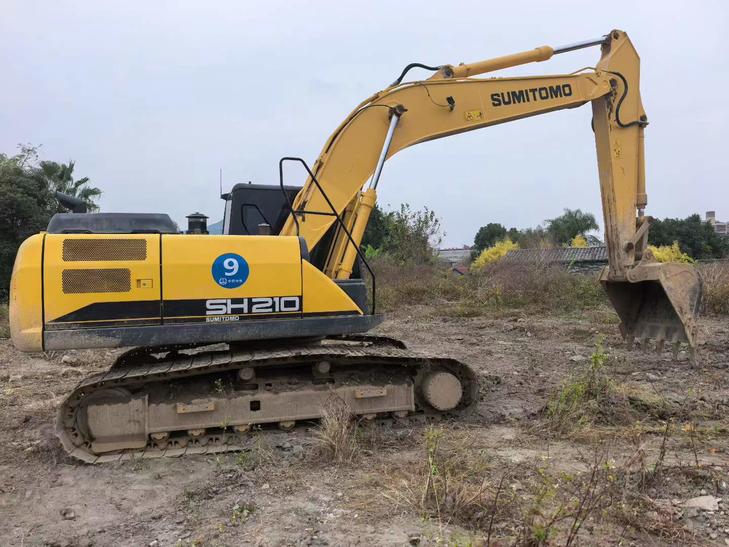

2022 Sumitomo SH210-6

1/9
Buy Sumitomo SH210-6 Used Excavator / 1
Buy Sumitomo SH210-6 Used Excavator / 2
Buy Sumitomo SH210-6 Used Excavator / 3
Buy Sumitomo SH210-6 Used Excavator / 4
Buy Sumitomo SH210-6 Used Excavator / 5
Buy Sumitomo SH210-6 Used Excavator / 6
Buy Sumitomo SH210-6 Used Excavator / 7
Buy Sumitomo SH210-6 Used Excavator / 8
Buy Sumitomo SH210-6 Used Excavator / 9

Product Description

Built for contractors who can't afford downtime, the 2022 Sumitomo SH210-6 is a proven 21-ton excavator ready to slot into your fleet from day one. Sourced directly from Zhejiang, China, this unit carries low operating hours and is maintained to working condition — a reliable backup or high-utilization addition when your primary machines are committed on-site.

Powered by a 117.3 kW engine at 1,800 rpm with a 5.193L displacement, the SH210-6 delivers consistent digging performance across demanding cycles. A maximum digging depth of 6,650 mm and bucket digging force of up to 152 kN make it capable across trenching, grading, and bulk excavation tasks.

  • Working weight: 21,000 kg
  • Bucket capacity: 0.85–1.0 m³ (backhoe)
  • Max digging radius: 9,900 mm
  • Max digging depth: 6,650 mm
  • Rated power: 117.3 kW / 1,800 rpm
  • Travel speed: 5.6 / 3.4 km/h
  • Climbing ability: 70%
  • Fuel tank: 410 L
  • Track plate width: 600 mm
  • Location: Zhejiang, China

For fleet managers running tight schedules, having a dependable 21-ton unit available means fewer delays and more flexibility across concurrent projects. Contact Fair Trade Machinery to confirm availability and arrange inspection.

SpecificationsValue
No.1069127
Tonnage (tons)21
Working weight (kg)21000
Bucket capacity (m³)0.85~1.0
Boom length (mm)5700
Rod length (mm)2900 / 2400
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Displacement (L)5.193
Ground specific pressure (Kpa)47 / 36
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142 / 152
Rod digging force (kN)103 / 110
Travel speed (km/h)5.6 / 3.4
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3 / 36.8
Fuel Tank (L)410
Hydraulic Tank (L)147
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2750
Total track length (mm)4180
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900/9420
Maximum digging depth (mm)6650/6110
Maximum excavation height (mm)9610/9410
Maximum unloading height (mm)6810/6590
Maximum vertical digging depth (mm)5960/5500
