2022 Sumitomo SH210-6

1/9
Buy Sumitomo SH210-6 Used Excavator / 1

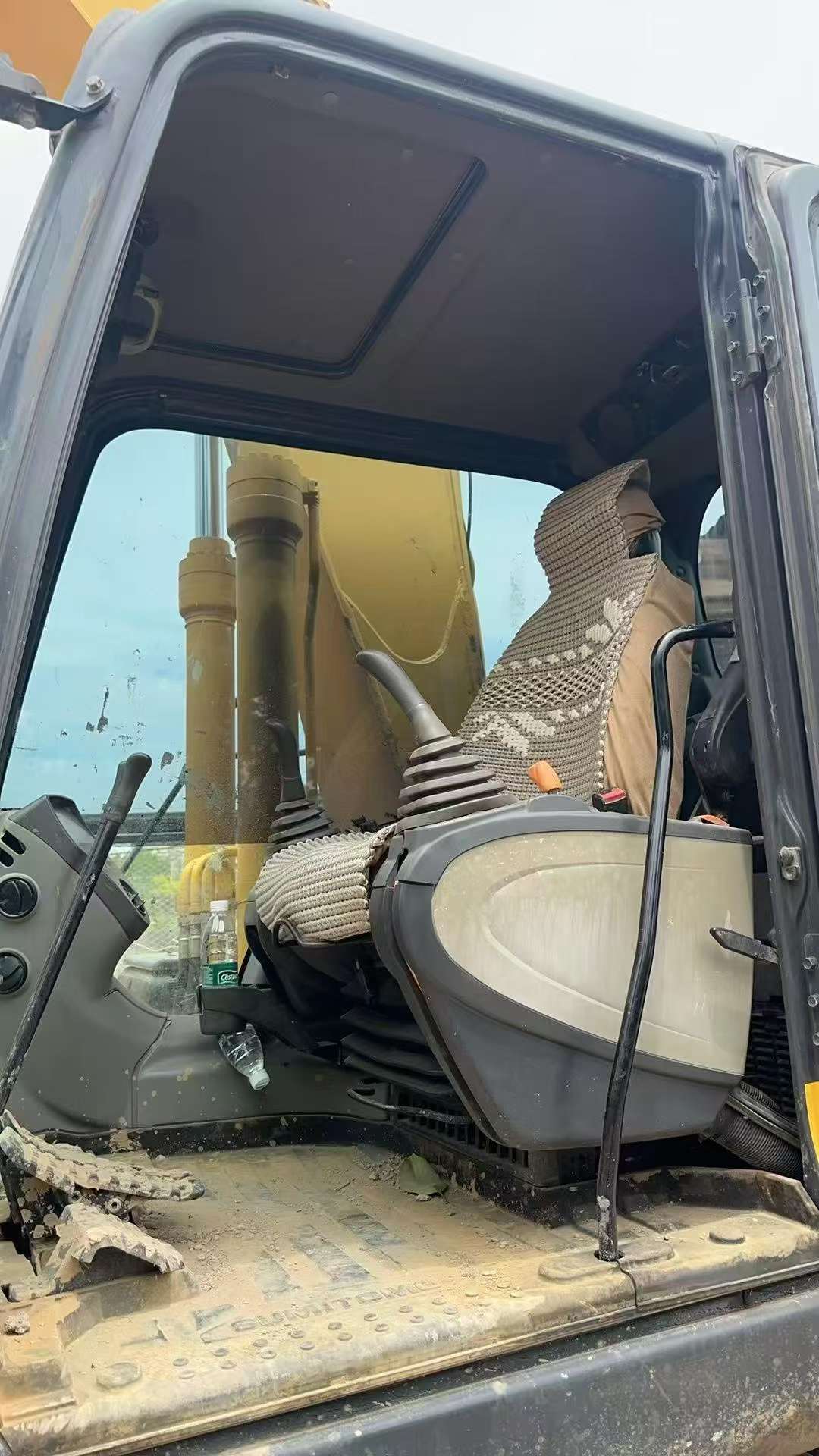

Buy Sumitomo SH210-6 Used Excavator / 2

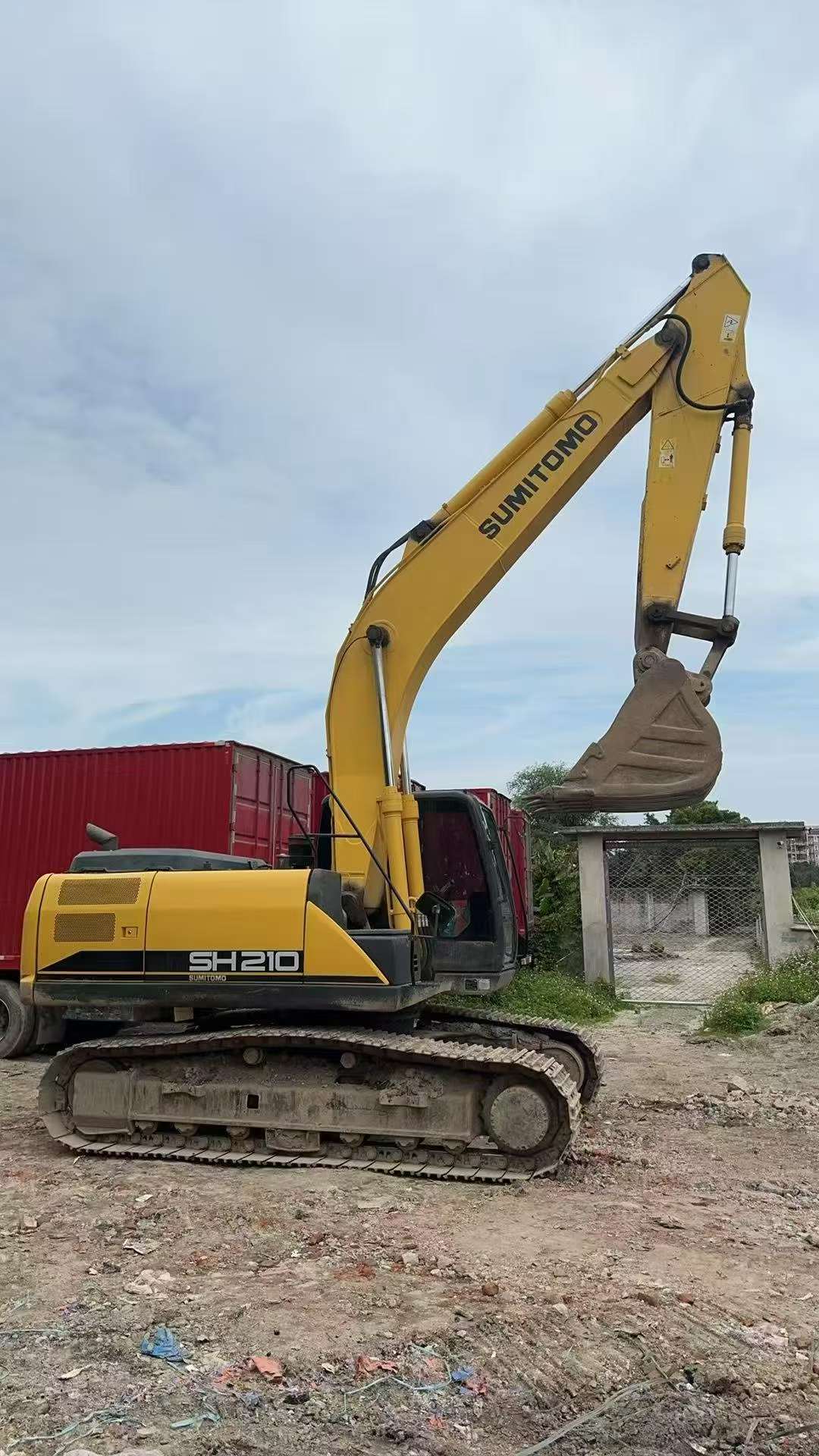

Buy Sumitomo SH210-6 Used Excavator / 3

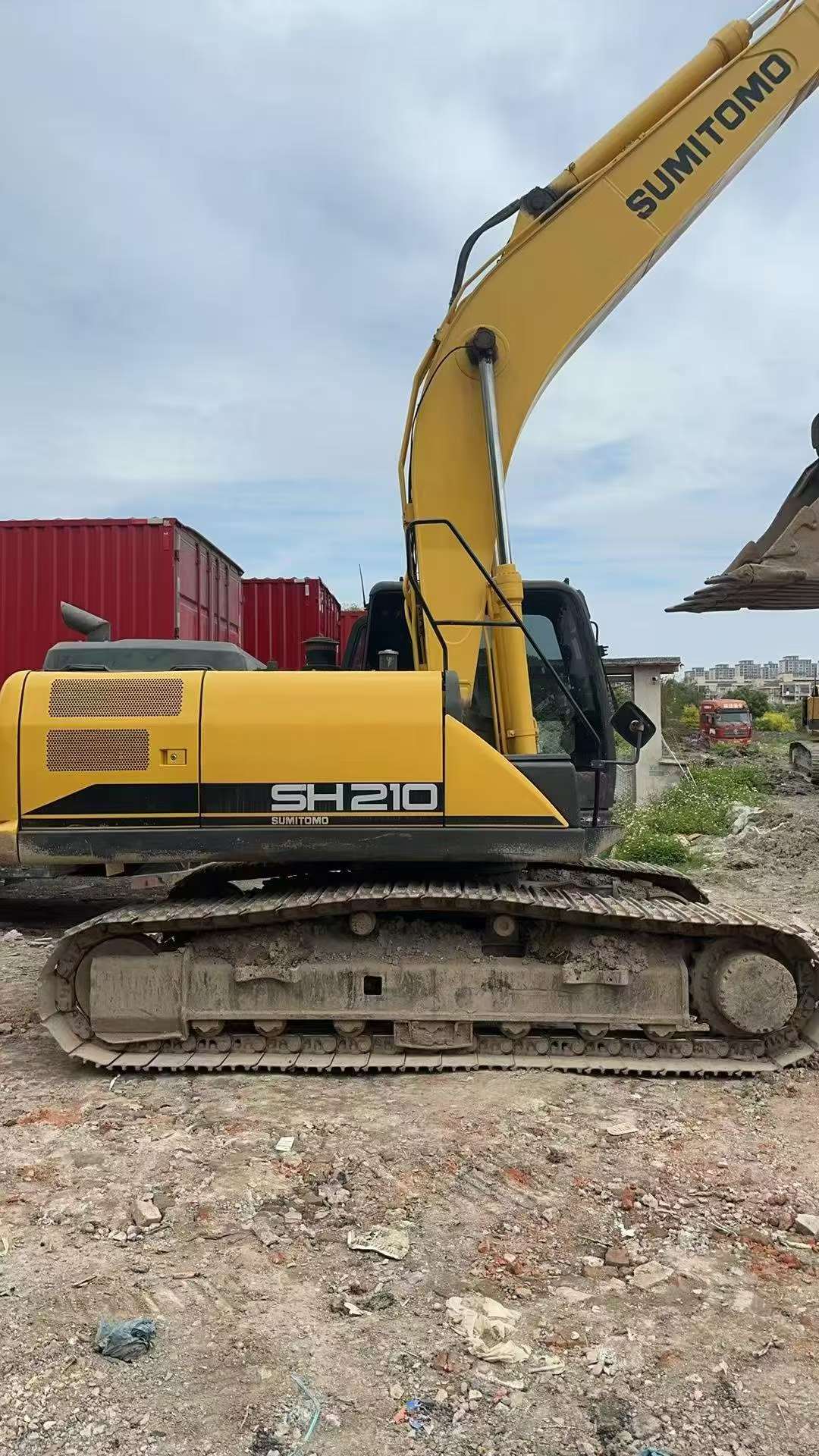

Buy Sumitomo SH210-6 Used Excavator / 4

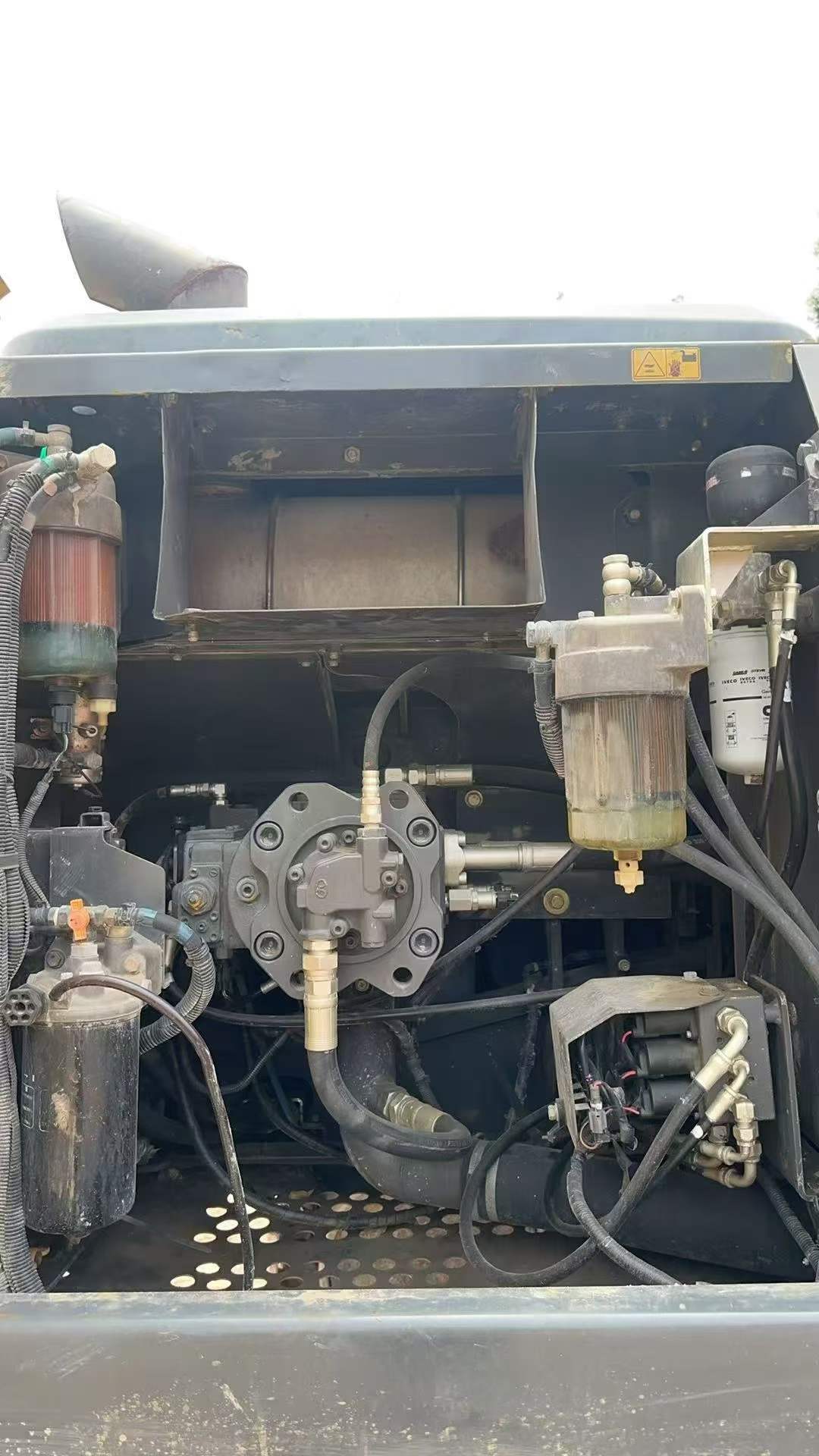

Buy Sumitomo SH210-6 Used Excavator / 5

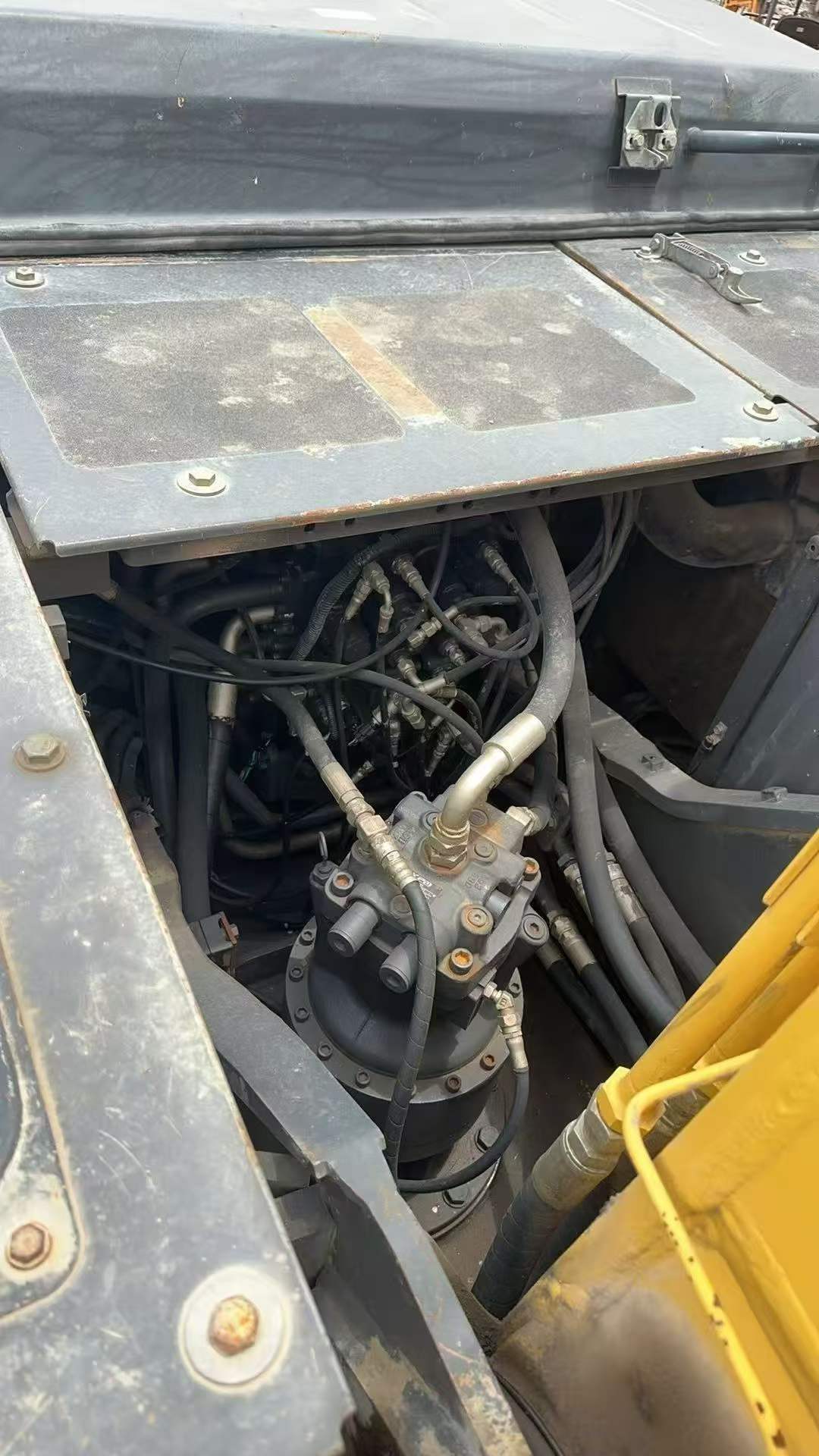

Buy Sumitomo SH210-6 Used Excavator / 6

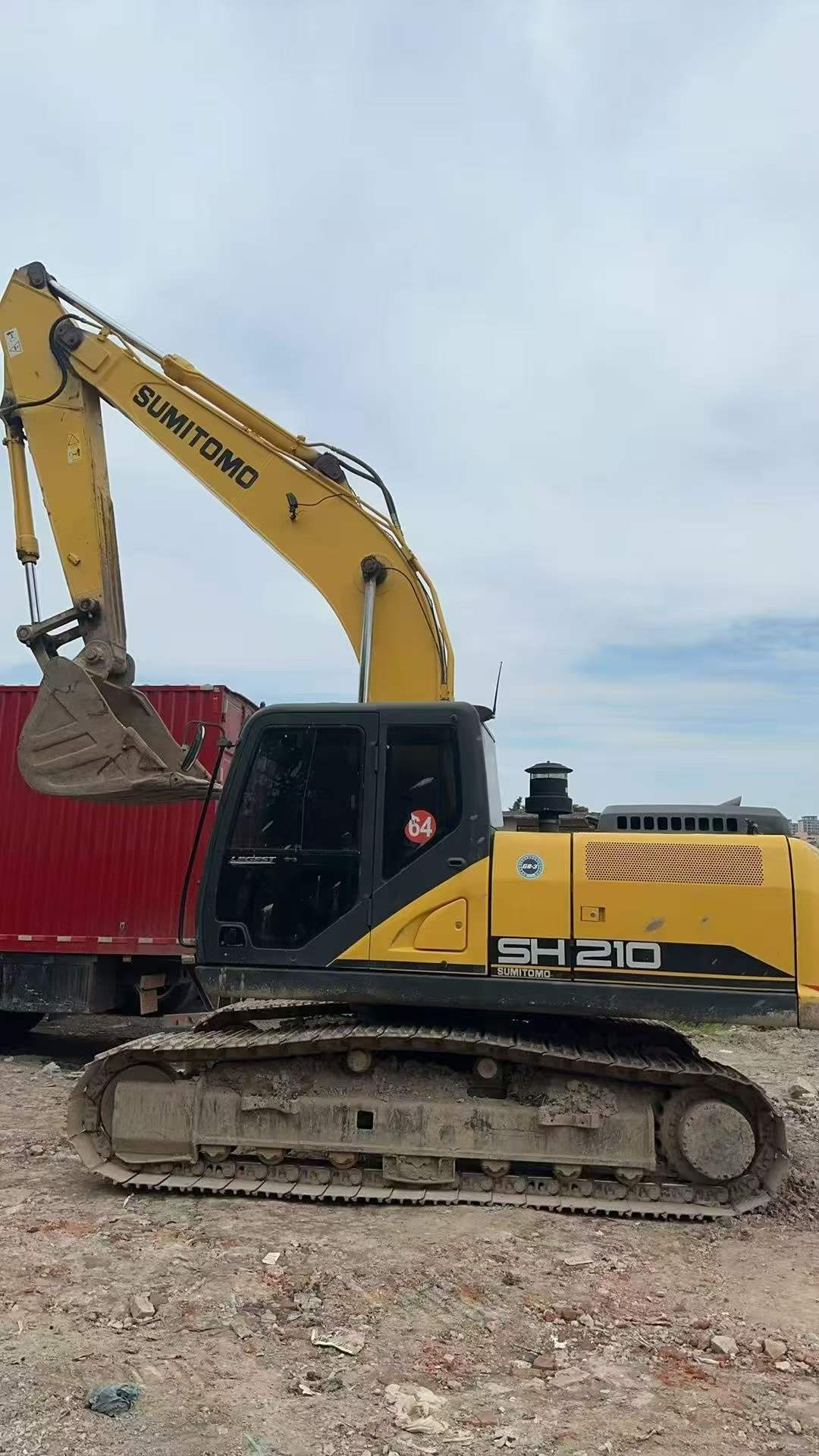

Buy Sumitomo SH210-6 Used Excavator / 7

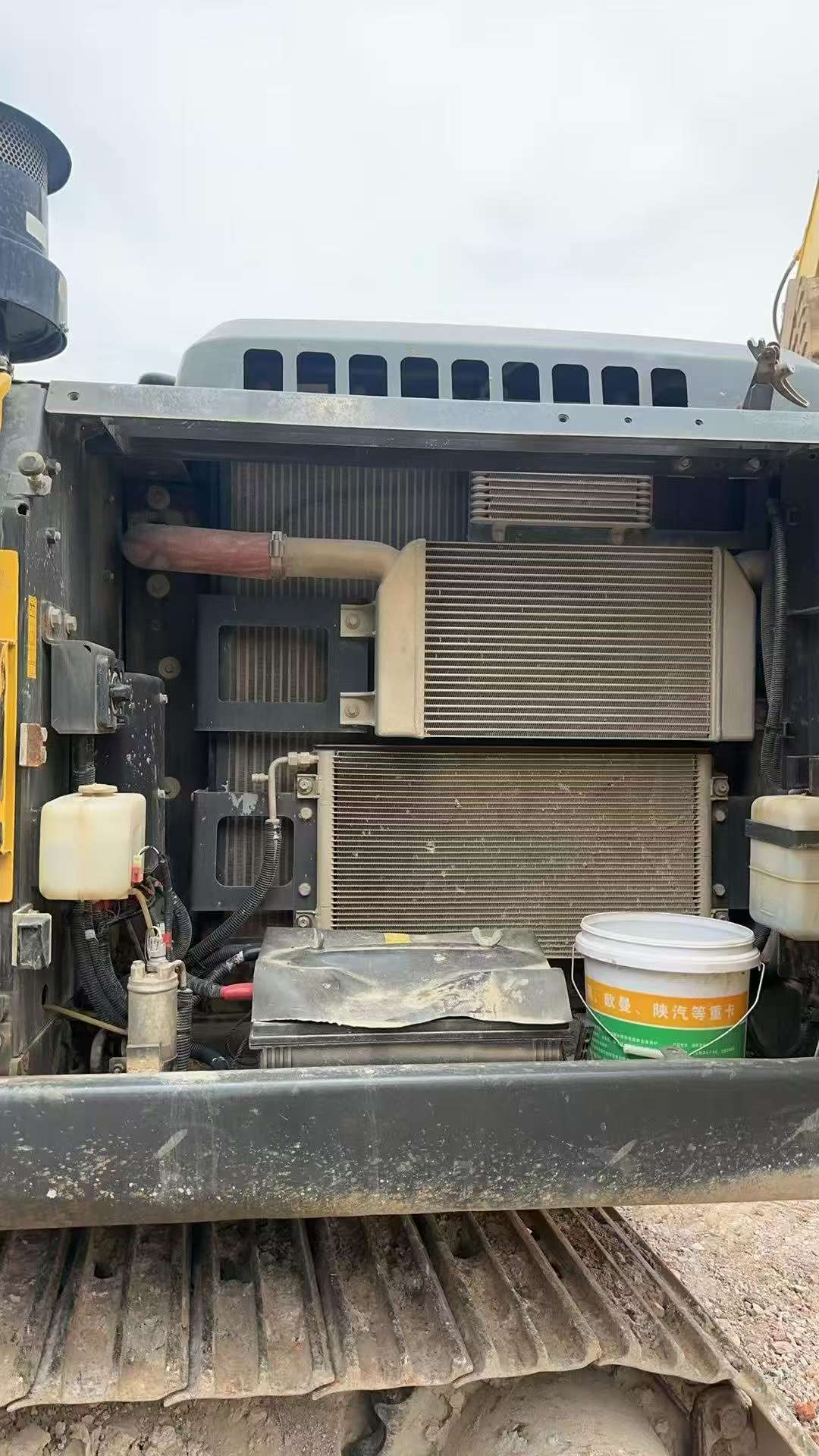

Buy Sumitomo SH210-6 Used Excavator / 8

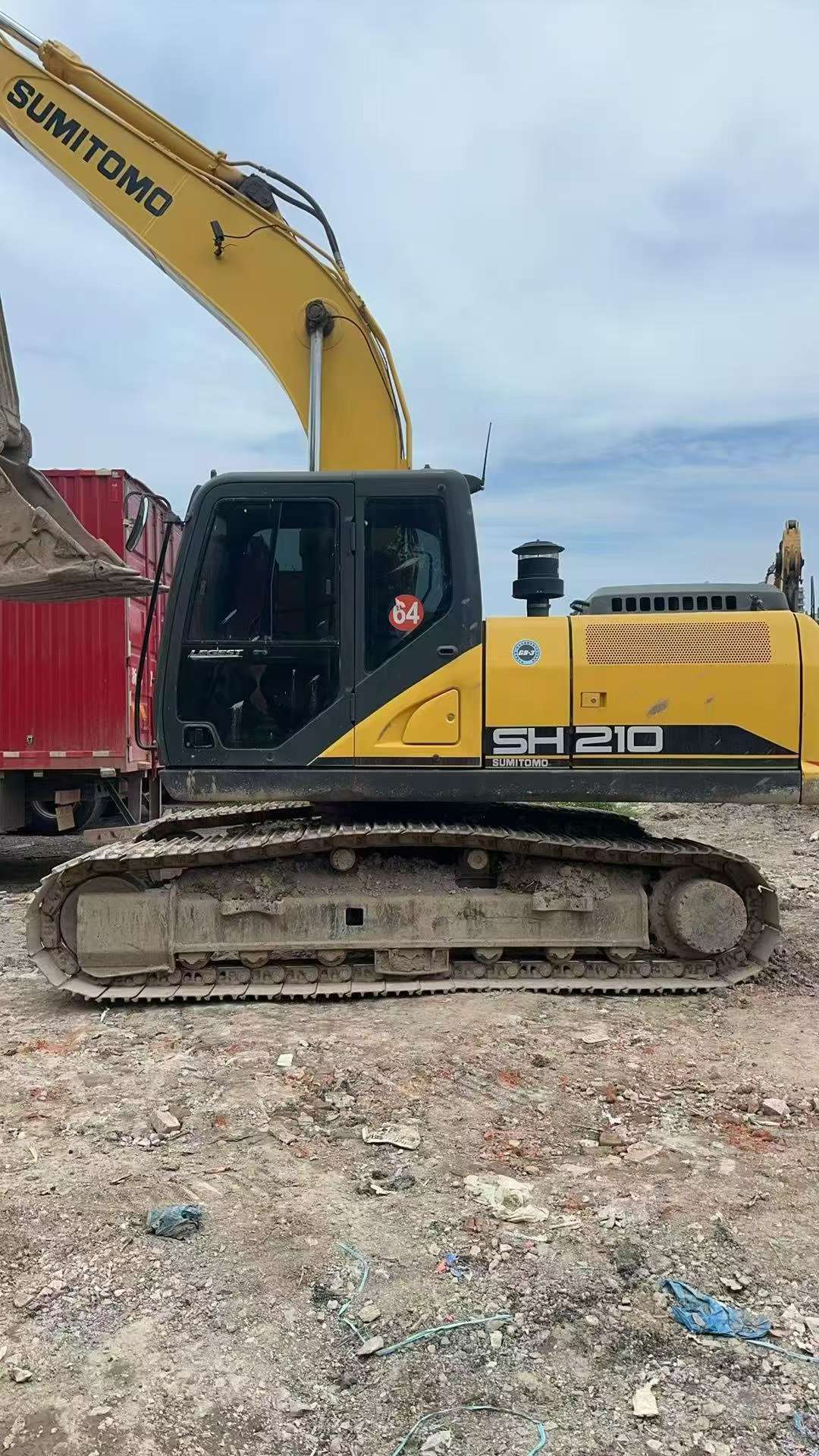

Buy Sumitomo SH210-6 Used Excavator / 9

Product Description

This 2022 Sumitomo SH210-6 hydraulic excavator represents a well-maintained addition to any fleet. Located in Zhejiang, China, this machine offers the proven reliability Sumitomo is known for in the 21-ton class. The SH210-6 features efficient hydraulic systems designed for demanding excavation, loading, and grading applications across construction and infrastructure projects.

  • Year: 2022
  • Model: Sumitomo SH210-6
  • Operating weight class: ~21 tons
  • Location: Zhejiang, China
  • Low operating hours for model year
  • Suitable for earthmoving, trenching, and material handling

Sumitomo excavators deliver consistent performance with straightforward maintenance requirements. This unit is available for inspection and ready for deployment. Contact us for detailed specifications, service records, and shipping arrangements to your location.

SpecificationsValue
No.1074122
Tonnage (tons)21
Working weight (kg)21000
Bucket capacity (m³)0.85~1.0
Boom length (mm)5700
Rod length (mm)2900 / 2400
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Displacement (L)5.193
Ground specific pressure (Kpa)47 / 36
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142 / 152
Rod digging force (kN)103 / 110
Travel speed (km/h)5.6 / 3.4
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3 / 36.8
Fuel Tank (L)410
Hydraulic Tank (L)147
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2750
Total track length (mm)4180
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900/9420
Maximum digging depth (mm)6650/6110
Maximum excavation height (mm)9610/9410
Maximum unloading height (mm)6810/6590
Maximum vertical digging depth (mm)5960/5500
see more

Overview

No.1074122

Brand Name:

Sumitomo

Model Number:

SH210-6

Year:

2022

Location:

Zhejiang China

Pub Date
