Product Description

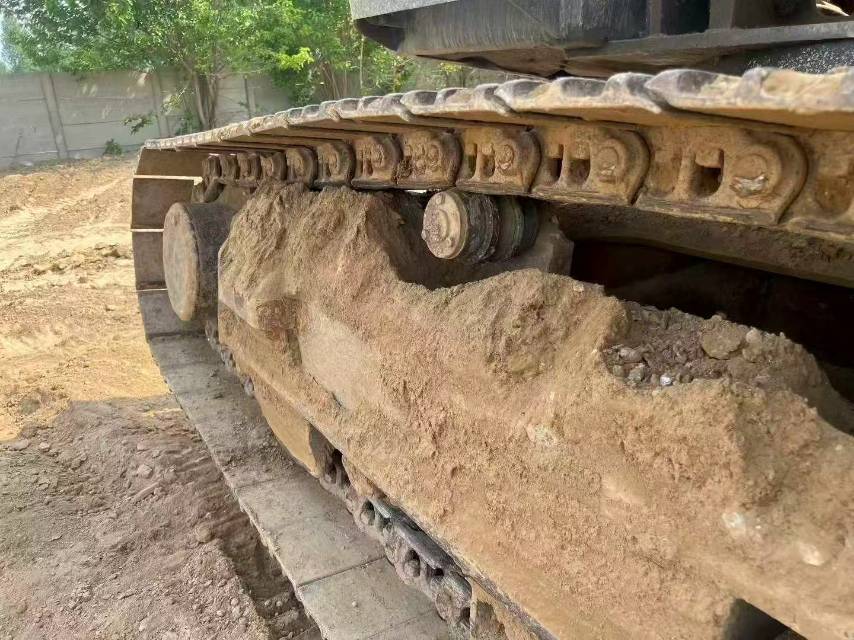

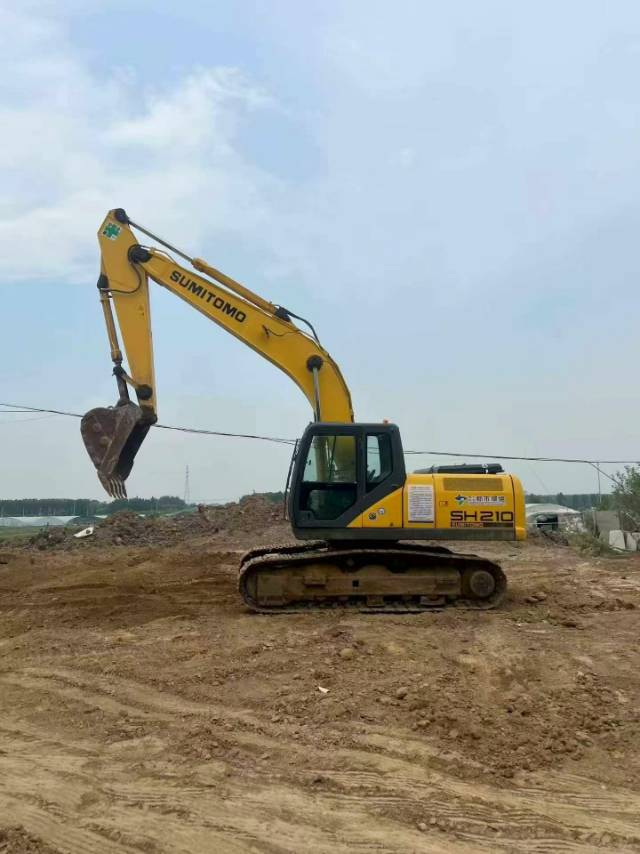

Discover the reliability and efficiency of the 2021 Sumitomo SH210A5, available in Peking, China. This excavator is in excellent condition, with all original components and a near-perfect undercarriage. The machine has been regularly maintained, ensuring optimal performance. It features the original bucket, ideal for effortless and swift earthmoving tasks. Known for its smooth and rapid operational capabilities, this SH210A5 is ready for immediate testing and deployment. Ideal for construction and excavation projects, it offers a robust solution for your heavy machinery needs.
- Year: 2021
- Brand: Sumitomo
- Model: SH210A5
- Location: Peking, China
- Condition: All original parts, well-maintained
- Features: Original bucket, fast and smooth operations
| Specifications | Value |
|---|---|
| No. | 1100502 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.5-1.1 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AI-4HK1X (Tier 3) |
| Rated power (kw/rpm) | 117.3/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 3.4/5.6 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.4 |
| Main pump type | 2× variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 36.8 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120-1010 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140-1460 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120-1255 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Full cab height (mm) | 2940 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9730 |
| Maximum effective digging depth (mm) | 6470 |
