Product Description

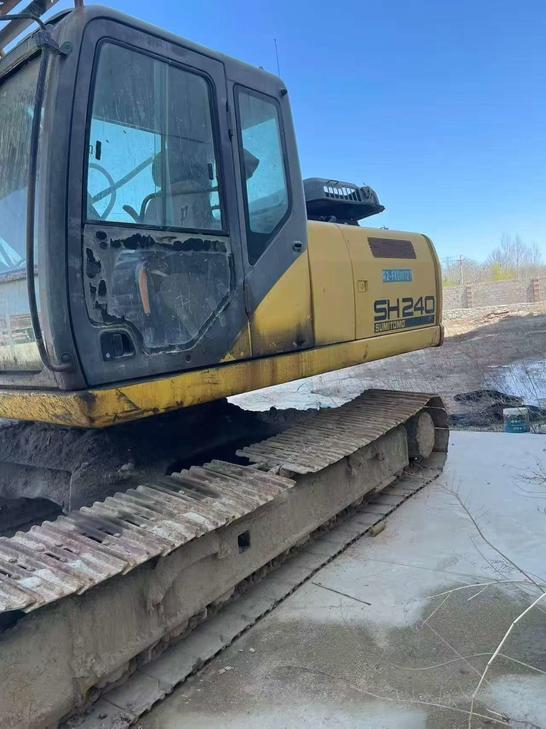

Looking for professional-grade excavation power without the premium price tag? This 2013 Sumitomo SH240-3 delivers exactly that. Operating at 24 tons with a robust 121kW ISUZU BB-6BG1T engine, this machine offers the same performance standards you'd expect from new equipment at a fraction of the cost. With 10,420mm maximum digging reach and 6,970mm digging depth, it handles demanding jobsites with confidence.
Built through joint venture manufacturing in Xiamen, this model features proven Japanese engineering reliability. The water-cooled, turbocharged diesel engine with intercooling provides consistent power delivery, while the hydraulic system—pumping 468 L/min—ensures smooth, responsive operation across all functions. Key specifications include:
- Working weight: 23,300 kg with 1.1 m³ bucket capacity
- Bucket digging force: 160 kN standard / 173 kN maximum
- 70% gradeability for challenging terrain access
- 340L fuel capacity for extended operational periods
- Currently located in Heze, Shandong—ready for immediate deployment
Smart buyers recognize that well-maintained used equipment eliminates depreciation costs while maintaining productivity. This SH240-3 represents
| Specifications | Value |
|---|---|
| No. | 1050886 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.1 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU BB-6BG1T |
| Rated power (kw/rpm) | 121/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 6.494 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 10.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 160/173 |
| Rod digging force (kN) | 115/125 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 468 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 225 |
| Total transport length (mm) | 9880 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3080 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3870 |
| Back end turning radius (mm) | 2910 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10420 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6210 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
