Product Description
Engineered for precision and control, this 2016 Sumitomo SH240-3 delivers reliable performance across demanding jobsites. Operating at 24 tons with a robust ISUZU BB-6BG1T engine producing 121 kW at 2150 rpm, this excavator combines proven Japanese engineering with practical operator-focused design. Sourced from Xiamen and currently located in Ganzhou, Jiangxi, it offers a 1.1 m³ bucket capacity and exceptional digging force of 160 kN.
- Superior Visibility: Cabin design provides clear sightlines to the bucket and work area, reducing blind spots during operation
- Stable Platform: 23,300 kg working weight with 46 kPa ground pressure ensures minimal ground disturbance and solid footing on varied terrain
- Responsive Handling: 10.4 rpm rotation speed and quantitative axial piston motor enable smooth, controlled movements for precise excavation work
- Extended Reach: Maximum digging radius of 10,420 mm and depth of 6,970 mm tackle large-scale earthmoving tasks efficiently
- Proven Hydraulics: Water-cooled, turbocharged four-stroke diesel with 468 l/min main pump flow maintains consistent power under load
| Specifications | Value |
|---|---|
| No. | 1028110 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23300 |

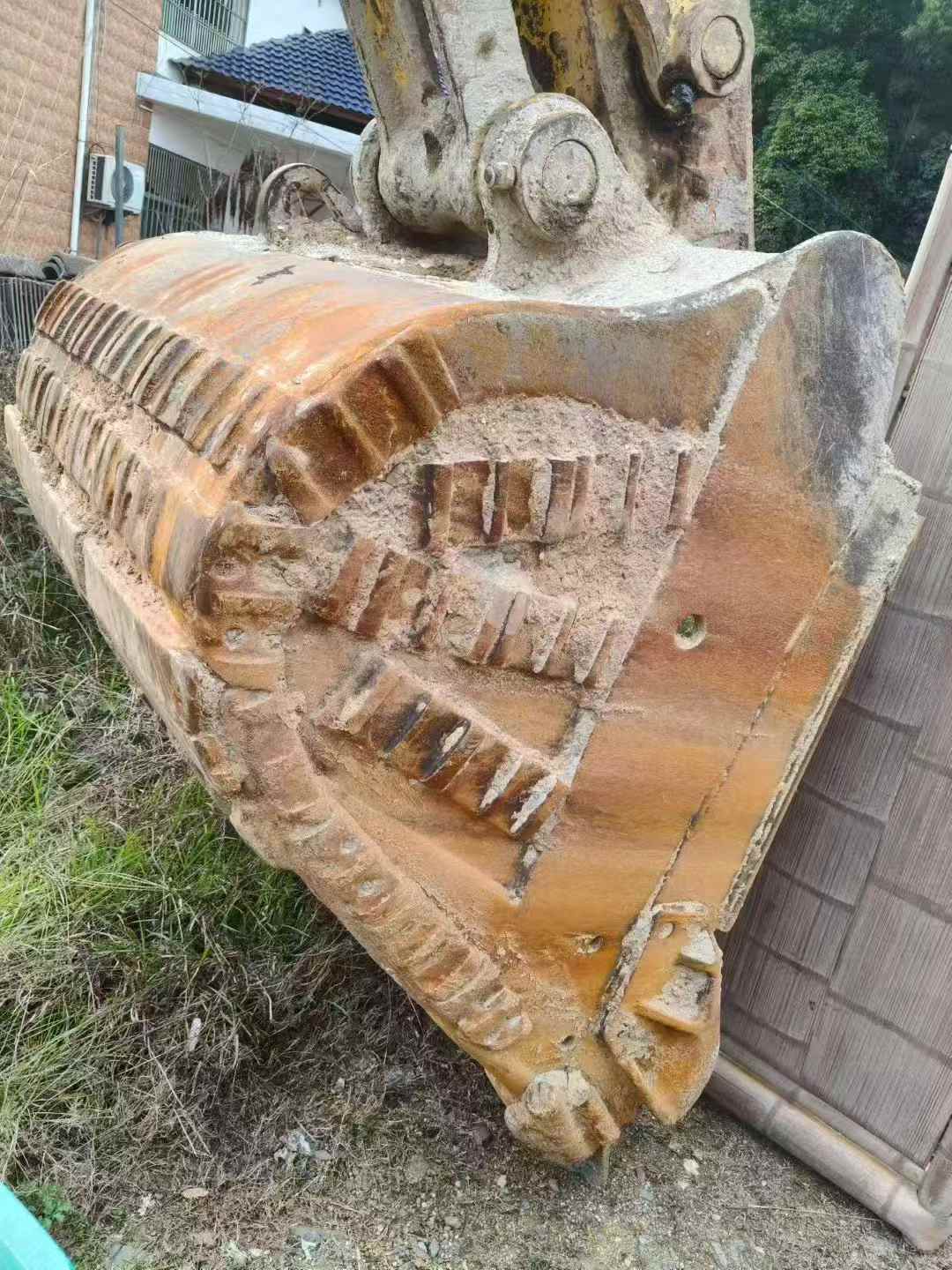

| Bucket capacity (m³) | 1.1 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

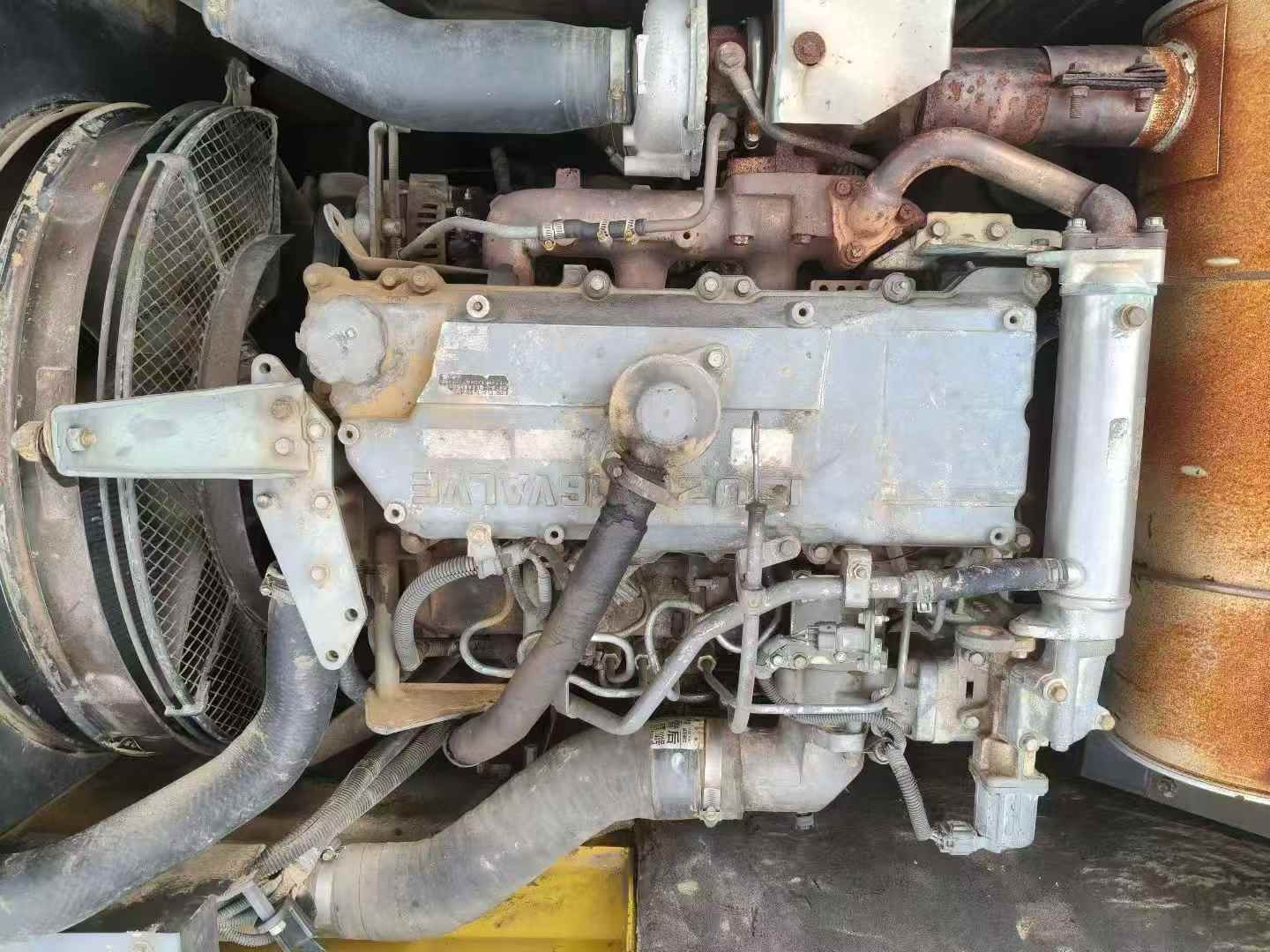

| Engine type | ISUZU BB-6BG1T |
| Rated power (kw/rpm) | 121/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 6.494 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 10.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 160/173 |
| Rod digging force (kN) | 115/125 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 468 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 225 |
| Total transport length (mm) | 9880 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3080 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3870 |
| Back end turning radius (mm) | 2910 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10420 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6210 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
