Product Description

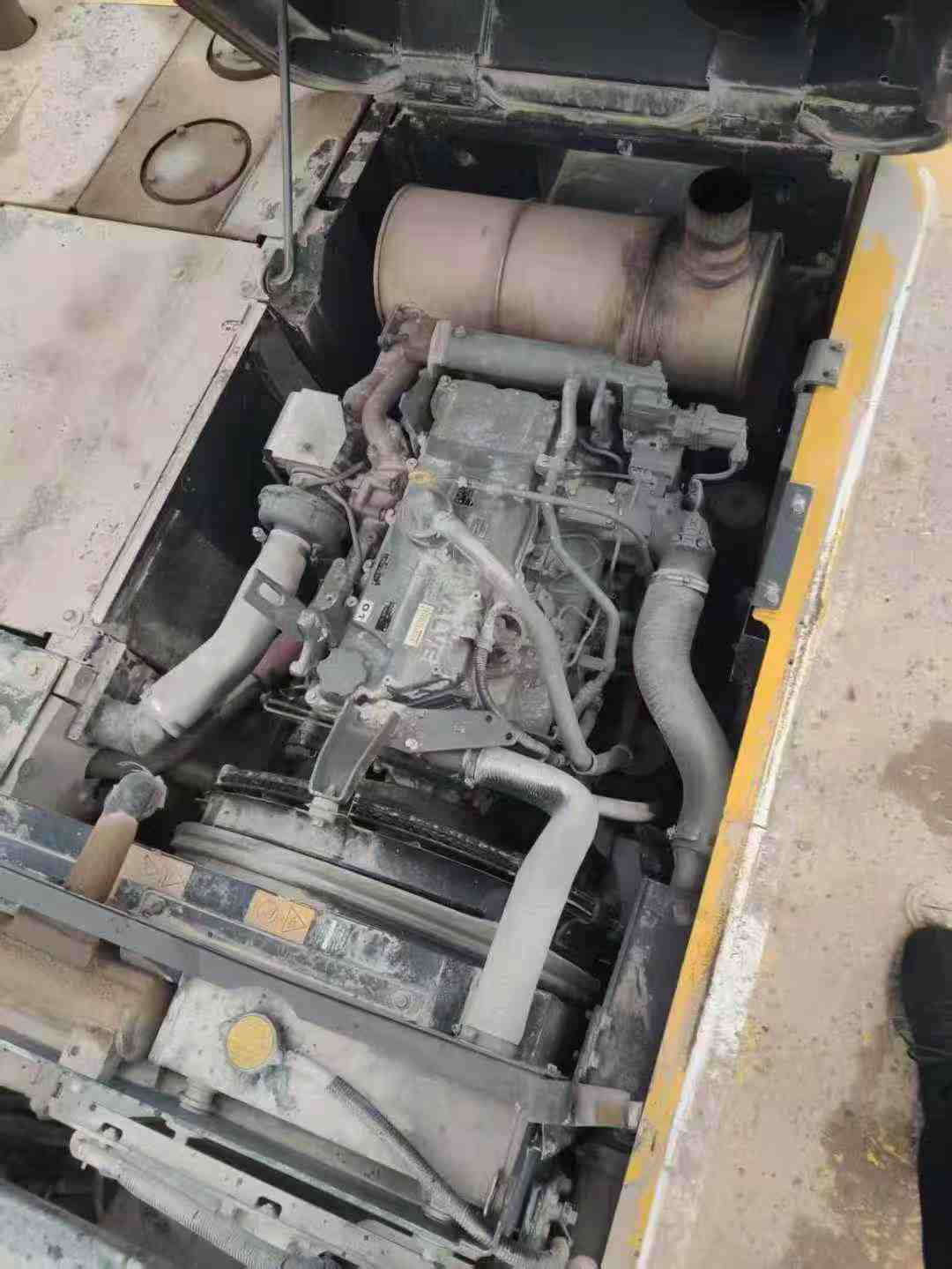

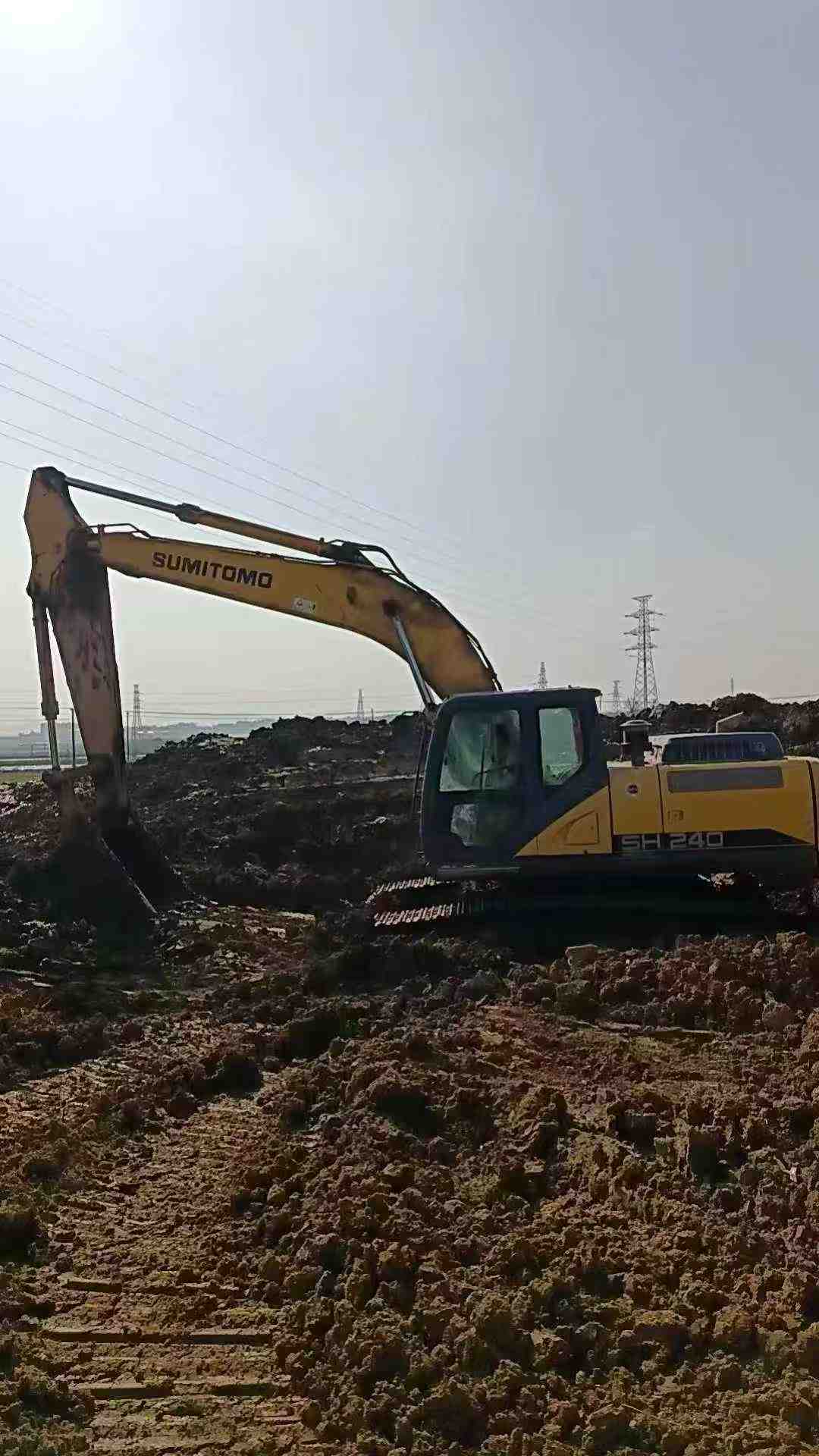

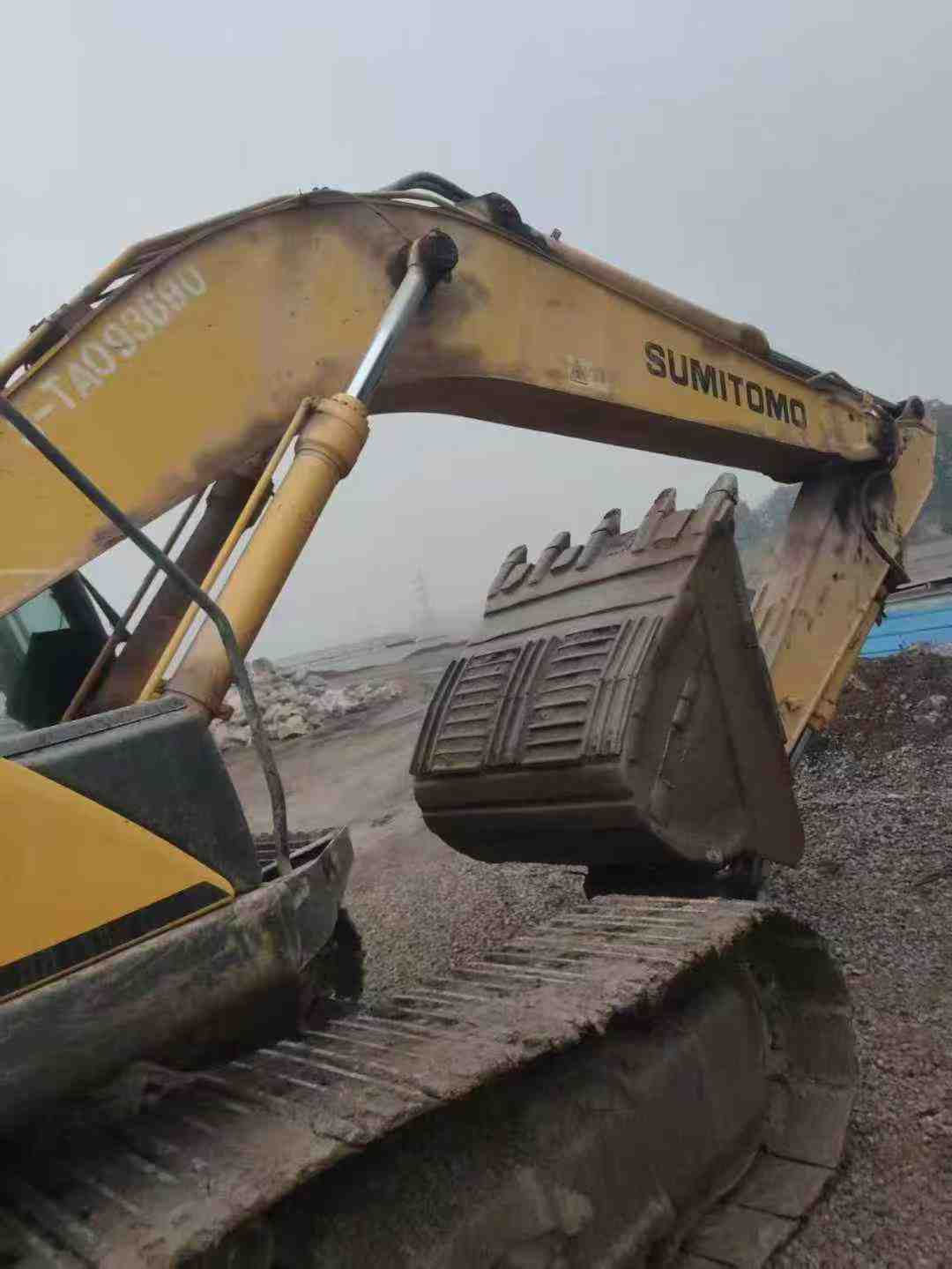

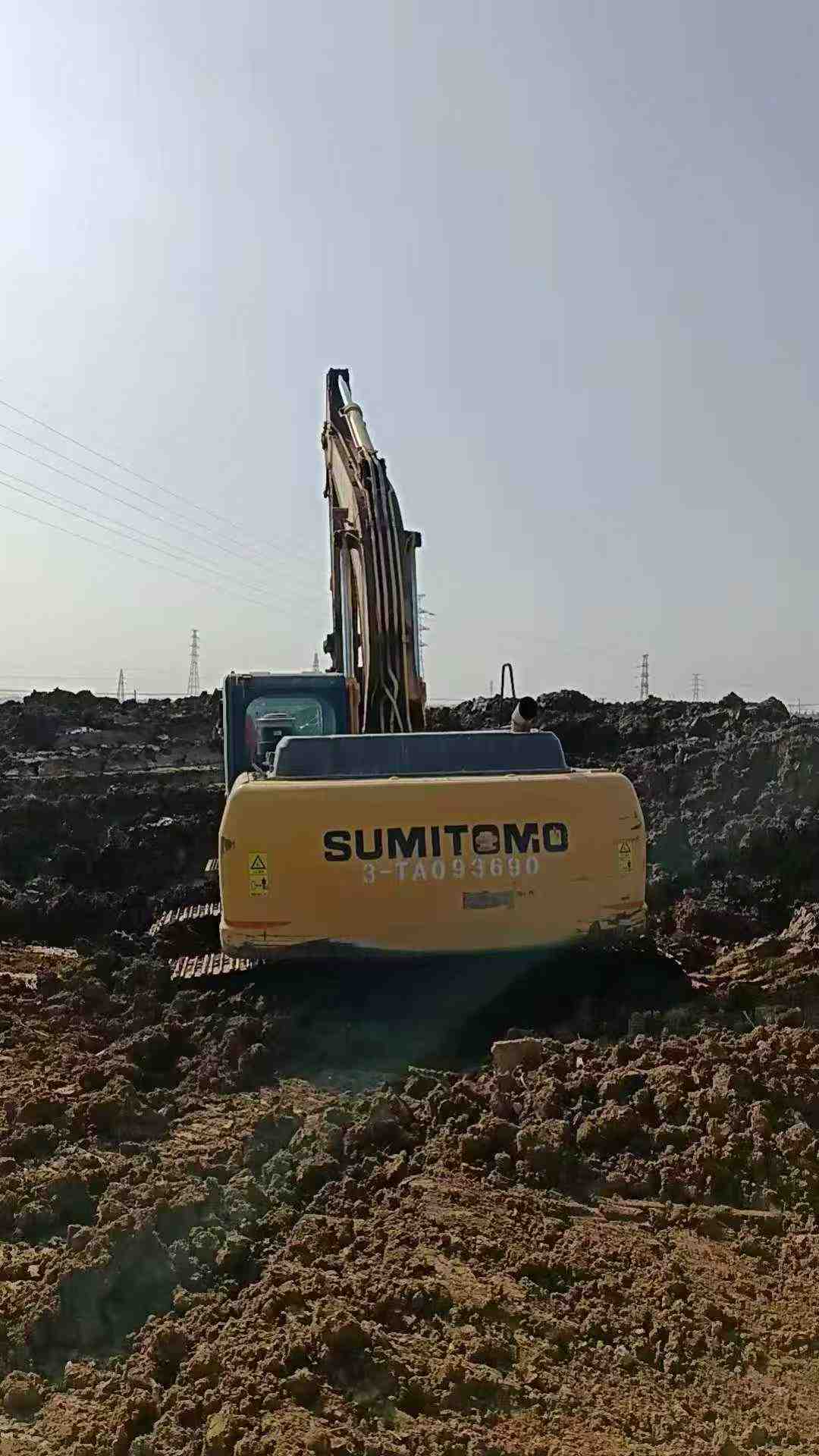

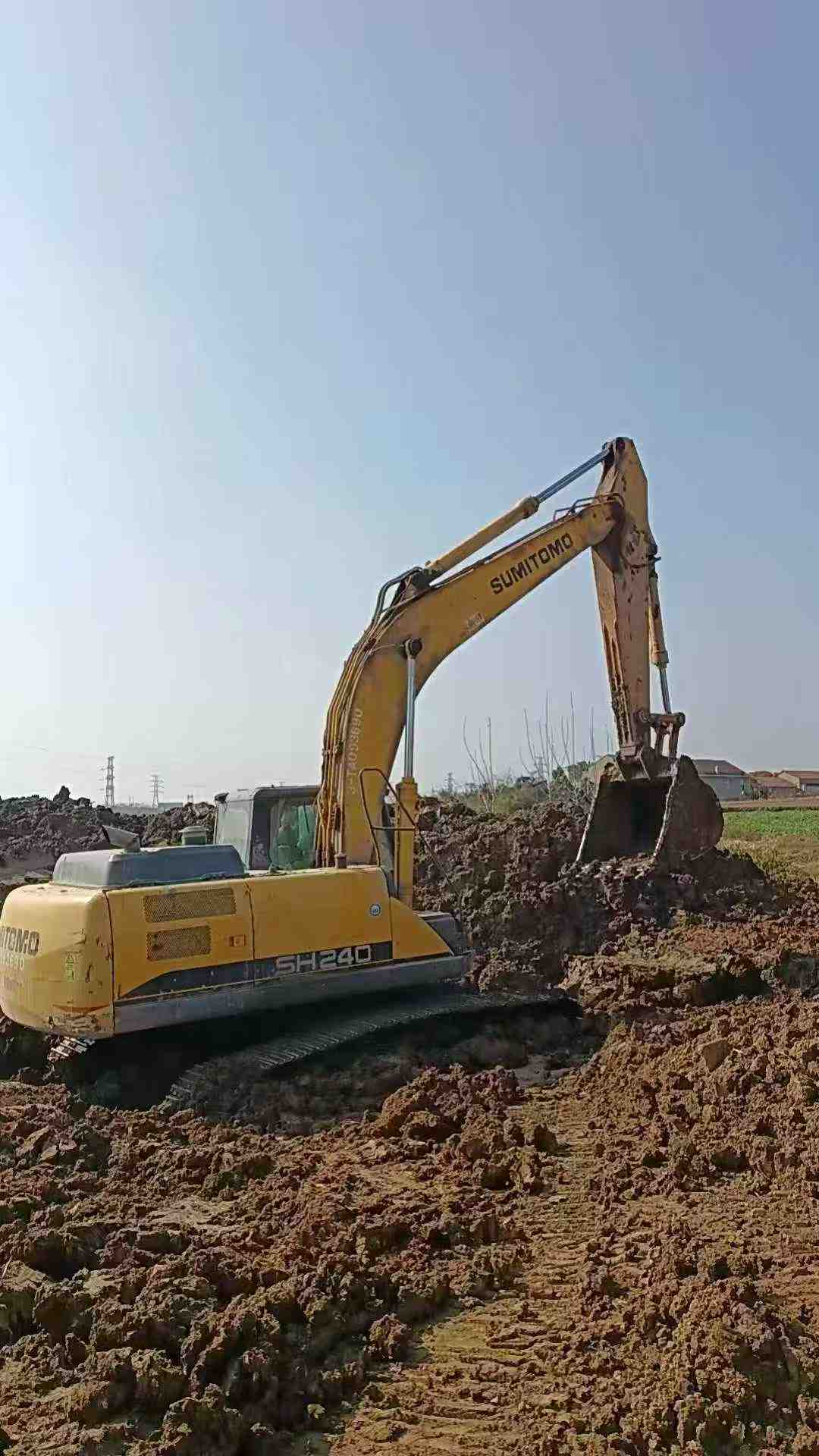

Proven reliability meets operational efficiency in this 2017 Sumitomo SH240-3 excavator, currently located in Hangzhou, Zhejiang. Built with joint venture precision and powered by a robust ISUZU BB-6BG1T engine delivering 121kW at 2150rpm, this 24-ton workhorse represents a smart investment in the used equipment market. Sumitomo's reputation for durability translates directly into lower ownership costs and exceptional resale value retention.
Operating at 23,300kg working weight with a 1.1m³ bucket capacity, this machine delivers impressive performance metrics: 10,420mm maximum digging radius, 6,970mm digging depth, and 160kN bucket digging force. The water-cooled, turbocharged diesel engine with intercooling ensures consistent power delivery across demanding applications.
Key advantages of choosing Sumitomo in the used market include:
- Widespread parts availability through established dealer networks across Asia
- Strong resale value due to brand recognition and proven longevity
- 340L fuel capacity and 225L hydraulic tank for extended operation
- Comprehensive hydraulic system with 468L/min maximum pump flow
- Compact transport dimensions (9880mm × 3190mm × 3080mm) for easy mo
| Specifications | Value |
|---|---|
| No. | 1004741 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.1 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU BB-6BG1T |
| Rated power (kw/rpm) | 121/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 6.494 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 10.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 160/173 |
| Rod digging force (kN) | 115/125 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 468 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 225 |
| Total transport length (mm) | 9880 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3080 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3870 |
| Back end turning radius (mm) | 2910 |

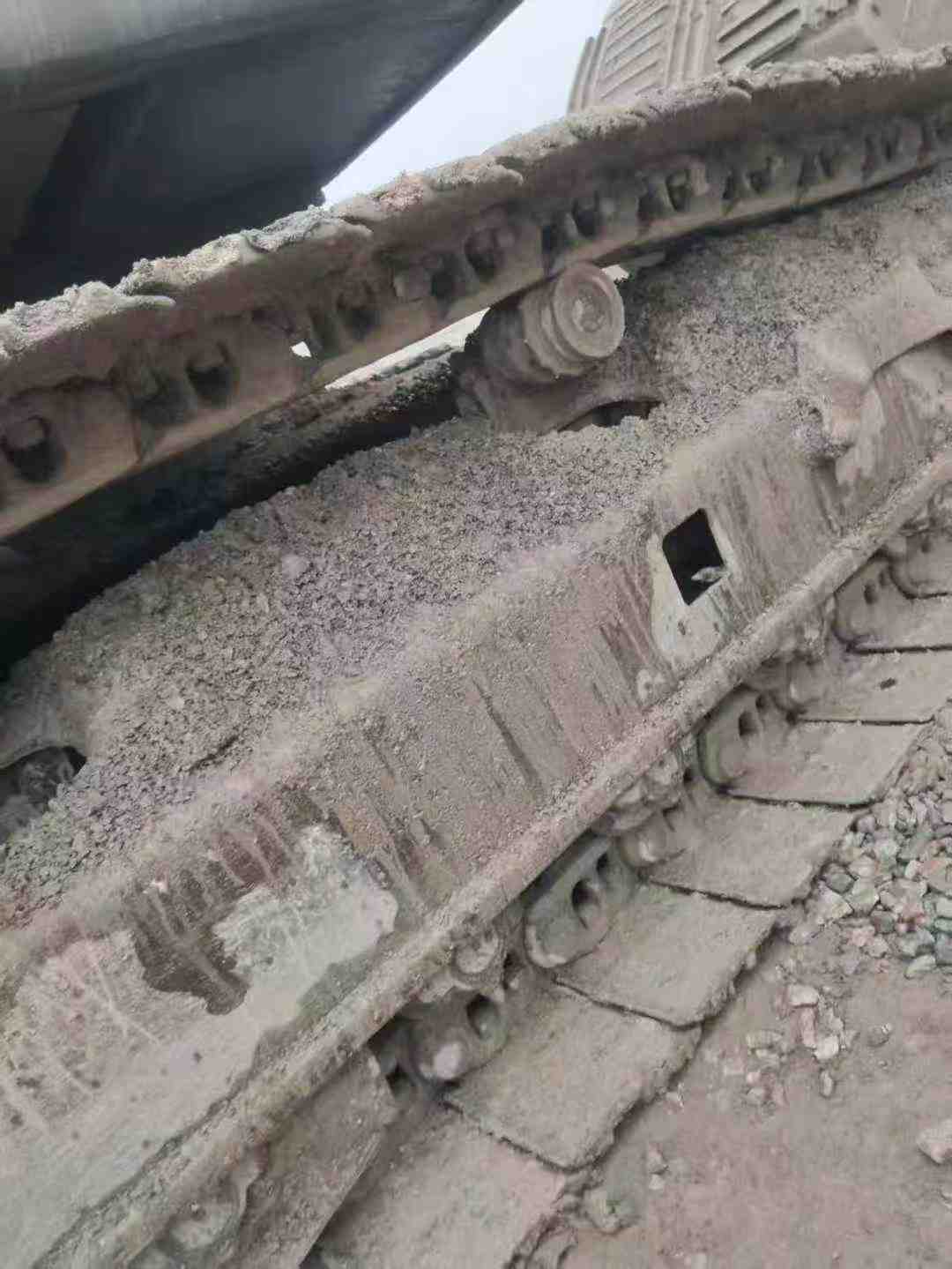

| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10420 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6210 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
