Product Description

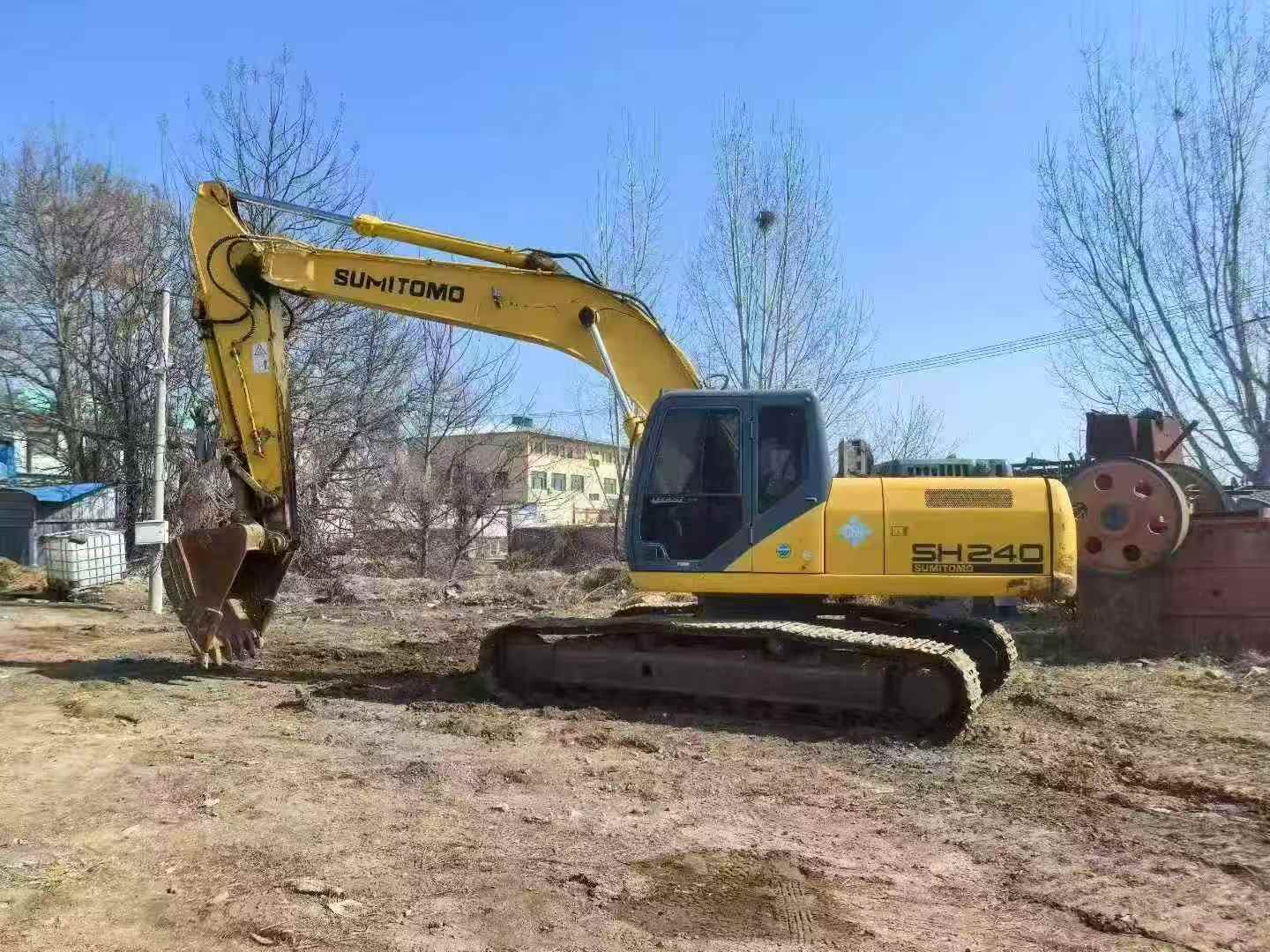

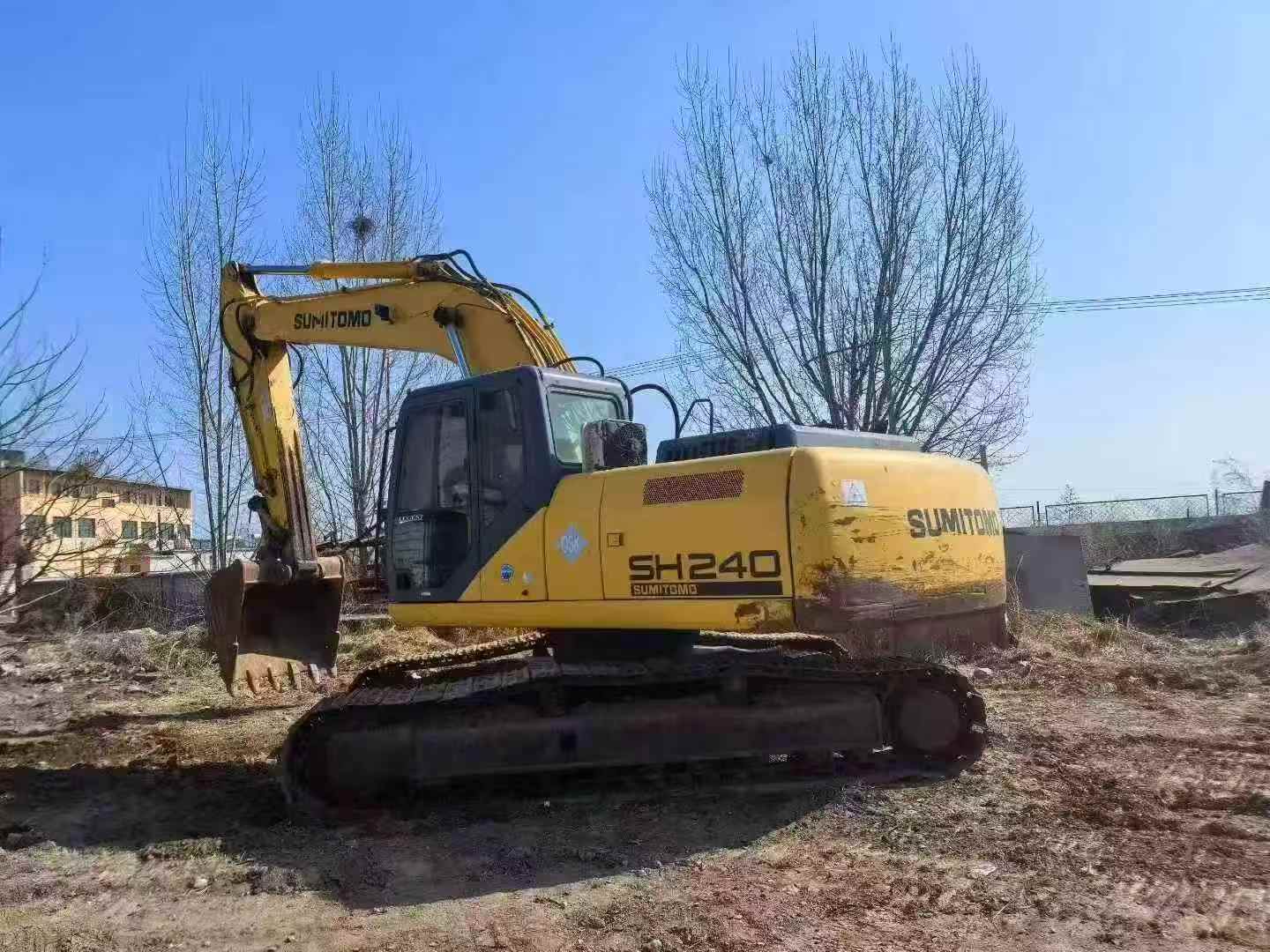

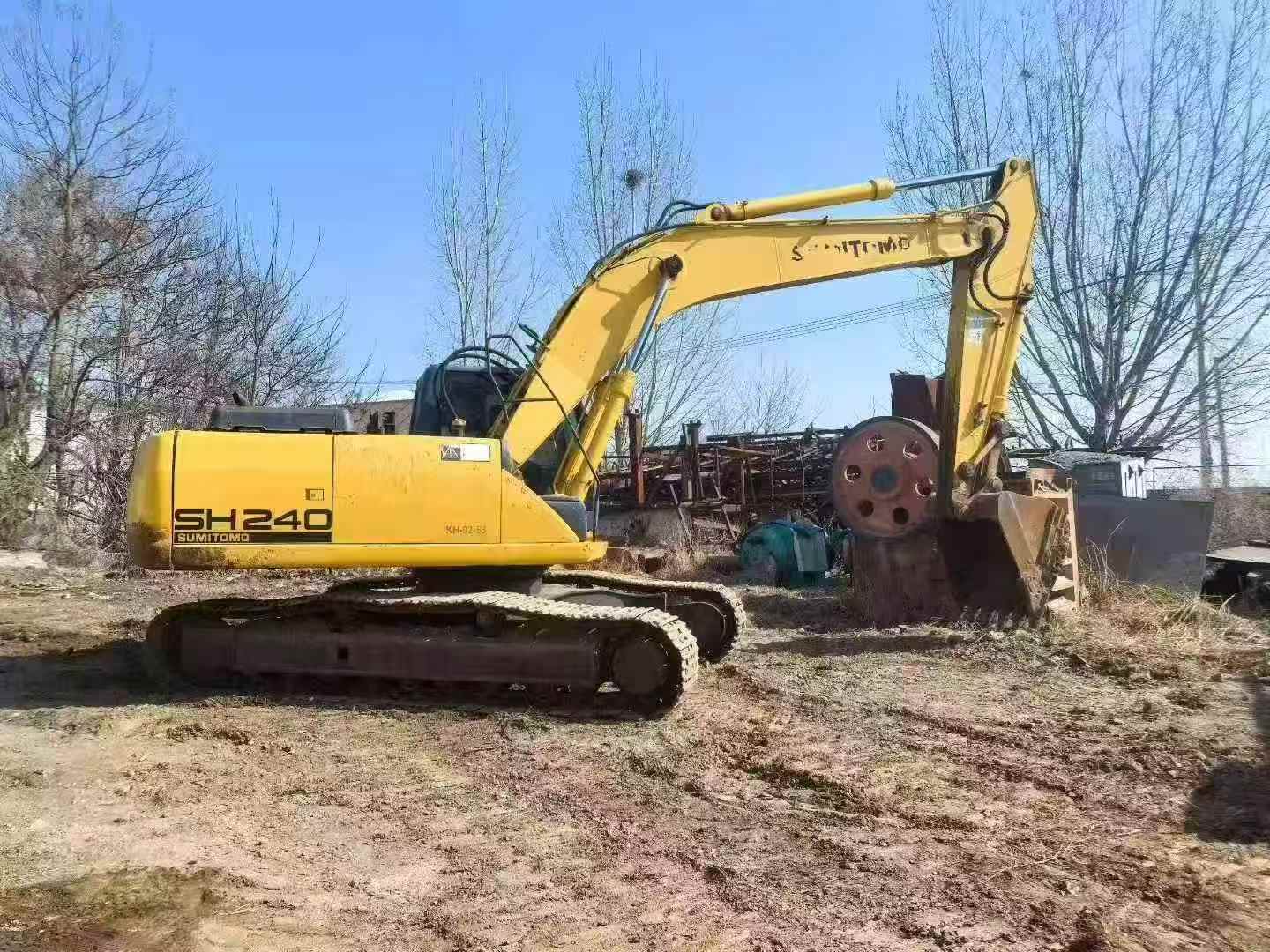

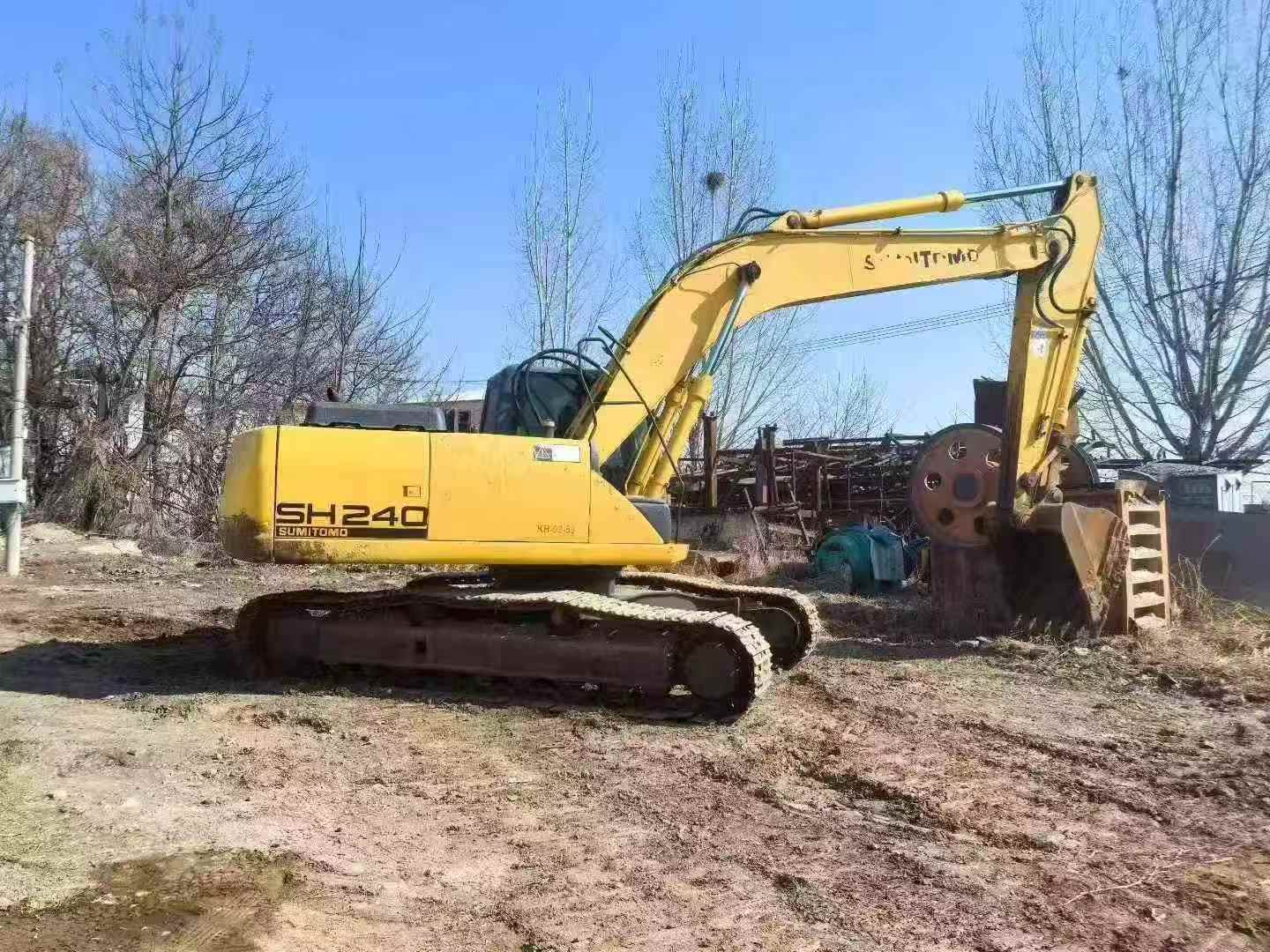

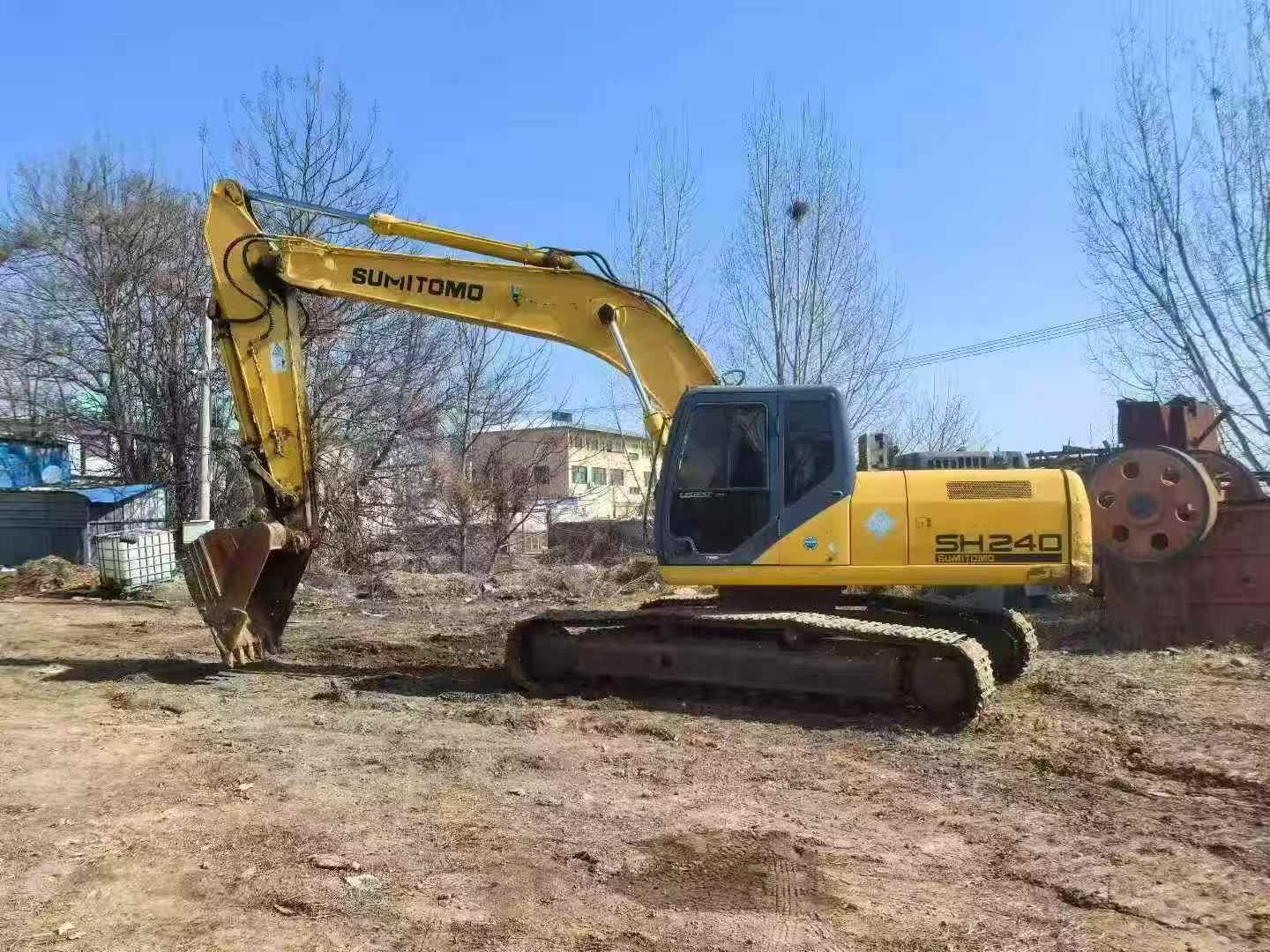

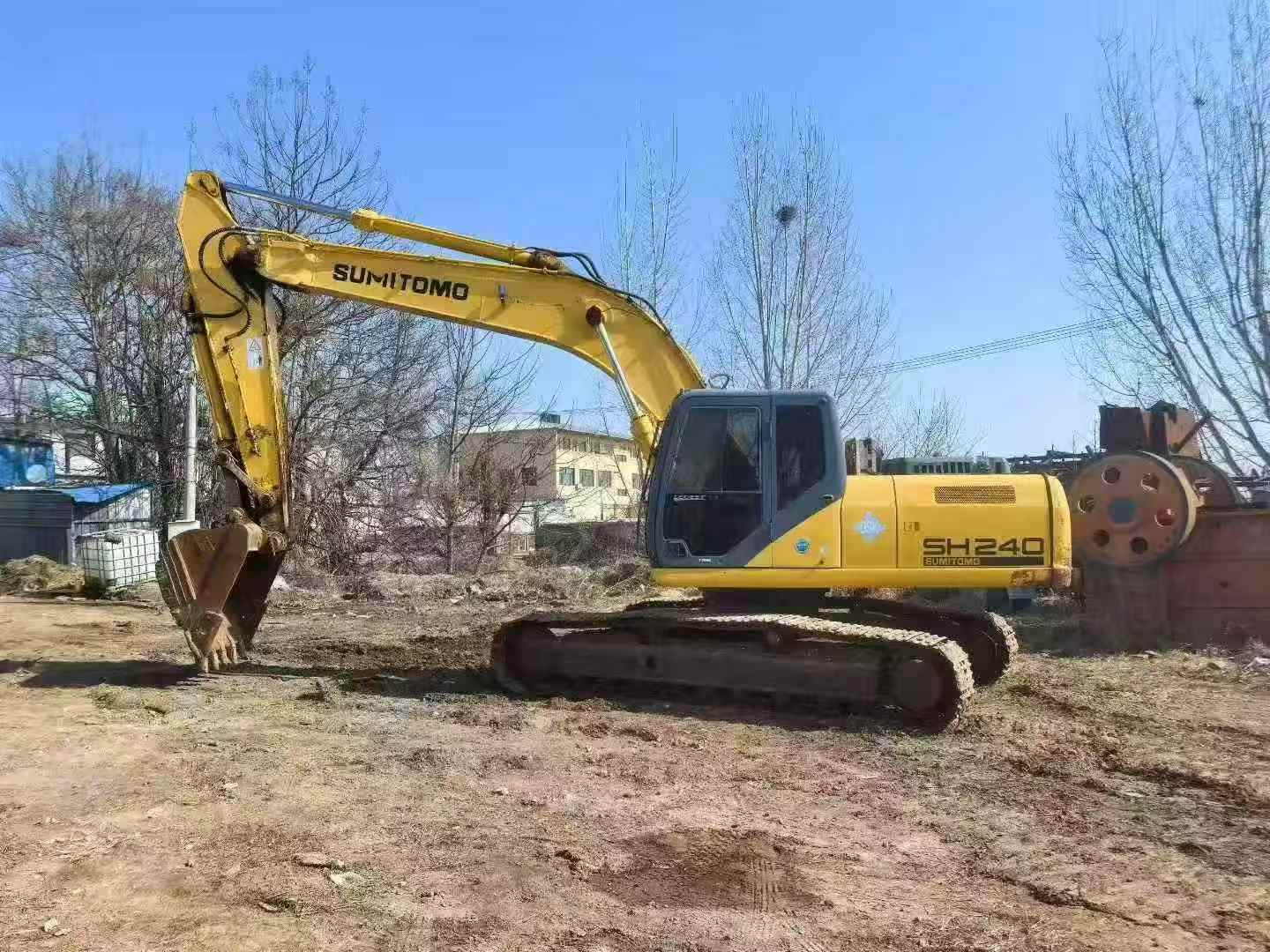

Maximize your equipment budget with this 2016 Sumitomo SH240-5 excavator, delivering flagship performance at a fraction of new machine costs. Operating at 24 tons with a robust Isuzu AH-4HK1X engine producing 132.1kW, this joint venture-manufactured unit offers proven reliability for demanding excavation projects. Located in Jiangsu, this machine combines impressive reach capabilities with efficient hydraulic systems designed for productivity.
- Maximum digging reach of 10,280mm and depth of 6,900mm for versatile job site applications

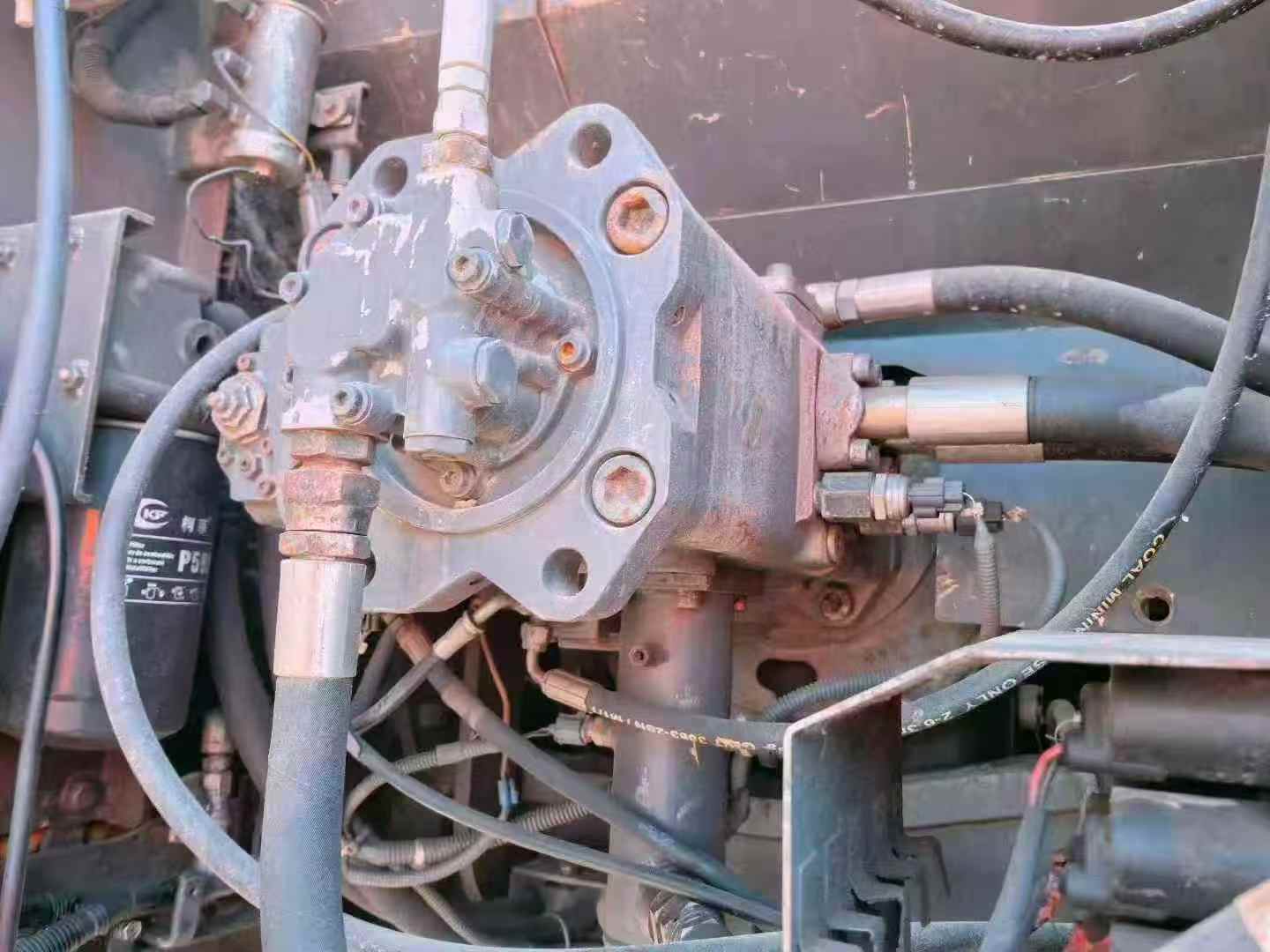

- Dual variable axial piston pumps delivering 468 L/min flow for responsive operation
- Water-cooled 5.2L turbocharged diesel engine with intercooling and full electronic control
- Bucket capacity range of 1.1-1.3m³ suits various material handling requirements
- 70% gradeability and 10.7 RPM rotation speed ensure maneuverability in challenging terrain
With 5,850mm boom length and comprehensive hydraulic specifications including 36.8MPa working circuit pressure, this SH240-5 represents smart capital allocation for contractors seeking dependable performance without new equipment premiums. Proven engineering meets value pricing in this well-positioned
| Specifications | Value |
|---|---|
| No. | 1034735 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24600 |
| Bucket capacity (m³) | 1.1-1.3 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-4HK1X (Tie 3) |
| Rated power (kw/rpm) | 132.1/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 468 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 36.8 |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 25.2 |
| Hydraulic System (L) | 250 |
| Total transport length (mm) | 9930 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3150 |
| Full cab height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3950 |
| Back end turning radius (mm) | 2940 |
| Onboard width (mm) | 2770 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3840 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6140 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10100 |
| Maximum effective digging depth (mm) | 6740 |
