Product Description

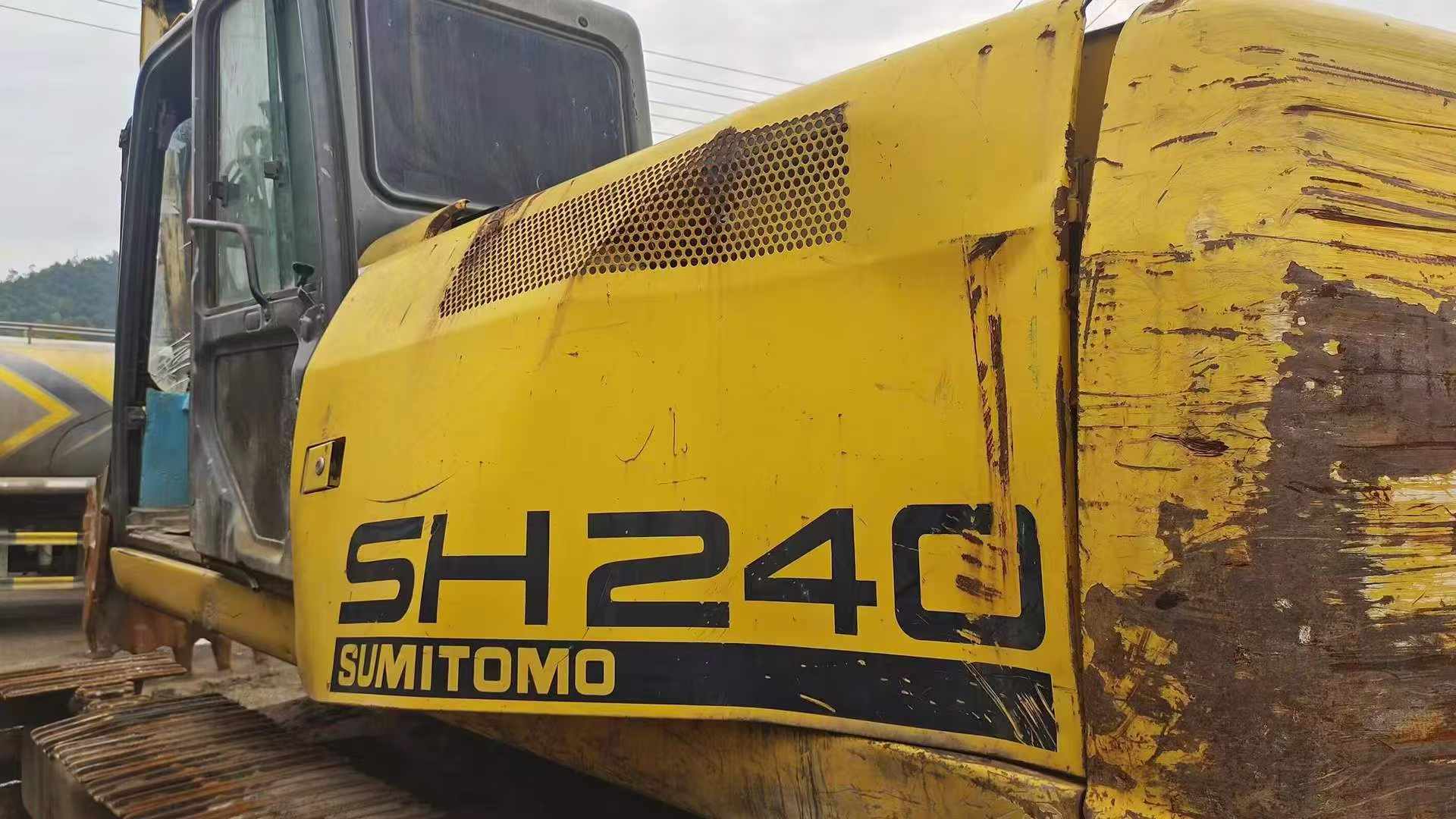

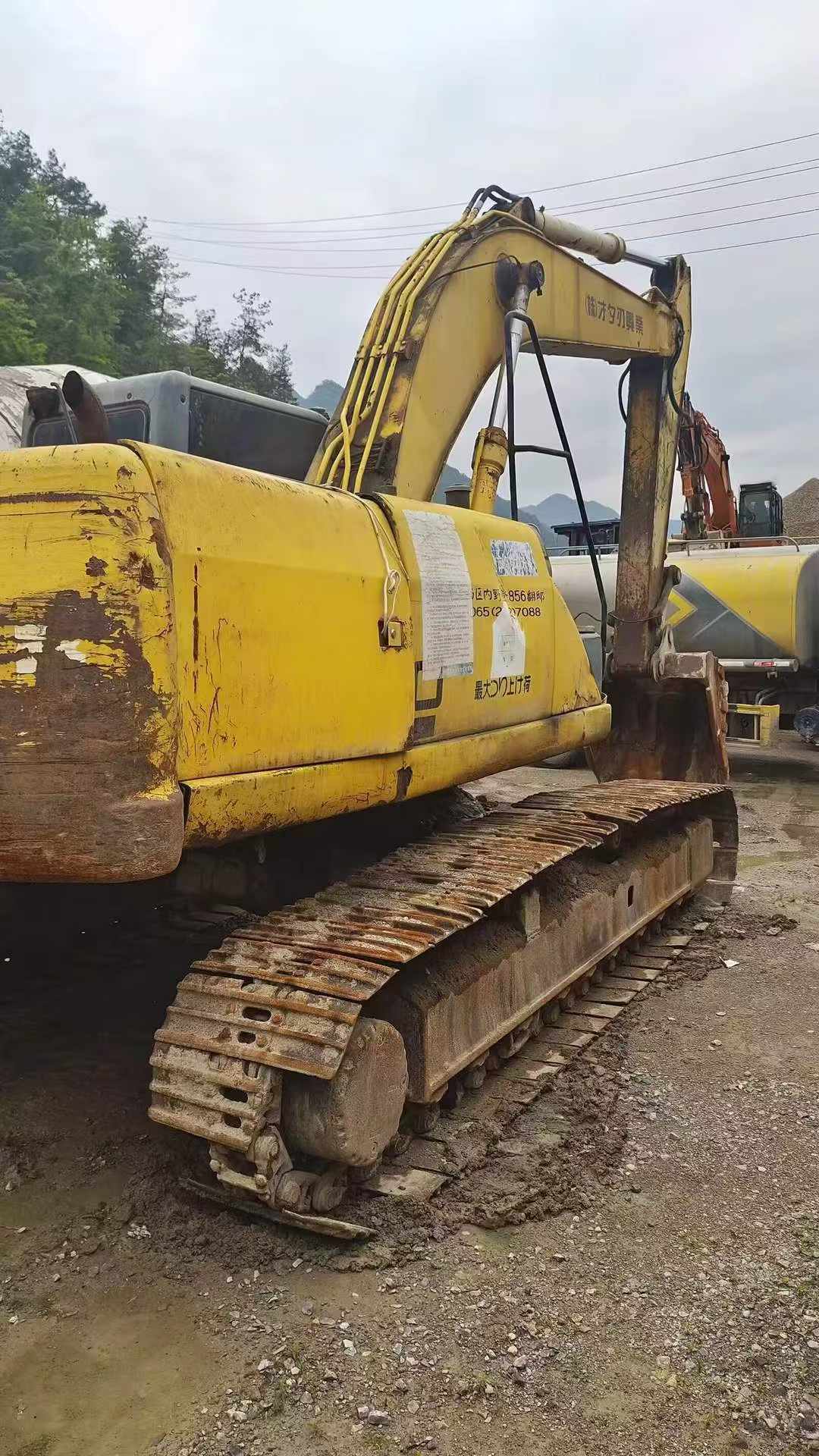

Expand your operational capacity with this 2016 Sumitomo SH240-5 excavator, currently positioned in Wenzhou, Zhejiang. Built as a joint-venture model featuring genuine Isuzu AH-4HK1X Tier 3 power, this 24-ton workhorse delivers 132.1 kW at 2000 rpm through a water-cooled, turbocharged diesel engine with intercooling. With a maximum digging reach of 10,280mm and depth capability of 6,900mm, it handles medium to heavy-duty applications without compromising fuel efficiency from its 410L tank.
Key fleet integration advantages include:

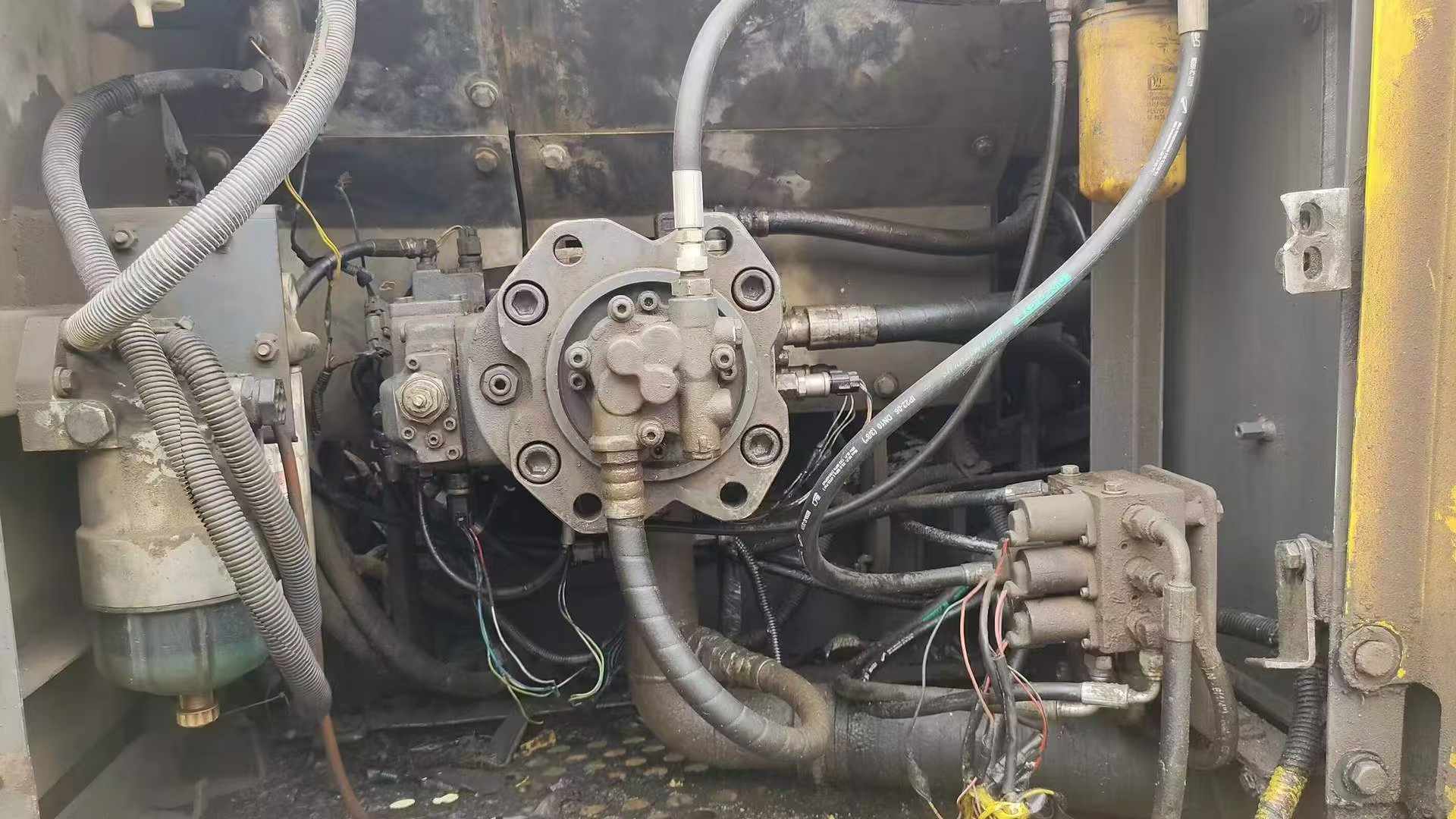

- Dual variable axial piston pumps delivering 468 L/min for responsive hydraulic performance
- 1.1-1.3 m³ bucket capacity suited for bulk earthmoving and trenching operations
- Compact transport dimensions (9,930mm length) for easy mobilization between job sites
- Proven Isuzu engine platform simplifying parts inventory and technician training
- 10.7 rpm swing speed and 5.5 km/h travel speed maximizing cycle times
Operating weight of 24,600 kg provides stability without requiring heavy-haul permits in most regions. Ideal for contractors seeking reliable backup capacity or standardizing fleet specifications around Japanese engineering and importe
| Specifications | Value |
|---|---|
| No. | 1036925 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24600 |
| Bucket capacity (m³) | 1.1-1.3 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

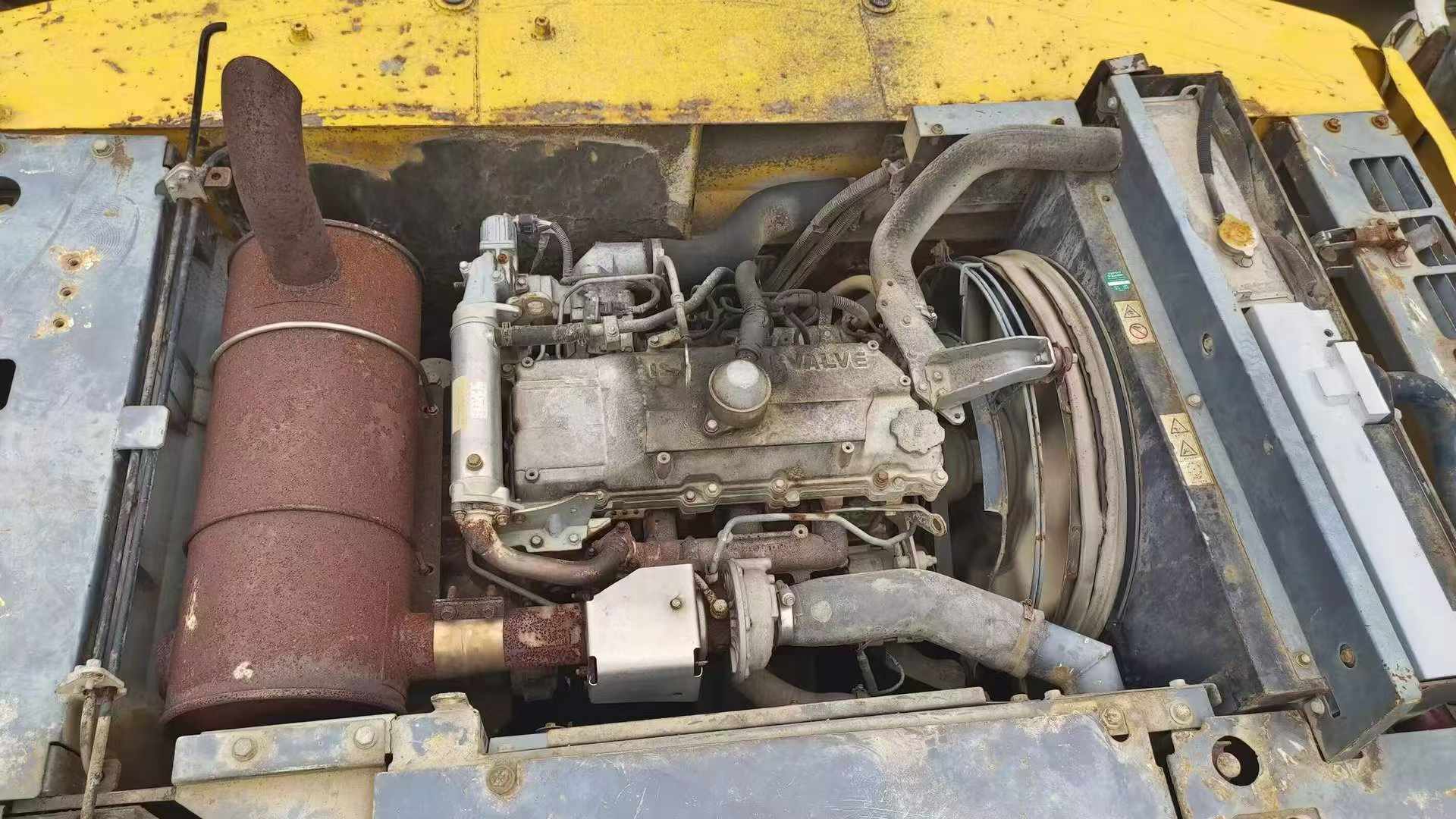

| Engine type | Isuzu AH-4HK1X (Tie 3) |
| Rated power (kw/rpm) | 132.1/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 468 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 36.8 |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 25.2 |
| Hydraulic System (L) | 250 |
| Total transport length (mm) | 9930 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3150 |
| Full cab height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3950 |
| Back end turning radius (mm) | 2940 |
| Onboard width (mm) | 2770 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3840 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6140 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10100 |
| Maximum effective digging depth (mm) | 6740 |
