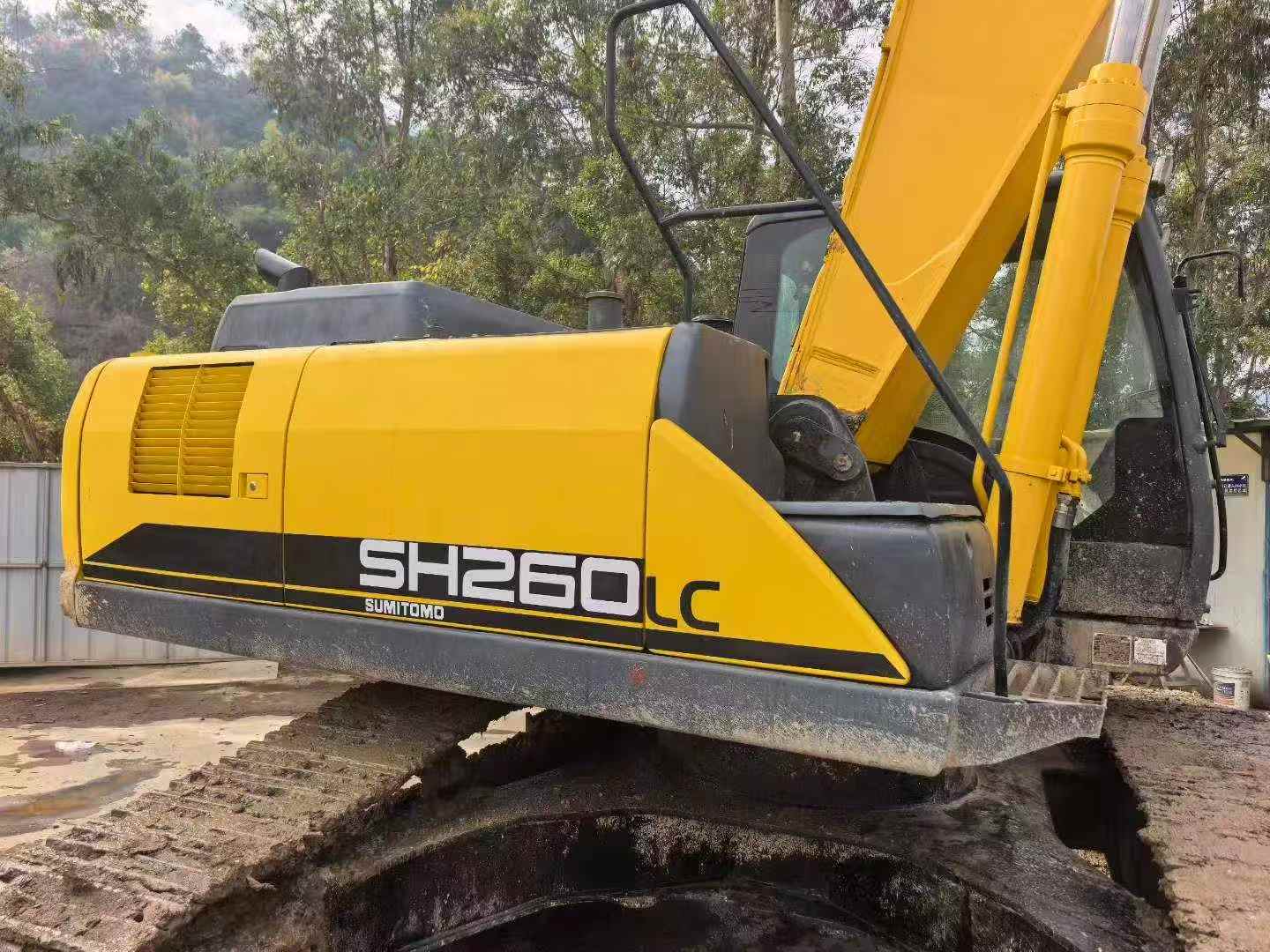

Buy Sumitomo SH260LC-6 Used Excavator / 1

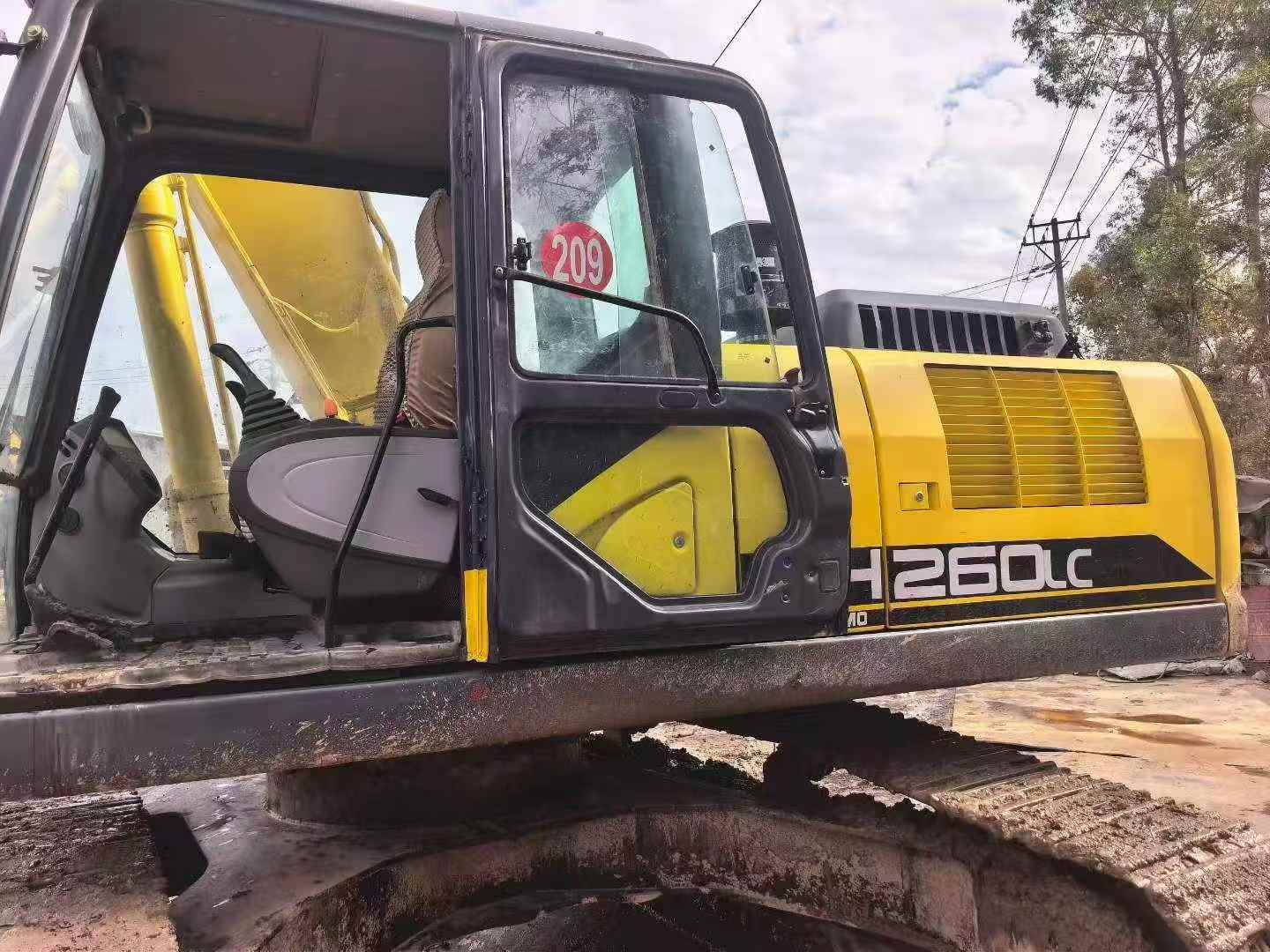

Buy Sumitomo SH260LC-6 Used Excavator / 2

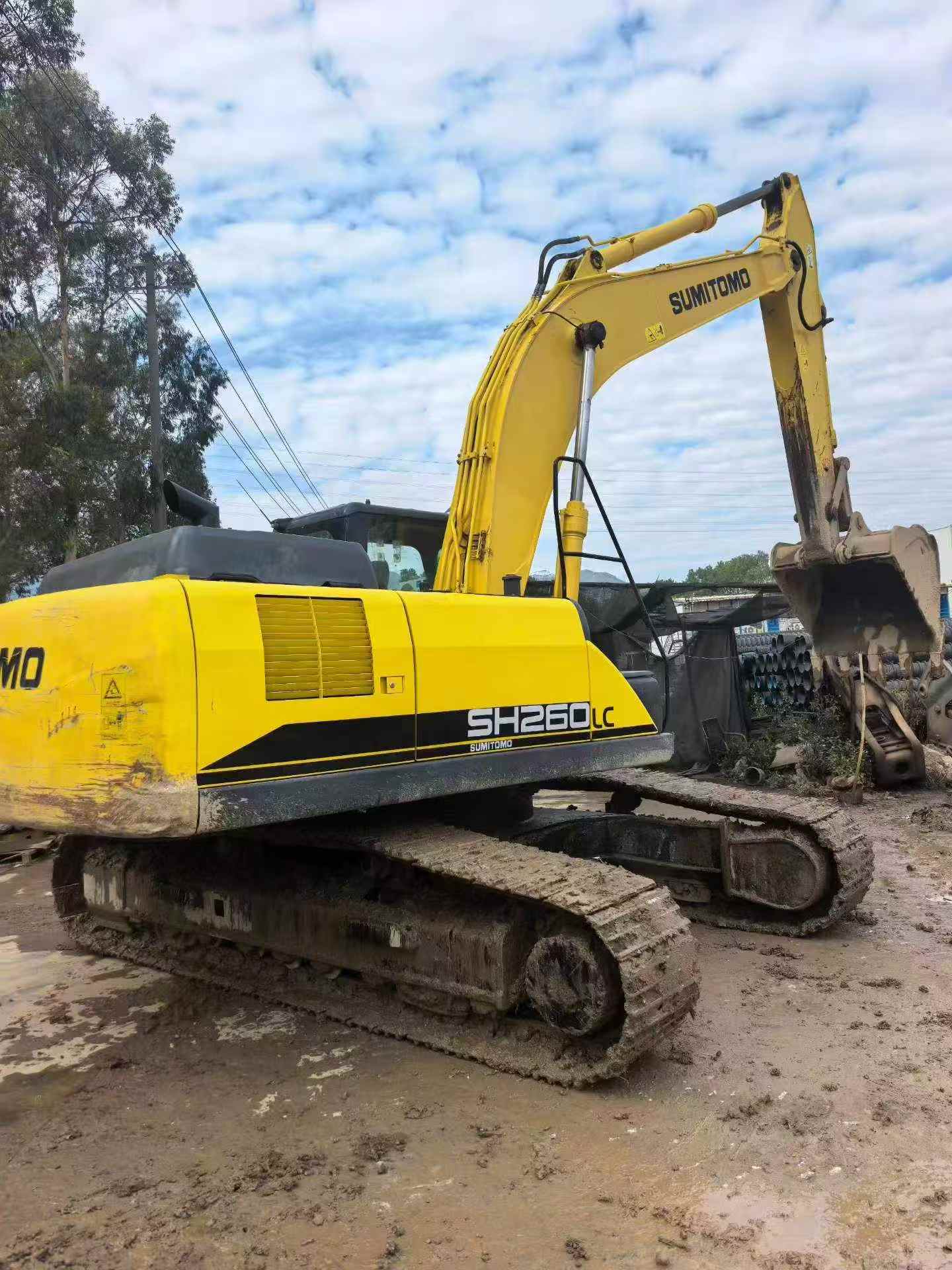

Buy Sumitomo SH260LC-6 Used Excavator / 3

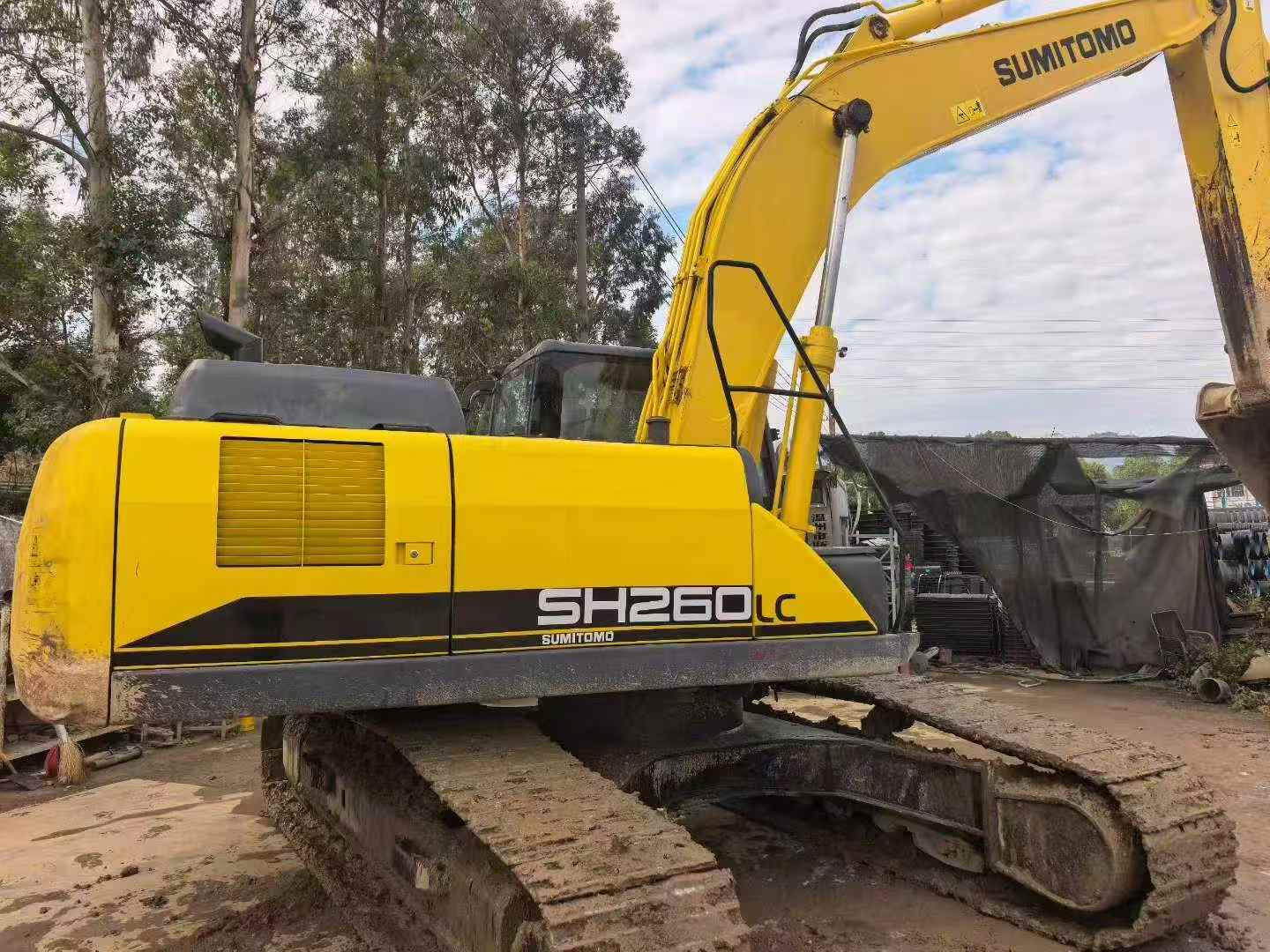

Buy Sumitomo SH260LC-6 Used Excavator / 4

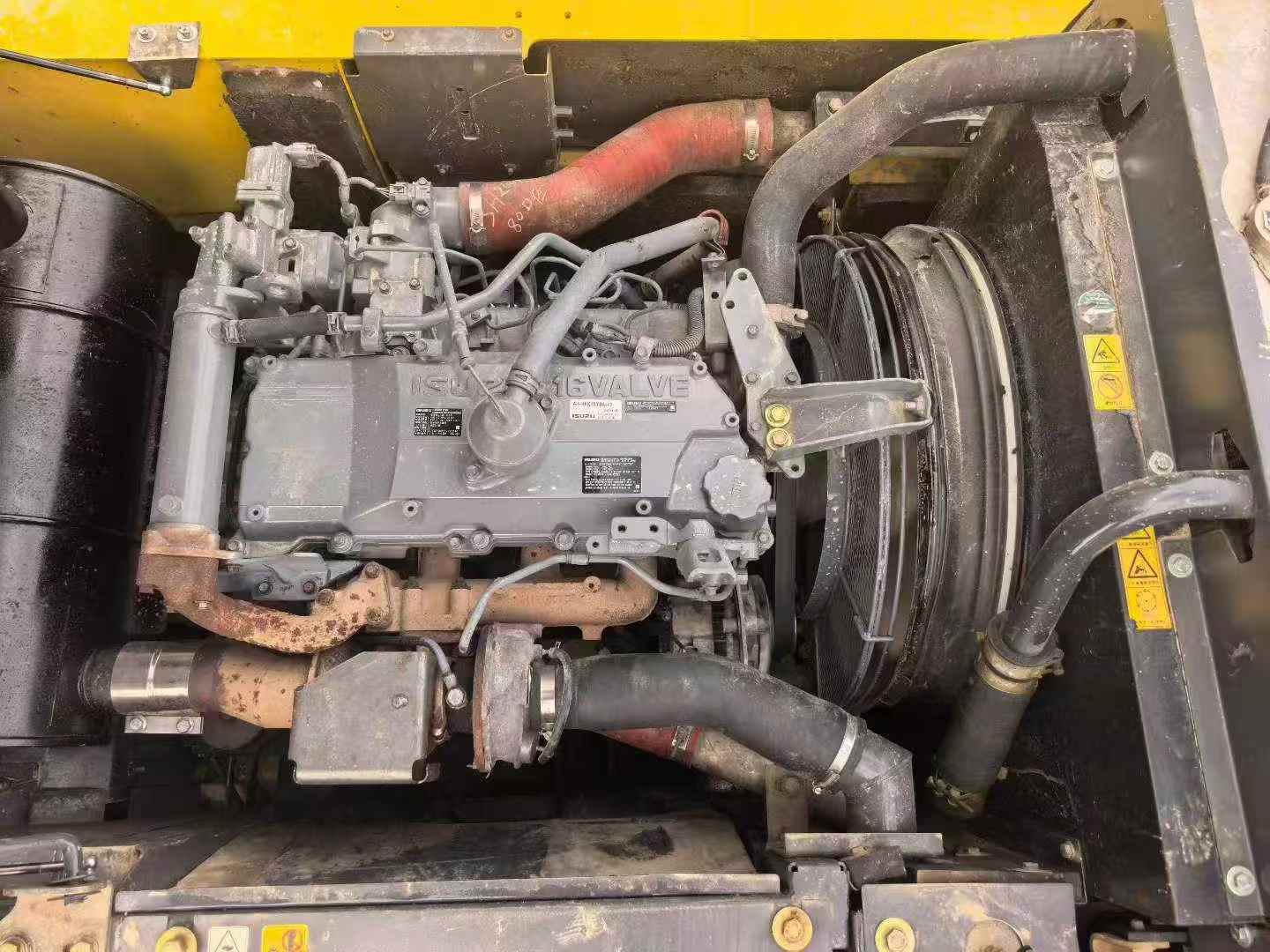

Buy Sumitomo SH260LC-6 Used Excavator / 5

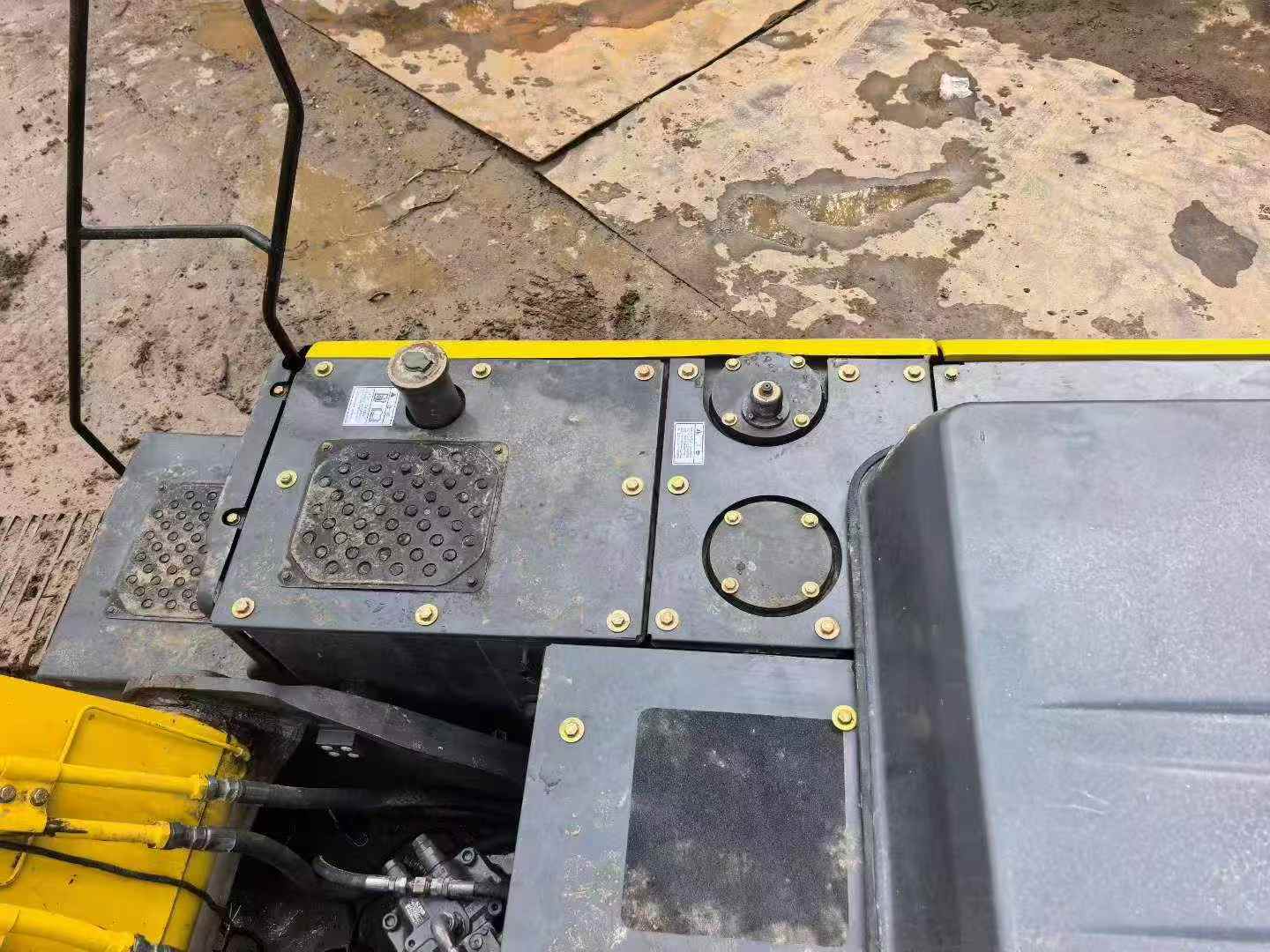

Buy Sumitomo SH260LC-6 Used Excavator / 6

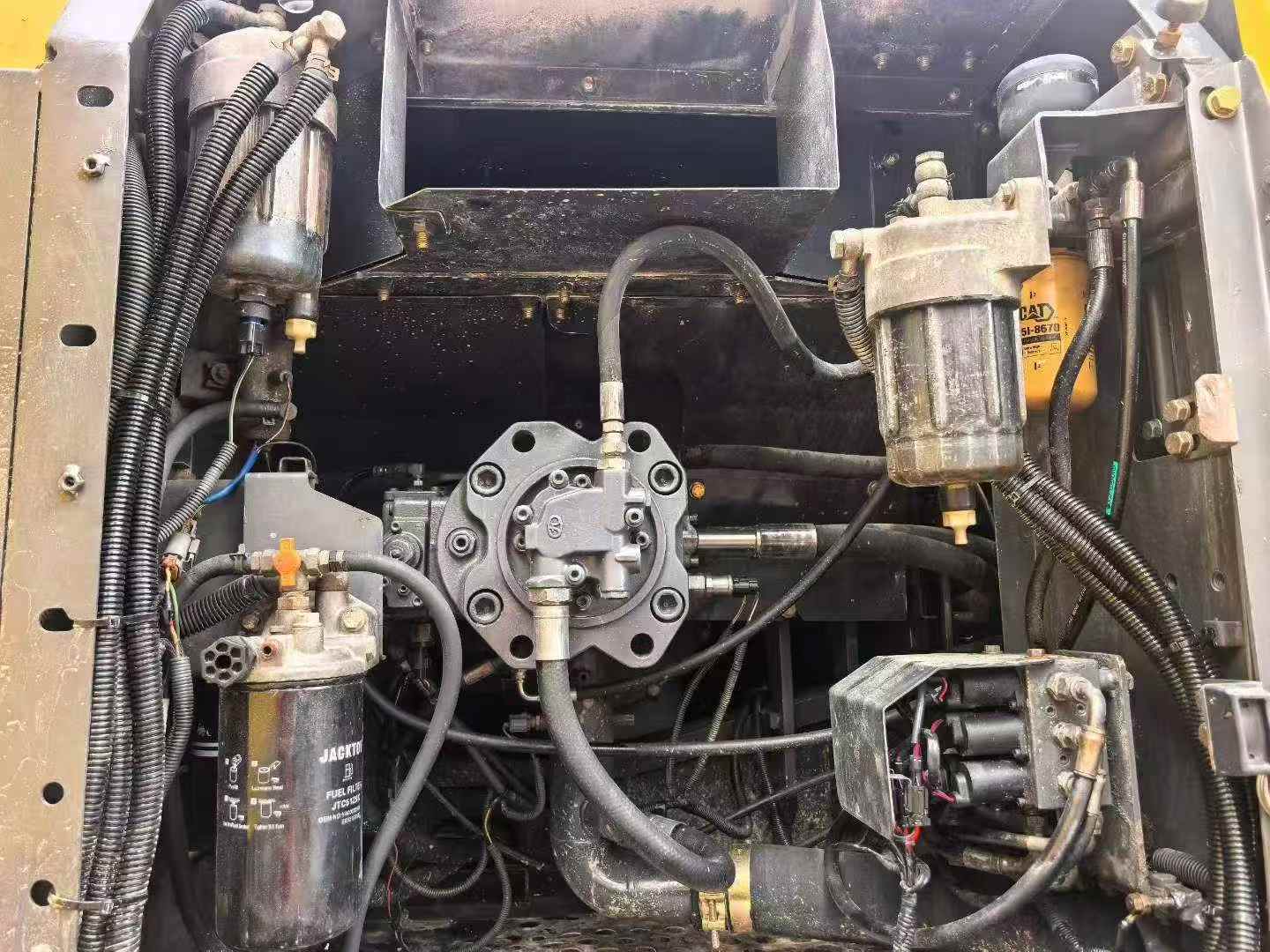

Buy Sumitomo SH260LC-6 Used Excavator / 7

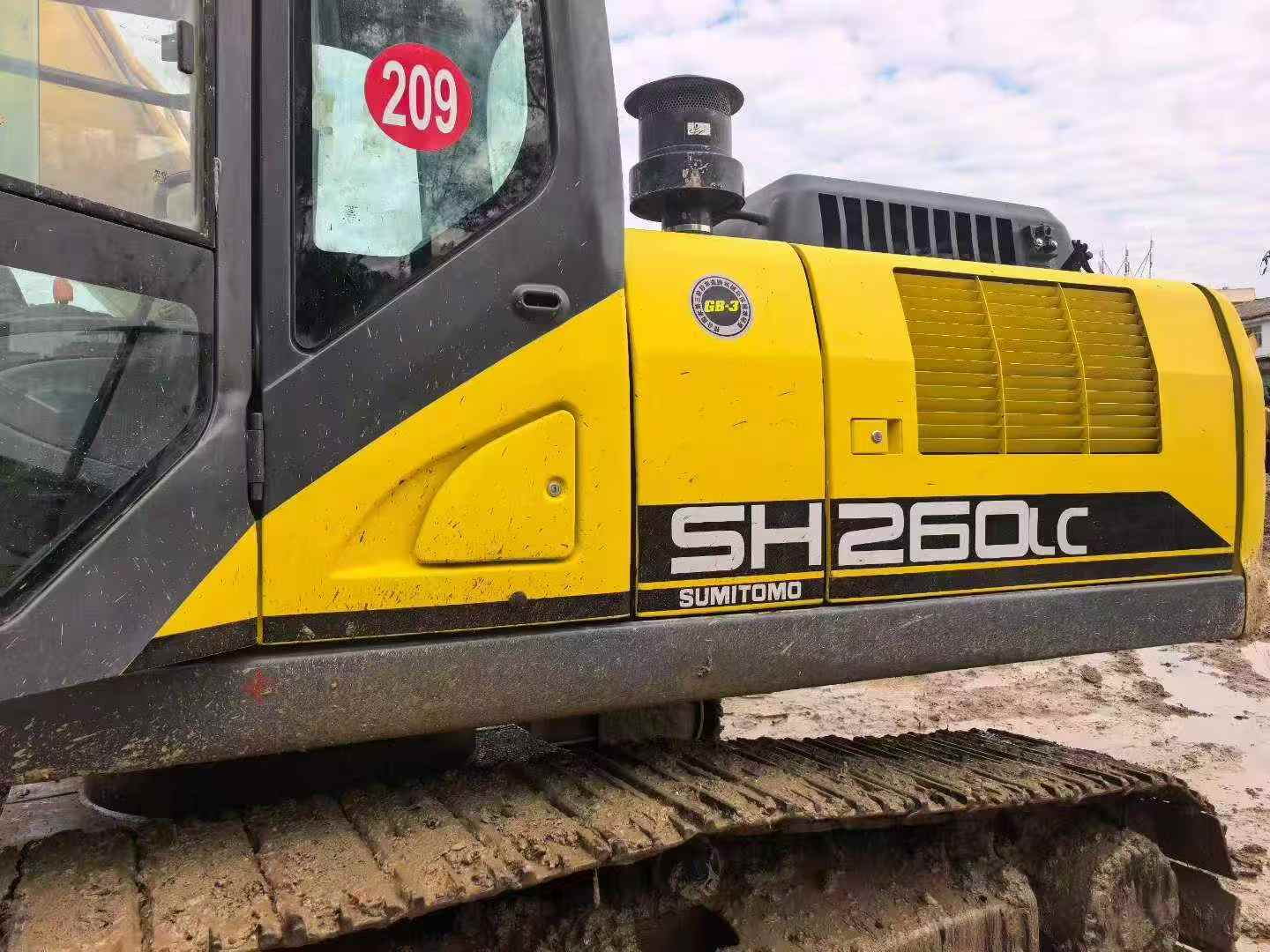

Buy Sumitomo SH260LC-6 Used Excavator / 8

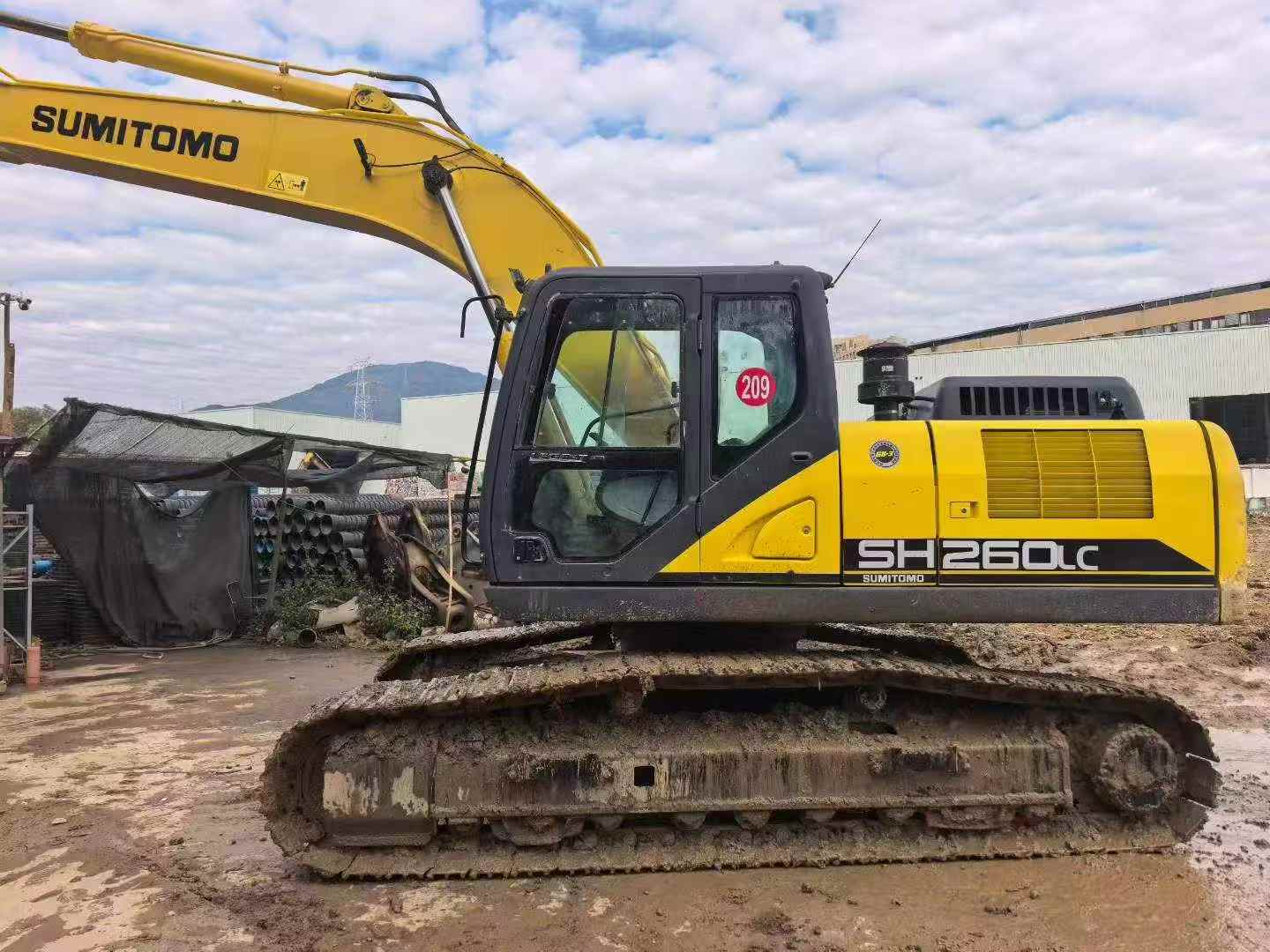

Buy Sumitomo SH260LC-6 Used Excavator / 9

Product Description

Available for inspection in Zhejiang, China, this 2020 Sumitomo SH260LC-6 hydraulic excavator represents proven reliability in the mid-size excavator class. The SH260LC-6 delivers approximately 26 metric tons of operating weight with a Tier 3 emission-compliant engine, designed for efficient fuel consumption and reduced maintenance intervals. Sumitomo's integrated hydraulic system ensures responsive control and consistent performance across demanding earthmoving, material handling, and site preparation applications.

  • Year: 2020
  • Model: SH260LC-6
  • Configuration: Long crawler (LC)
  • Location: Zhejiang Province, China

This unit is suited for contractors and fleet operators seeking dependable excavation capacity with established parts availability throughout Asia. Ideal for infrastructure projects, utility work, and medium-scale construction sites. Pre-purchase inspection recommended.

SpecificationsValue
No.1106179
Tonnage (tons)26
Working weight (kg)25500
Bucket capacity (m³)1.3
Boom length (mm)5850
Rod length (mm)3000
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)132.1/2000
Displacement (L)5.193
Ground specific pressure (Kpa)50
Rotation speed (rpm)11
Climbing ability (%)70
Bucket digging force (kN)162/174
Rod digging force (kN)120/129
Travel speed (km/h)5.5/3.5
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3/36.8
Fuel Tank (L)410
Hydraulic Tank (L)147
Hydraulic System (L)250
Total transport length (mm)9930
Total transport width (mm)3190
Total transport height (mm)3150
Counterweight ground clearance (mm)1100
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3950
Back end turning radius (mm)2950
Total track length (mm)4650
Track plate width (mm)600
Total track width (mm)3190
Maximum digging radius (mm)10280
Maximum digging depth (mm)6900
Maximum excavation height (mm)9760
Maximum unloading height (mm)6760
Maximum vertical digging depth (mm)6140
see more

Overview

No.1106179

Brand Name:

Sumitomo

Model Number:

SH260LC-6

Year:

2020

Location:

Zhejiang China
