2018 Sumitomo SH300-6

1/6
Buy Sumitomo SH300-6 Used Excavator / 1
Buy Sumitomo SH300-6 Used Excavator / 2
Buy Sumitomo SH300-6 Used Excavator / 3

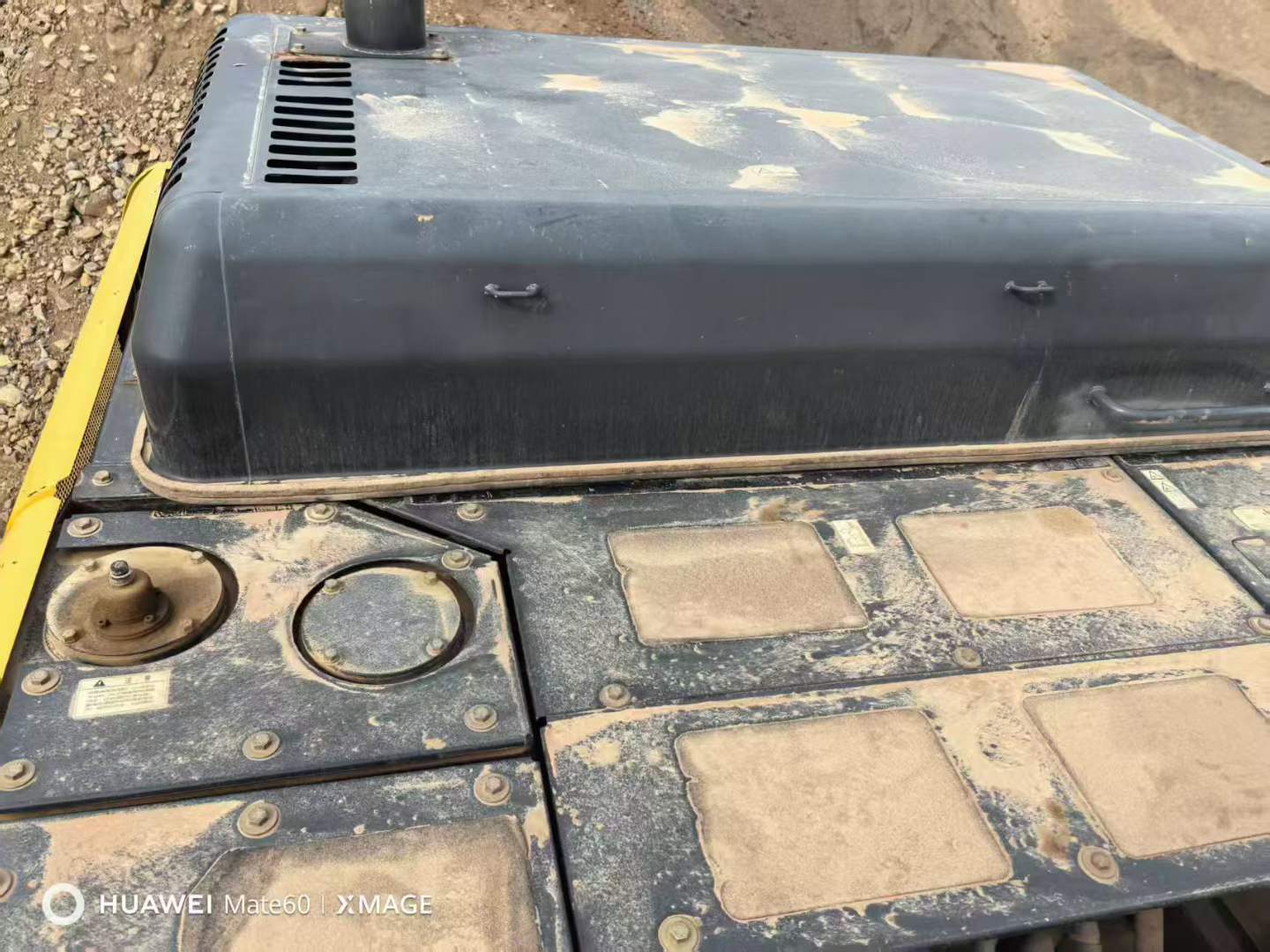

Buy Sumitomo SH300-6 Used Excavator / 4

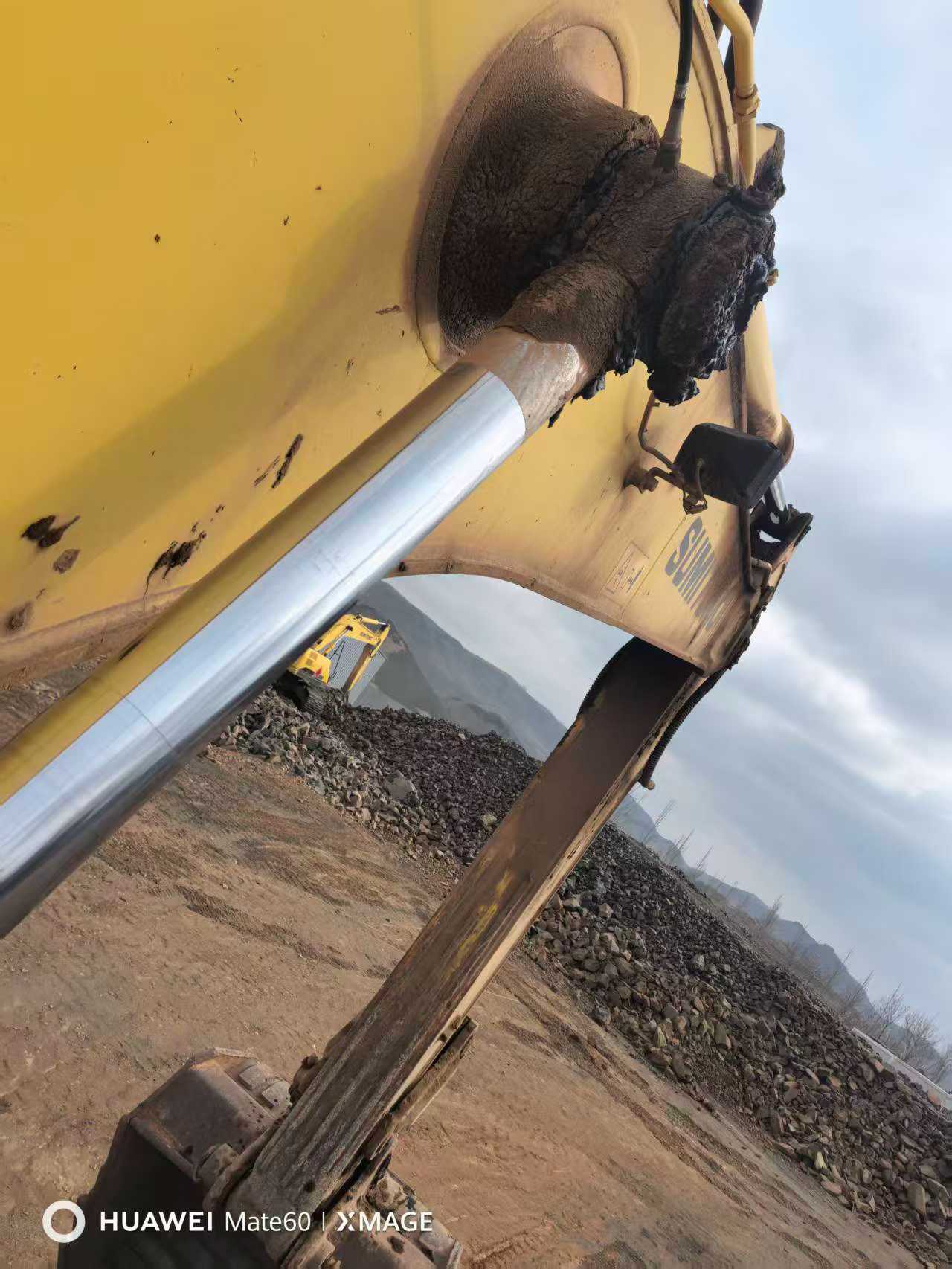

Buy Sumitomo SH300-6 Used Excavator / 5

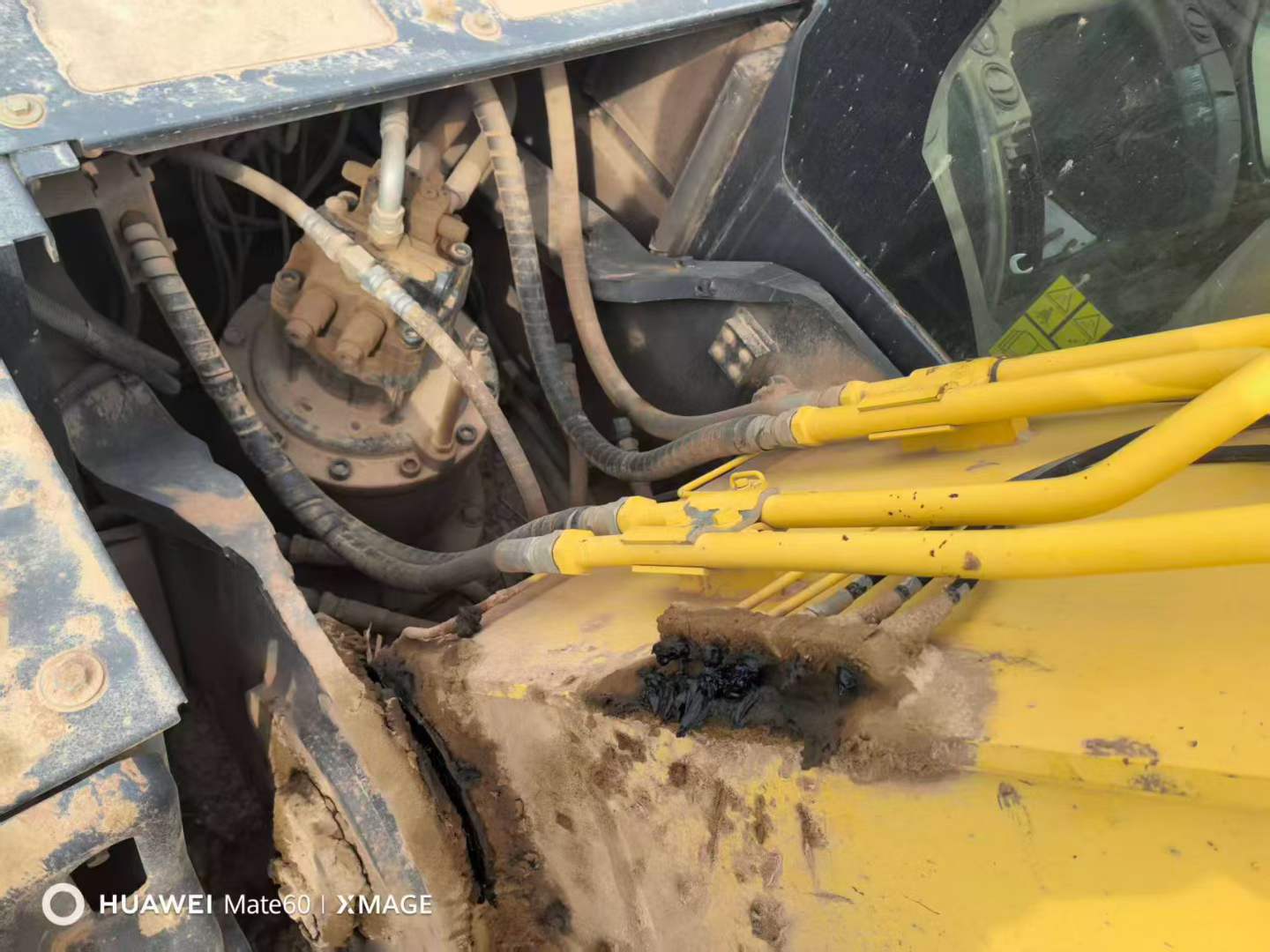

Buy Sumitomo SH300-6 Used Excavator / 6

Product Description

Available now in Jinan, Shandong, this 2018 Sumitomo SH300-6 delivers 30-ton performance without factory wait times. Powered by an Isuzu GH-6HK1X engine producing 202 kW at 2000 rpm, this excavator combines proven reliability with immediate deployment capability. Operating weight of 30,900 kg and bucket capacity up to 1.6 m³ make it ideal for medium to heavy-duty earthmoving, demolition, and site preparation projects.

Skip the lead times and start generating revenue immediately. Key specifications include:

  • Maximum digging reach: 10,670 mm with 7,020 mm depth capability
  • Bucket digging force: 202 kN for tough ground conditions
  • 6,100 mm boom and 3,100 mm arm configuration
  • 450 L fuel tank for extended operational shifts
  • 70% gradeability and 5.2 km/h travel speed
  • Variable capacity piston pump hydraulic system at 37.3 Mpa

Fast deployment to your site from our Jinan location. This joint venture-manufactured machine represents proven Japanese engineering at a fraction of new equipment cost. Contact us today for immediate availability and logistics coordination.

SpecificationsValue
No.1036009
Tonnage (tons)30
Working weight (kg)30900
Bucket capacity (m³)1.4-1.6
Boom length (mm)6100
Rod length (mm)3100
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu GH-6HK1X
Rated power (kw/rpm)202/2000
Displacement (L)7.790
Ground specific pressure (Kpa)62
Rotation speed (rpm)11
Climbing ability (%)70
Bucket digging force (kN)186/202
Rod digging force (kN)131/142
Travel speed (km/h)5.2/3.1
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3/37.3
Fuel Tank (L)450
Hydraulic Tank (L)147
Hydraulic System (L)300
Total transport length (mm)10520
Total transport width (mm)3200
Total transport height (mm)3490
Full cab height (mm)3130
Counterweight ground clearance (mm)1220
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4000
Back end turning radius (mm)3160
Onboard width (mm)2930
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Track ground length (mm)3720
Maximum digging radius (mm)10670
Maximum digging depth (mm)7020
Maximum excavation height (mm)10100
Maximum unloading height (mm)7110
Maximum vertical digging depth (mm)5530
see more

Overview

No.1036009

Brand Name:

Sumitomo

Model Number:

SH300-6

Year:

2018

Location:

Shandong China

Pub Date
