Product Description

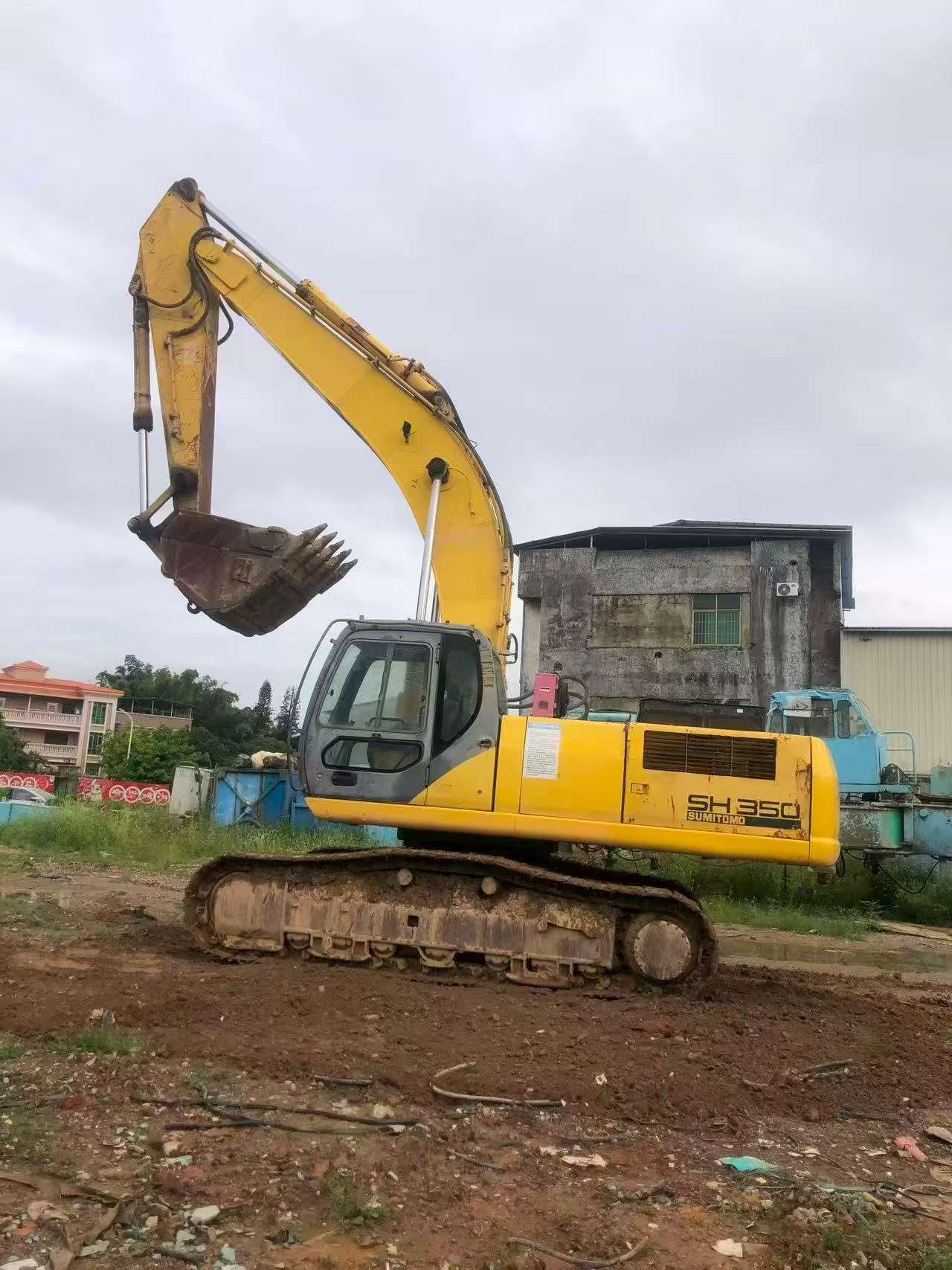

This 2020 Sumitomo SH350-3B hydraulic excavator represents an excellent opportunity for contractors seeking reliable performance at competitive value. Currently located in Guangdong, China, this machine features electronic throttle control and demonstrates approximately 90% remaining condition on critical undercarriage components, indicating careful operation and consistent maintenance throughout its service life.
The SH350-3B is engineered for demanding earthmoving applications, combining Sumitomo's proven hydraulic systems with robust structural design. Key features include:
- Electronic governor system for optimized fuel efficiency

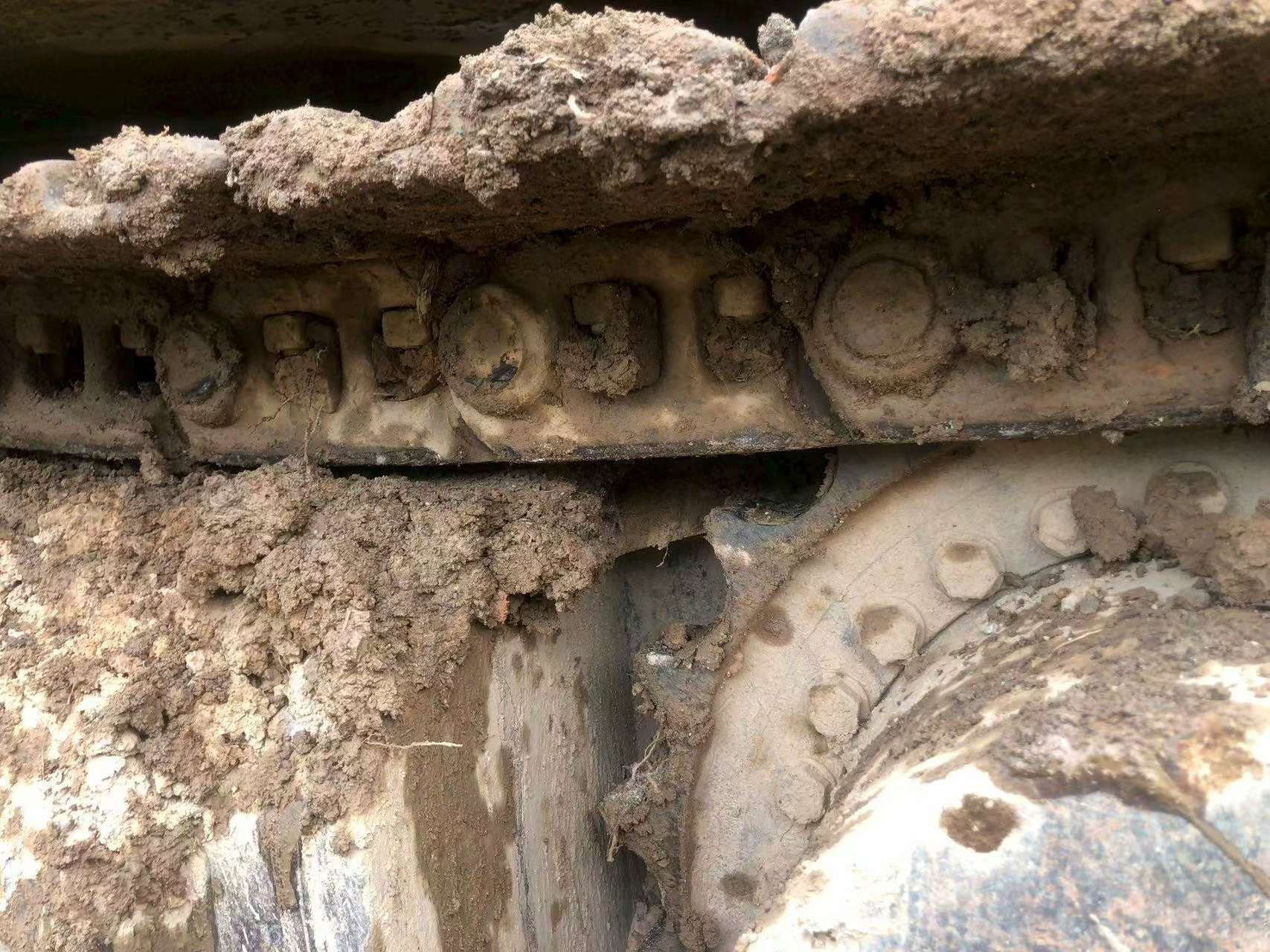

- Well-maintained undercarriage with substantial remaining life
- Comprehensive operational history from Chinese market
- Ready for immediate deployment in excavation, loading, and site development projects
This unit offers international buyers an attractive entry point into quality Japanese manufacturing. Inspection and shipping arrangements can be coordinated from our Guangdong facility.
| Specifications | Value |
|---|---|
| No. | 1085896 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 202/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 0.779 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 3720 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
