Product Description

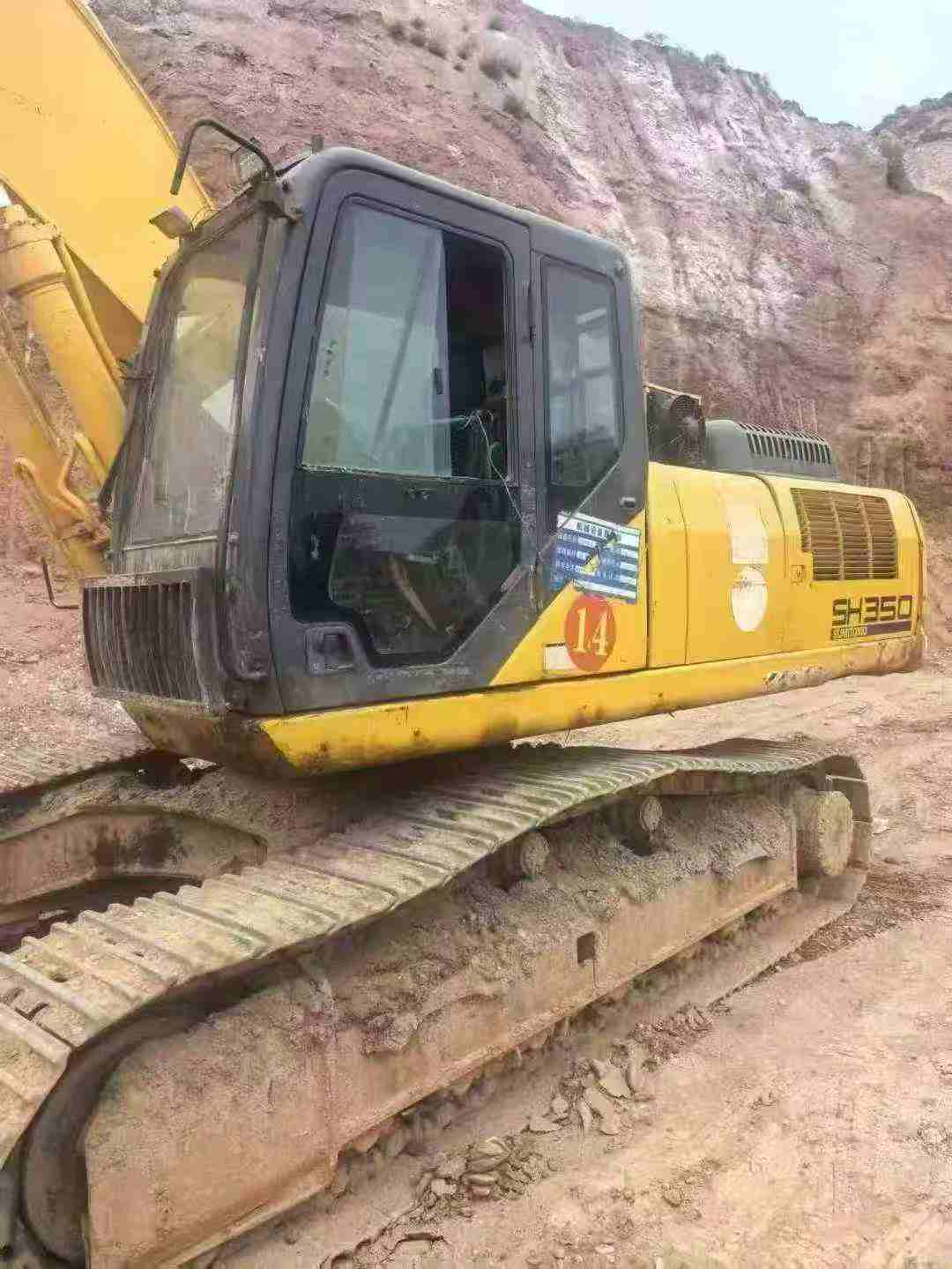

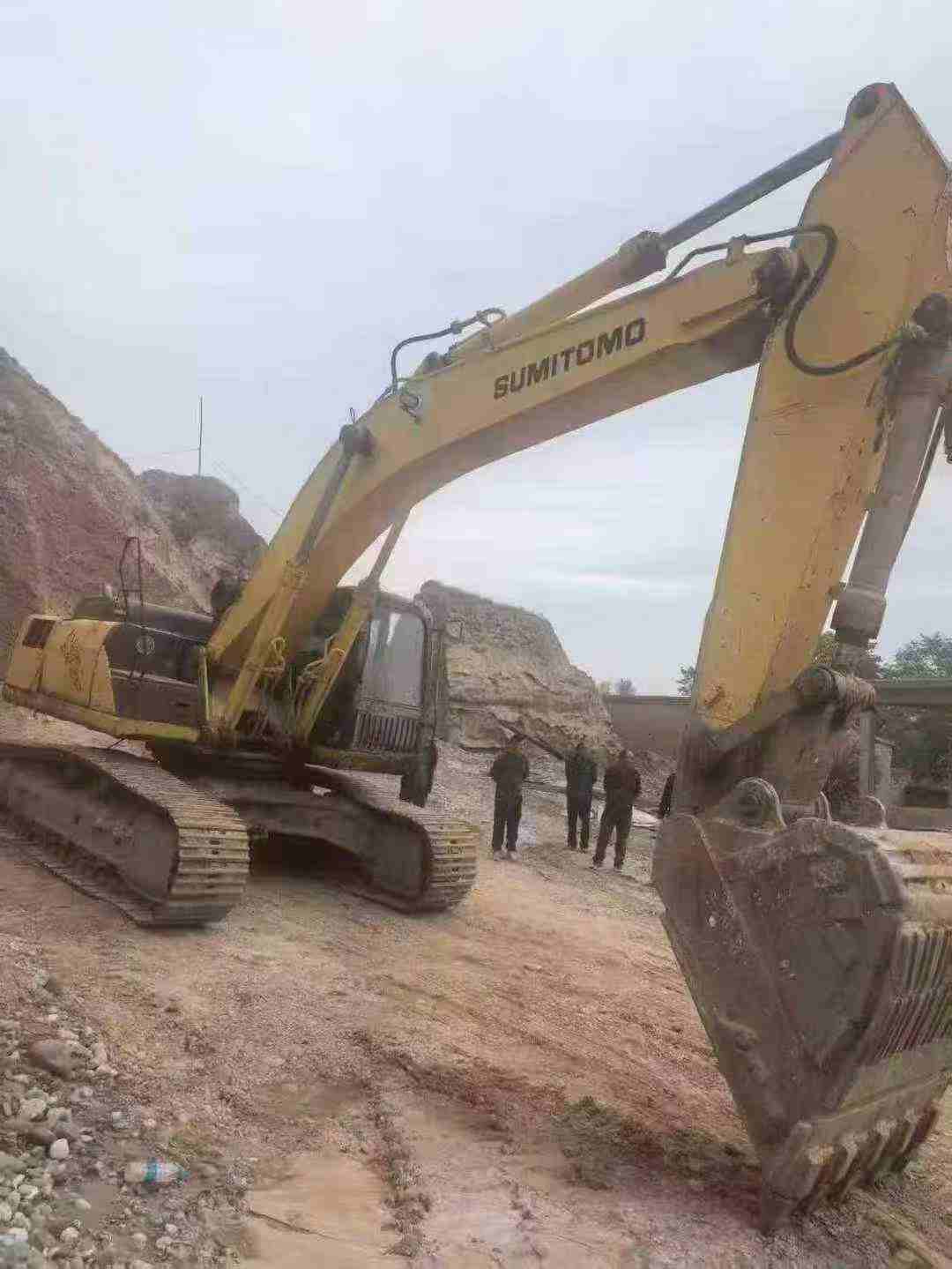

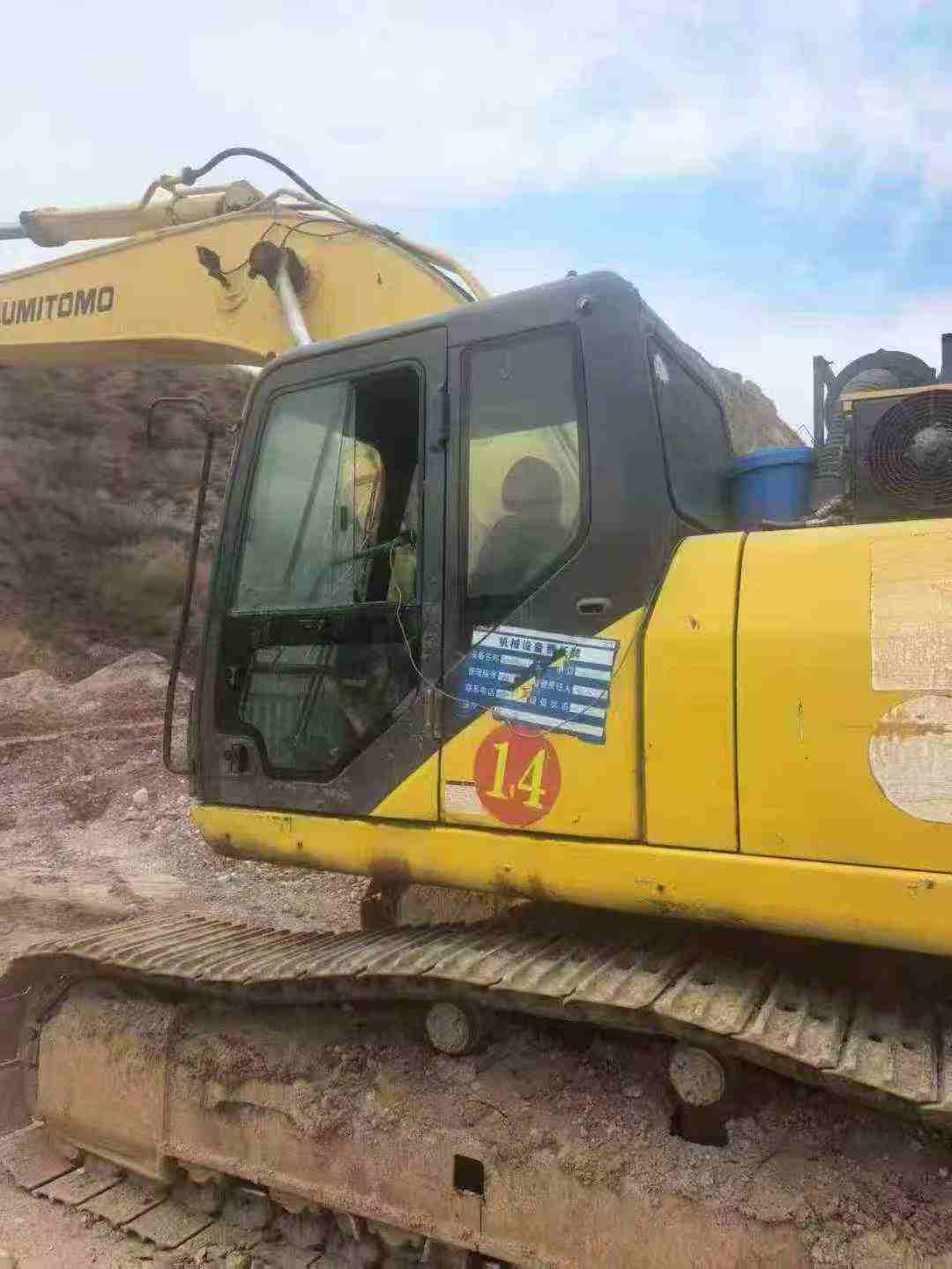

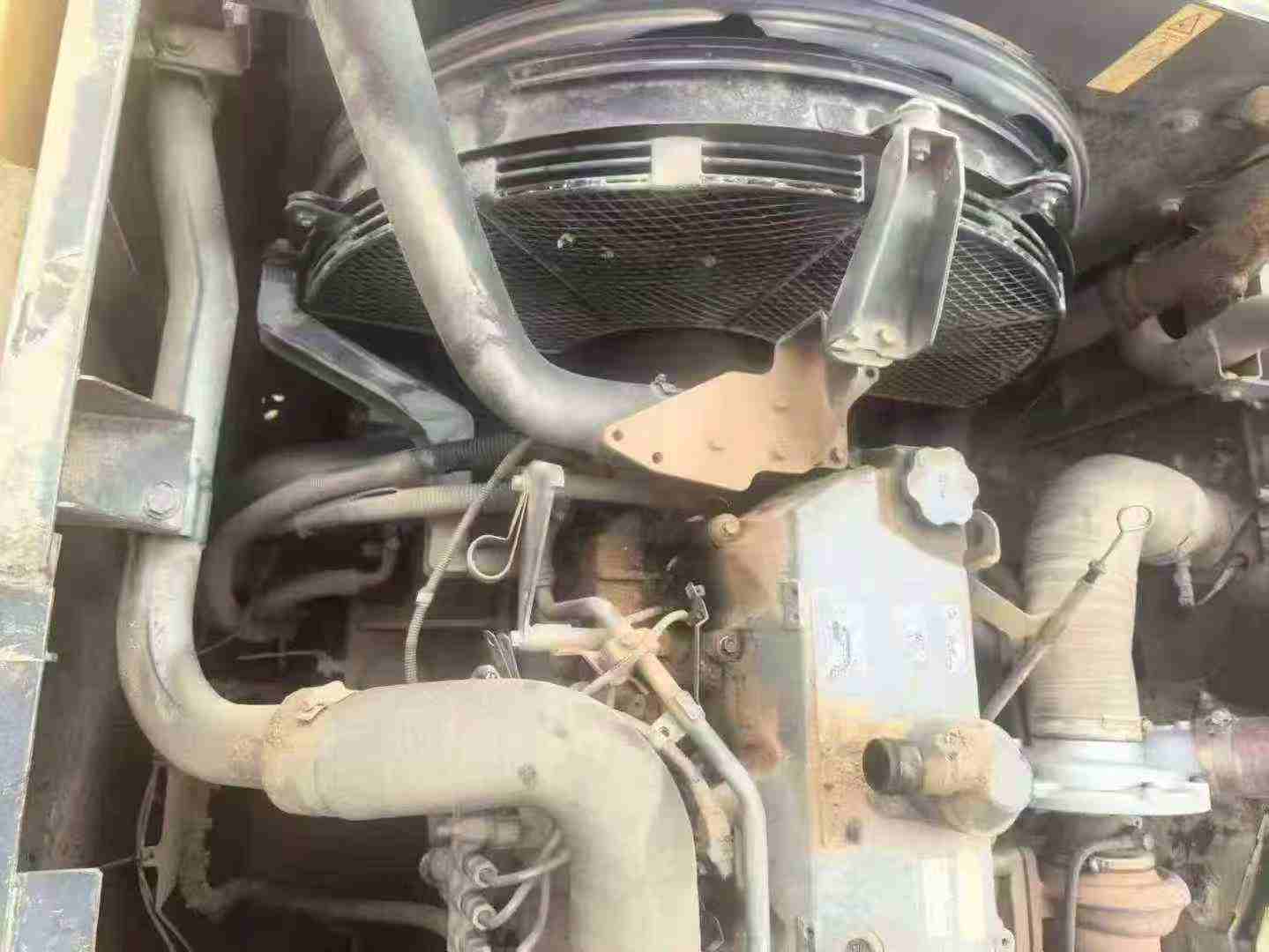

Built for high-volume excavation and heavy-duty site work, this 2012 Sumitomo SH350-5 delivers 35 tons of proven performance where it matters most. Powered by a robust AH-6HK1XYSS engine producing 202 kW at 2000 rpm, this crawler excavator tackles demanding tasks including deep foundation digging, mass earthmoving, and demolition operations with authority.
Key performance specifications include:
- Operating weight: 35,200 kg with superior stability for challenging terrain
- Maximum digging depth of 7,340 mm and reach extending to 11,170 mm
- Bucket capacity range: 1.2-1.8 m³ for optimal material handling
- Bucket digging force: 229 kN with 164 kN arm breakout force
- 70% gradeability and 480 mm ground clearance for versatile site mobility
- 580L fuel capacity minimizes downtime on extended shifts
Currently located in Zhangzhou, Fujian, this machine arrives ready for immediate deployment. Compact transport dimensions (11,050 × 3,200 × 3,260 mm) facilitate efficient logistics to your job site. Contact Fair Trade Machinery today for complete inspection reports and competitive export pricing.
| Specifications | Value |
|---|---|
| No. | 1032871 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
