Product Description

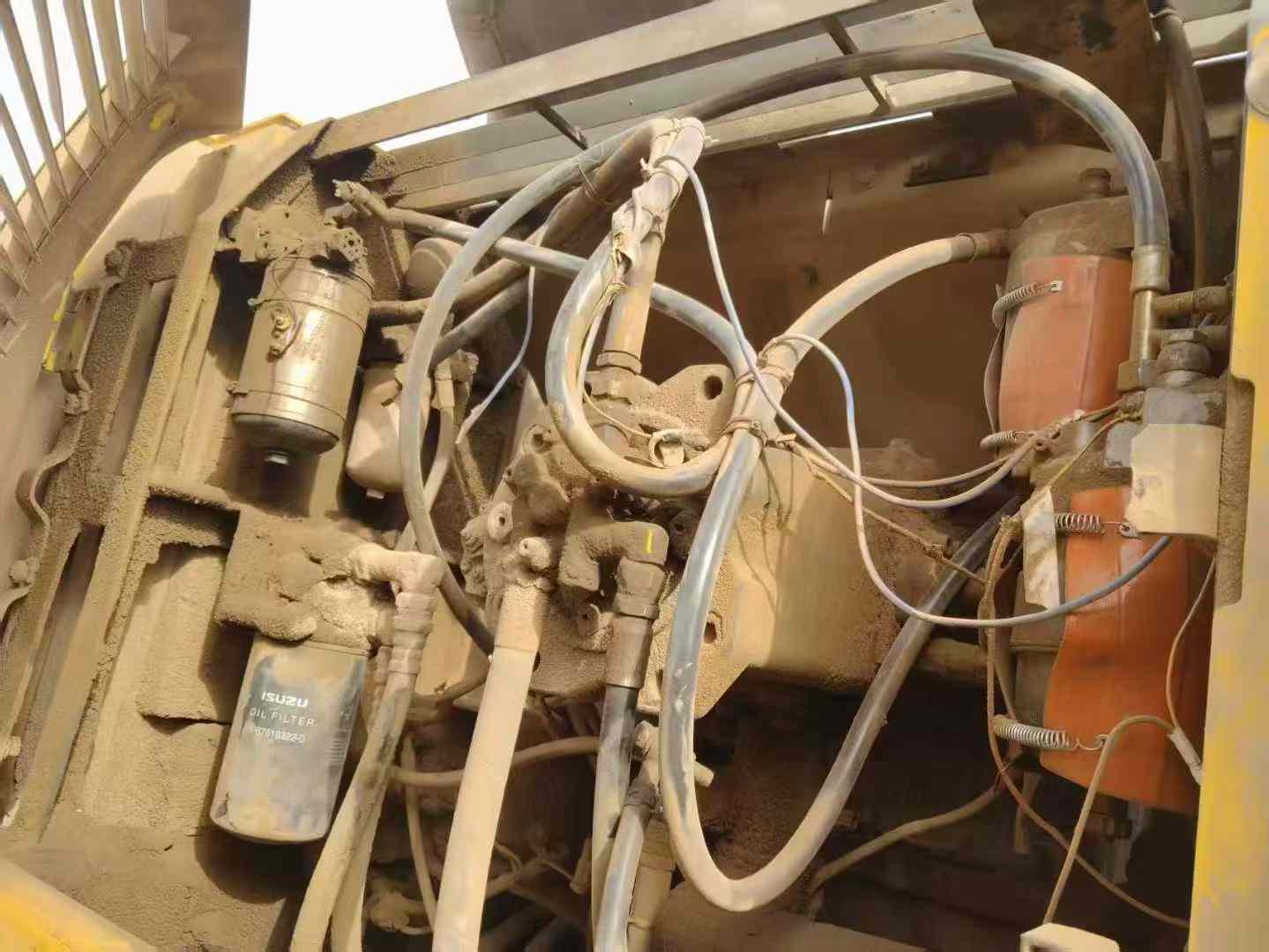

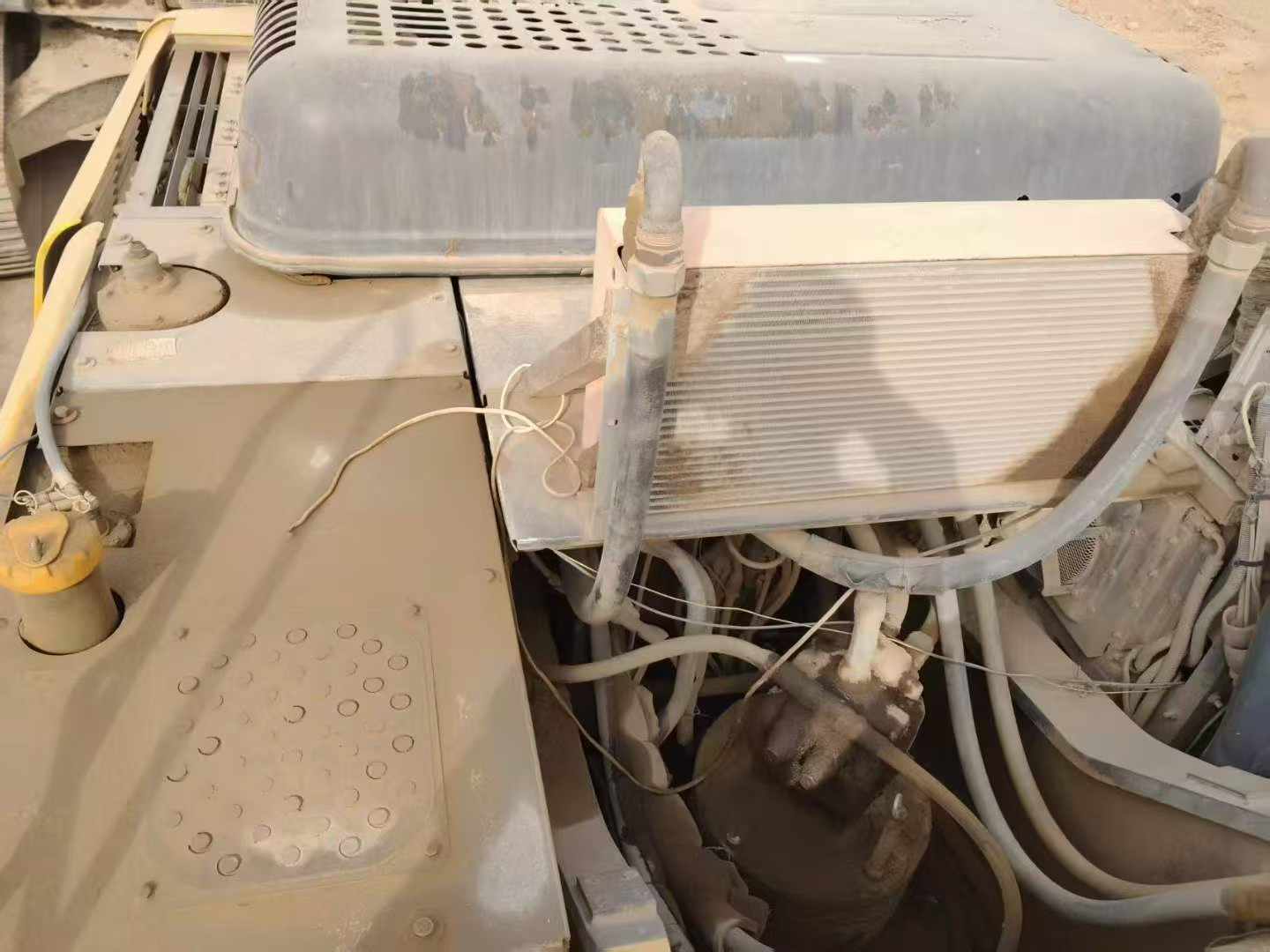

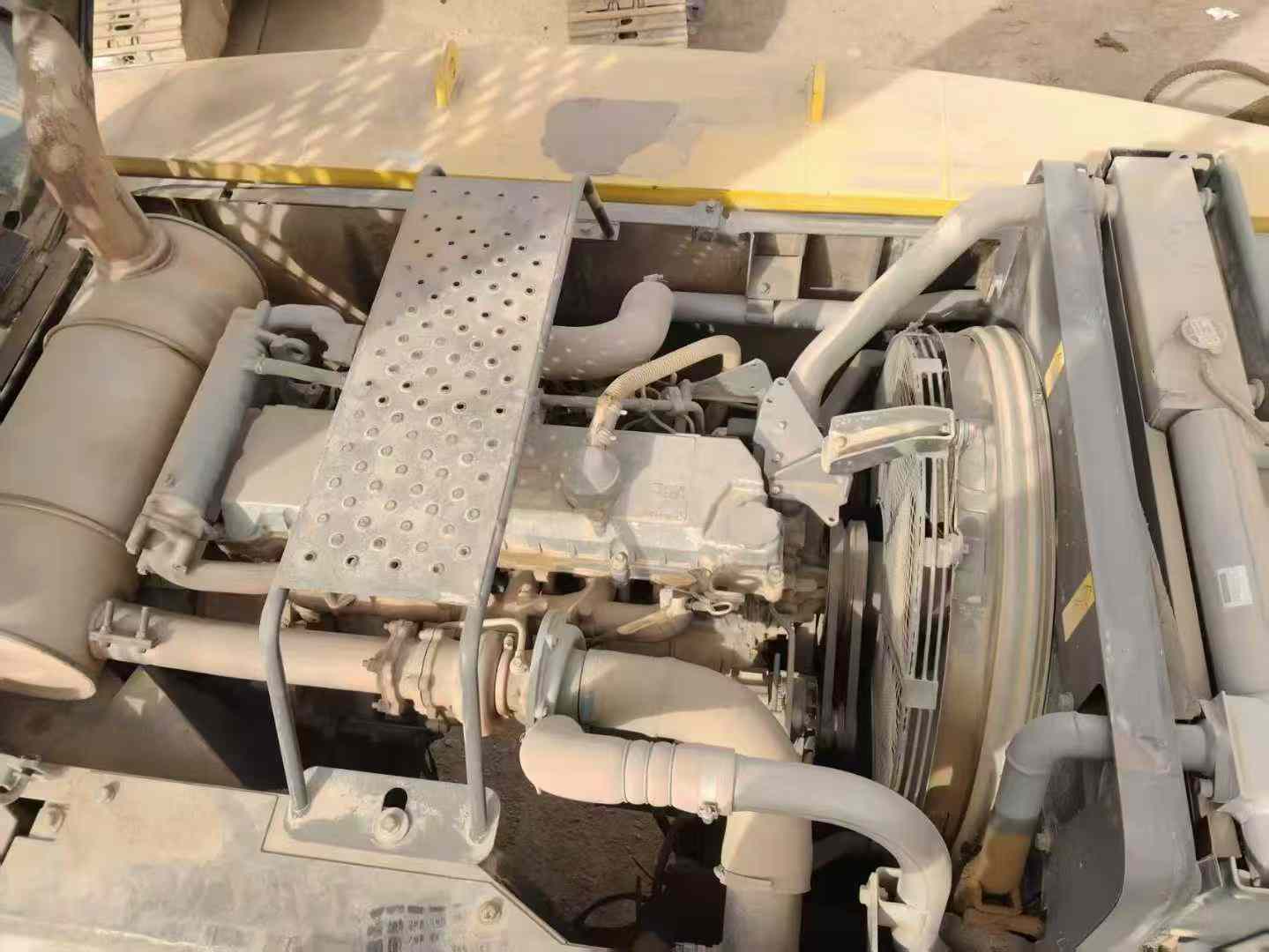

With a robust 35-ton working weight and a powerful AH-6HK1XYSS engine, this 2013 Sumitomo SH350-5 excavator is an ideal fleet addition for contractors. Offering a bucket capacity of 1.2-1.8 m³, it ensures efficient material handling on any job site. Featuring a rated power of 202 kW at 2000 rpm, the machine delivers consistent performance. Its maximum digging depth of 7340 mm and maximum unloading height of 7230 mm make it versatile for various excavation tasks. The SH350-5 also boasts a travel speed of 5.5/3.5 km/h and a climbing ability of 70%, enhancing its mobility and accessibility. Located in Fujian Putian, this unit is ready to integrate into your existing fleet, providing reliable support and boosting productivity.
| Specifications | Value |
|---|---|
| No. | 1033764 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
