2015 Sumitomo SH350-5

1/15
Buy Sumitomo SH350-5 Used Excavator / 1

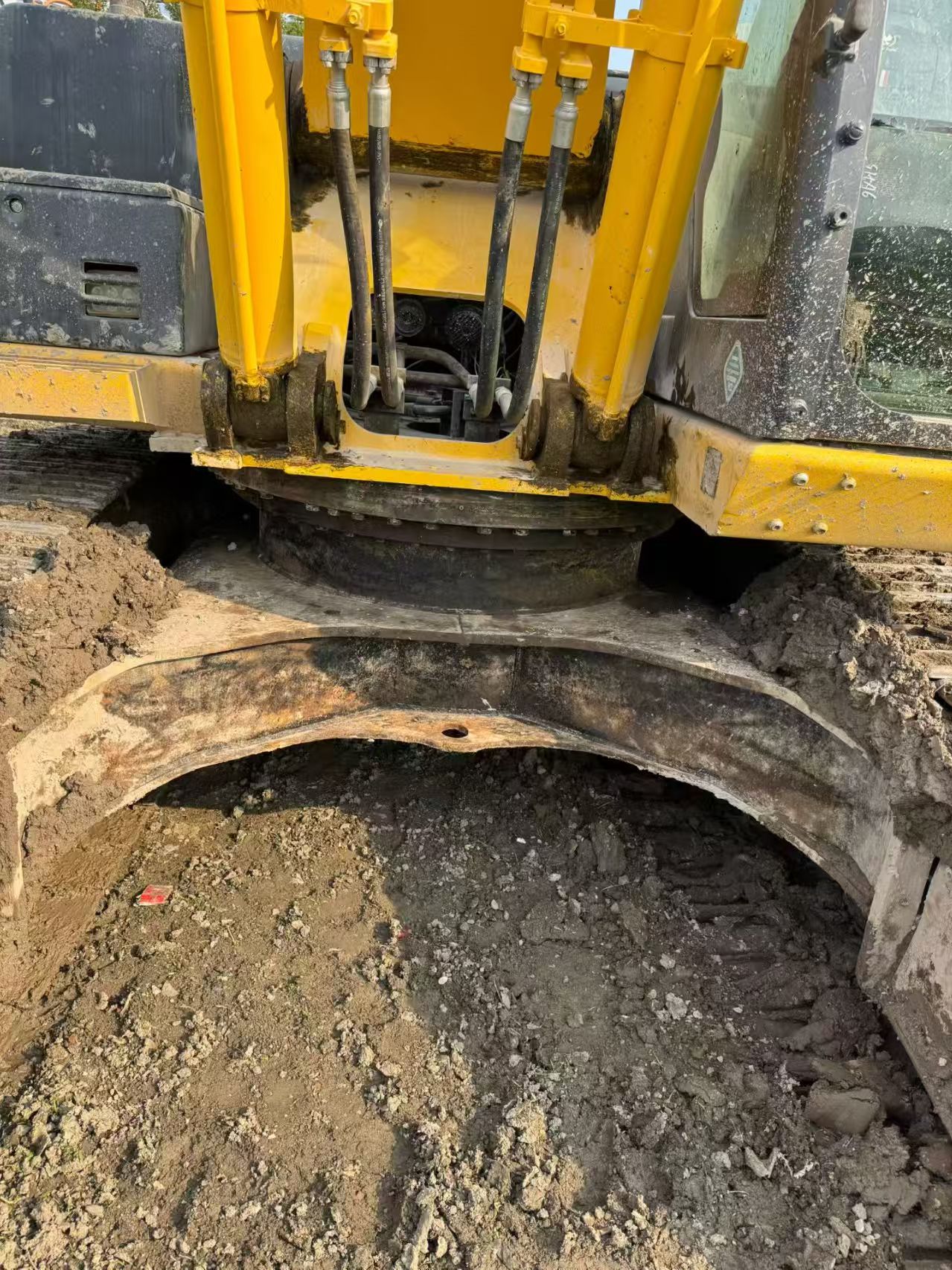

Buy Sumitomo SH350-5 Used Excavator / 2

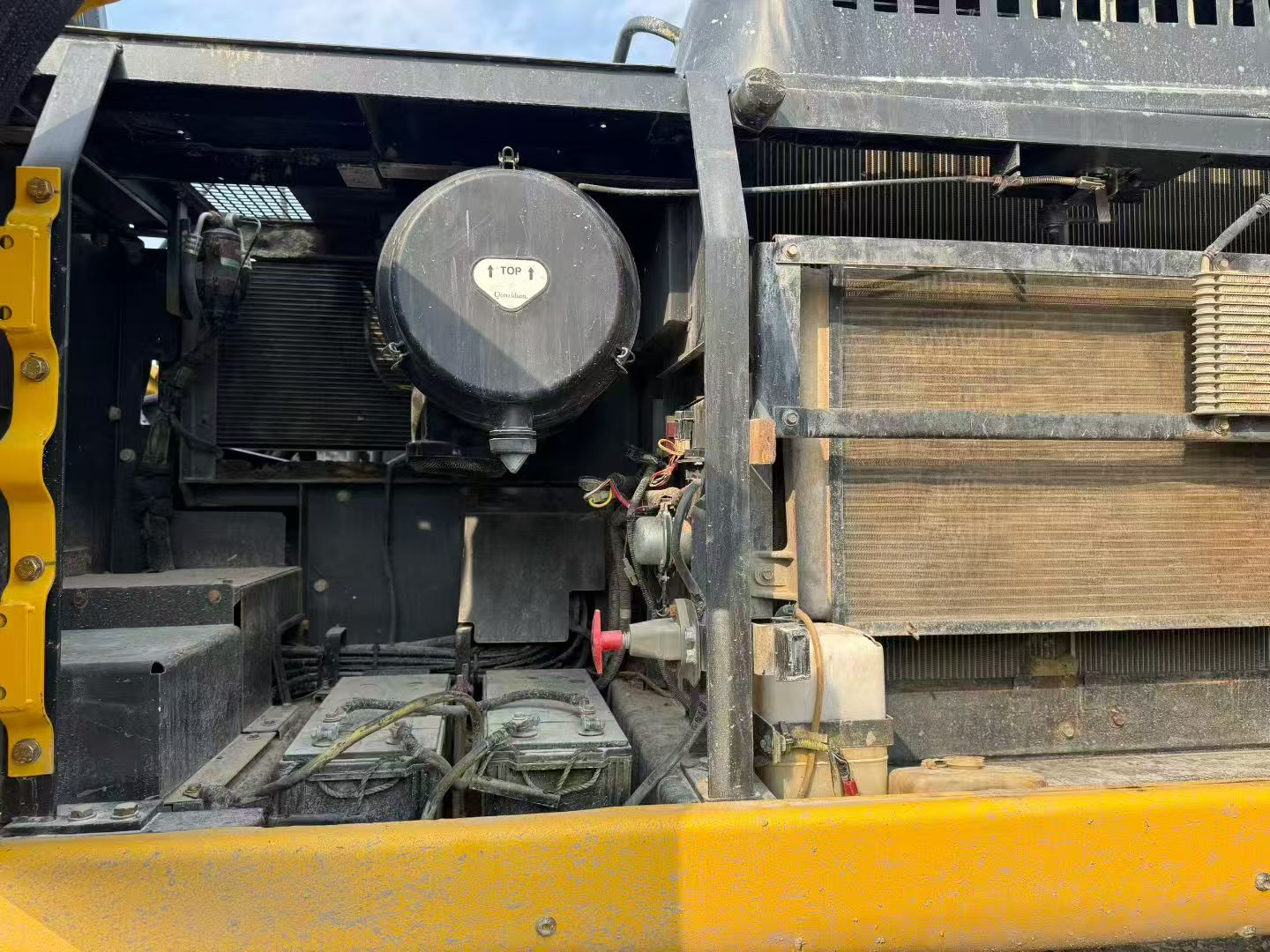

Buy Sumitomo SH350-5 Used Excavator / 3

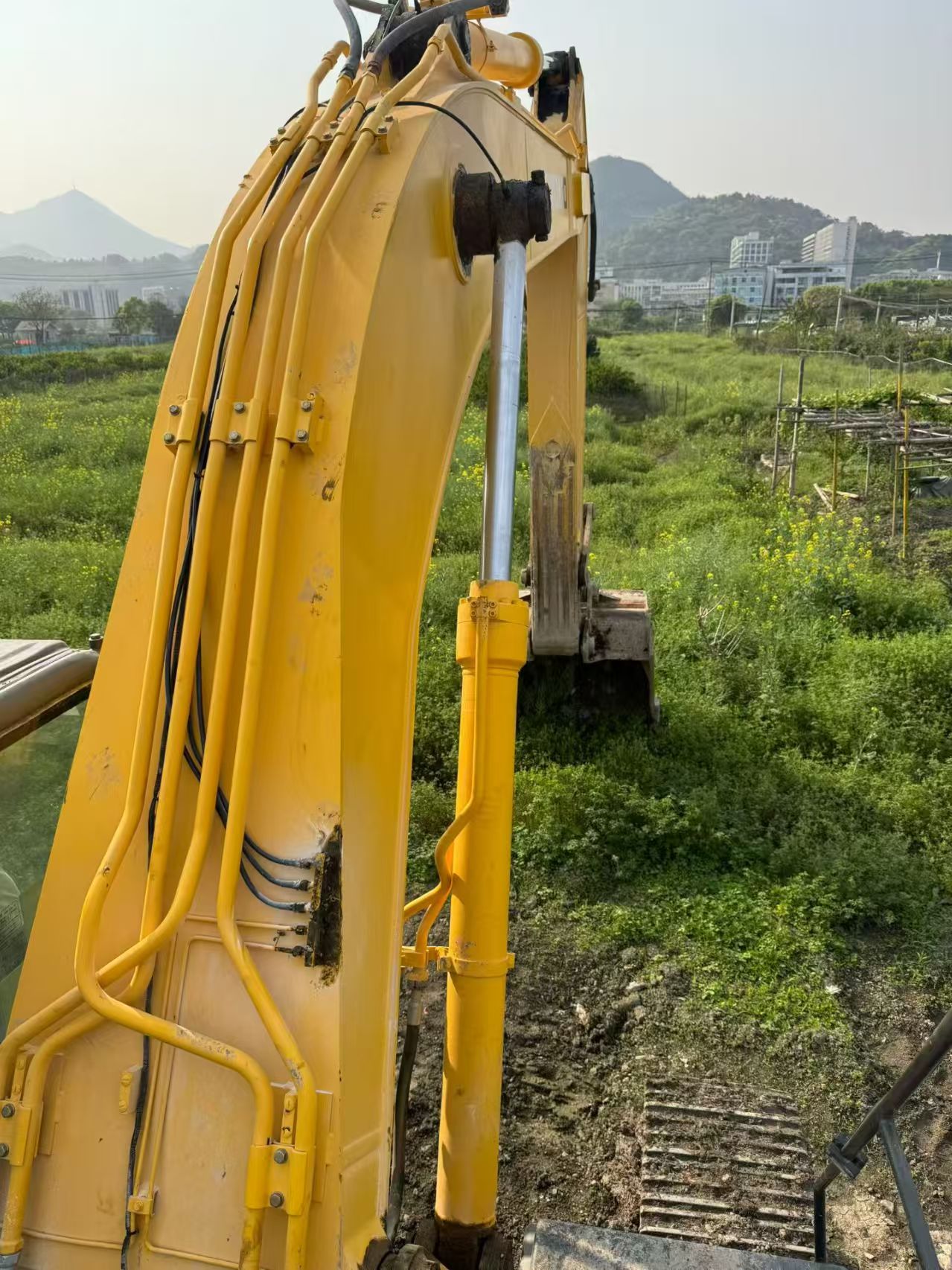

Buy Sumitomo SH350-5 Used Excavator / 4

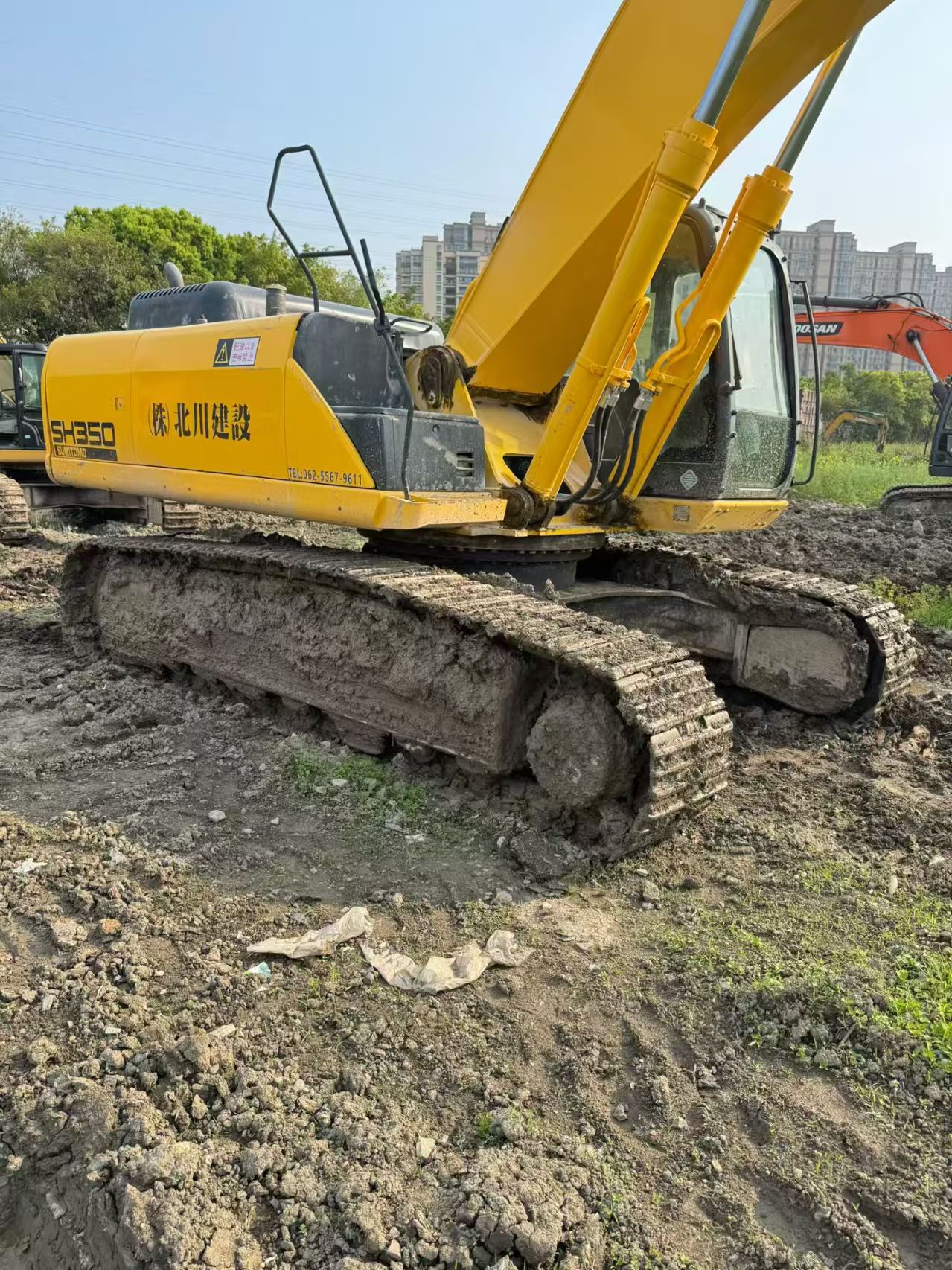

Buy Sumitomo SH350-5 Used Excavator / 5

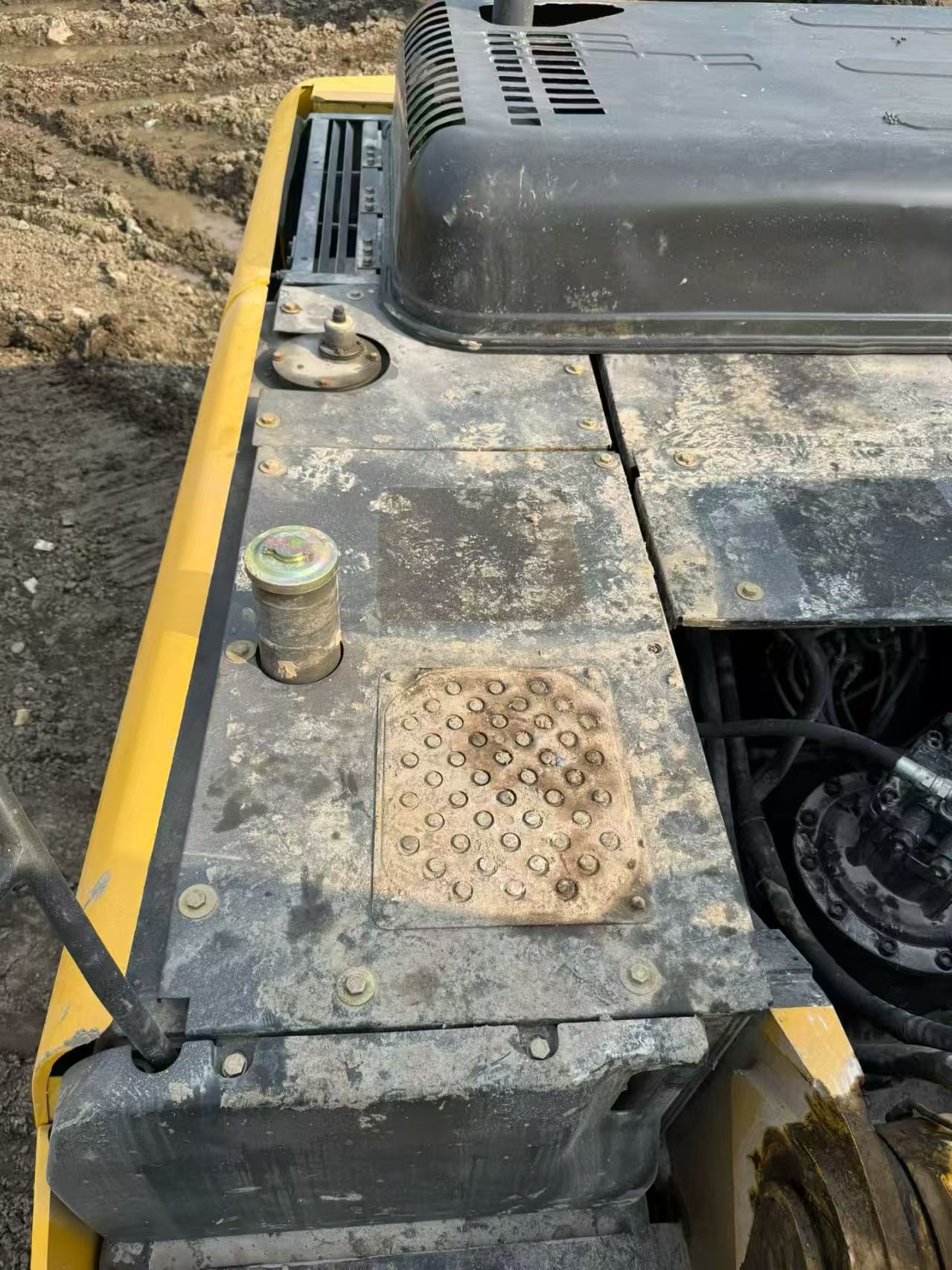

Buy Sumitomo SH350-5 Used Excavator / 6

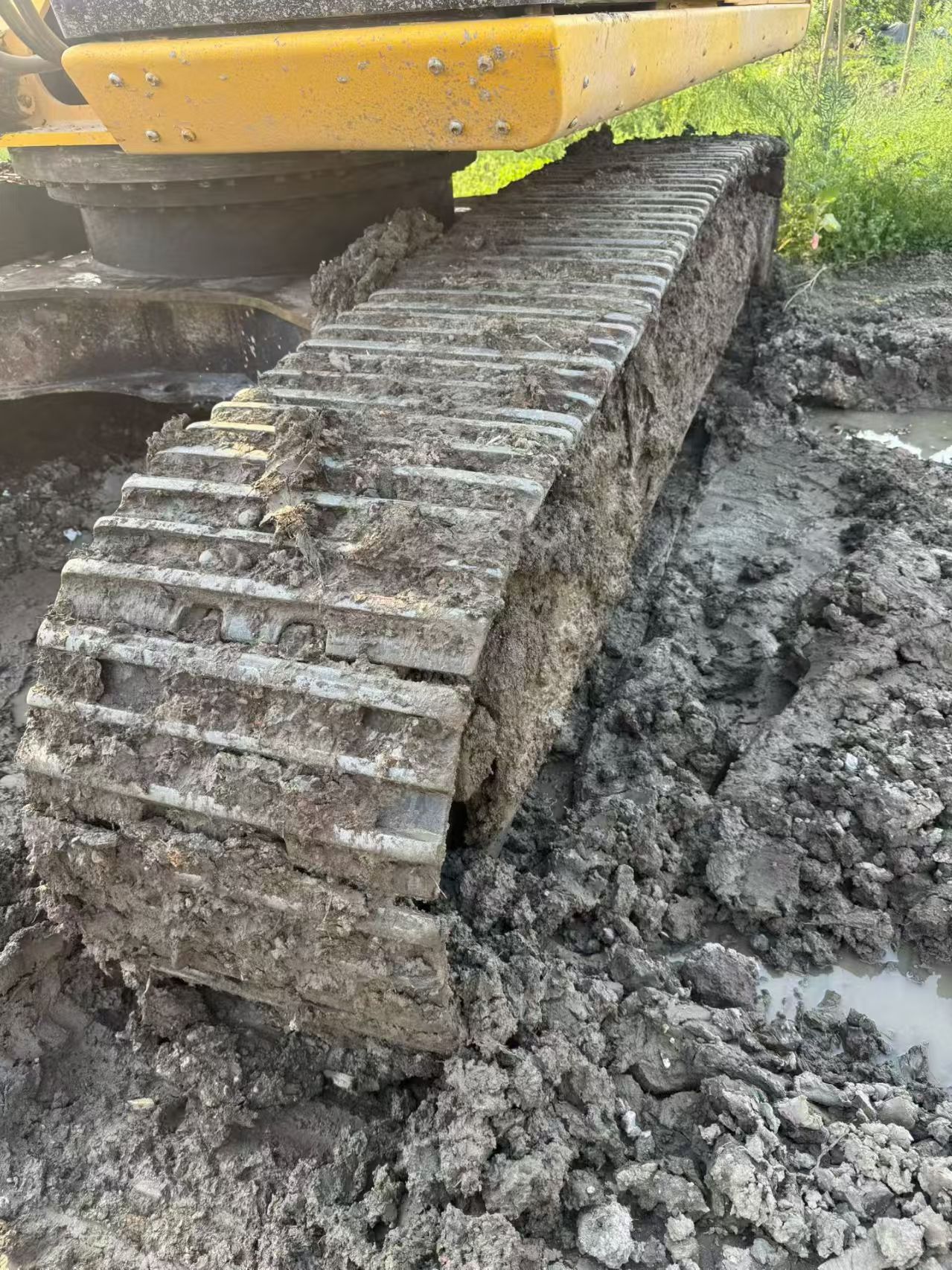

Buy Sumitomo SH350-5 Used Excavator / 7

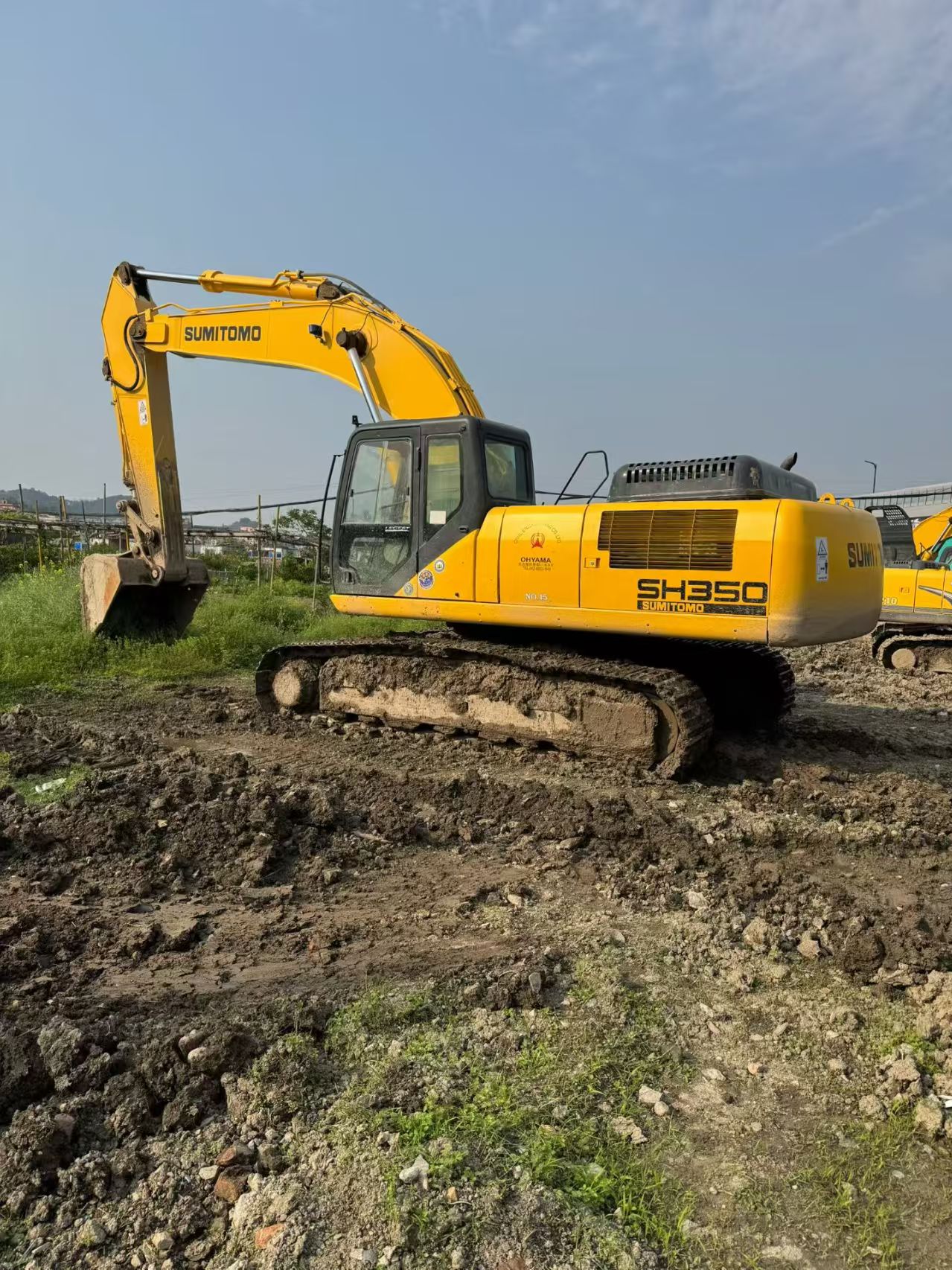

Buy Sumitomo SH350-5 Used Excavator / 8

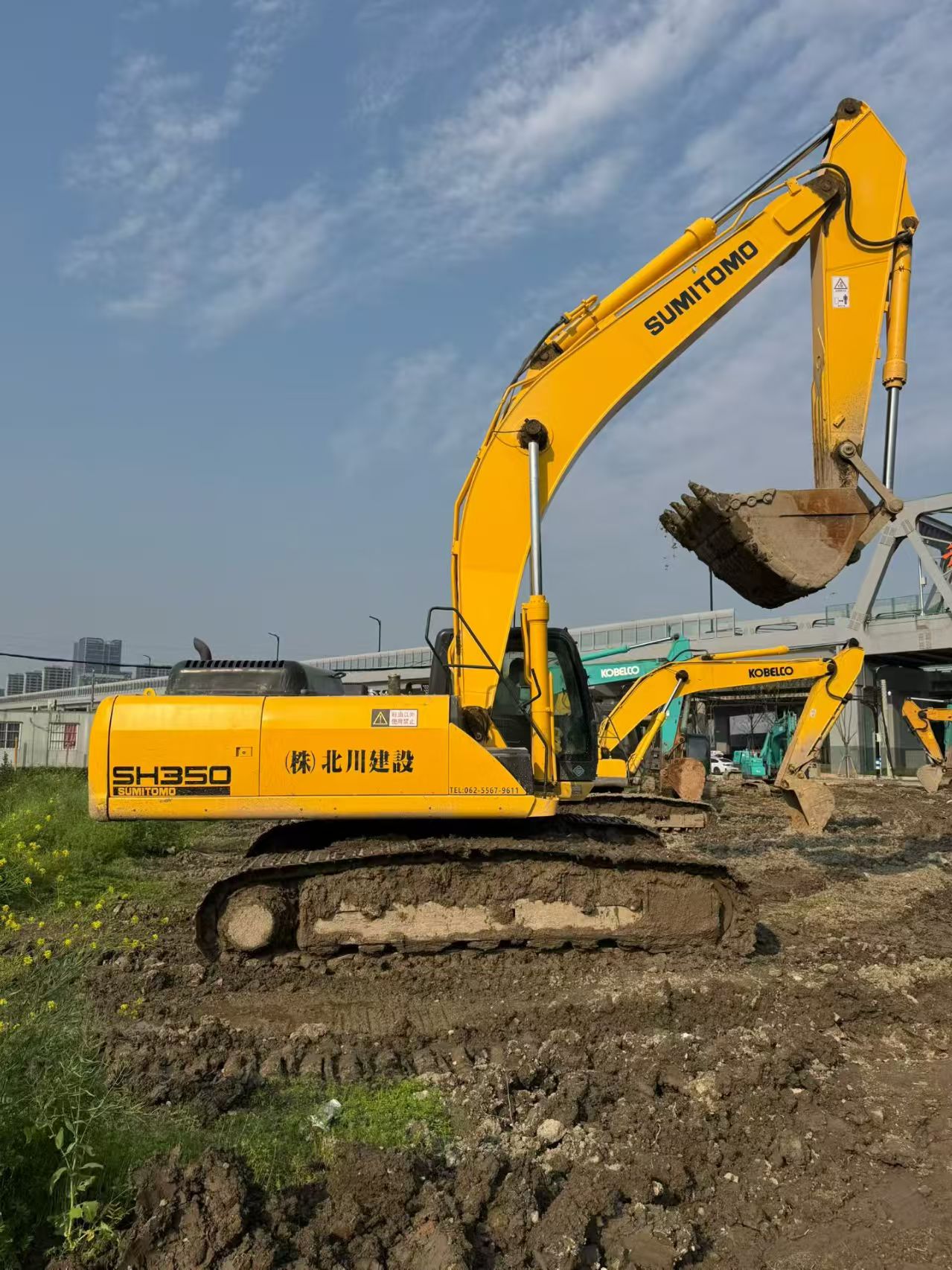

Buy Sumitomo SH350-5 Used Excavator / 9
Buy Sumitomo SH350-5 Used Excavator / 10

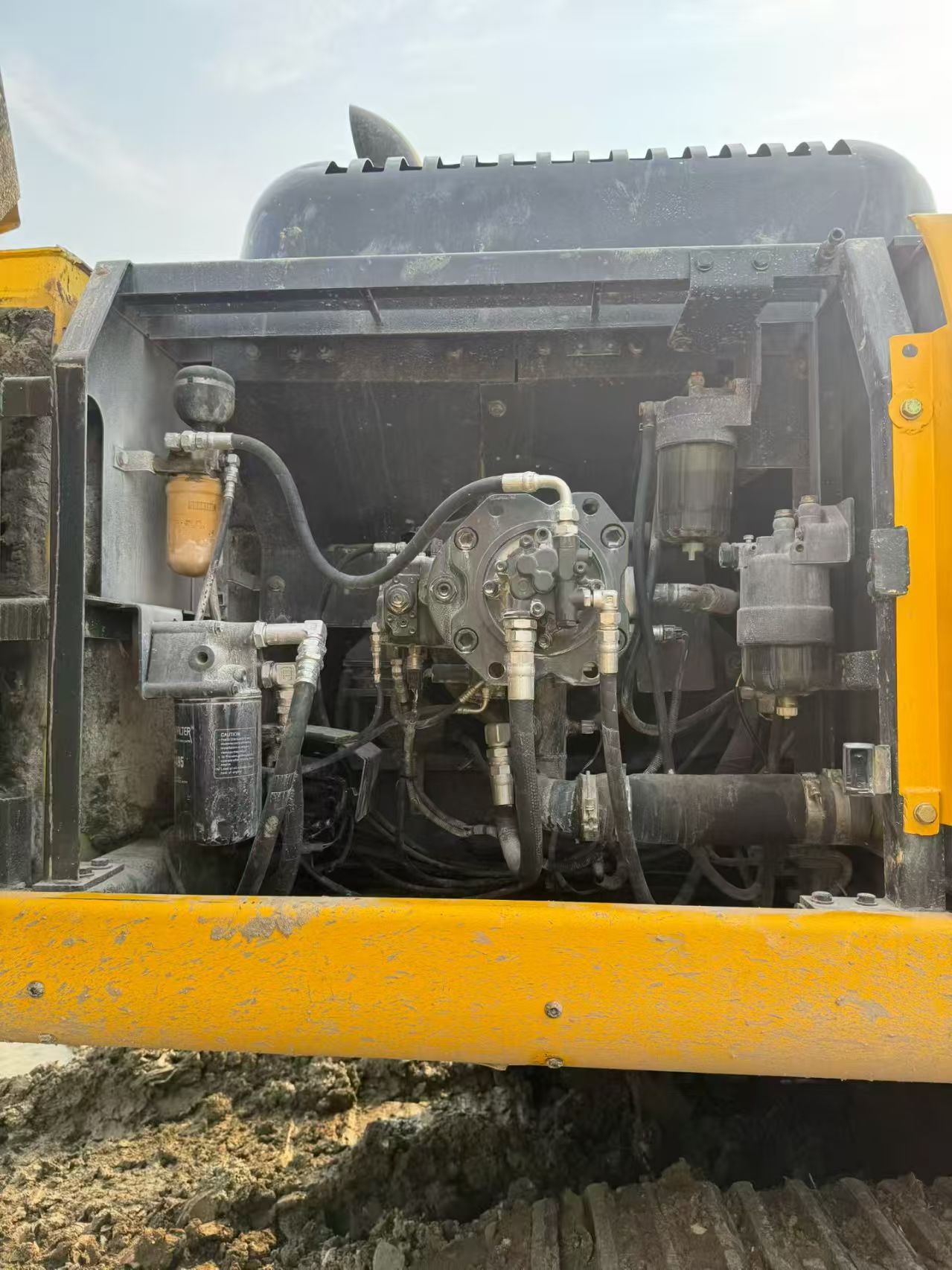

Buy Sumitomo SH350-5 Used Excavator / 11

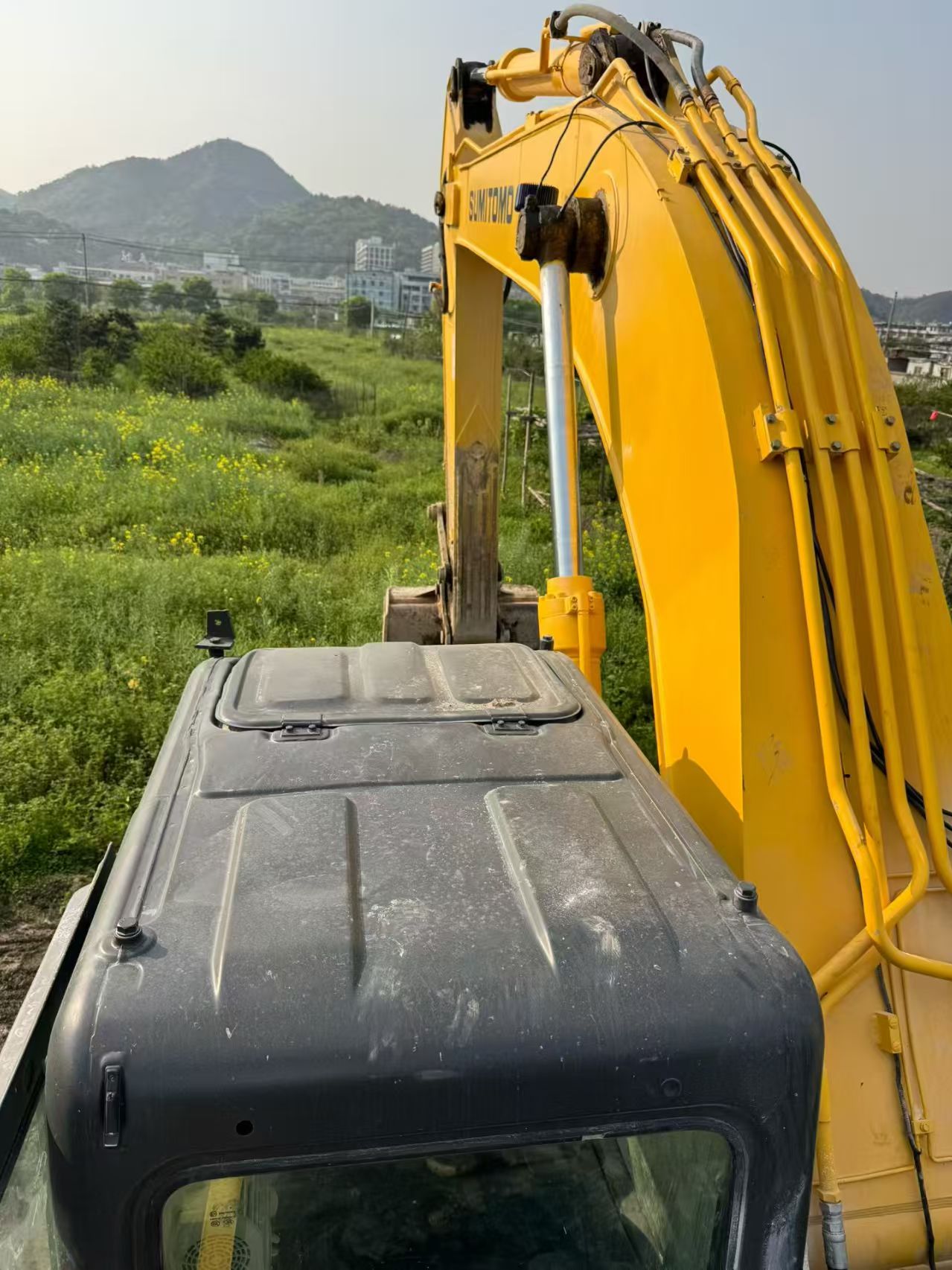

Buy Sumitomo SH350-5 Used Excavator / 12

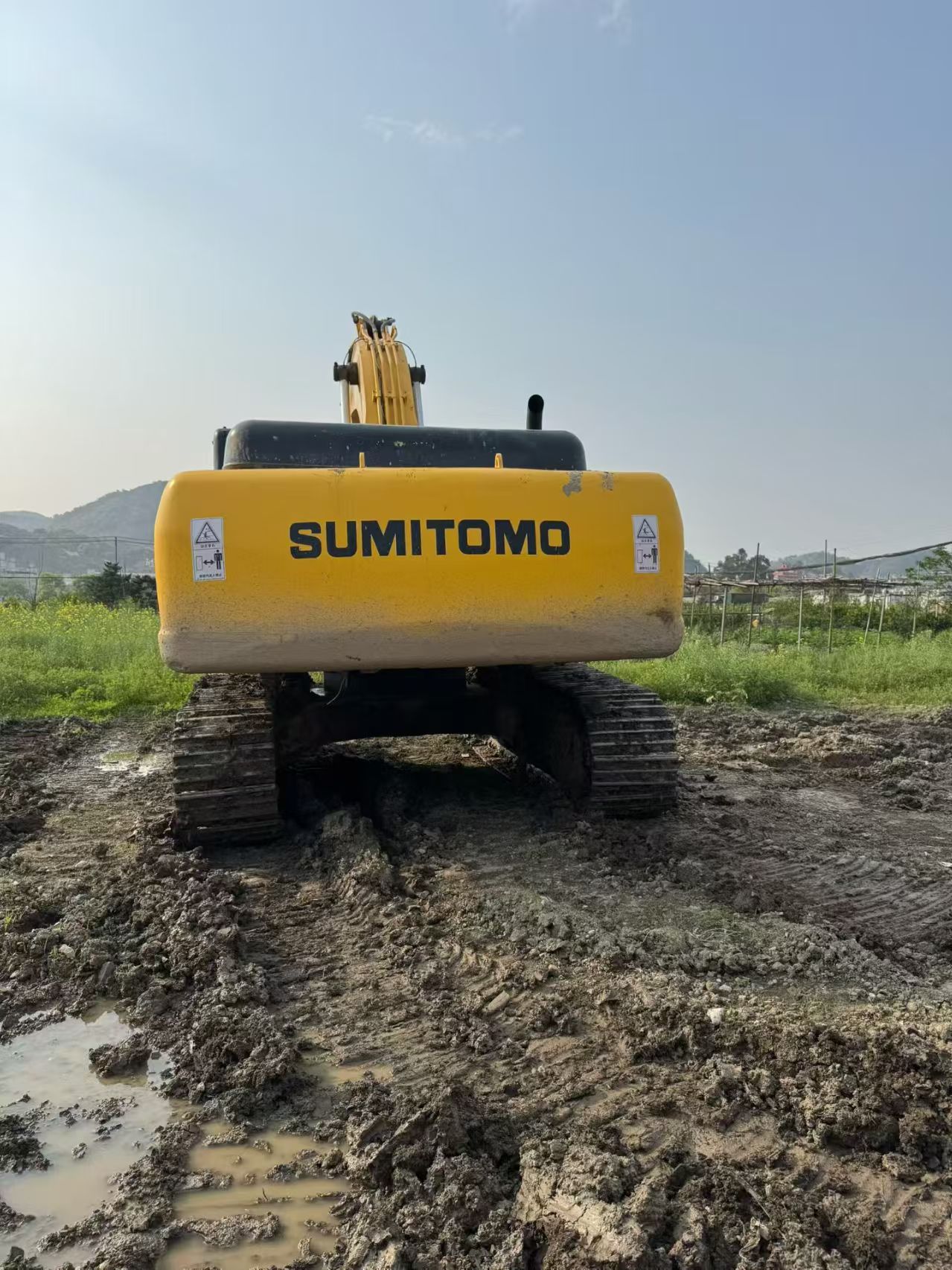

Buy Sumitomo SH350-5 Used Excavator / 13

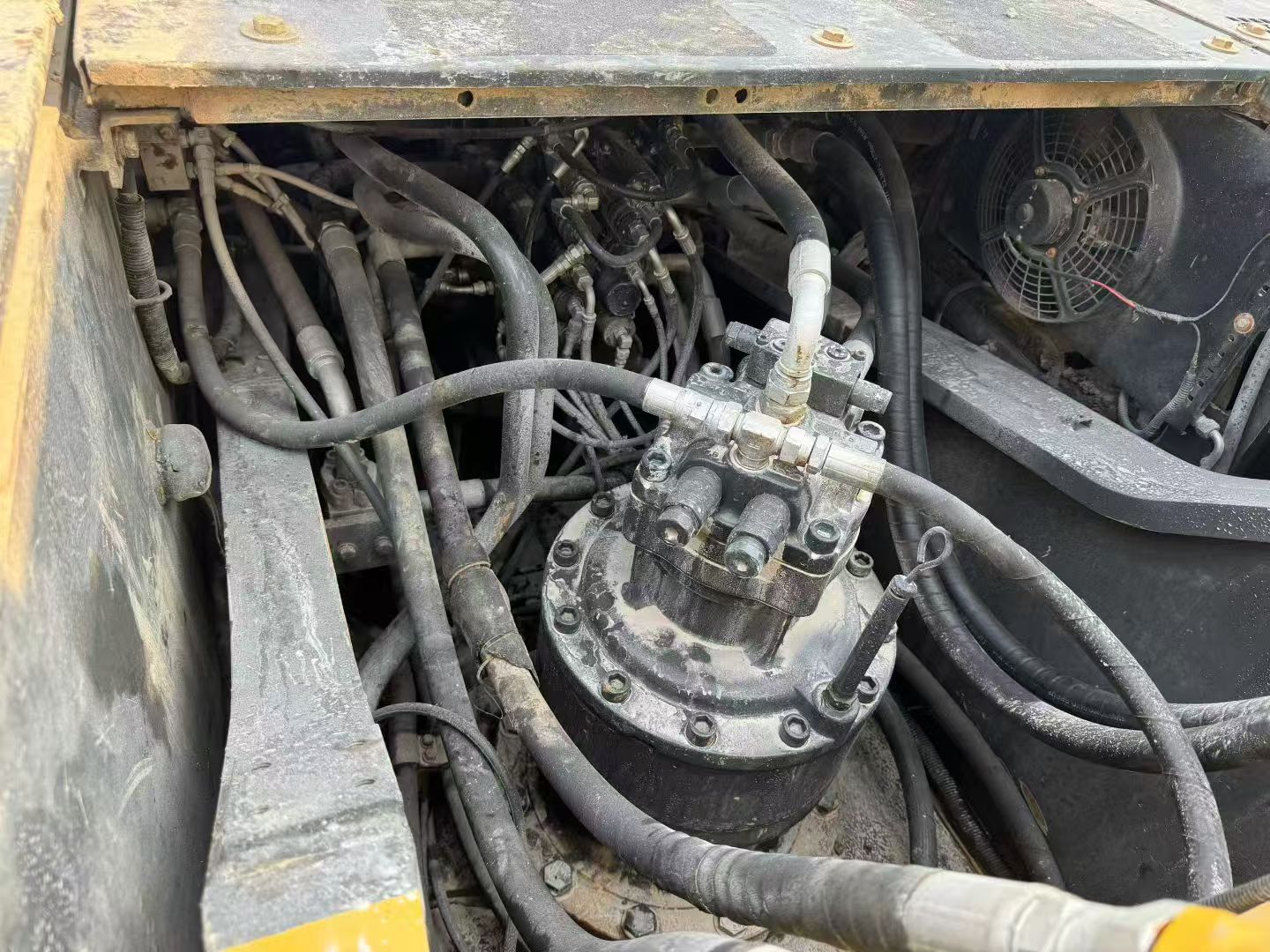

Buy Sumitomo SH350-5 Used Excavator / 14

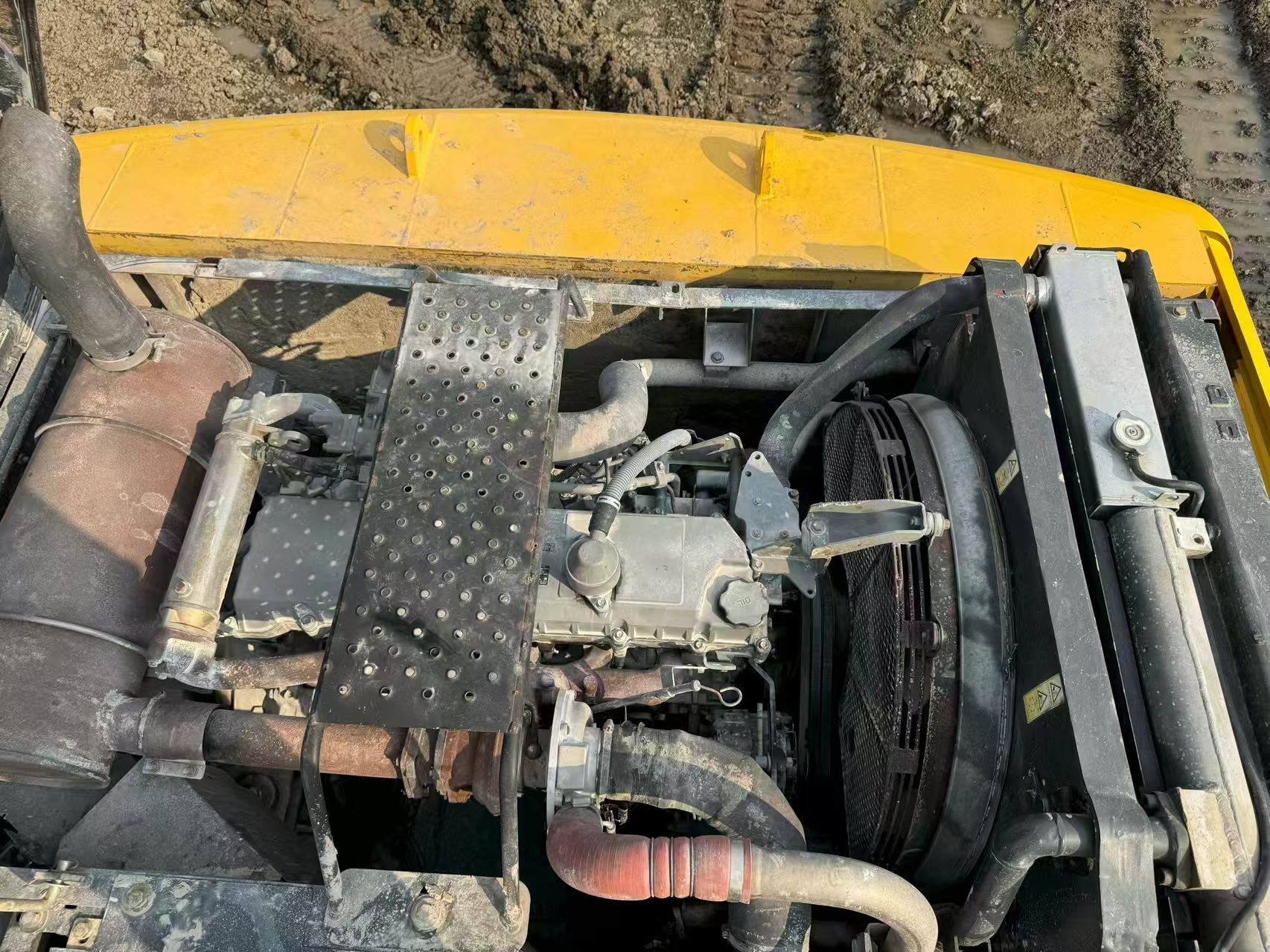

Buy Sumitomo SH350-5 Used Excavator / 15

Product Description

This 2015 Sumitomo SH350-5 hydraulic excavator represents a reliable solution for demanding excavation and earthmoving operations. As an original import model from Japan's renowned Sumitomo construction machinery line, this machine delivers the durability and performance expected from premium Japanese engineering. Currently located in Zhejiang, China, this unit has been maintained to operational standards and is ready for immediate deployment on your worksite.

The SH350-5 series is recognized for its robust hydraulic systems, fuel efficiency, and operator comfort in the 35-ton excavator class. This machine is well-suited for:

  • Large-scale excavation and trenching projects
  • Heavy construction site preparation
  • Infrastructure development operations
  • Mining and quarry applications

With its proven track record in the field, this Sumitomo excavator offers international buyers a cost-effective opportunity to acquire quality Japanese construction equipment for their heavy-duty applications.

SpecificationsValue
No.1052023
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1052023

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2015

Hour:

7684h

Location:

Zhejiang China

Pub Date
