2015 Sumitomo SH350-5

1/9

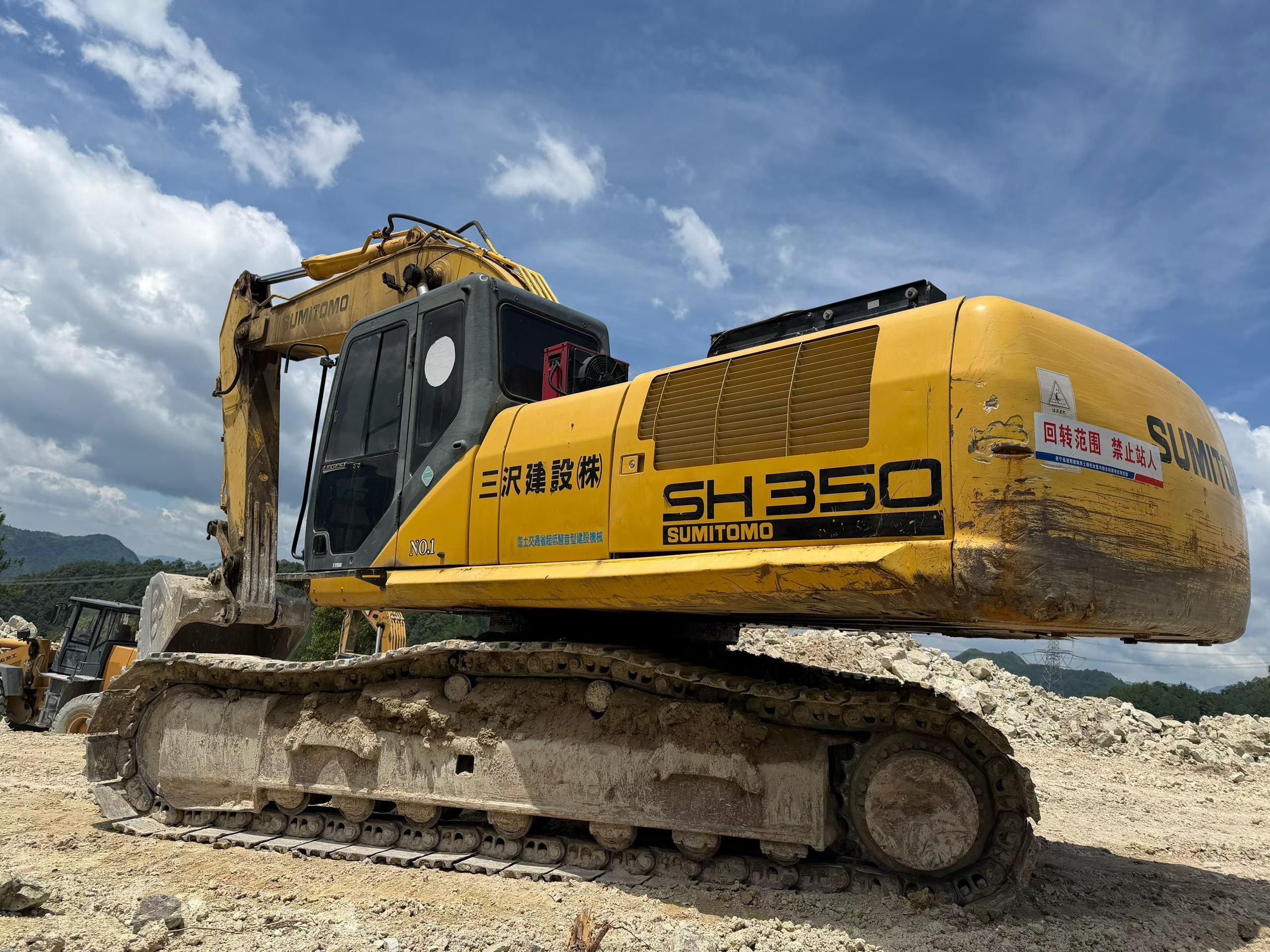

Buy Sumitomo SH350-5 Used Excavator / 1
Buy Sumitomo SH350-5 Used Excavator / 2
Buy Sumitomo SH350-5 Used Excavator / 3

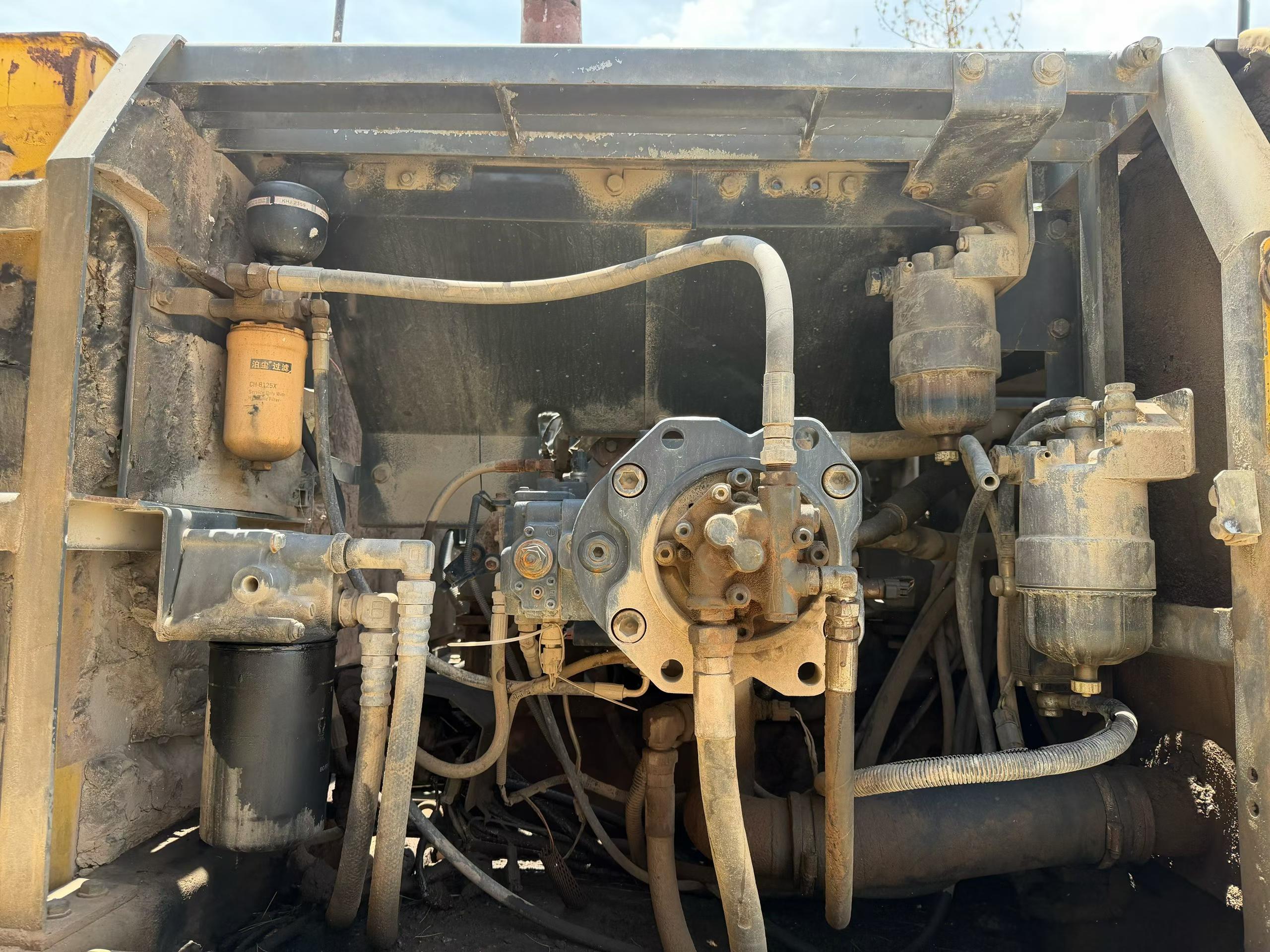

Buy Sumitomo SH350-5 Used Excavator / 4
Buy Sumitomo SH350-5 Used Excavator / 5
Buy Sumitomo SH350-5 Used Excavator / 6
Buy Sumitomo SH350-5 Used Excavator / 7
Buy Sumitomo SH350-5 Used Excavator / 8
Buy Sumitomo SH350-5 Used Excavator / 9

Product Description

This 2015 Sumitomo SH350-5 hydraulic excavator is available from Zhejiang, China. As a single-owner machine with over 150,000 hours of documented operation, this unit represents a well-maintained asset from Sumitomo's proven SH-5 series. The SH350-5 is built for high-productivity earthmoving, demolition, and quarry applications where reliability and fuel efficiency are critical.

  • Operating weight class: 35 metric tons
  • Sumitomo original hydraulic system
  • Single owner, complete service history
  • Currently located in Zhejiang Province
  • Suitable for mining, construction, and heavy civil projects

This excavator has been operating in the Chinese market since new and is ready for immediate deployment. Inspection and shipping arrangements can be coordinated through our logistics network.

SpecificationsValue
No.1139305
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1139305

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2015

Location:

Zhejiang China
