2015 Sumitomo SH350-5

1/9

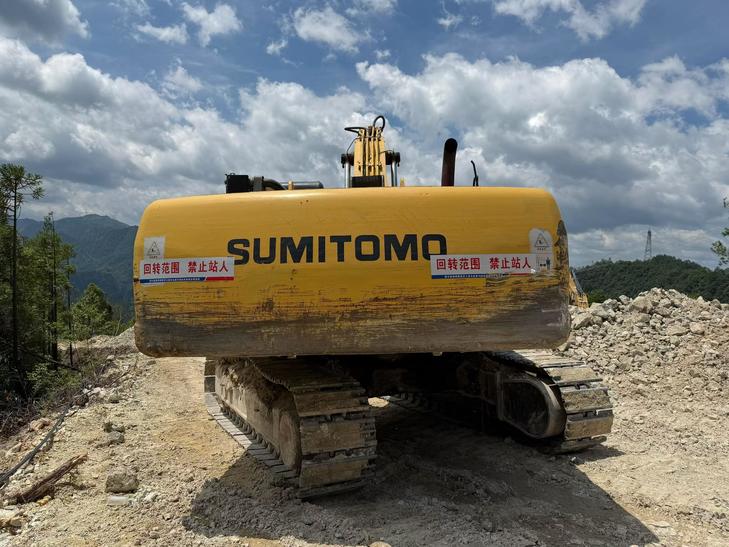

Buy Sumitomo SH350-5 Used Excavator / 1
Buy Sumitomo SH350-5 Used Excavator / 2
Buy Sumitomo SH350-5 Used Excavator / 3

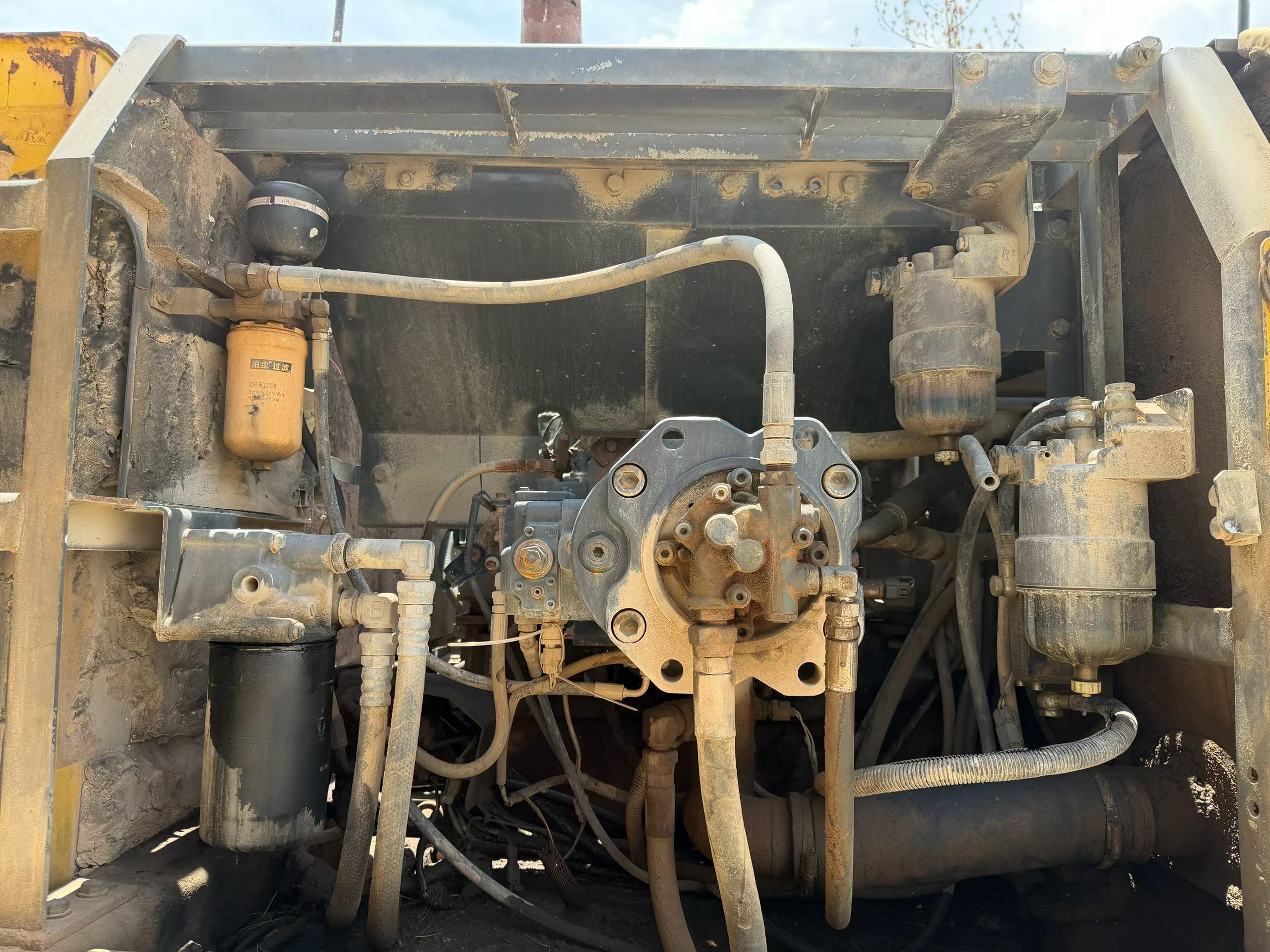

Buy Sumitomo SH350-5 Used Excavator / 4
Buy Sumitomo SH350-5 Used Excavator / 5
Buy Sumitomo SH350-5 Used Excavator / 6
Buy Sumitomo SH350-5 Used Excavator / 7
Buy Sumitomo SH350-5 Used Excavator / 8
Buy Sumitomo SH350-5 Used Excavator / 9

Product Description

This 2015 Sumitomo SH350-5 hydraulic excavator is available from its original owner in Zhejiang, China. With single-hand operation history and direct field provenance, this machine represents a well-maintained unit from Sumitomo's proven SH series.

The SH350-5 is a reliable 35-ton class excavator designed for demanding earthmoving, demolition, and construction applications. Known for fuel efficiency and operator comfort, this model features Sumitomo's integrated hydraulic system for smooth operation and productive cycle times.

  • Year: 2015
  • Model: Sumitomo SH350-5
  • Location: Zhejiang Province, China
  • Ownership: Single owner, direct from field
  • Class: 35-ton hydraulic excavator

Interested buyers should contact us directly for current pricing, inspection arrangements, and detailed machine history. Export documentation and logistics support available.

SpecificationsValue
No.1140817
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more
