Product Description

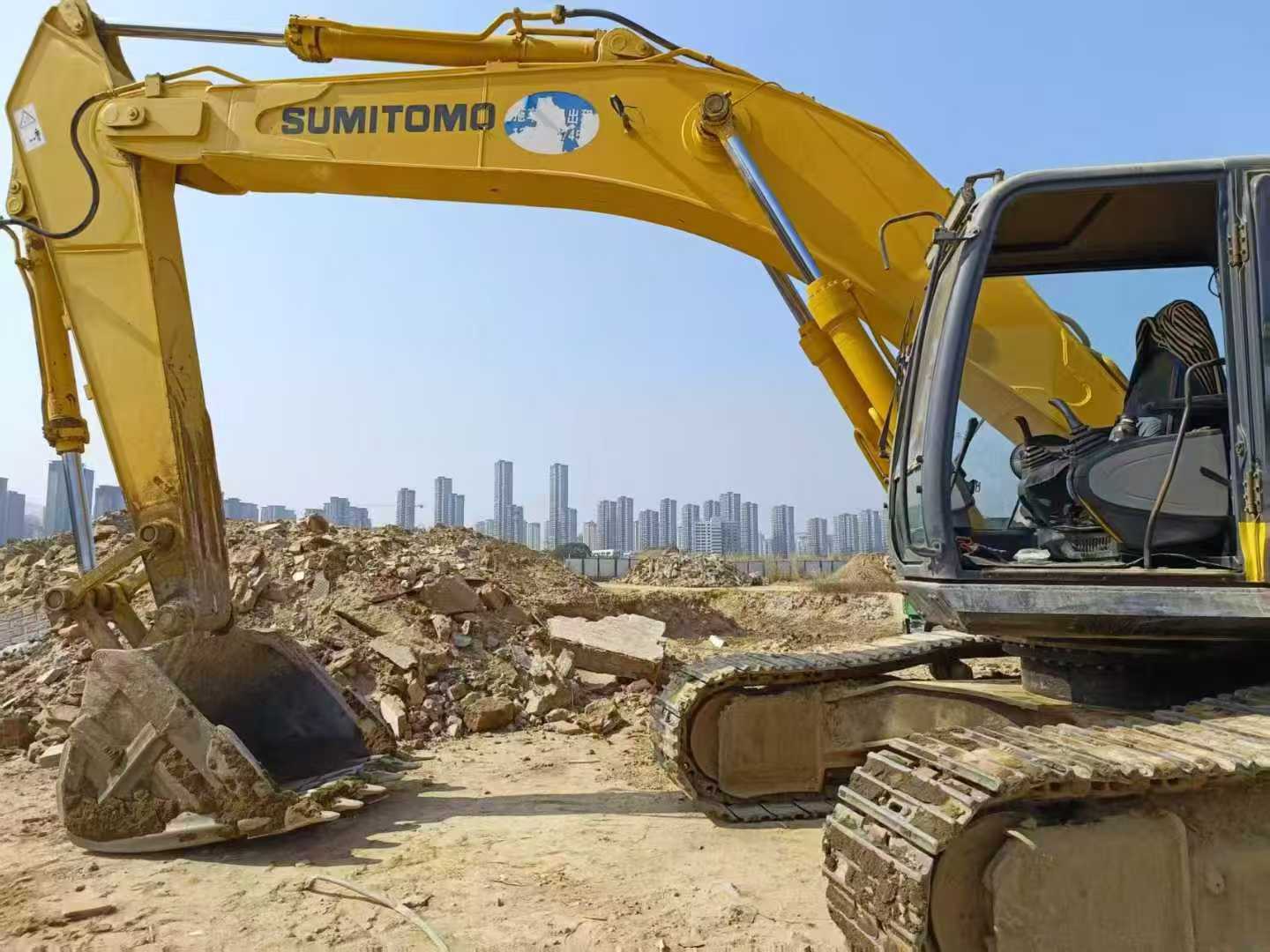

With a working weight of 35,200 kg and a bucket capacity ranging from 1.2 to 1.8 m³, the 2016 Sumitomo SH350-5 excavator offers high performance at a fraction of the cost of new machinery. Powered by a robust AH-6HK1XYSS engine, delivering 202 kW at 2000 rpm, this excavator is ideal for demanding jobs. Its 35-tonne tonnage and 229 kN bucket digging force ensure efficient operation on any site. Located in 福建厦门, this machine provides a smart investment with features like a 580-liter fuel tank, 34.3/37.3 Mpa main overflow set pressure, and a maximum travel speed of 5.5/3.5 km/h. The SH350-5 also boasts a maximum digging depth of 7340 mm and a maximum unloading height of 7230 mm, making it versatile for various construction needs. Invest wisely with this reliable and cost-effective excavator.
| Specifications | Value |
|---|---|
| No. | 1001752 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

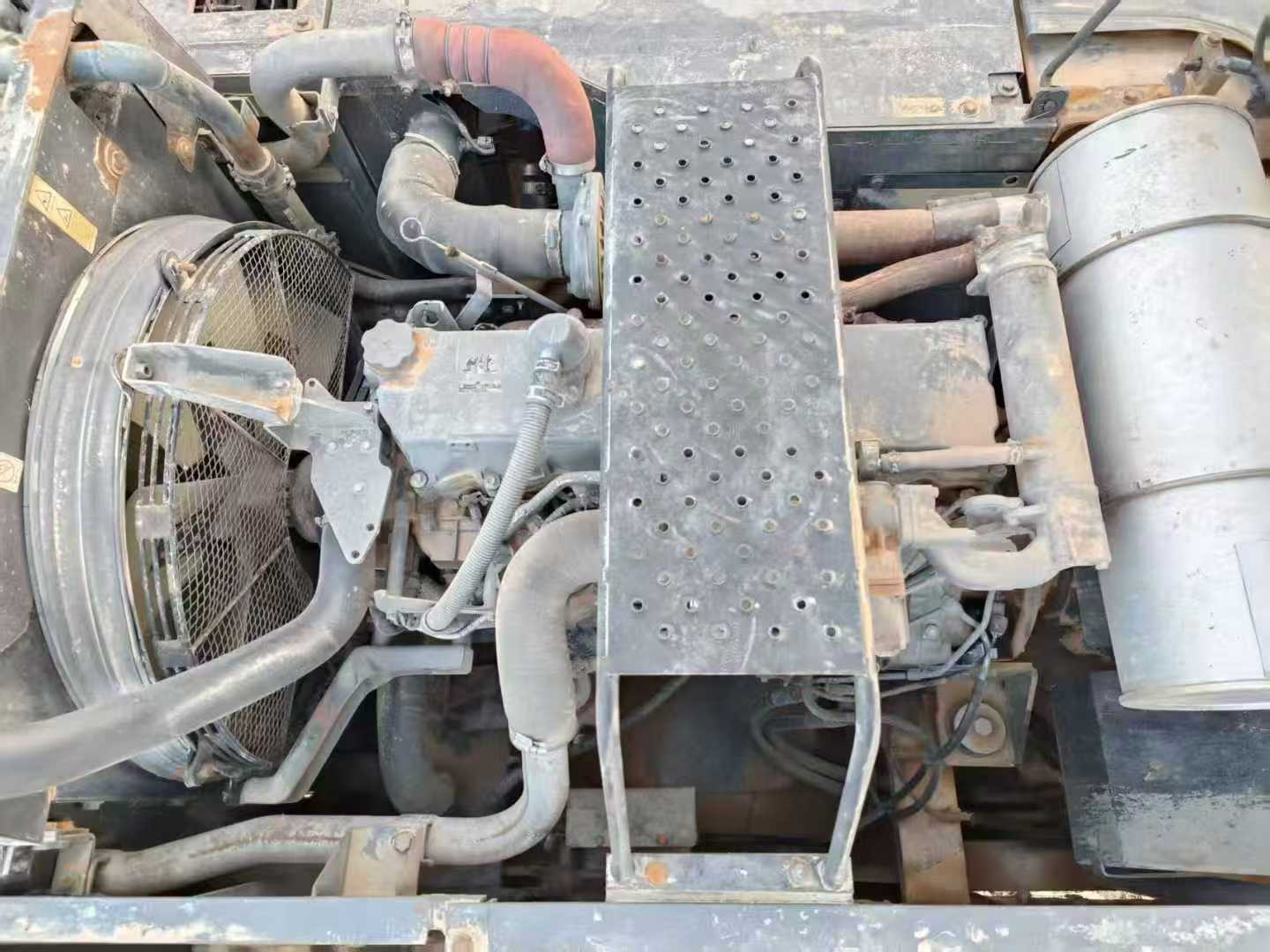

| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |

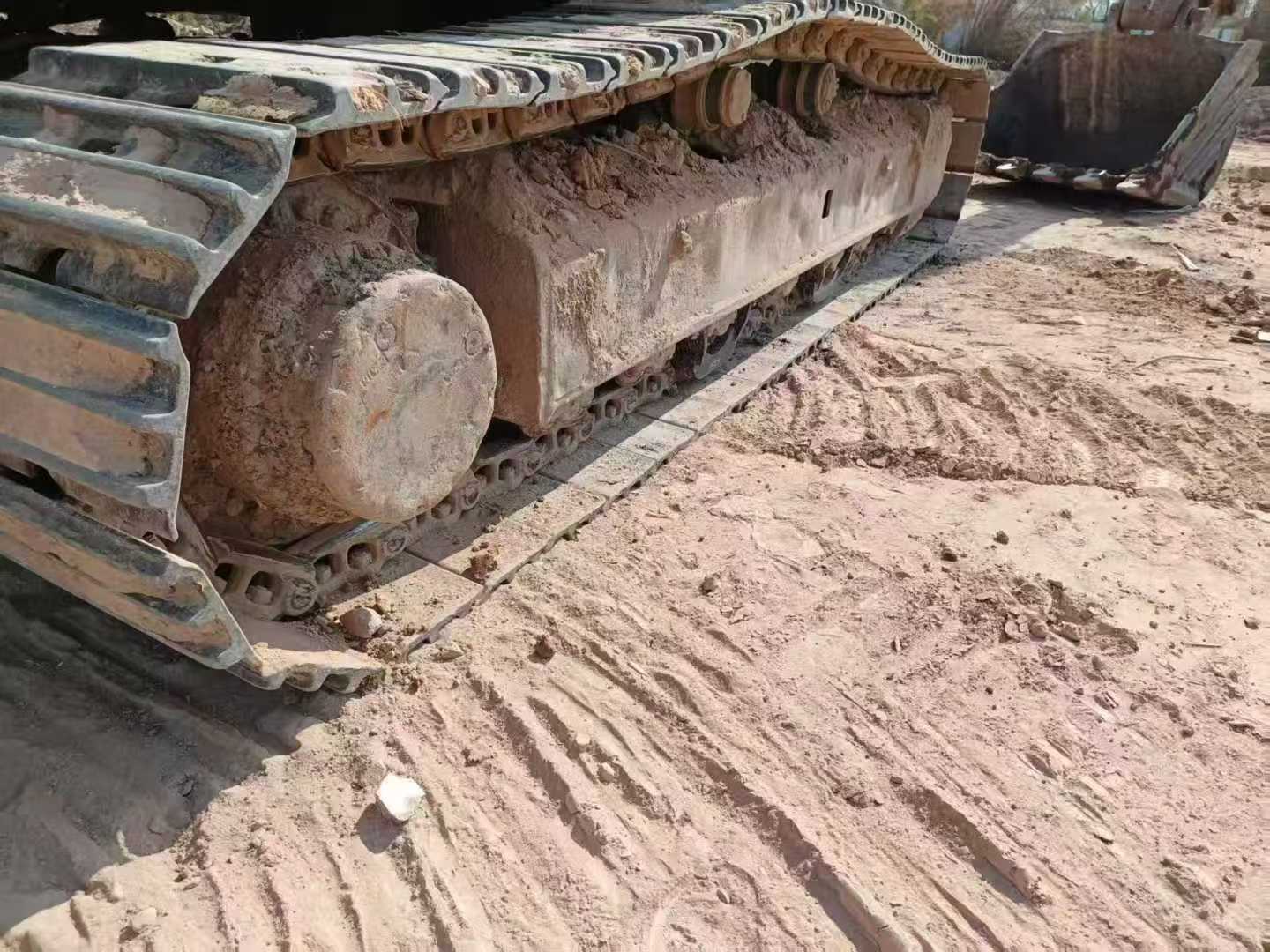

| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
