Product Description

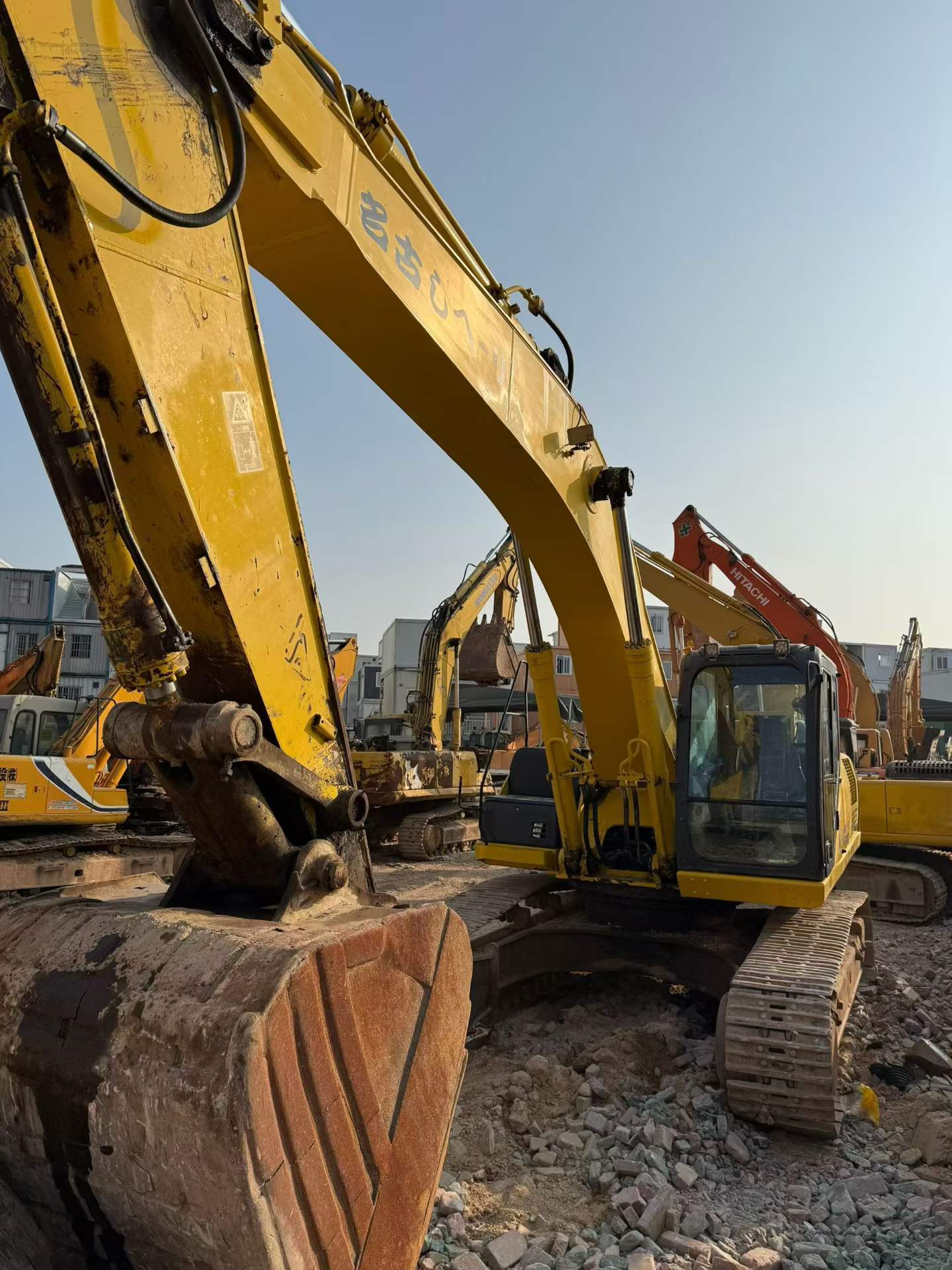

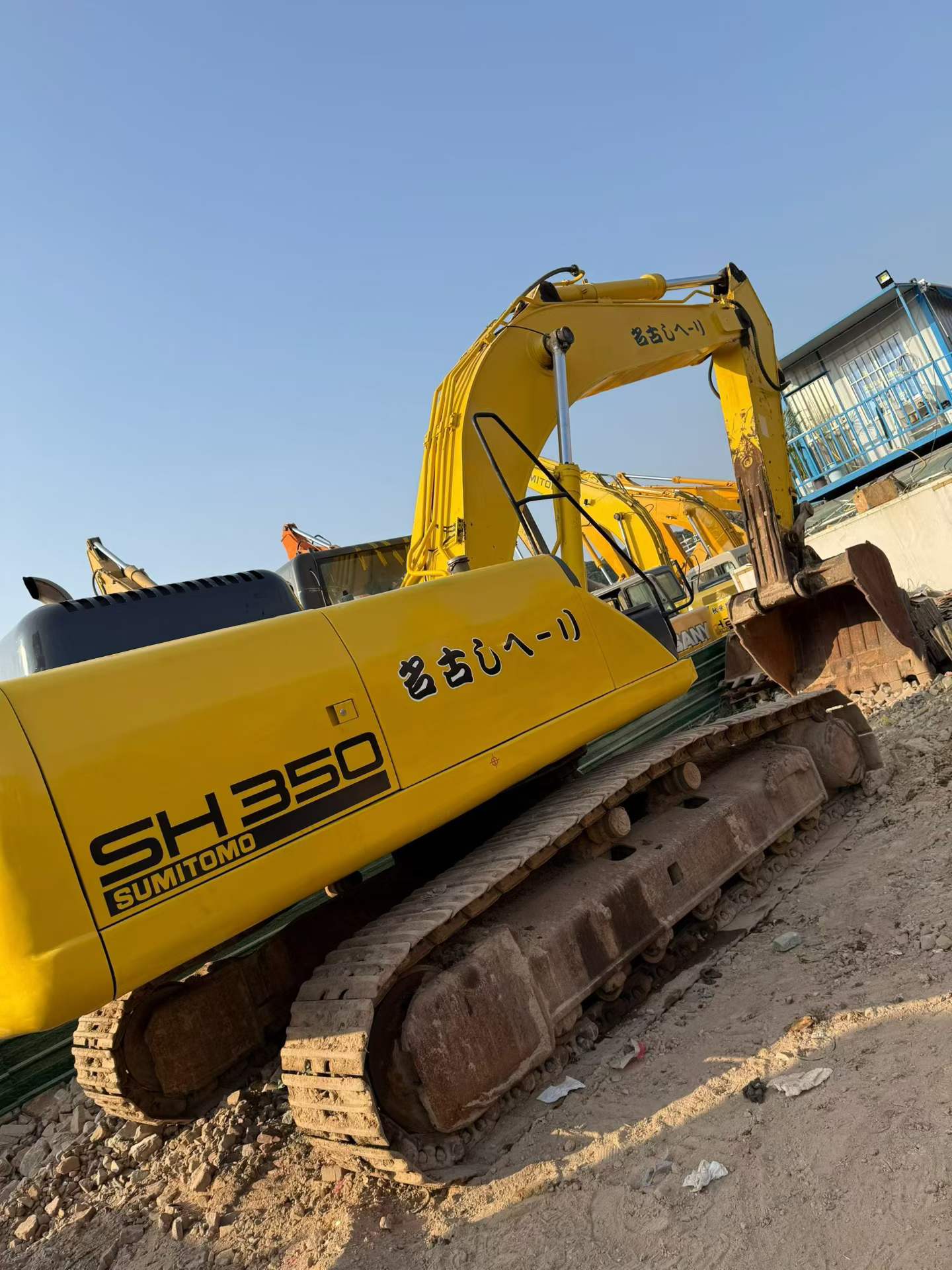

Proven reliability meets exceptional performance in this 2016 Sumitomo SH350-5 excavator, currently located in Shenzhen, Guangdong. Operating at 35 tons with a robust 202kW engine, this machine delivers consistent power for demanding excavation projects. Sumitomo's joint-venture manufacturing ensures access to genuine parts and comprehensive service networks across China, protecting your investment long-term.
Key specifications include:
- Working weight: 35,200 kg with 1.2-1.8 m³ bucket capacity
- Maximum digging reach: 11,170 mm with 7,340 mm depth capability
- Powerful digging forces: 229 kN bucket force, 164 kN arm force
- Efficient fuel system: 580L tank for extended operation
- Superior mobility: 70% climbing ability with 5.5 km/h travel speed
Sumitomo excavators maintain strong resale value due to their reputation for durability and lower operating costs. Parts availability through established distribution channels minimizes downtime, while the brand's engineering heritage ensures components withstand rigorous job site conditions. This SH350-5 represents a strategic acquisition for contractors prioritizing long-term reliability over initial purchase price.
| Specifications | Value |
|---|---|
| No. | 1009415 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

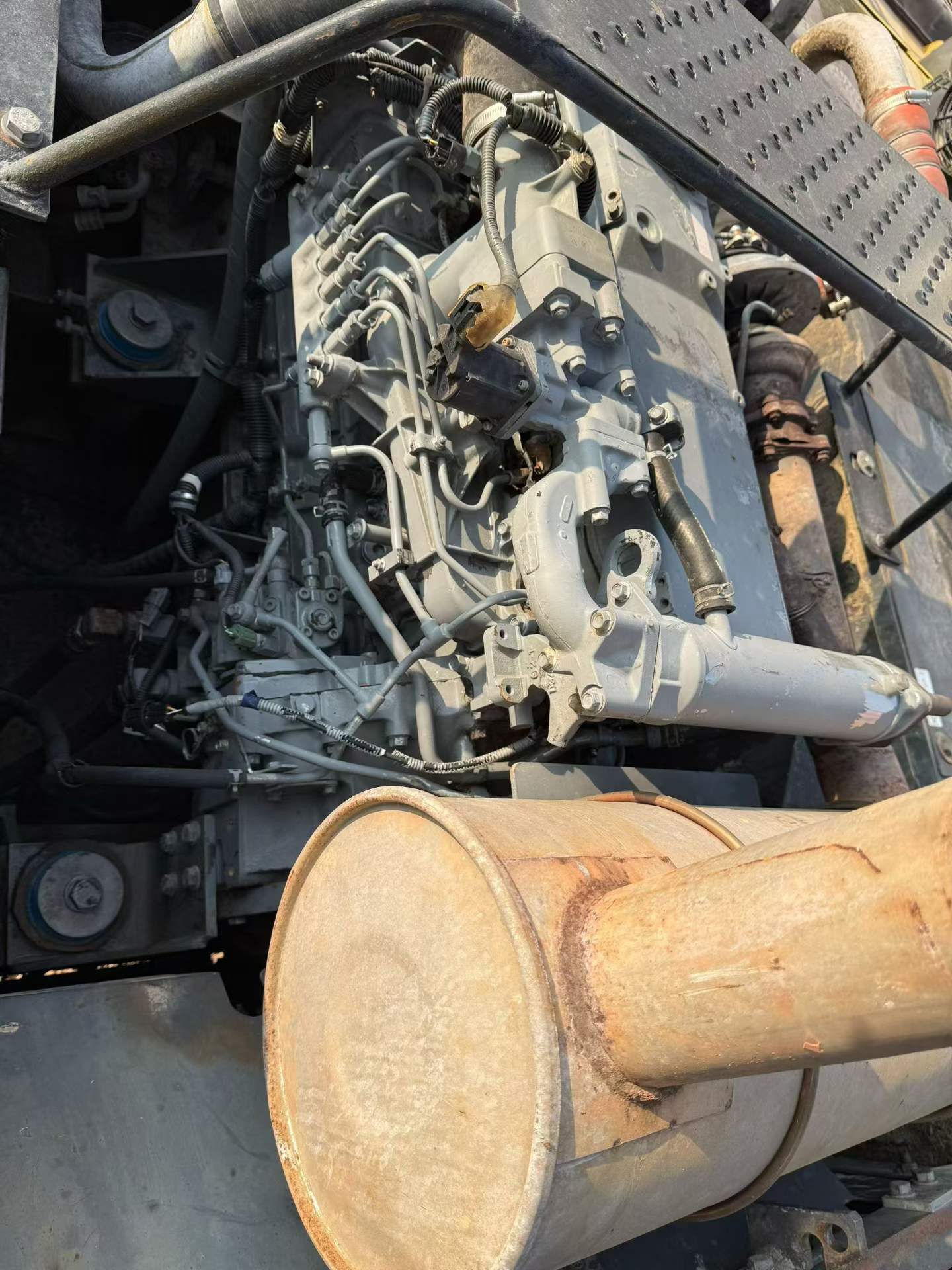

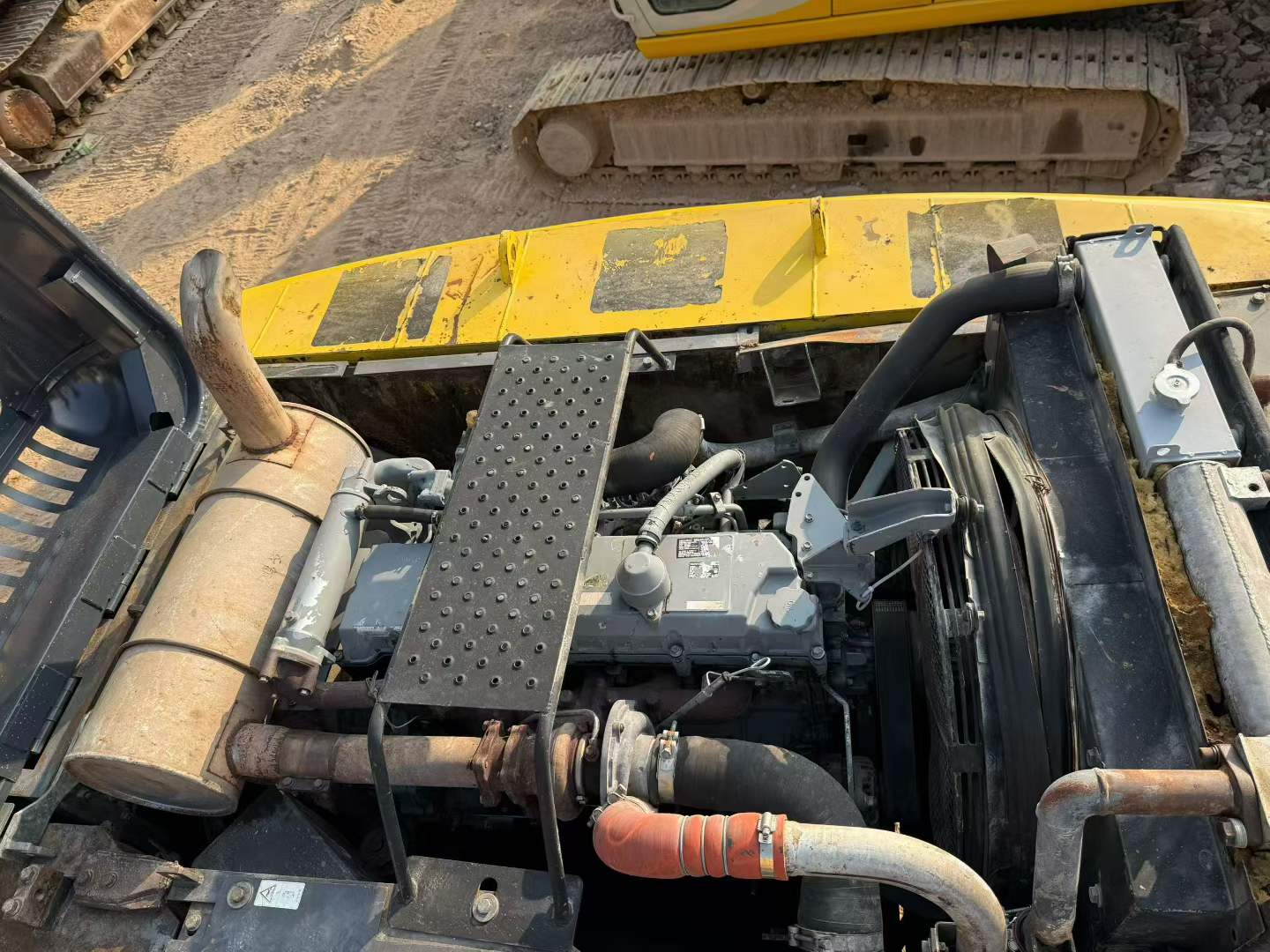

| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |

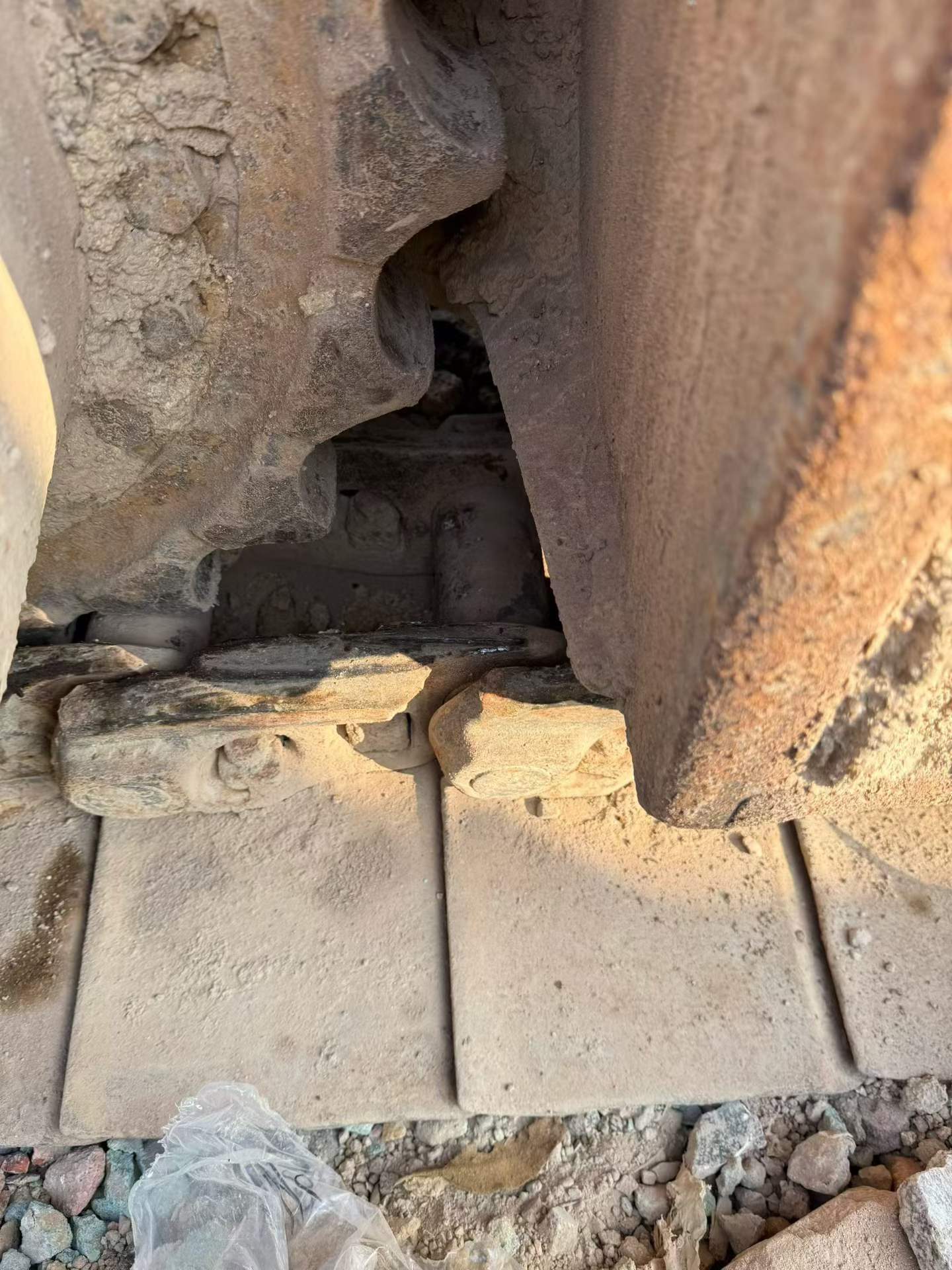

| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
