Product Description

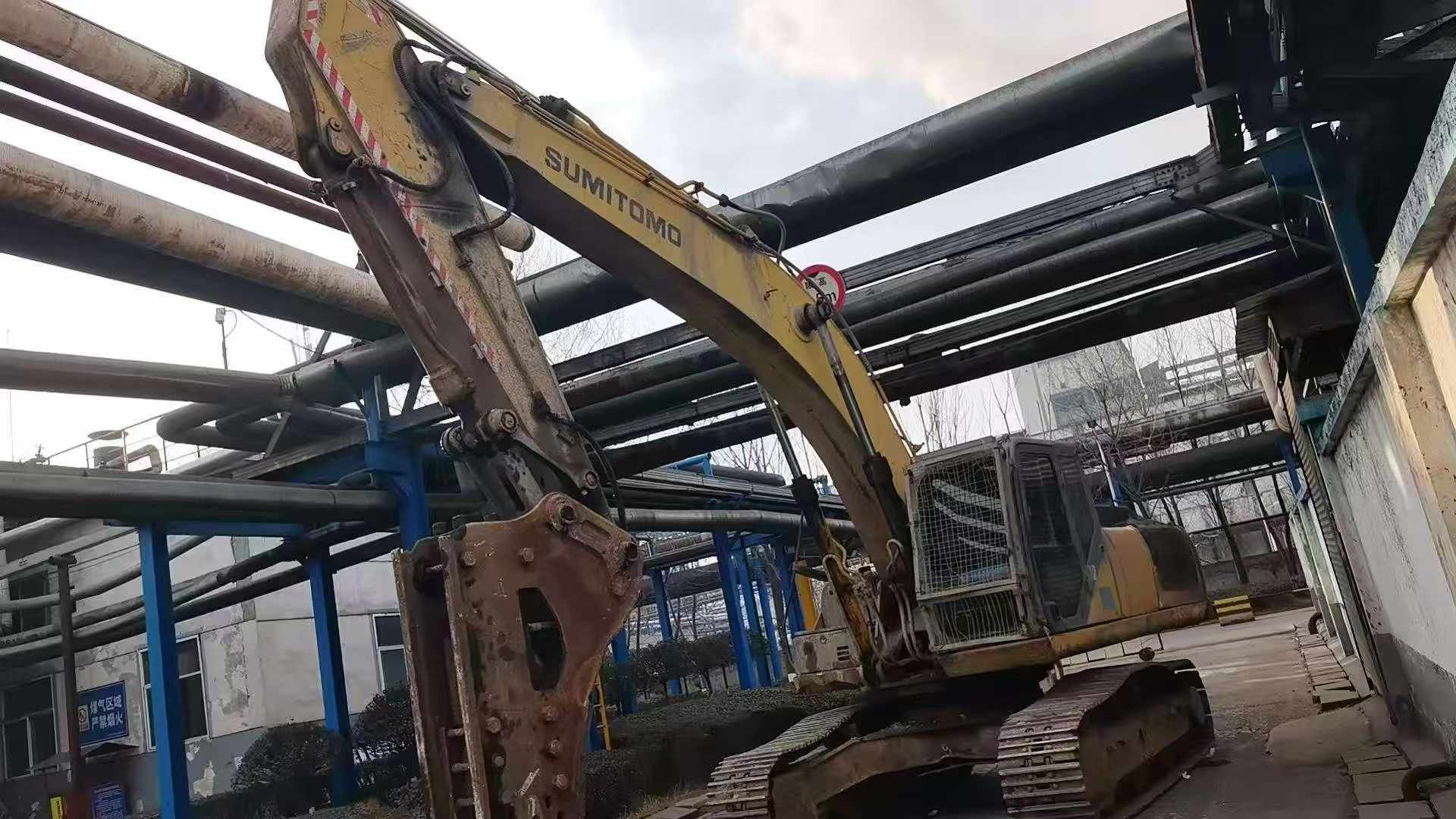

With a working weight of 35,200 kg and a bucket capacity ranging from 1.2 to 1.8 m³, the 2016 Sumitomo SH350-5 excavator, located in 浙江绍兴, offers high performance at a fraction of the cost of new machinery. Powered by a robust AH-6HK1XYSS engine, it delivers 202 kW at 2000 rpm, ensuring reliable operation on any job site.
- Rated power: 202 kW / 2000 rpm
- Bucket digging force: 229 kN
- Maximum travel speed: 5.5/3.5 km/h
- Total transport dimensions: 11050 mm (L) x 3200 mm (W) x 3260 mm (H)
- Fuel tank: 580 L, Hydraulic tank: 350 L
Investing in this used excavator means acquiring a machine with a proven track record, designed for durability and efficiency. It's an economical choice that doesn't compromise on quality or performance, making it a smart investment for your heavy equipment fleet.
| Specifications | Value |
|---|---|
| No. | 1019966 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
