Product Description

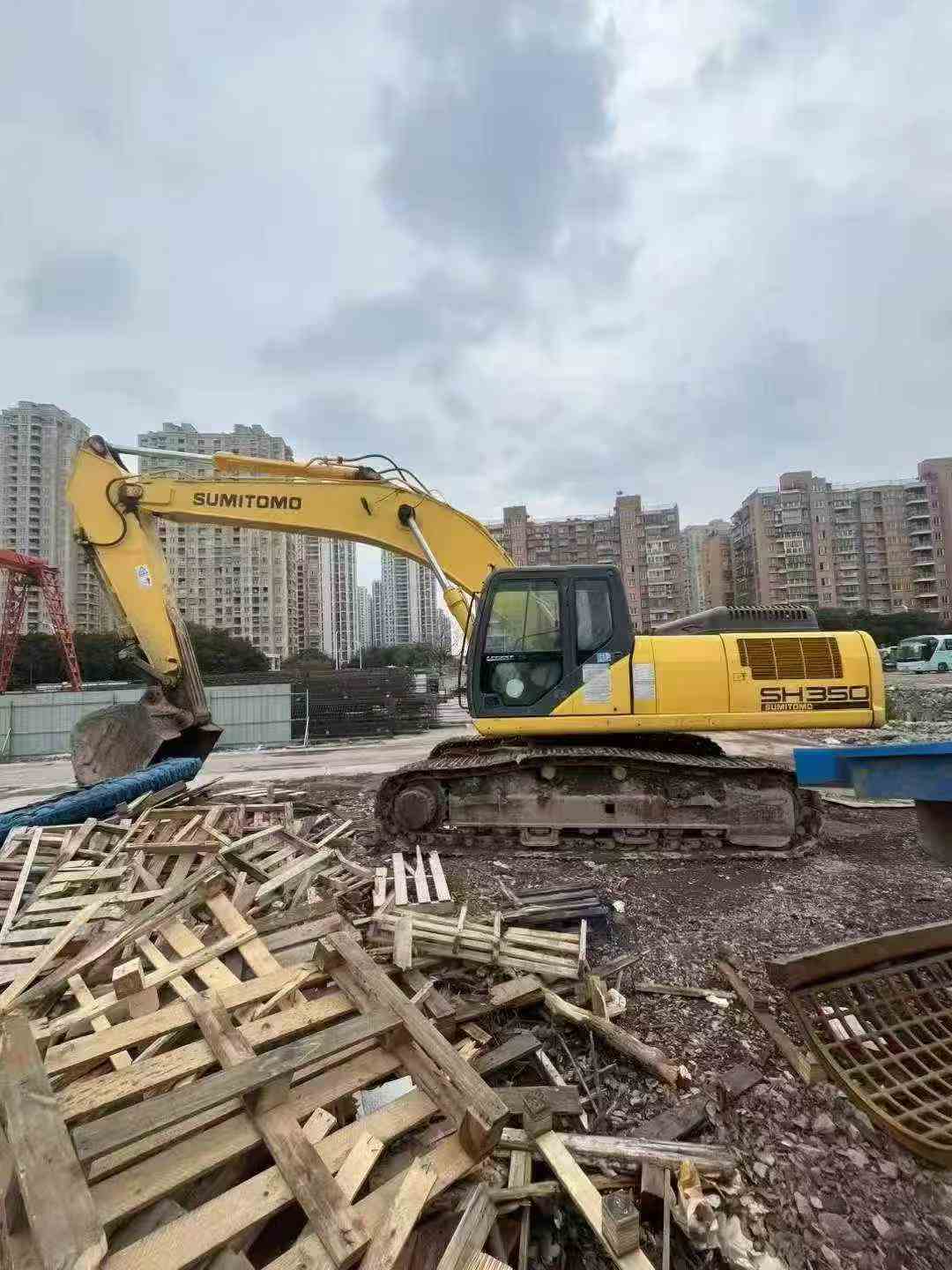

Acquiring premium excavation power doesn't require a premium budget. This 2016 Sumitomo SH350-5 delivers 35-ton performance with proven reliability at a fraction of new equipment costs. Powered by a robust AH-6HK1XYSS engine generating 202kW at 2000rpm, this backhoe excavator handles demanding jobsites with a maximum digging depth of 7,340mm and an impressive 11,170mm reach radius.
Built for productivity, key specifications include:
- Operating weight: 35,200kg with 1.2-1.8m³ bucket capacity
- Bucket digging force: 229kN; stick digging force: 164kN
- 7.79L displacement engine with 580L fuel capacity for extended operation
- Efficient 9.8rpm rotation speed and 70% grading capability
- Transport dimensions: 11,050mm × 3,200mm × 3,260mm
Currently located in Zhejiang, this joint-venture manufactured machine represents smart capital allocation for contractors seeking proven hydraulic excavator performance without new equipment depreciation. Extensive specifications confirm jobsite-ready capability across earthmoving, trenching, and heavy excavation applications.
| Specifications | Value |
|---|---|
| No. | 1027826 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
