Product Description

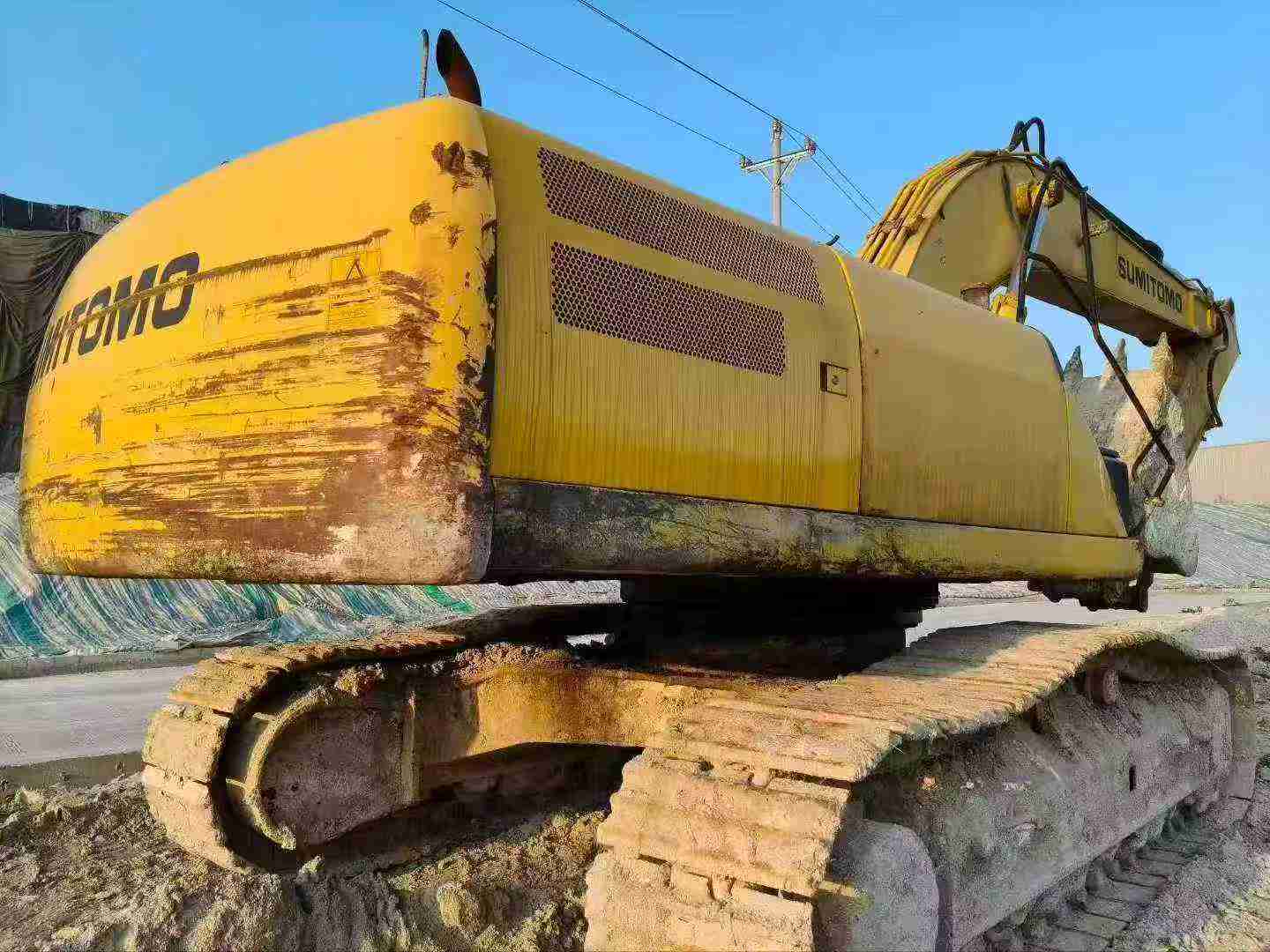

Built for high-output excavation across demolition, heavy digging, and grading operations, this 2016 Sumitomo SH350-5 delivers 35-ton performance with proven reliability. Powered by a robust AH-6HK1XYSS engine generating 202 kW at 2000 rpm, this machine handles demanding jobsites with a 1.2-1.8 m³ bucket capacity and exceptional digging force—229 kN bucket force and 164 kN arm force. Maximum digging reach extends to 11,170 mm with a depth capability of 7,340 mm, making it ideal for deep excavation and large-scale earthmoving projects.
- Working Weight: 35,200 kg for stable operation on varied terrain
- Engine: AH-6HK1XYSS diesel, 7.79 L displacement, 202 kW output
- Digging Performance: 11,170 mm max reach, 7,340 mm max depth
- Hydraulic Power: 34.3/37.3 MPa system pressure for responsive control
- Mobility: 70% grading ability, 5.5 km/h travel speed
- Capacity: 580 L fuel tank for extended shift operation
- Location: Luzhou, Sichuan—ready for inspection and deployment
Site-ready condition. Contact Fair Trade Machinery for complete specifications a
| Specifications | Value |
|---|---|
| No. | 1029910 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
