Product Description

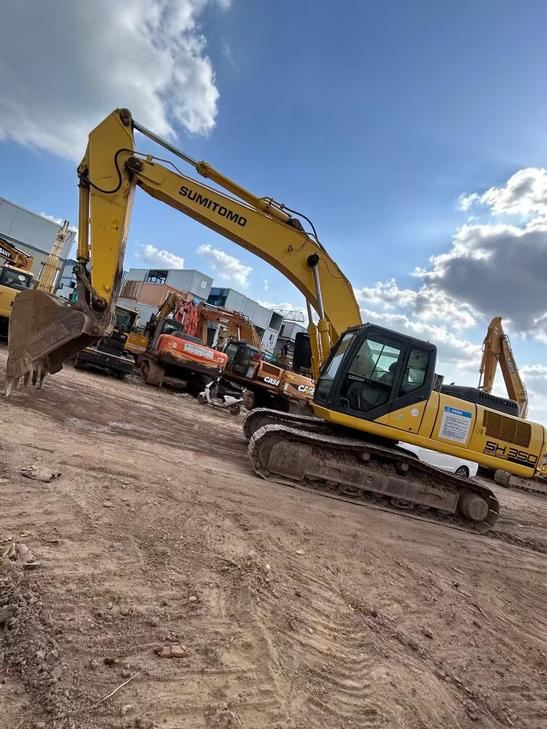

Engineered with Sumitomo's proven AH-6HK1XYSS engine platform, this 2016 SH350-5 delivers 202 kW at 2000 rpm through a 7.79L displacement system designed for continuous heavy-duty operation. Hydraulic performance defines this 35-ton class excavator: main overflow pressures calibrated at 34.3/37.3 MPa drive a bucket digging force of 229 kN and arm force of 164 kN, enabling precise material handling across demanding jobsites.
- Reach & Depth: 11,170 mm maximum digging radius with 7,340 mm depth capability
- Hydraulic Capacity: 350L tank supporting high-pressure circuit stability
- Mobility: 3,450 mm rear swing radius; 70% gradeability; dual-speed travel at 5.5/3.5 km/h
- Fuel Autonomy: 580L tank for extended shift operations
- Working Range: 1.2-1.8 m³ bucket capacity with 10,370 mm maximum dig height
Currently located in Shenzhen, Guangdong. Factory-standard backhoe configuration with joint venture build quality ensures component durability and parts availability across international markets.
| Specifications | Value |
|---|---|
| No. | 1031401 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
