Product Description

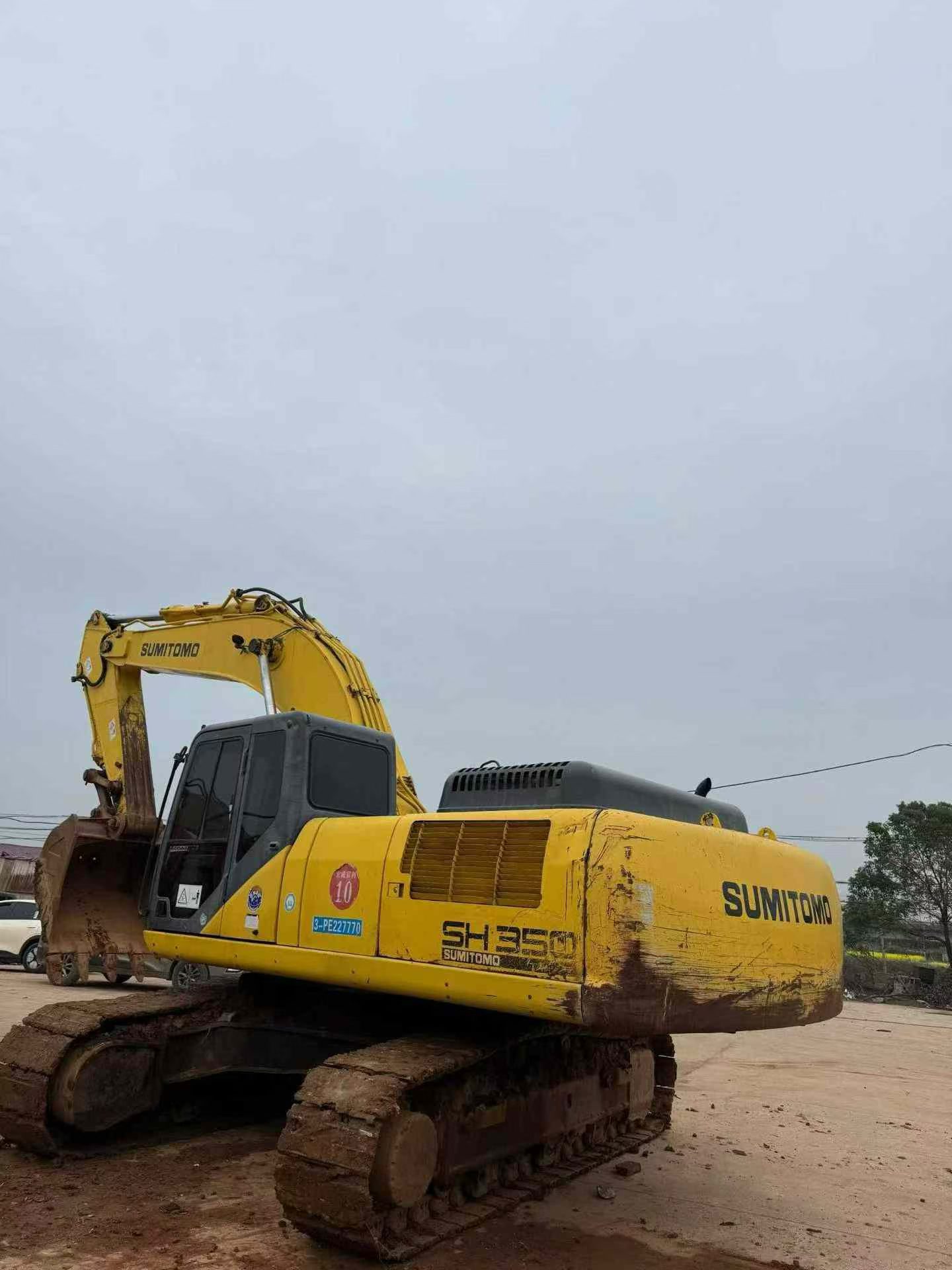

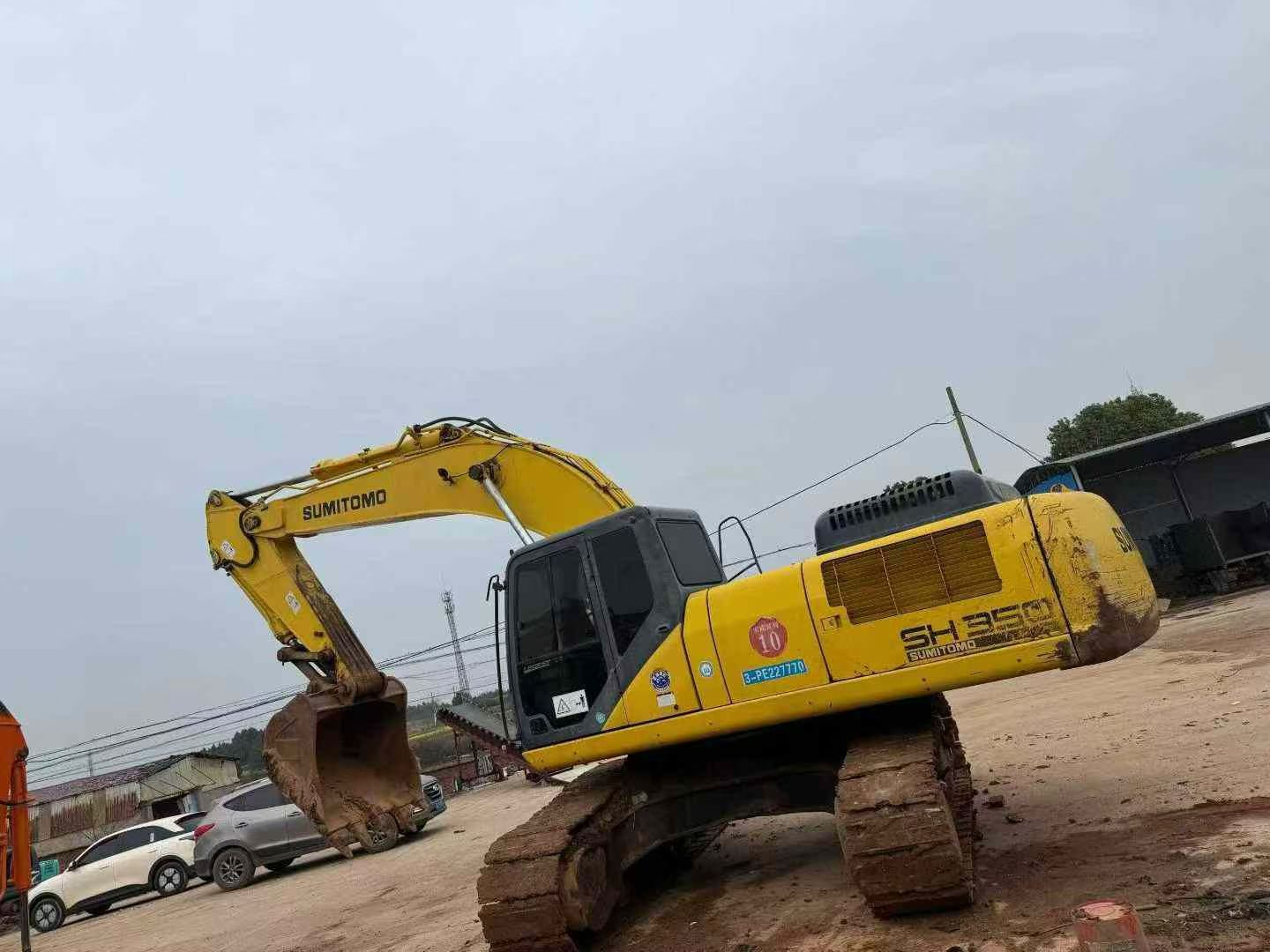

Proven reliability meets heavyweight performance in this 2016 Sumitomo SH350-5 excavator, a 35-ton workhorse engineered for demanding earthmoving operations. Powered by a robust AH-6HK1XYSS engine delivering 202 kW at 2000 rpm, this machine combines exceptional digging force—229 kN bucket force and 264 kN maximum tractive force—with an impressive 11,170 mm maximum reach and 7,340 mm digging depth. Sumitomo's joint-venture manufacturing ensures OEM parts availability and strong resale value, making this a smart investment for contractors prioritizing long-term fleet reliability.
- Operating Weight: 35,200 kg with 1.2-1.8 m³ bucket capacity
- Engine: AH-6HK1XYSS, 7.79L displacement, 202 kW rated output
- Performance: 11,170 mm max reach, 10,370 mm max dig height, 70% gradeability
- Hydraulics: 34.3/37.3 MPa main pressure, 9.8 rpm swing speed
- Fuel Capacity: 580L tank for extended runtime
- Location: Jiangxi, China—ready for immediate inspection
Backed by Sumitomo's reputation for durability and parts support, this SH350-5 offers lower ownership costs than comparable brands
| Specifications | Value |
|---|---|
| No. | 1035838 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
