Product Description

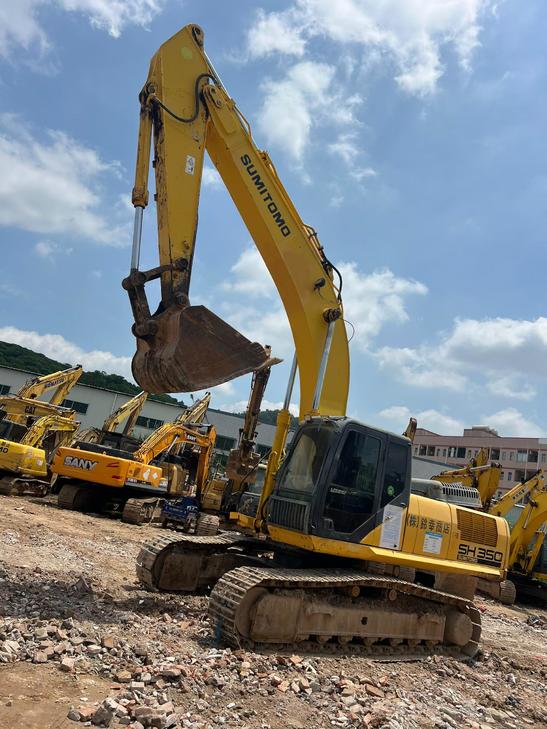

This 2020 Sumitomo SH350-5 hydraulic excavator offers reliable performance for demanding earthmoving operations. Currently located in Guangdong, China, this machine features factory-installed air conditioning for operator comfort during extended shifts. The unit is equipped with dual-speed travel modes for efficient site mobility and transport flexibility.
- Year: 2020
- Model: Sumitomo SH350-5
- Operating weight class: 35 metric tons
- Factory air conditioning system
- Dual-speed travel function
- Well-maintained undercarriage with substantial remaining life
- Location: Guangdong Province, China
The undercarriage shows good condition with minimal wear, indicating proper maintenance history. This excavator is suitable for general construction, excavation, and material handling applications. Inspection welcome by appointment.
| Specifications | Value |
|---|---|
| No. | 1073181 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
