2020 Sumitomo SH350-5

1/5

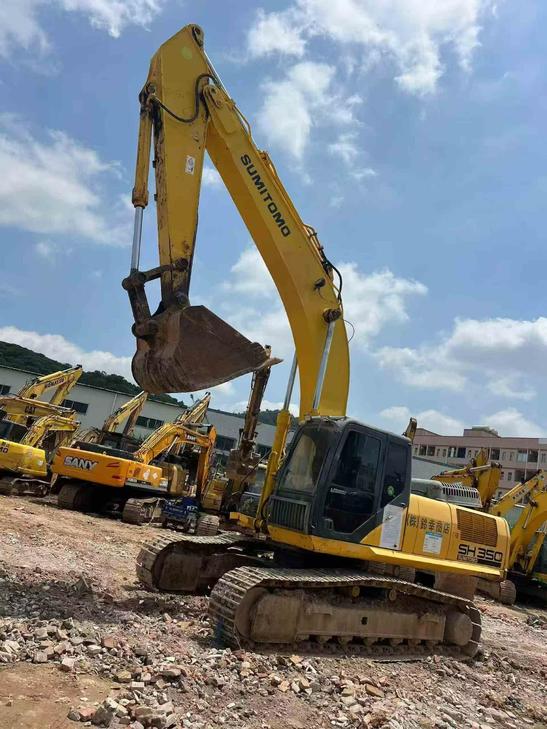

Buy Sumitomo SH350-5 Used Excavator / 1
Buy Sumitomo SH350-5 Used Excavator / 2
Buy Sumitomo SH350-5 Used Excavator / 3
Buy Sumitomo SH350-5 Used Excavator / 4
Buy Sumitomo SH350-5 Used Excavator / 5

Product Description

This 2020 Sumitomo SH350-5 hydraulic excavator offers reliable performance for demanding earthmoving applications. Currently located in Guangdong, China, this machine features factory-installed air conditioning for operator comfort during extended shifts. The unit is equipped with dual-speed travel modes for efficient site mobility and transport flexibility.

  • Year: 2020
  • Model: Sumitomo SH350-5
  • Operating weight class: 35 metric tons
  • Factory air conditioning system
  • Dual-speed travel function
  • Well-maintained undercarriage with substantial remaining life
  • Location: Guangdong Province, China

The undercarriage shows minimal wear with approximately 80-90% remaining service life. This excavator has been maintained in excellent working condition and is ready for immediate deployment in construction, mining, or infrastructure projects.

SpecificationsValue
No.1073533
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1073533

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Guangdong China

Pub Date
