HOME>>Sumitomo>>Sumitomo SH350-5

2020 Sumitomo SH350-5

1/9
Buy Sumitomo SH350-5 Used Excavator / 1
Buy Sumitomo SH350-5 Used Excavator / 2
Buy Sumitomo SH350-5 Used Excavator / 3
Buy Sumitomo SH350-5 Used Excavator / 4
Buy Sumitomo SH350-5 Used Excavator / 5
Buy Sumitomo SH350-5 Used Excavator / 6
Buy Sumitomo SH350-5 Used Excavator / 7
Buy Sumitomo SH350-5 Used Excavator / 8
Buy Sumitomo SH350-5 Used Excavator / 9

Product Description

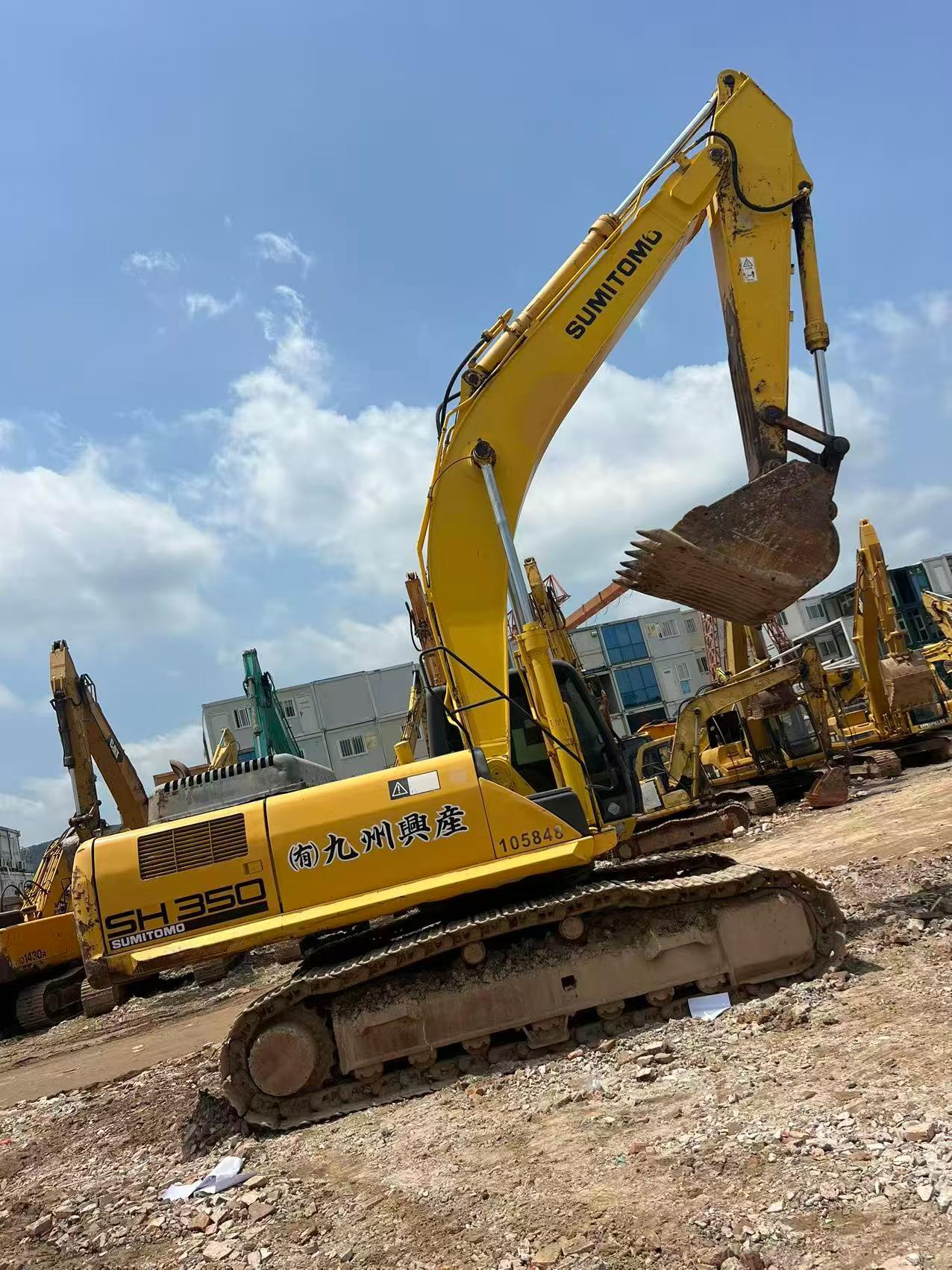

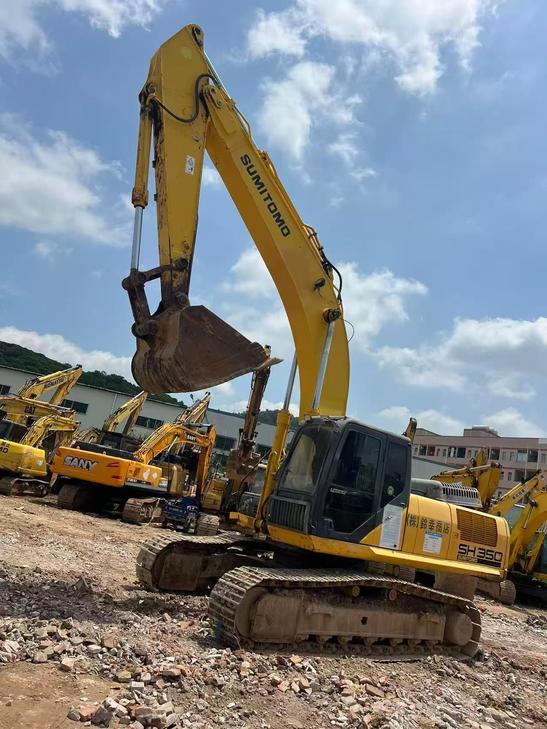

This 2020 Sumitomo SH350-5 hydraulic excavator is available in Guangdong, China. The machine features factory-installed air conditioning and demonstrates strong operational performance across all systems. The undercarriage shows minimal wear with approximately 80-90% remaining life, making it suitable for immediate deployment to active job sites.

Key features include:

  • Year: 2020
  • Model: Sumitomo SH350-5
  • Operating weight class: 35 metric tons
  • Original factory air conditioning system
  • Well-maintained undercarriage components
  • Dual-speed travel system operational
  • Ready for immediate field work

This excavator has been maintained in good working condition and is priced competitively for the Chinese market. Suitable for earthmoving, excavation, and general construction applications. Located in Guangdong province for inspection and delivery.

SpecificationsValue
No.1075513
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1075513

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Guangdong China

Pub Date
