2020 Sumitomo SH350-5

1/5
Buy Sumitomo SH350-5 Used Excavator / 1

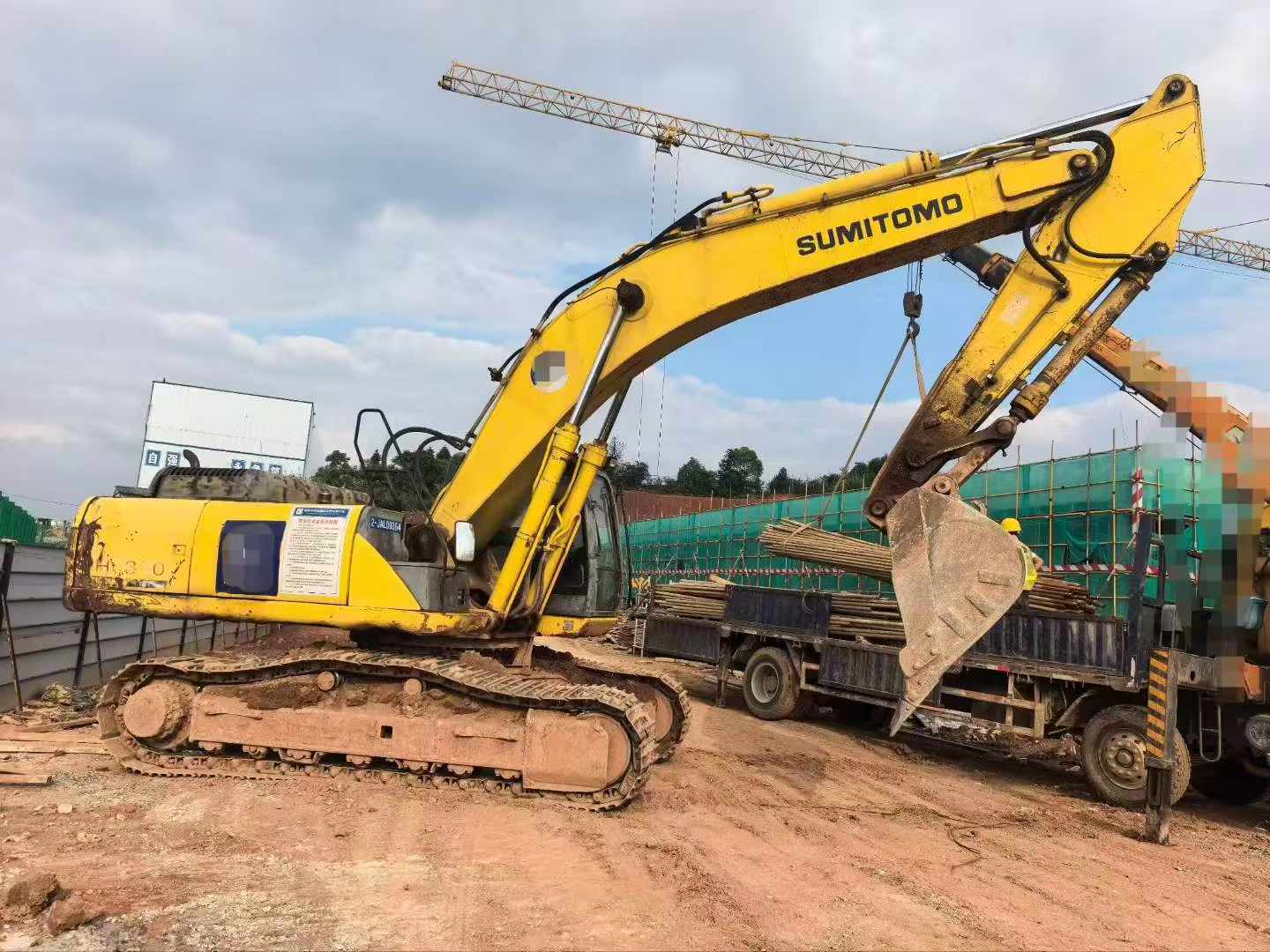

Buy Sumitomo SH350-5 Used Excavator / 2

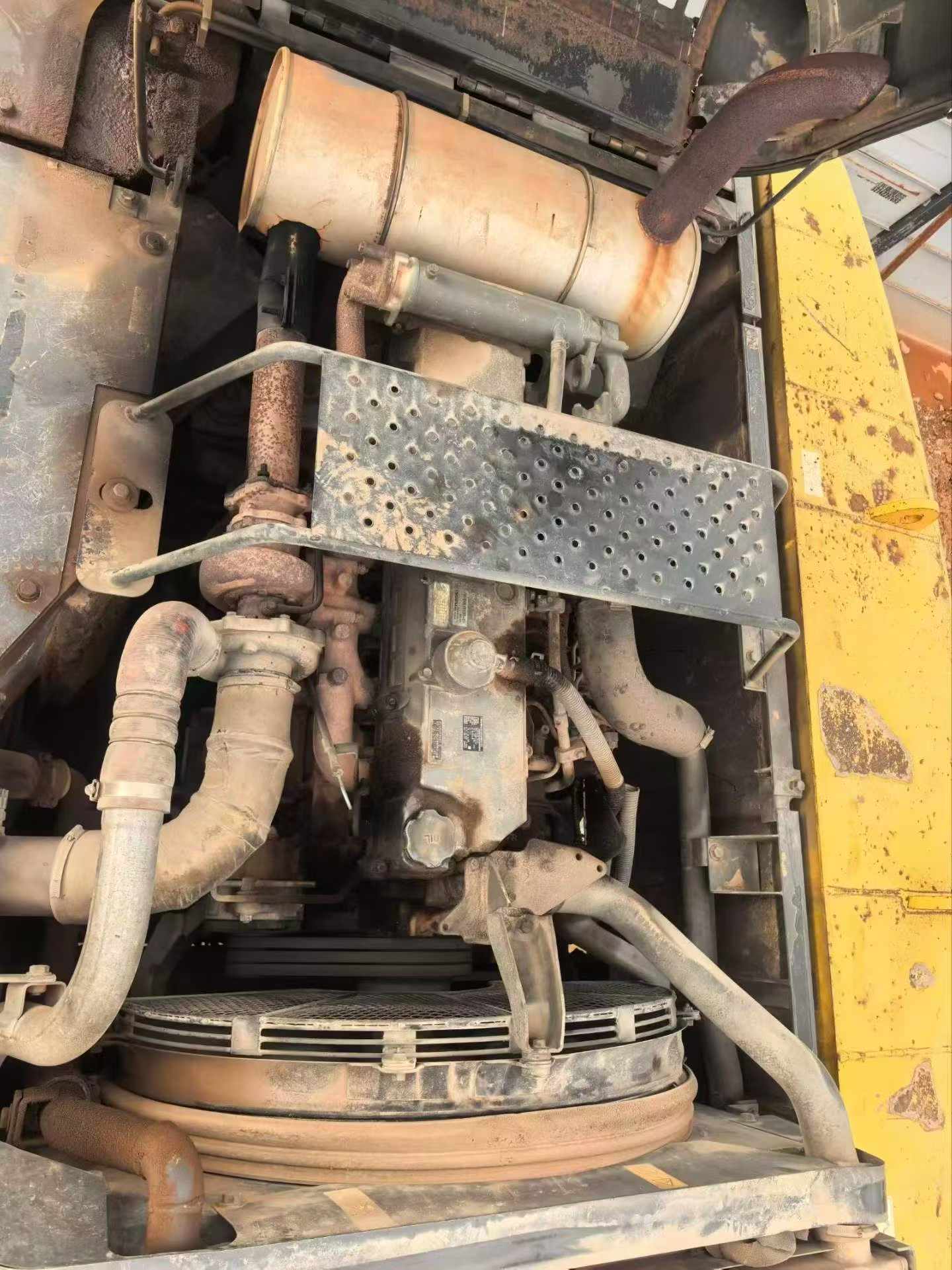

Buy Sumitomo SH350-5 Used Excavator / 3

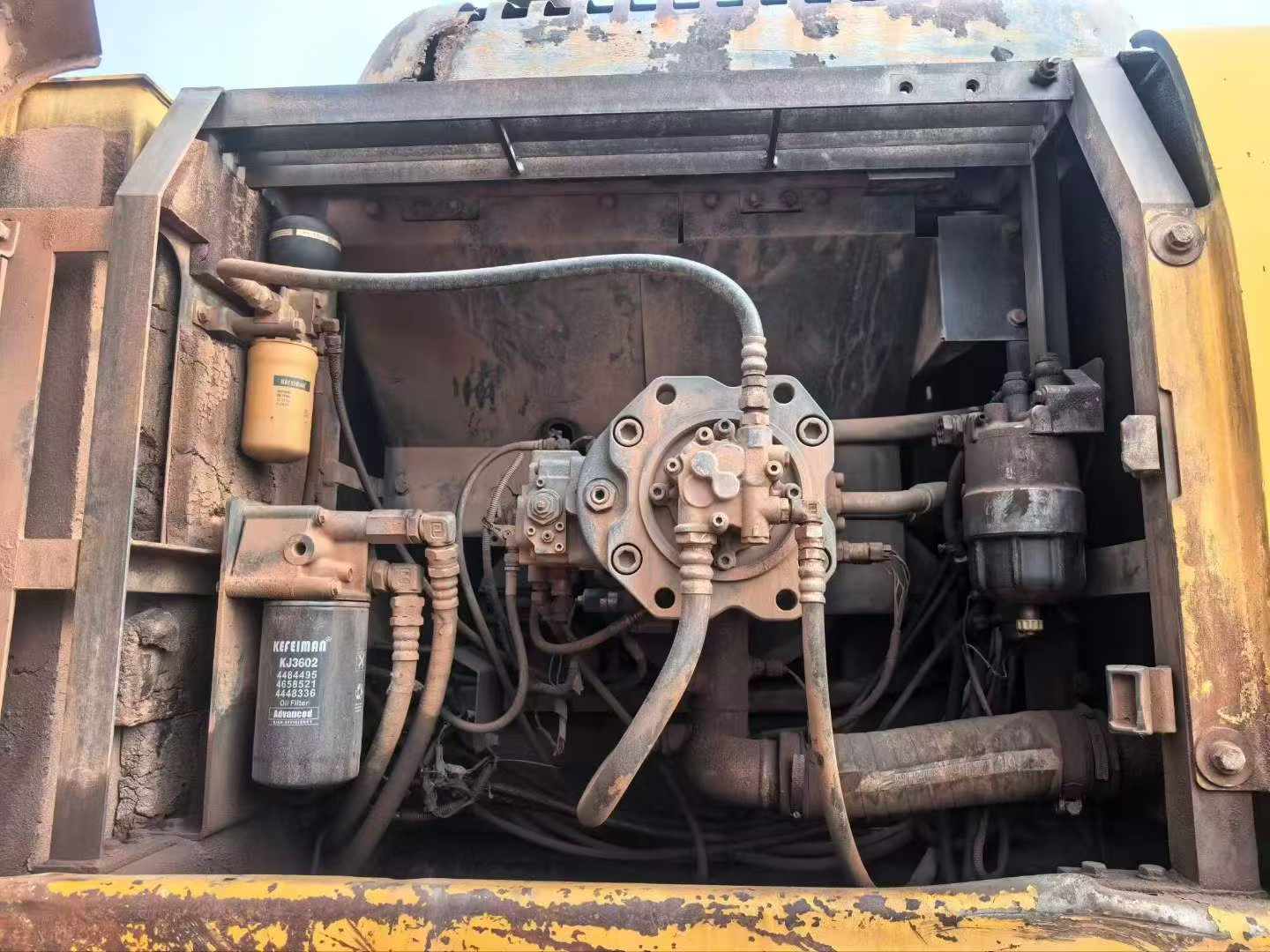

Buy Sumitomo SH350-5 Used Excavator / 4

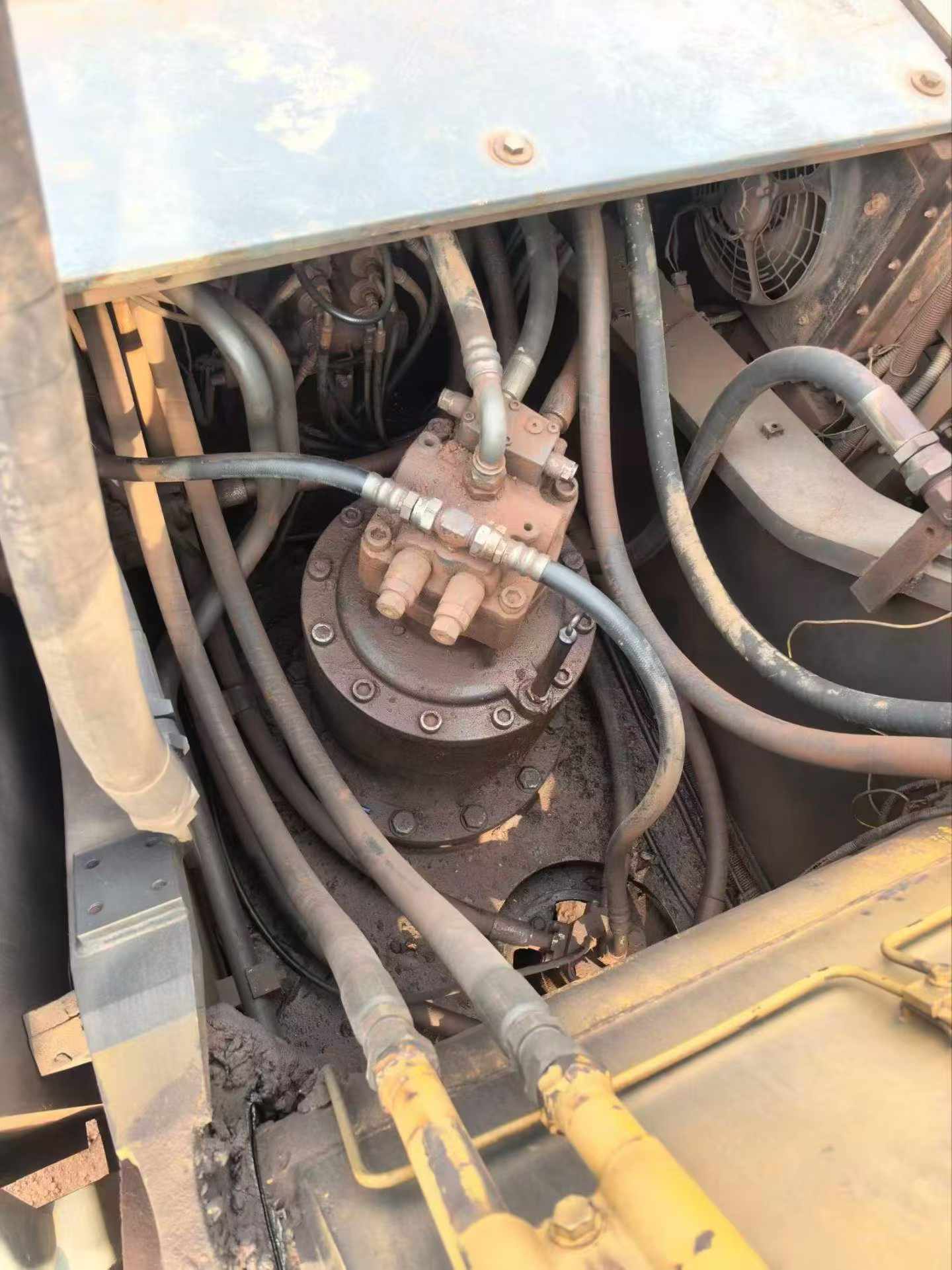

Buy Sumitomo SH350-5 Used Excavator / 5

Product Description

This 2020 Sumitomo SH350-5 hydraulic excavator offers reliable performance for demanding earthmoving and construction applications. Currently located in Fujian, China, this machine represents solid value in the used equipment market. The SH350-5 is known for its robust build quality and efficient hydraulic systems, making it suitable for quarrying, site development, and heavy excavation work.

Key features include:

  • Operating weight class: approximately 35 metric tons
  • Sumitomo's proven hydraulic technology for smooth operation
  • Durable undercarriage designed for extended service life
  • Spacious operator cabin with good visibility
  • Competitively priced for the current market

This excavator is available for inspection in Fujian. Contact us for detailed specifications, current condition assessment, and shipping arrangements to your location.

SpecificationsValue
No.1075798
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1075798

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Fujian China
