HOME>>Sumitomo>>Sumitomo SH350-5

2020 Sumitomo SH350-5

1/4

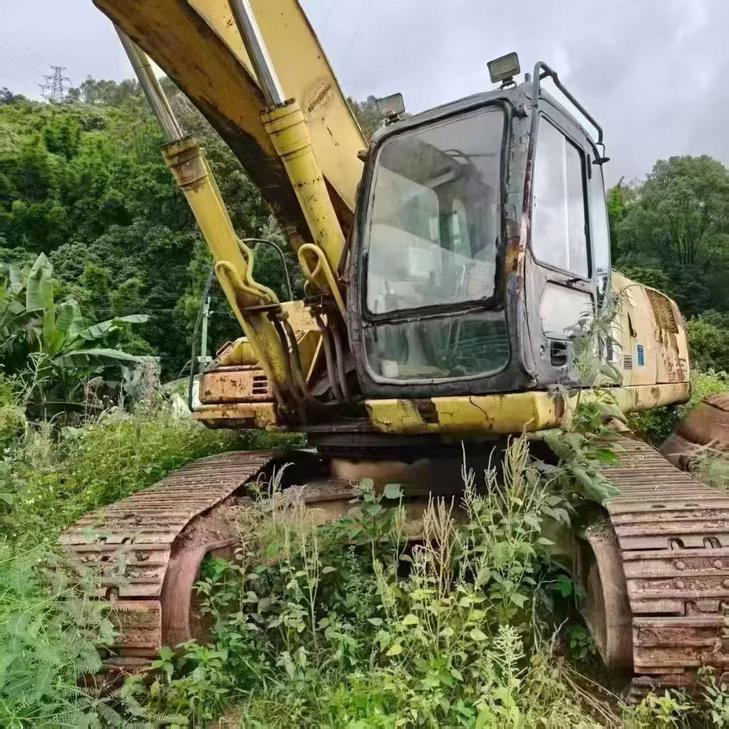

Buy Sumitomo SH350-5 Used Excavator / 1
Buy Sumitomo SH350-5 Used Excavator / 2
Buy Sumitomo SH350-5 Used Excavator / 3

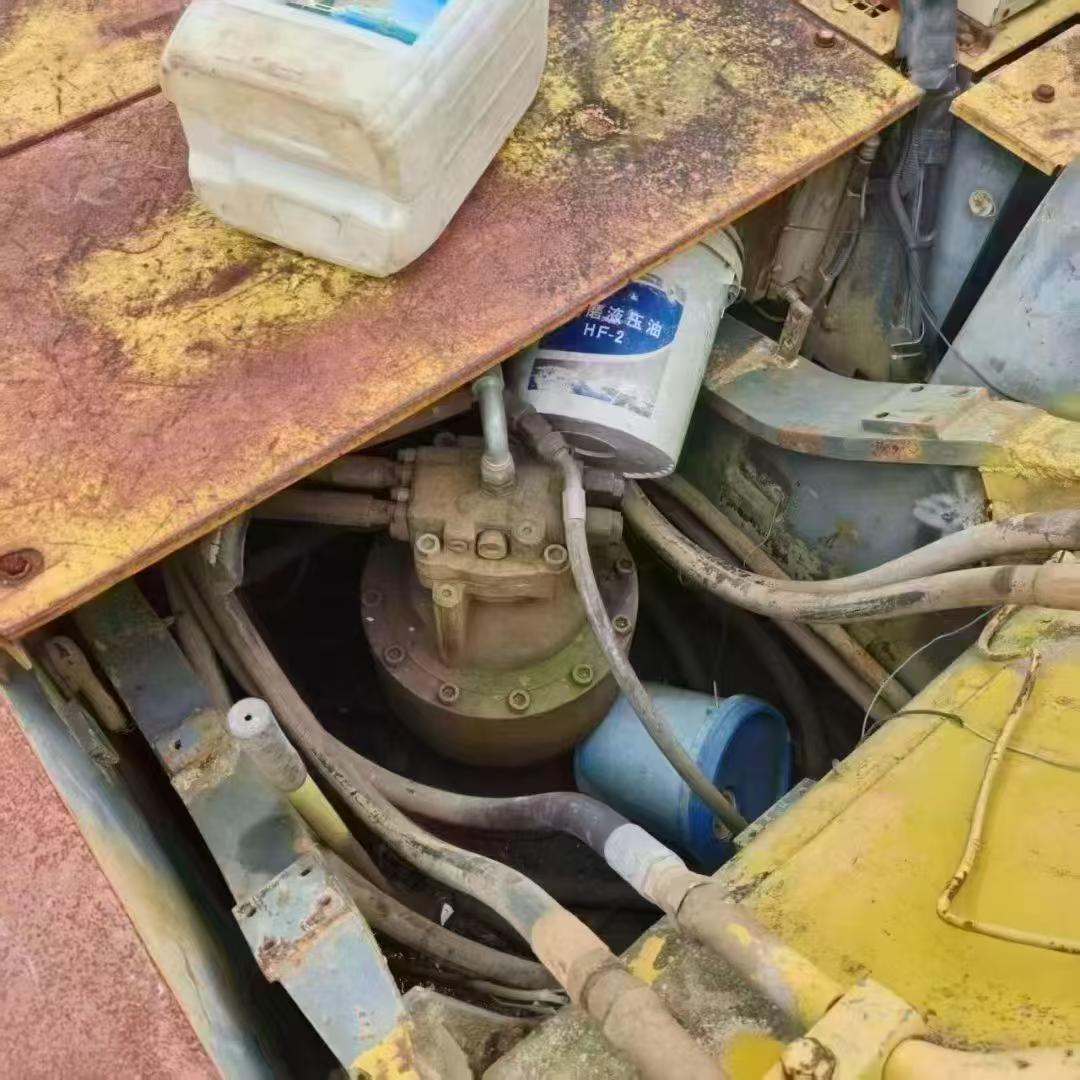

Buy Sumitomo SH350-5 Used Excavator / 4

Product Description

This 2020 Sumitomo SH350-5 hydraulic excavator represents a solid mid-sized solution for demanding earthmoving and construction applications. Currently located in Hunan, China, this machine has accumulated approximately 91,000 hours of operation, reflecting its proven track record in the field. The SH350-5 series is recognized for its reliable performance and fuel efficiency in the 35-ton class.

Sumitomo excavators are engineered with robust hydraulic systems and durable undercarriage components designed for extended service life. This unit offers operators a balance of digging force, reach, and stability suitable for general excavation, site preparation, and material handling tasks.

  • Year of Manufacture: 2020
  • Model: Sumitomo SH350-5
  • Operating Hours: Approximately 91,000
  • Current Location: Hunan Province, China
  • Machine Class: 35-ton hydraulic excavator

Ideal for contractors seeking dependable used equipment with established performance history in Asian markets.

SpecificationsValue
No.1085693
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1085693

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Hunan China

Pub Date
