2020 Sumitomo SH350-5

1/9

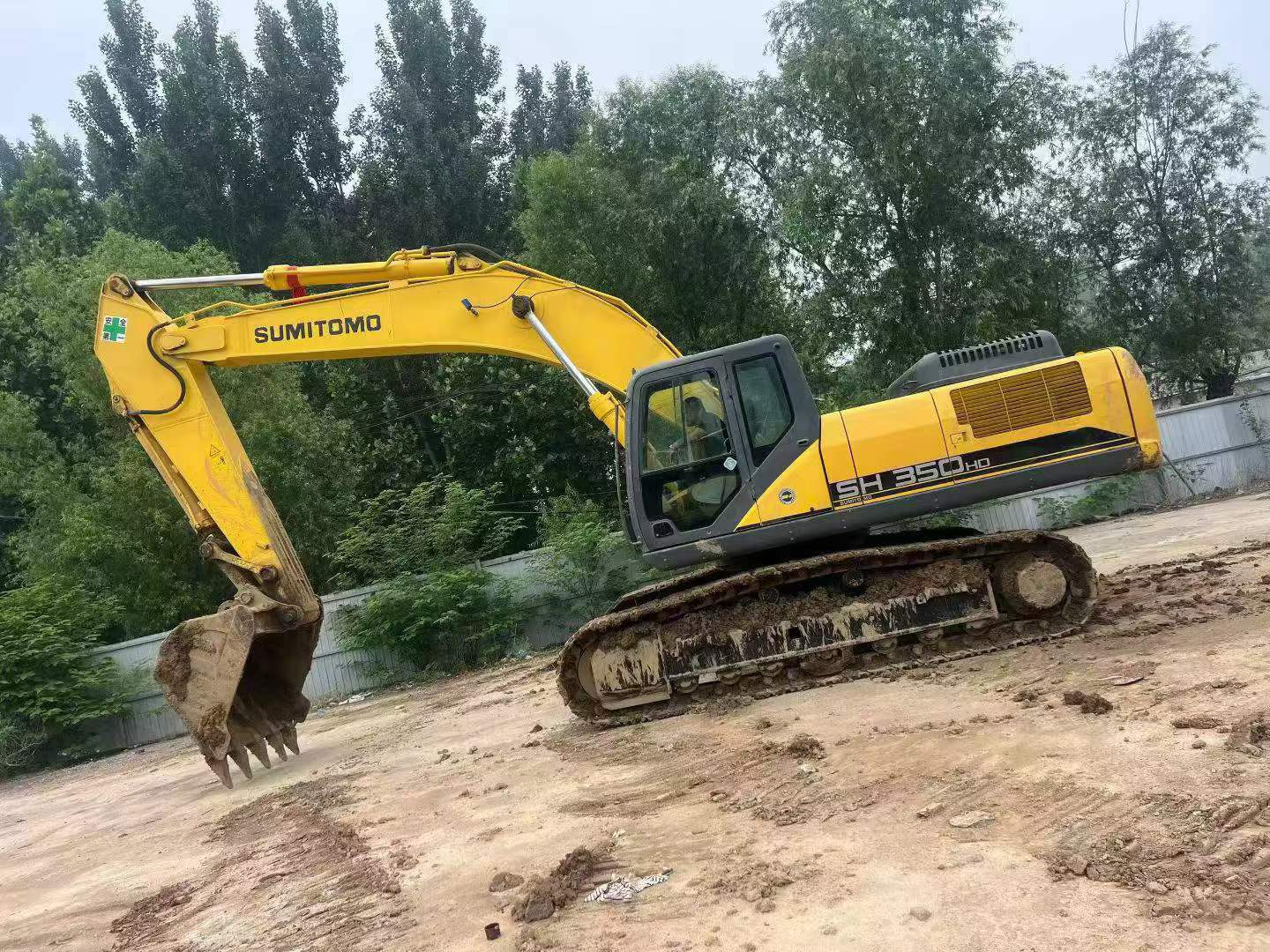

Buy Sumitomo SH350-5 Used Excavator / 1

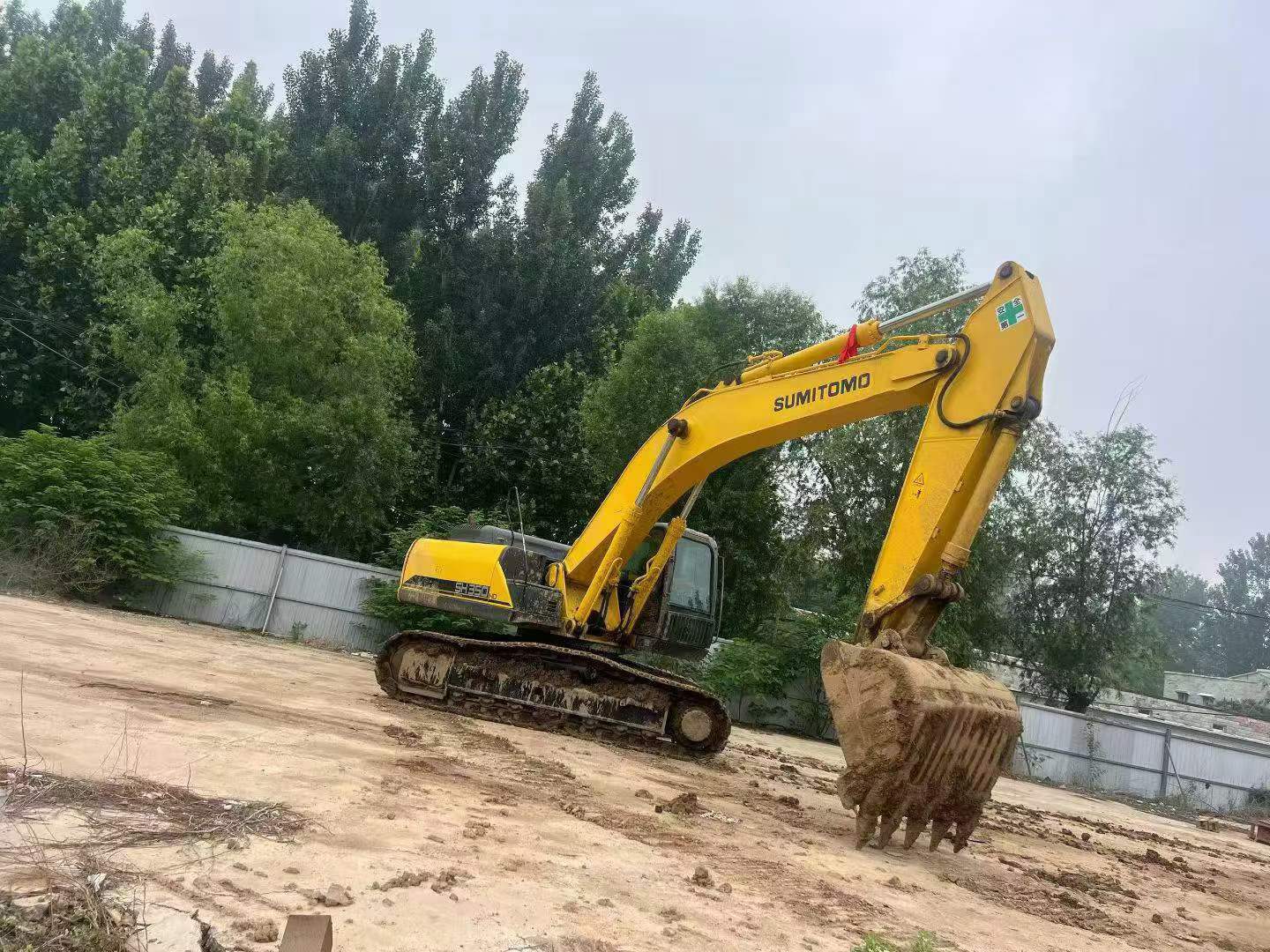

Buy Sumitomo SH350-5 Used Excavator / 2

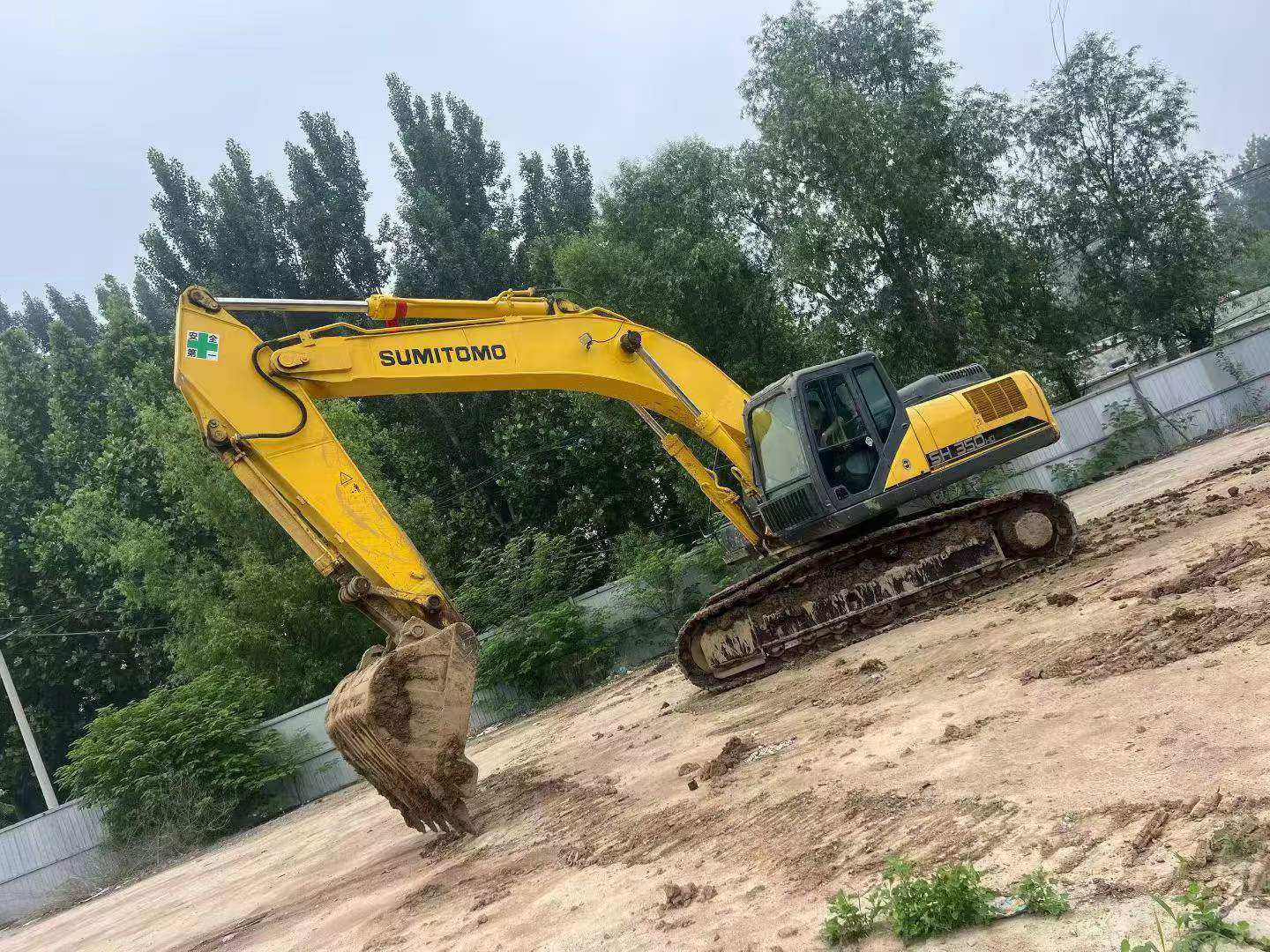

Buy Sumitomo SH350-5 Used Excavator / 3

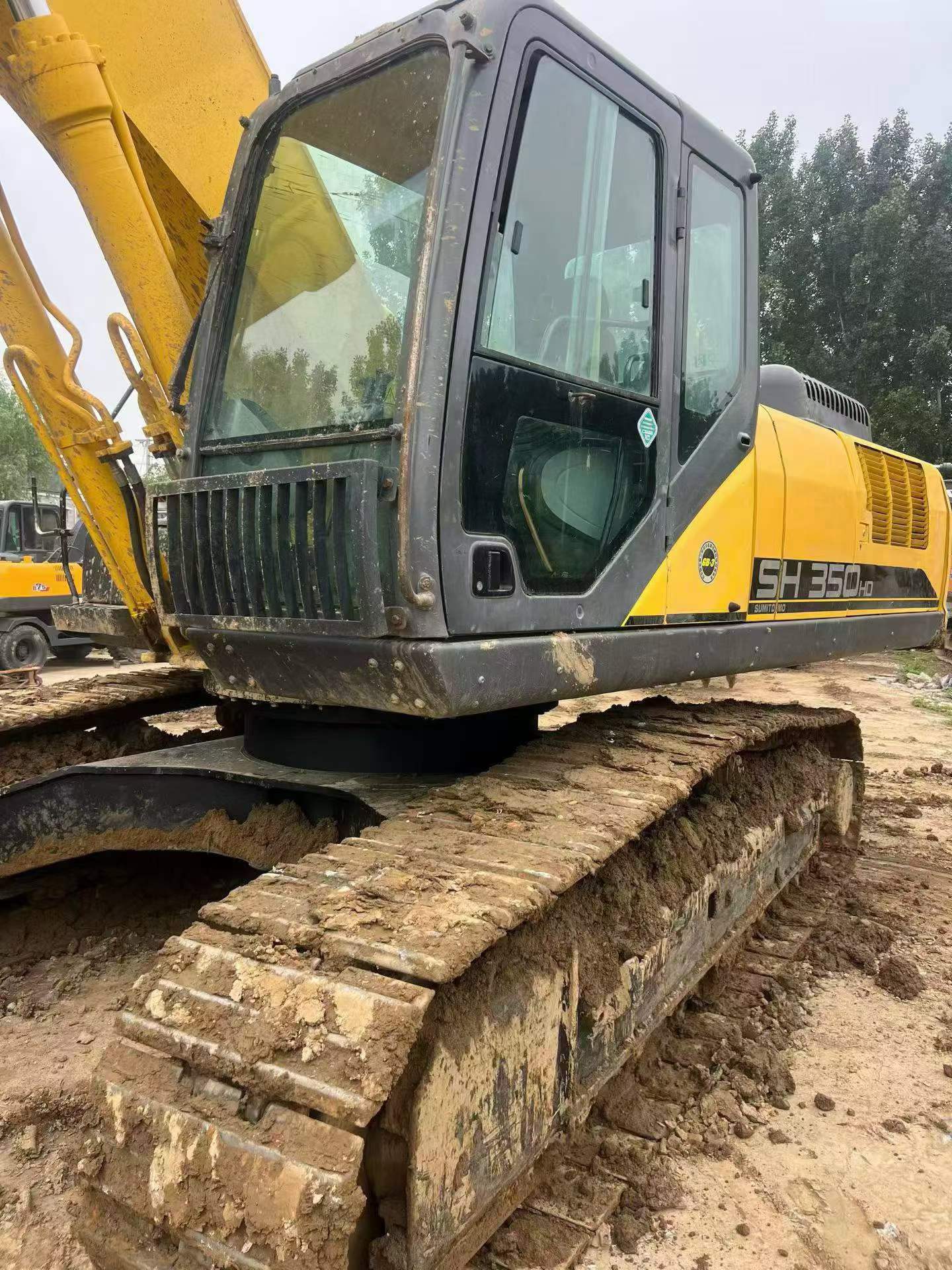

Buy Sumitomo SH350-5 Used Excavator / 4

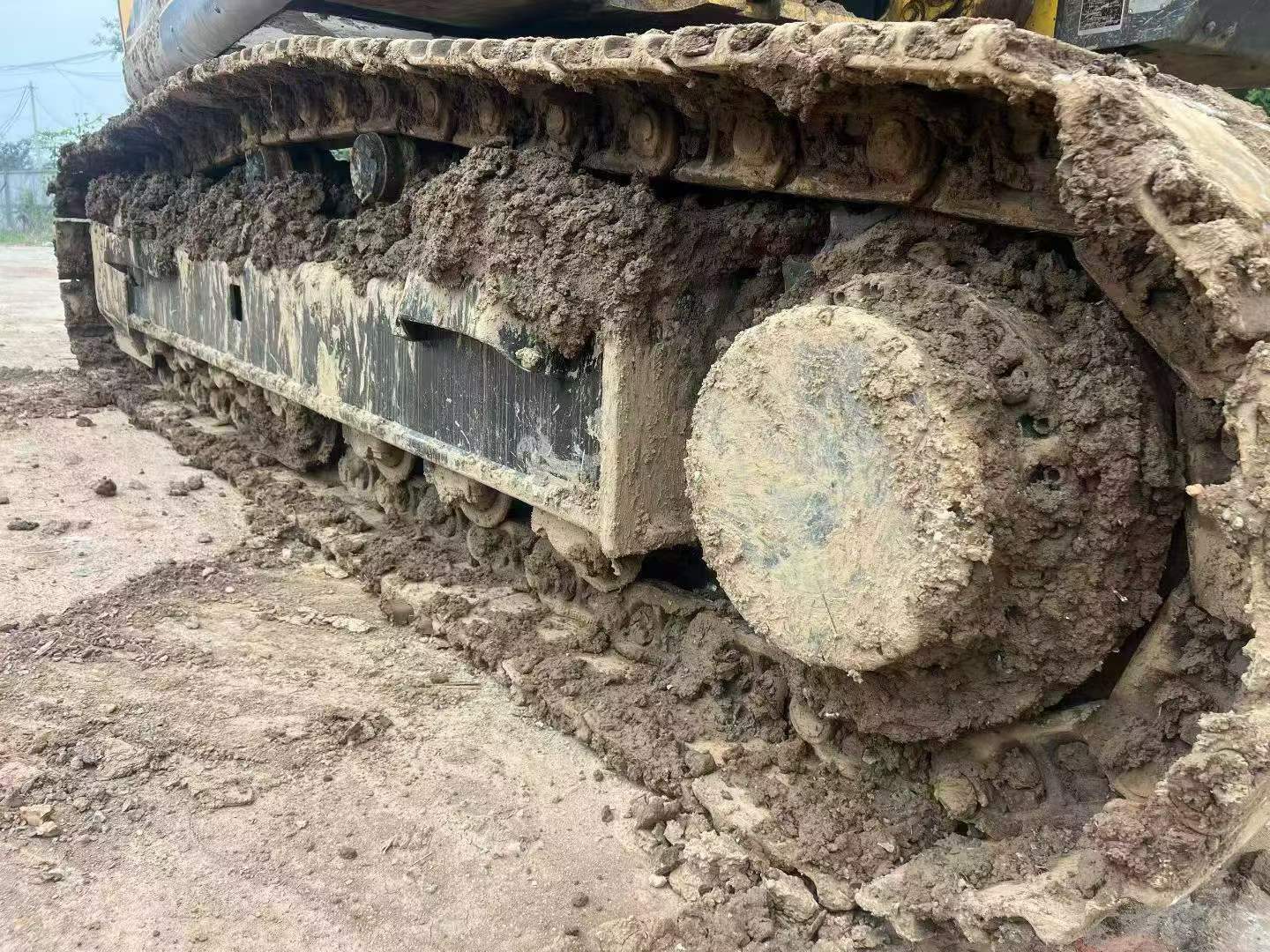

Buy Sumitomo SH350-5 Used Excavator / 5

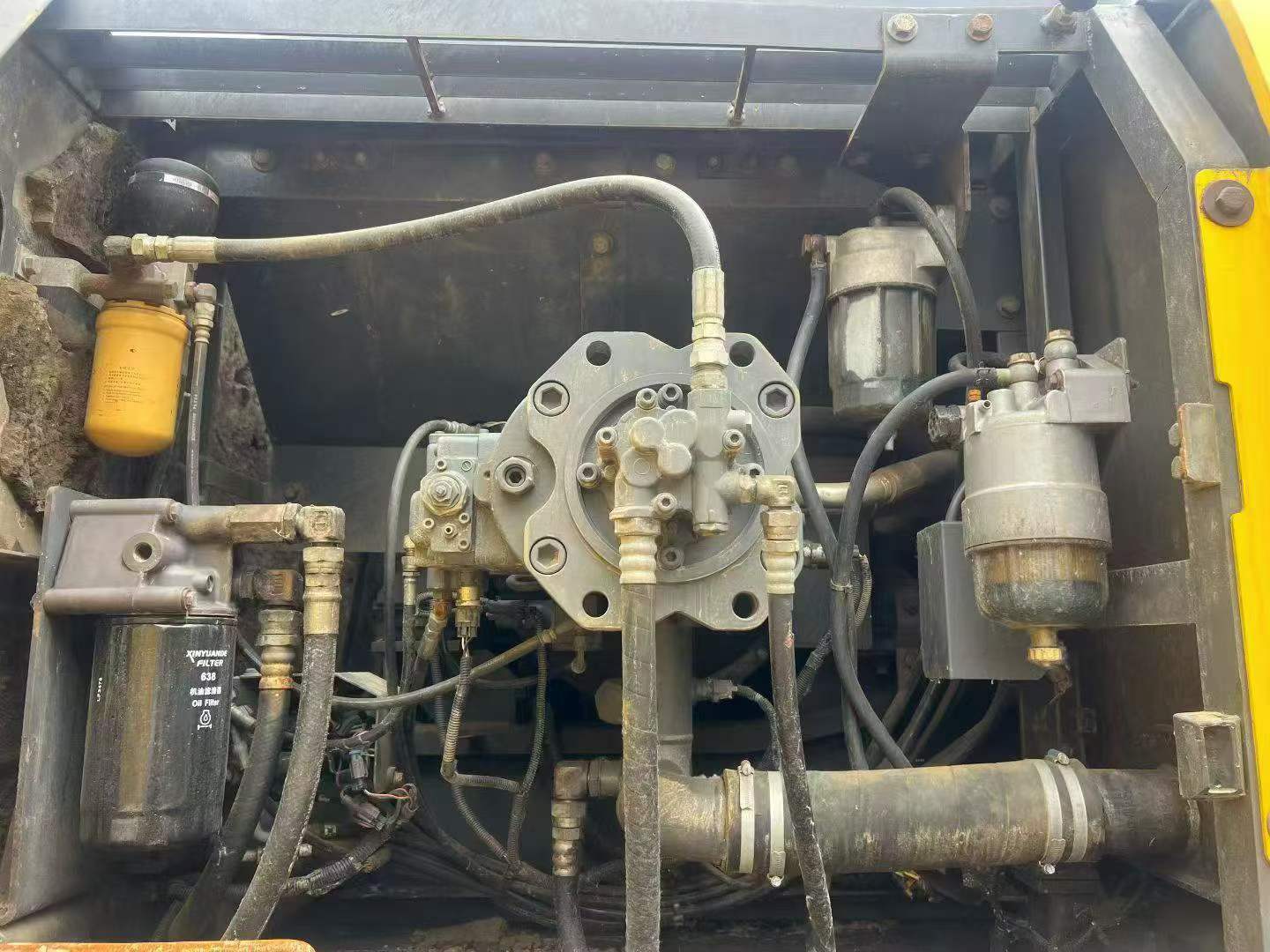

Buy Sumitomo SH350-5 Used Excavator / 6

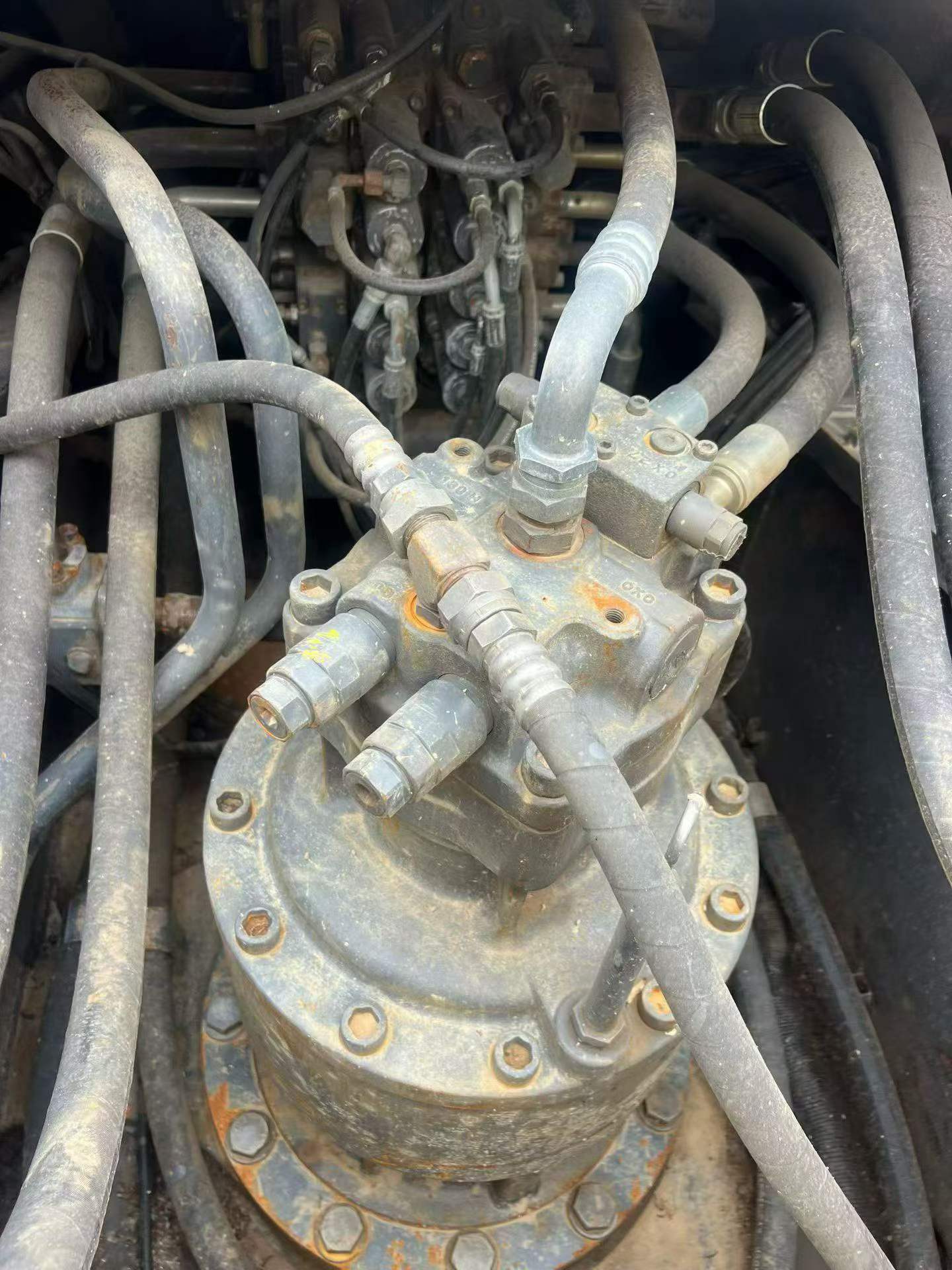

Buy Sumitomo SH350-5 Used Excavator / 7

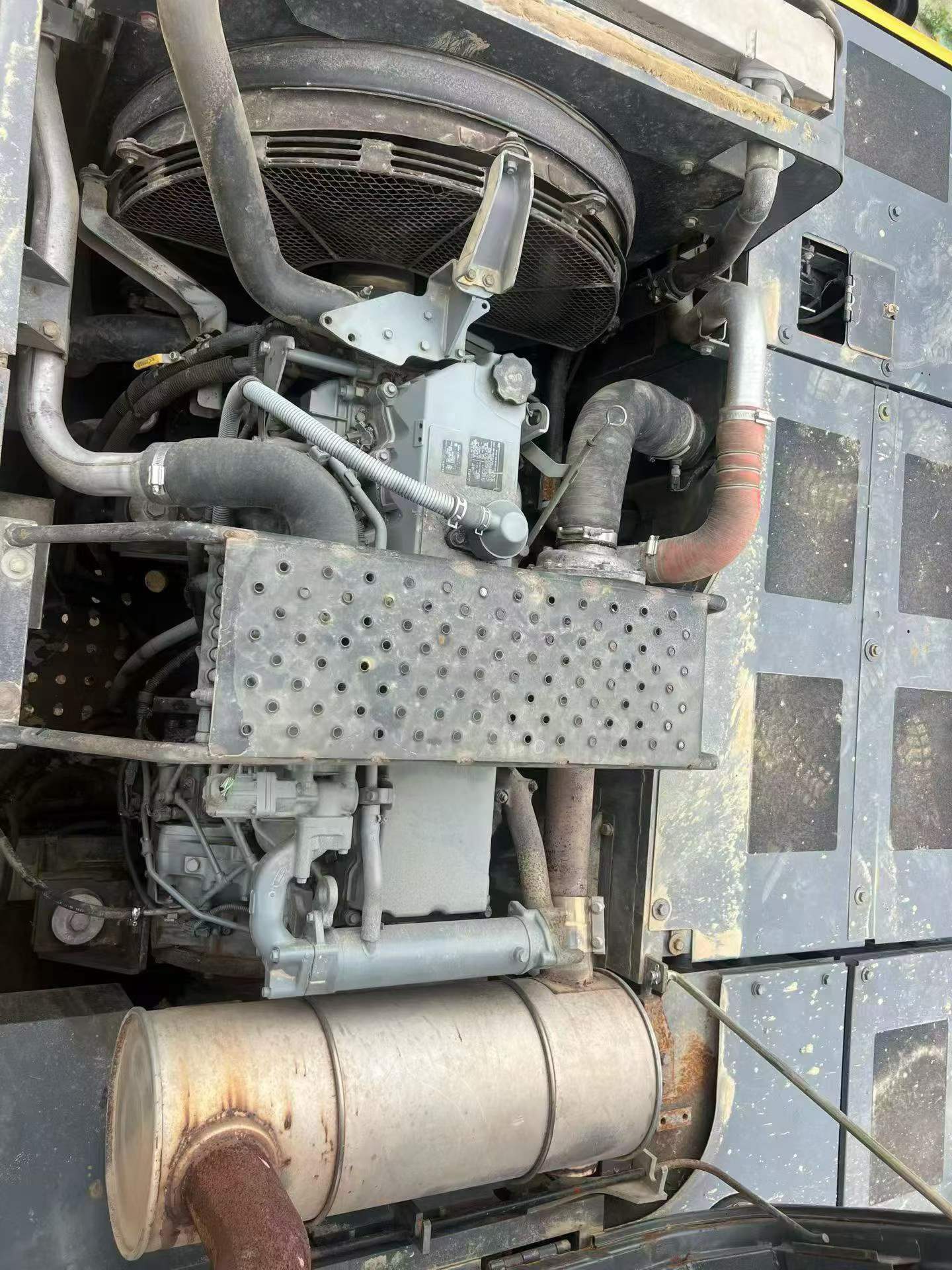

Buy Sumitomo SH350-5 Used Excavator / 8

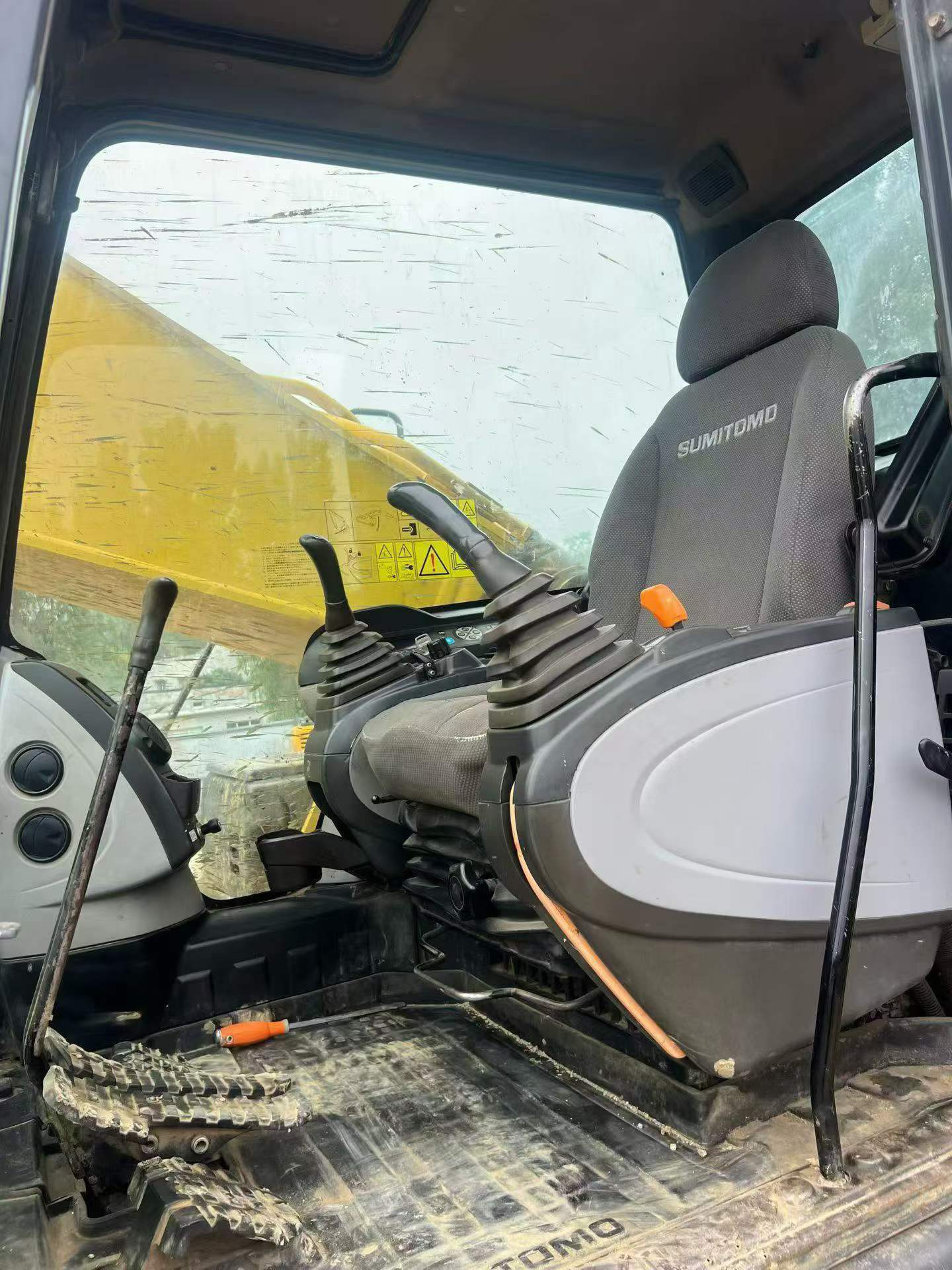

Buy Sumitomo SH350-5 Used Excavator / 9

Product Description

This 2020 Sumitomo SH350-5 hydraulic excavator represents a well-maintained machine from one of Japan's most trusted manufacturers. Currently located in Hebei, China, this mid-sized crawler excavator offers reliable performance for demanding construction and earthmoving applications.

The machine demonstrates excellent overall condition with verified mechanical integrity. Key components including the hydraulic system show no leaks, while the undercarriage tracks retain approximately 90% remaining life. This excavator has been professionally serviced and is ready for immediate deployment.

  • Year: 2020
  • Model: Sumitomo SH350-5
  • Location: Hebei, China
  • Strong hydraulic performance
  • Leak-free major components
  • Well-preserved undercarriage
  • Complete operational verification

Ideal for contractors seeking a dependable excavator with verified working condition and performance guarantees. Inspection reports available upon request.

SpecificationsValue
No.1089485
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1089485

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Hebei China
