Product Description

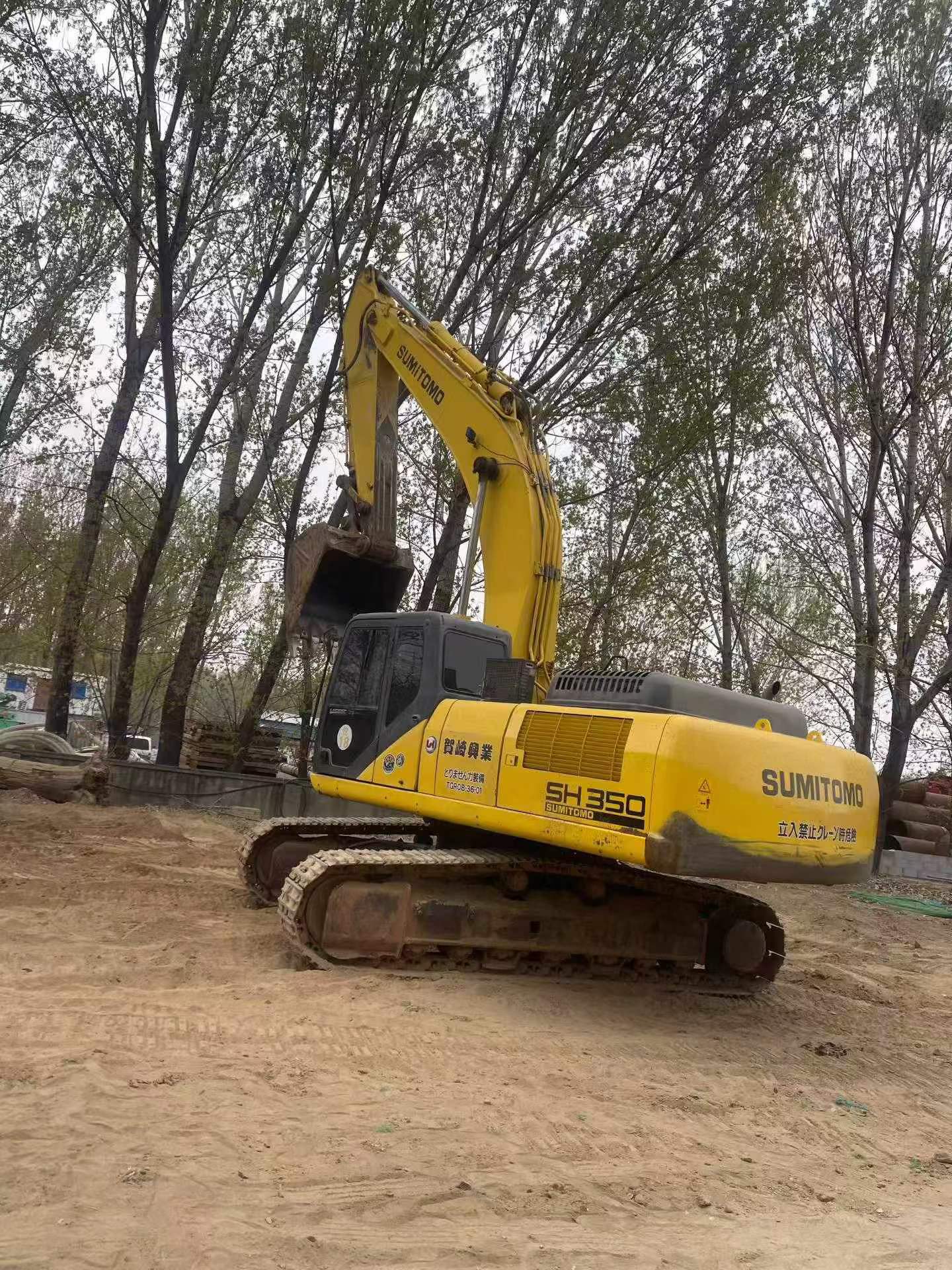

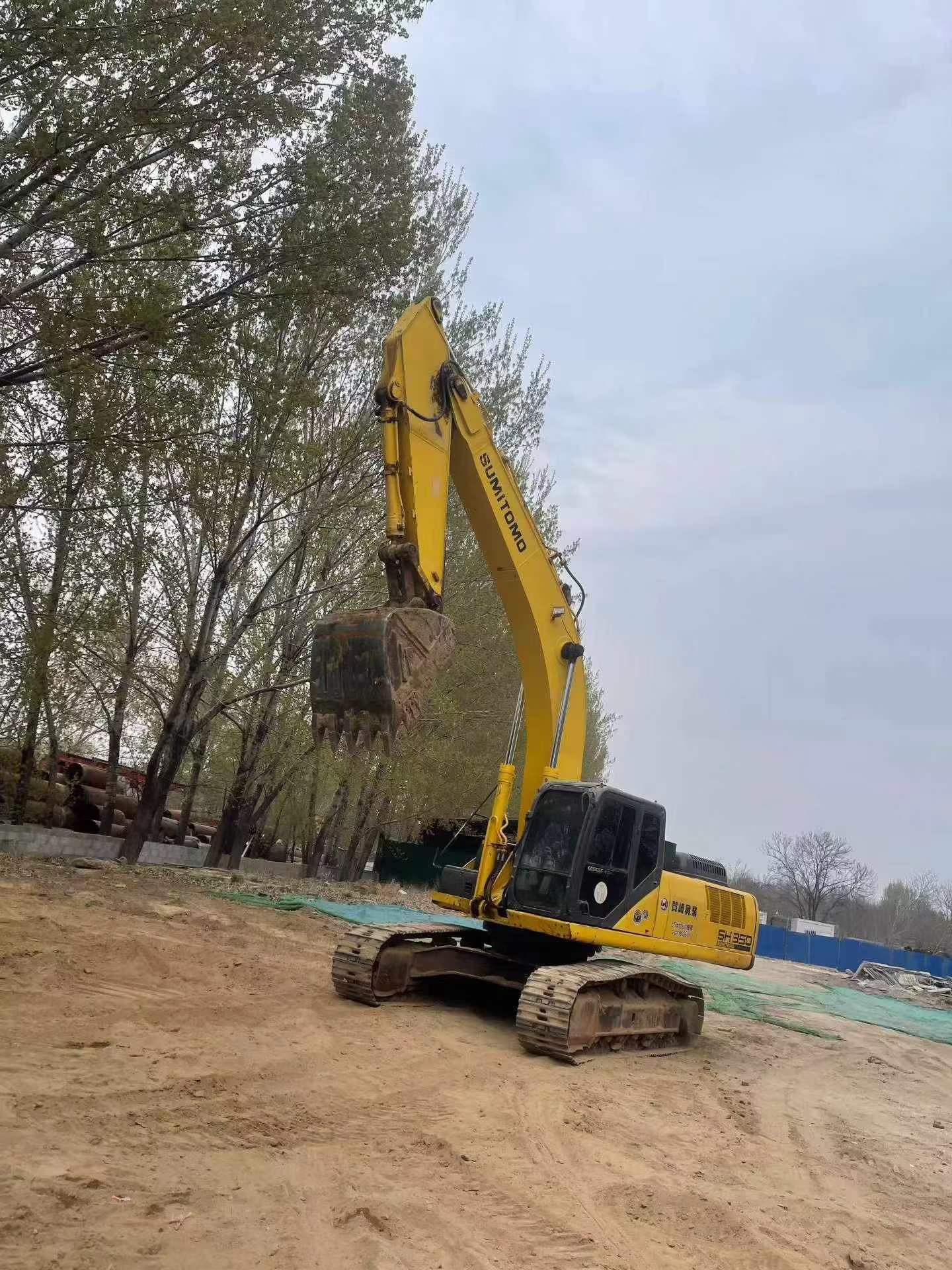

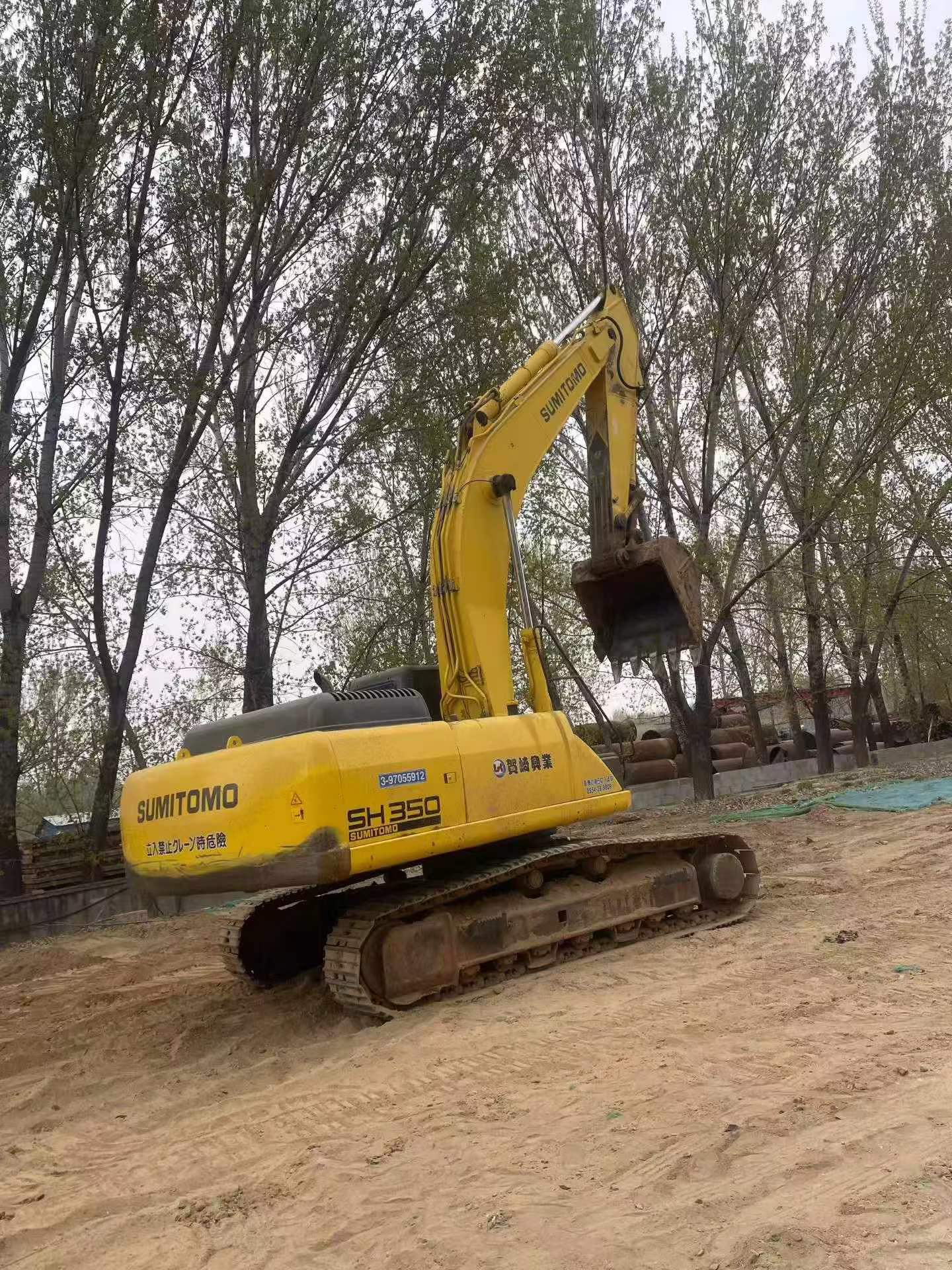

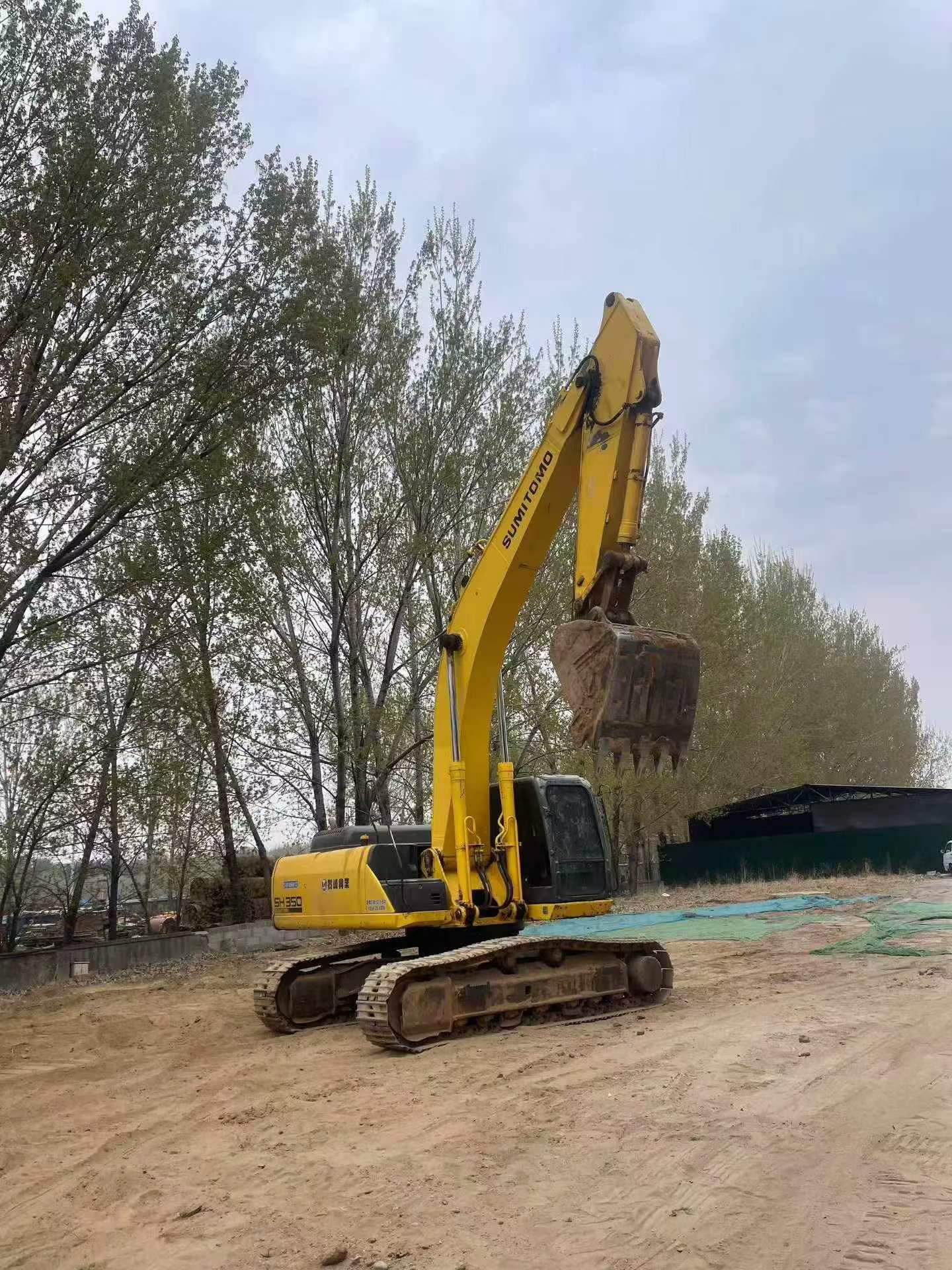

This 2020 Sumitomo SH350-5 hydraulic excavator represents a premium opportunity for earthmoving contractors. Currently located in Hebei, China, this 35-ton class machine has been exclusively deployed in soil excavation applications without hydraulic breaker attachment, ensuring reduced structural stress and extended service life.

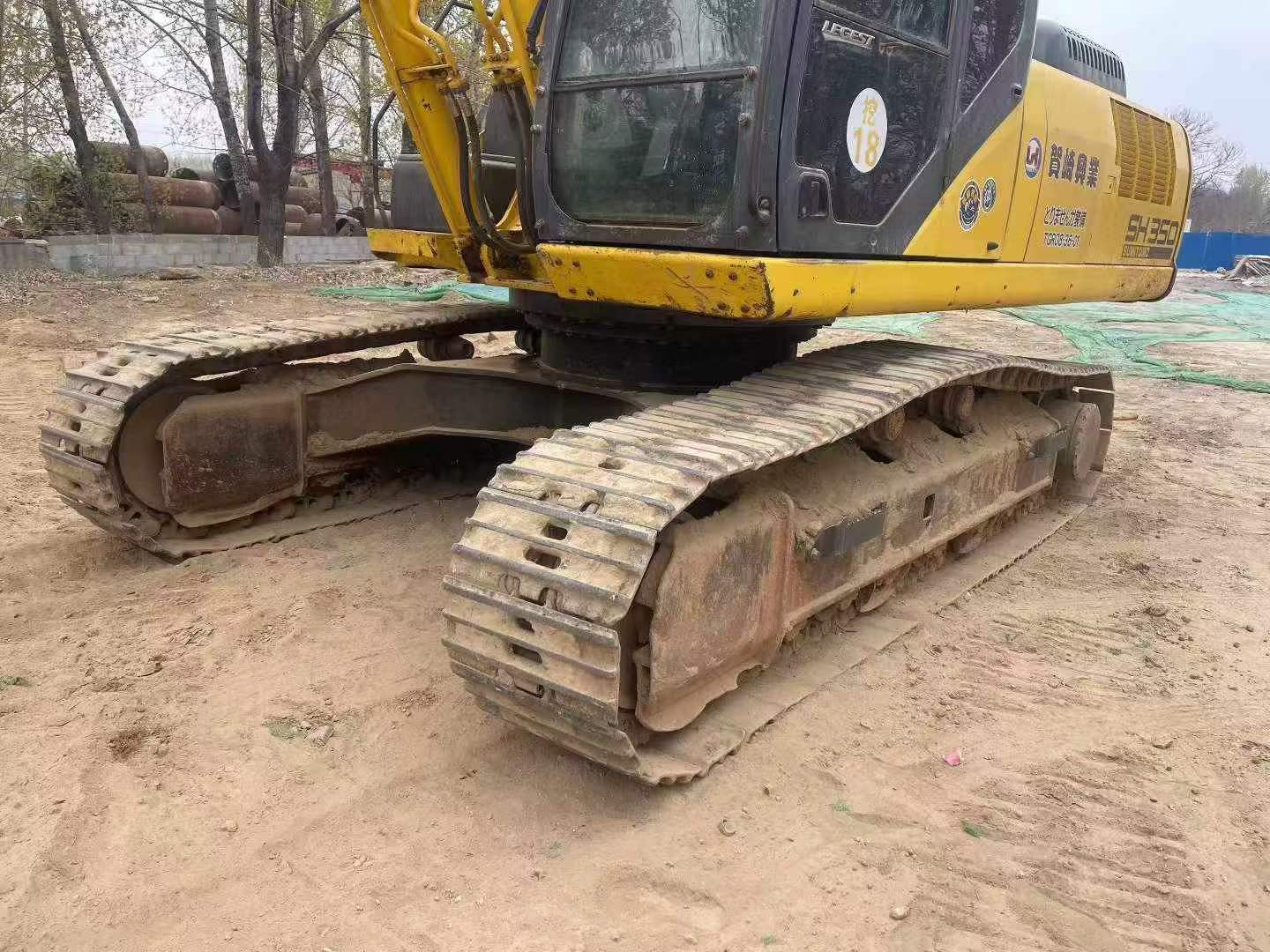

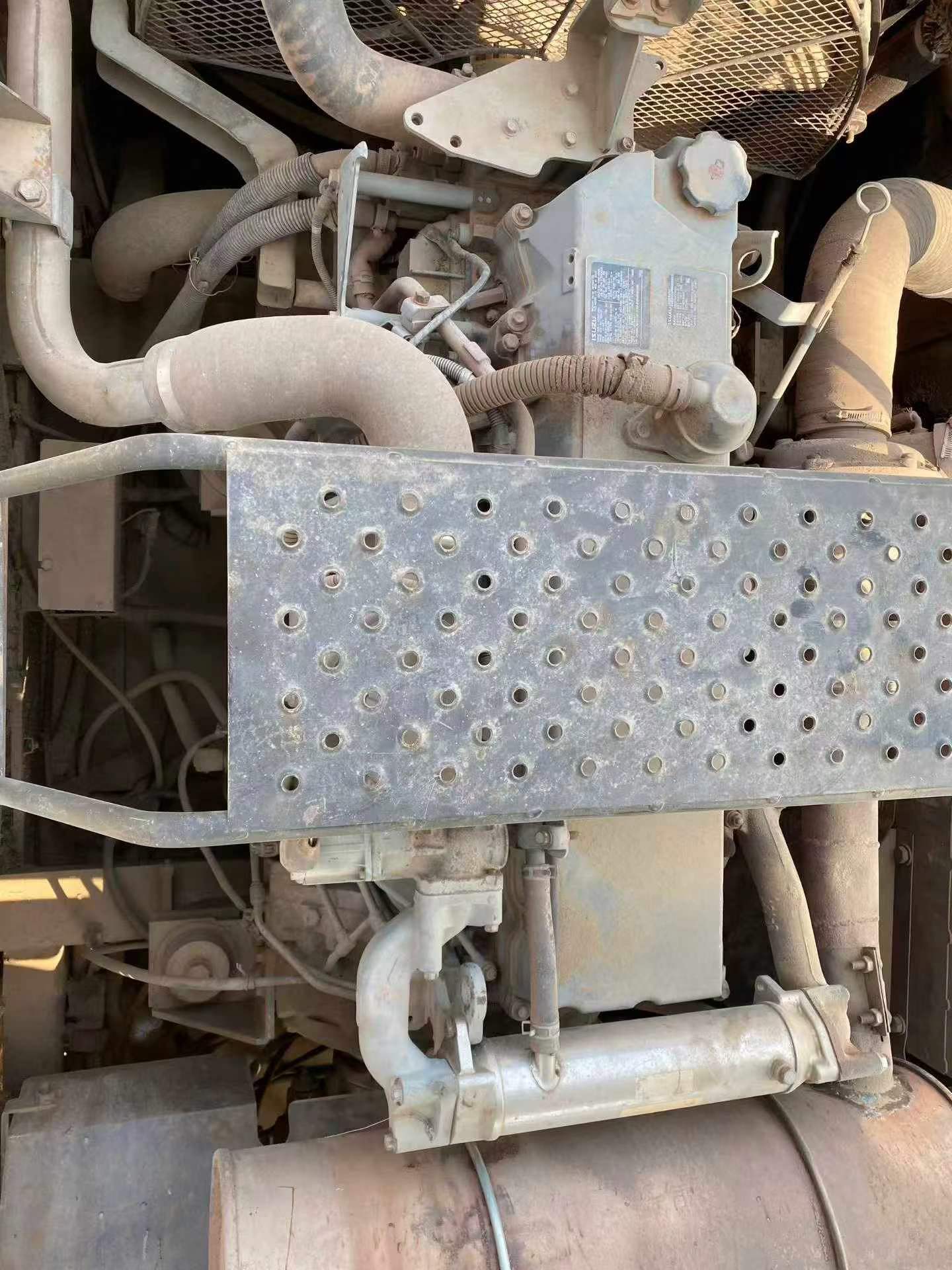

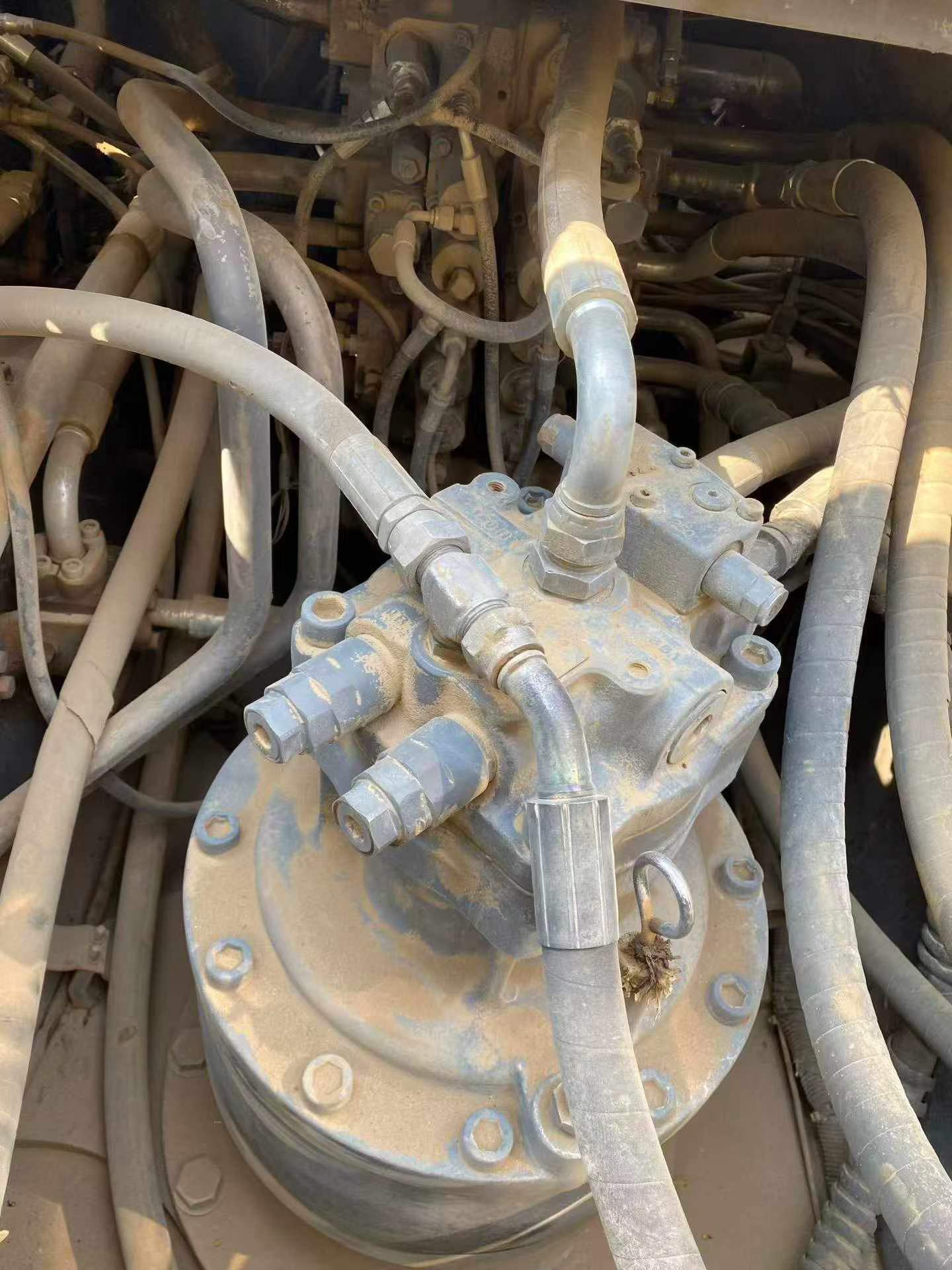

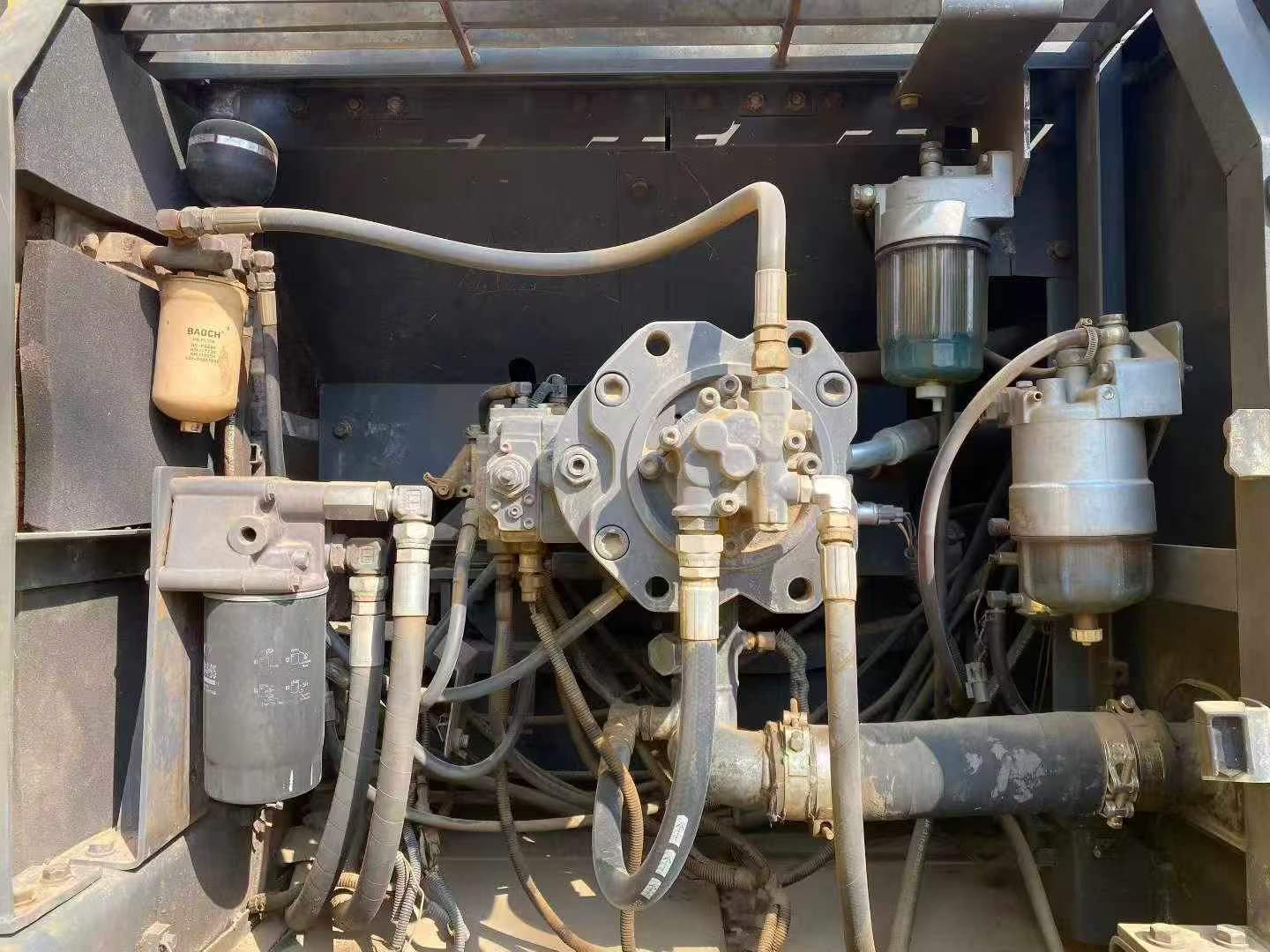

The excavator demonstrates excellent operational characteristics including strong digging force, responsive hydraulics, and efficient cycle times. Engine performance remains optimal with clean exhaust and no excessive smoke. Critical components show minimal wear with no significant oil leaks from major assemblies. The undercarriage exhibits well-maintained condition throughout.
- Year: 2020
- Model: Sumitomo SH350-5
- Application History: Earthmoving only
- Condition: Well-maintained, detailed photos and videos available
- Location: Hebei Province, China
Suitable for excavation, loading, and general construction applications. Inspection welcomed.
| Specifications | Value |
|---|---|
| No. | 1094247 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
