2020 Sumitomo SH350-5

1/5
Buy Sumitomo SH350-5 Used Excavator / 1
Buy Sumitomo SH350-5 Used Excavator / 2
Buy Sumitomo SH350-5 Used Excavator / 3
Buy Sumitomo SH350-5 Used Excavator / 4
Buy Sumitomo SH350-5 Used Excavator / 5

Product Description

FairTradeMachinery presents a 2020 Sumitomo SH350-5 hydraulic excavator, currently located in Fujian, China. This reliable mid-size crawler excavator from Sumitomo's proven SH-5 series delivers consistent performance for demanding excavation, loading, and material handling applications across construction and infrastructure projects.

The SH350-5 features Sumitomo's fuel-efficient hydraulic system and robust undercarriage design, engineered for durability in intensive work environments. With its 35-ton operating class, this machine offers an optimal balance of power and operational efficiency for contractors and fleet operators.

  • Year of Manufacture: 2020
  • Model: Sumitomo SH350-5
  • Category: Hydraulic Crawler Excavator
  • Operating Weight Class: Approximately 35 tons
  • Current Location: Fujian Province, China

This used excavator represents a cost-effective solution for buyers seeking Japanese engineering quality. Inspection and export assistance available upon request.

SpecificationsValue
No.1095516
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

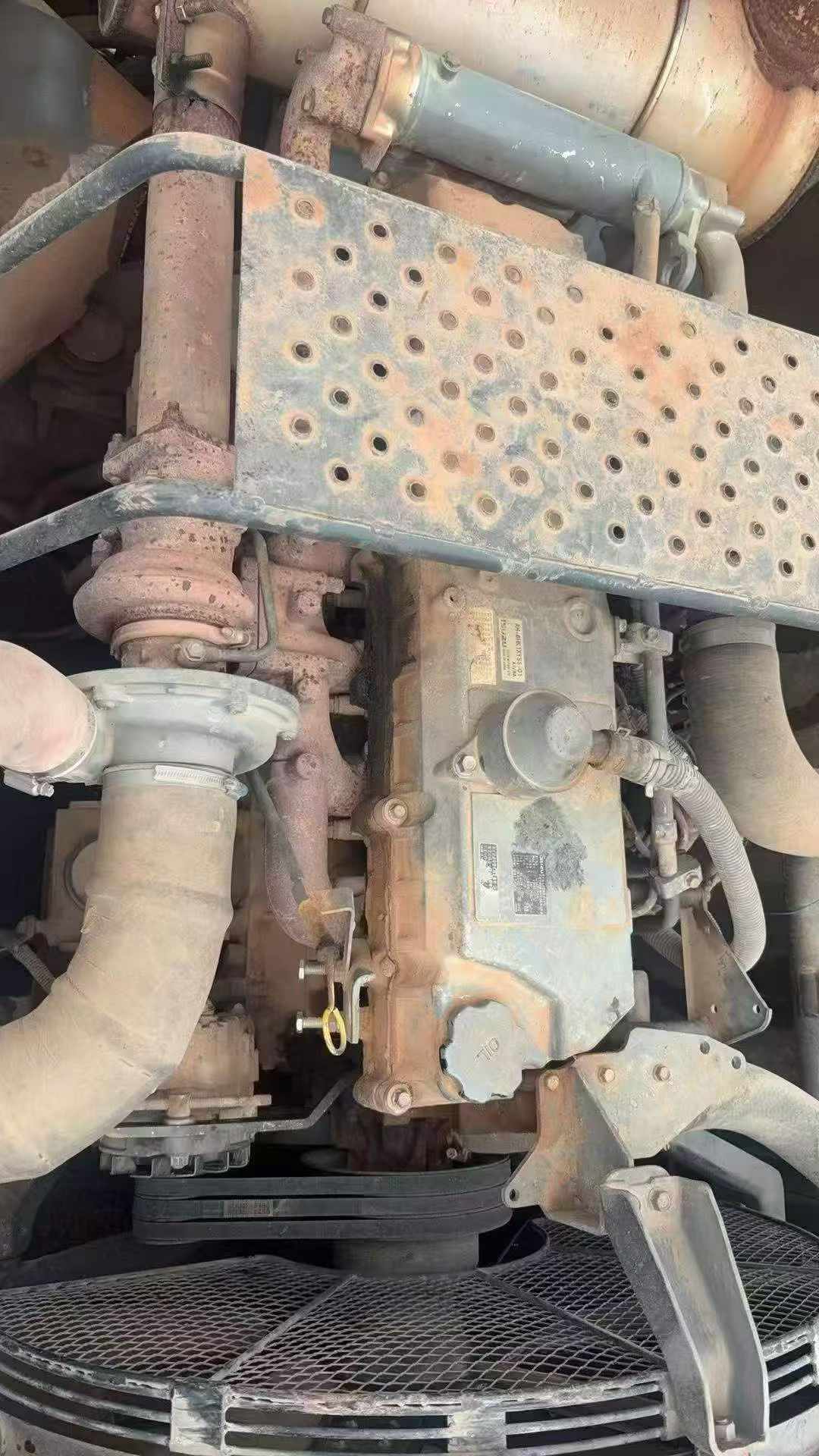

Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1095516

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Fujian China
