2020 Sumitomo SH350-5

1/9
Buy Sumitomo SH350-5 Used Excavator / 1
Buy Sumitomo SH350-5 Used Excavator / 2

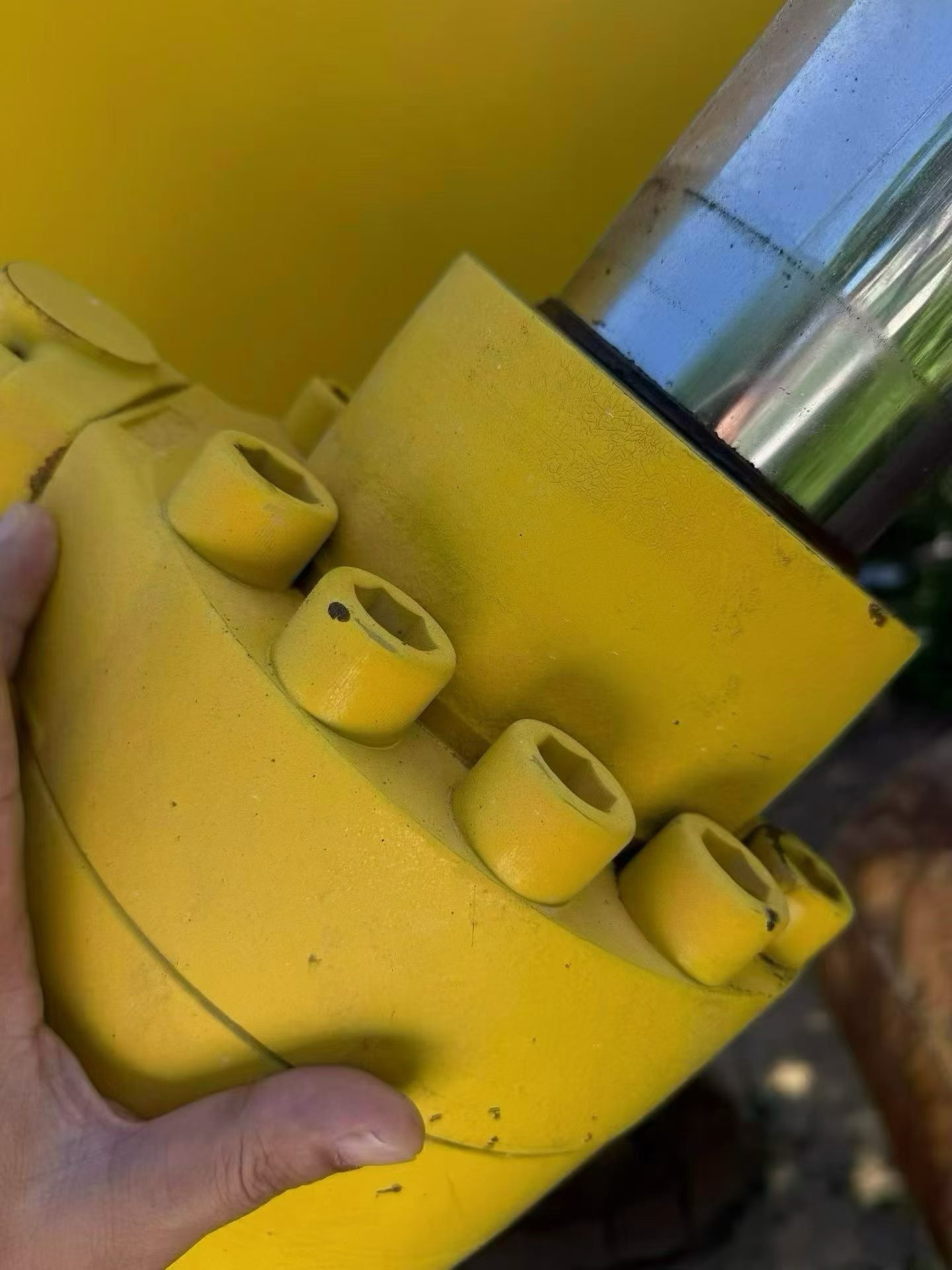

Buy Sumitomo SH350-5 Used Excavator / 3
Buy Sumitomo SH350-5 Used Excavator / 4
Buy Sumitomo SH350-5 Used Excavator / 5
Buy Sumitomo SH350-5 Used Excavator / 6
Buy Sumitomo SH350-5 Used Excavator / 7
Buy Sumitomo SH350-5 Used Excavator / 8
Buy Sumitomo SH350-5 Used Excavator / 9

Product Description

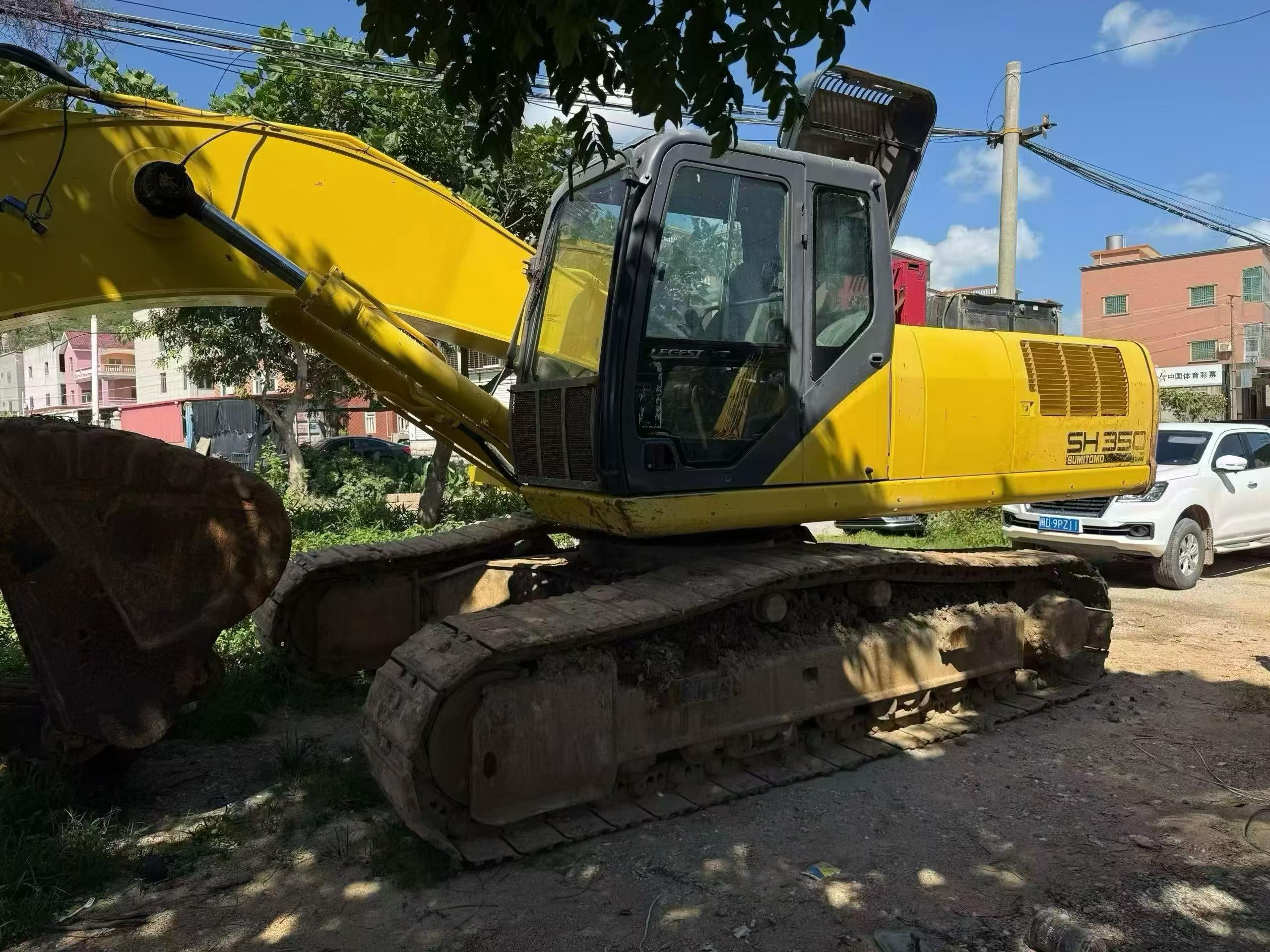

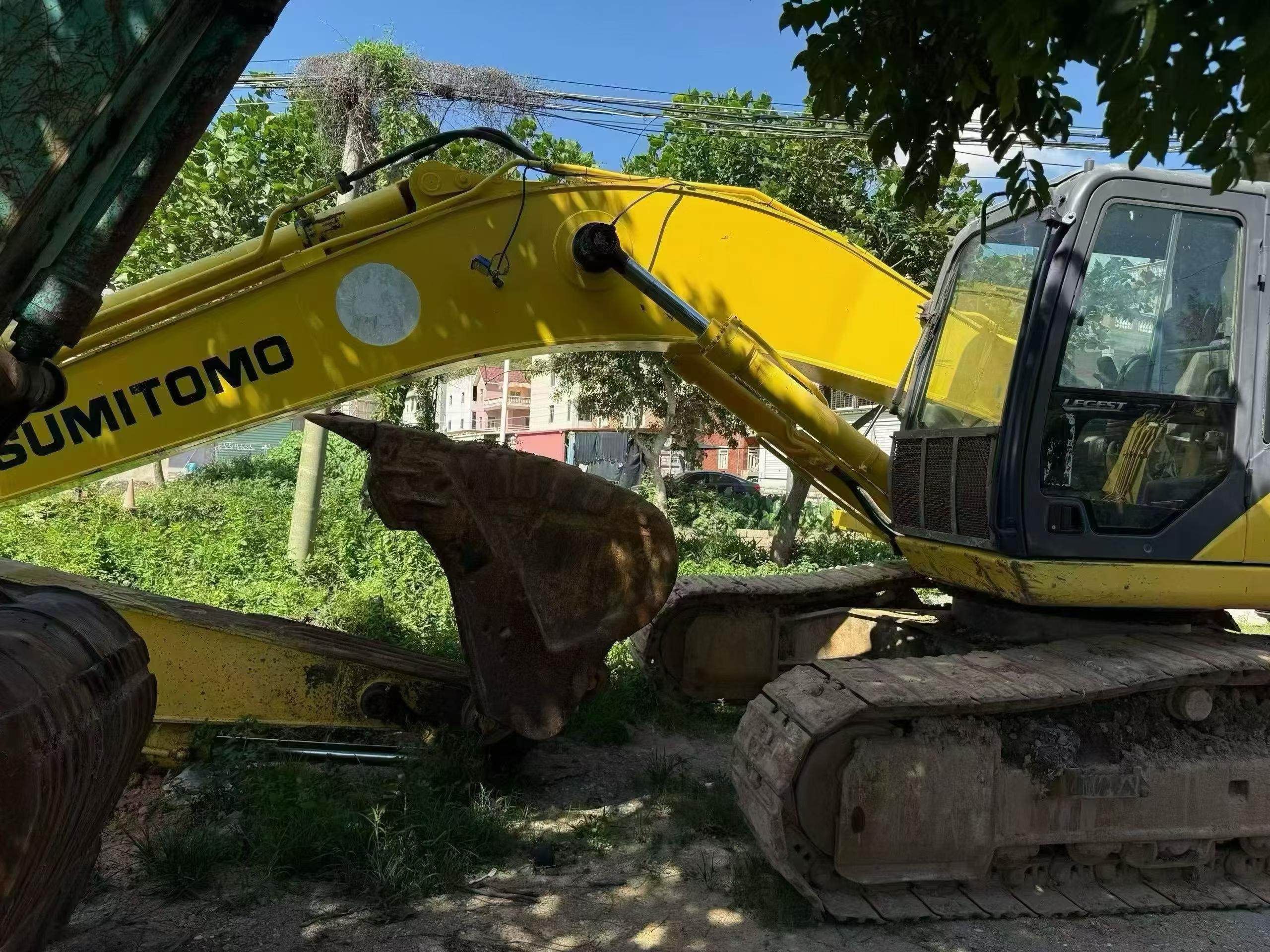

This 2020 Sumitomo SH350-5 hydraulic excavator represents a premium opportunity for contractors seeking reliable heavy-duty performance. Currently located in Fujian, China, this machine features an original factory undercarriage, ensuring structural integrity and extended service life. The SH350-5 is known for its robust 35-ton operating class, delivering consistent productivity in demanding applications including earthmoving, infrastructure development, and site preparation.

  • Year of Manufacture: 2020
  • Model: Sumitomo SH350-5

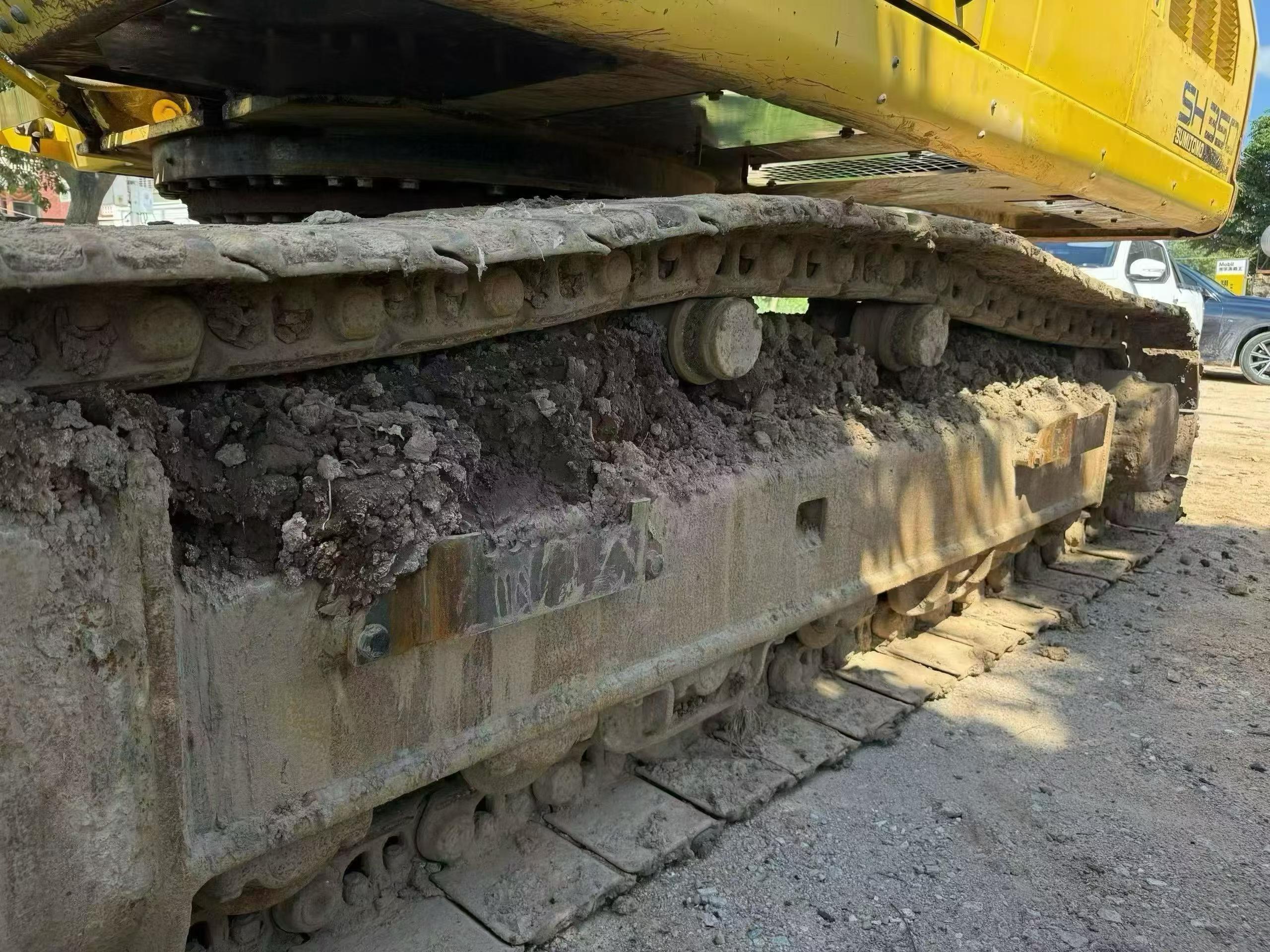

  • Original factory undercarriage in excellent condition
  • Current Location: Fujian Province, China
  • Suitable for heavy excavation and construction projects

This unit is available for immediate inspection and purchase. Contact FairTradeMachinery for detailed specifications, current operating hours, and shipping arrangements to your location.

SpecificationsValue
No.1116420
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1116420

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Fujian China

Pub Date
