Product Description

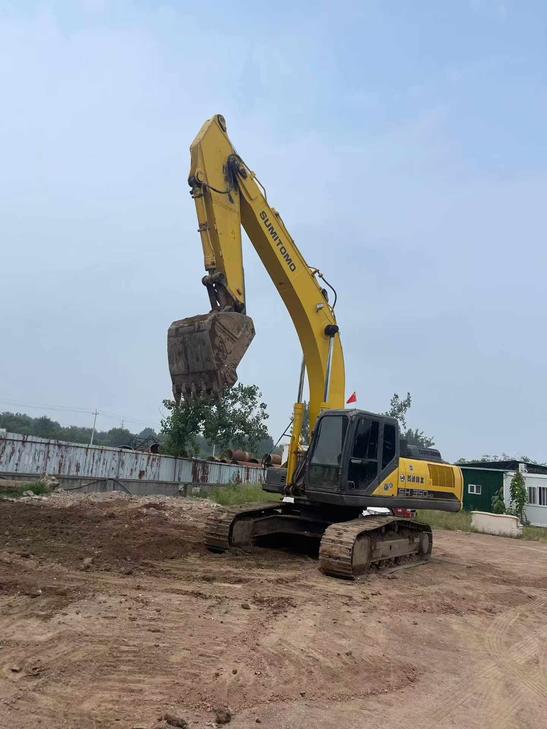

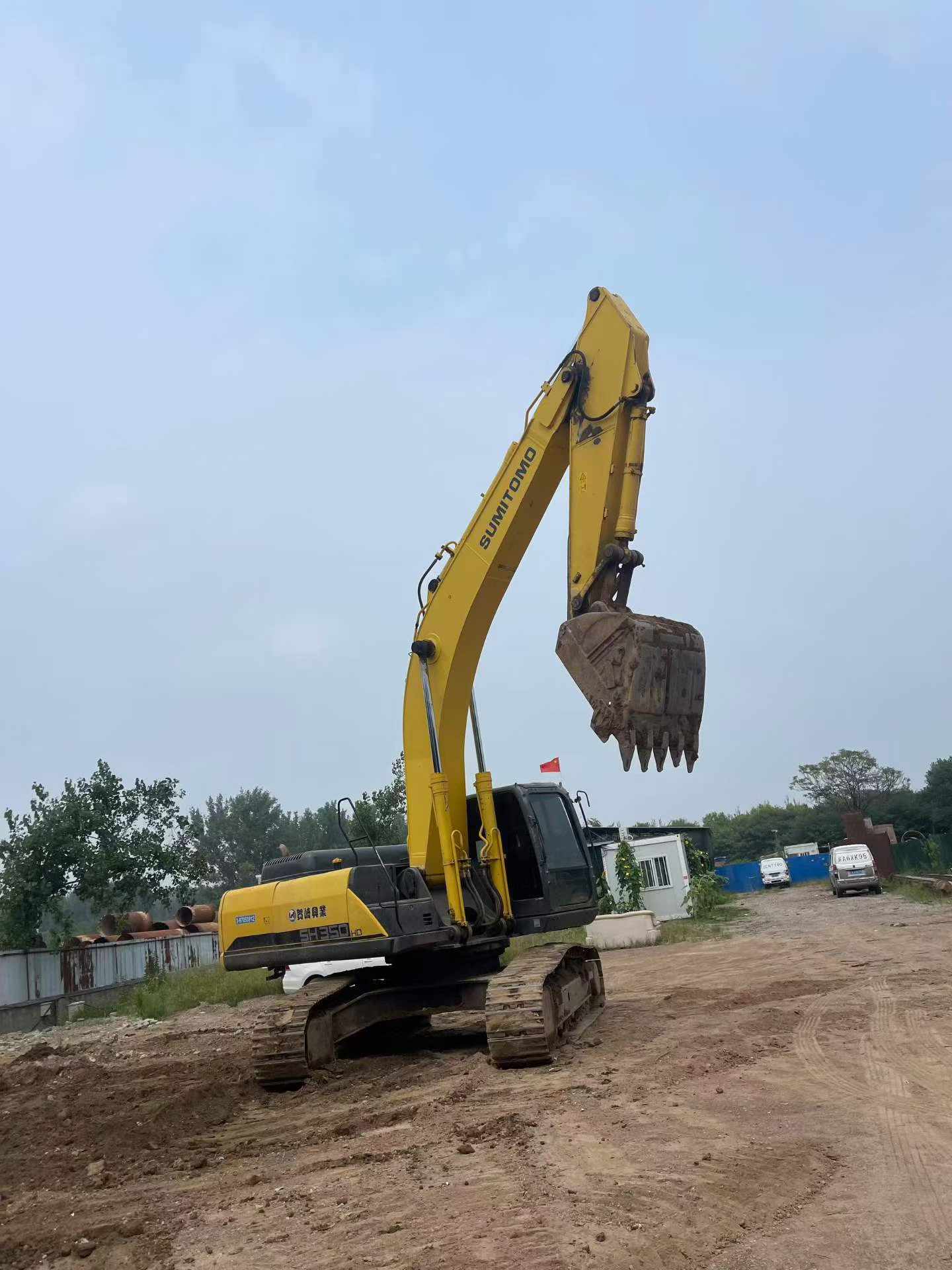

Discover the exceptional 2020 Sumitomo SH350-5, a robust and reliable excavator currently available in Hebei, China. This machine has been meticulously maintained, with a history of use exclusively in earthmoving operations, ensuring its structural integrity and operational excellence. Renowned for its powerful digging capabilities and swift performance, this model is a top choice for demanding construction projects. The unit is in outstanding condition, featuring a clean and well-preserved undercarriage, and all major components are in excellent working order, free from leaks. Detailed images and video footage are available upon request to provide a comprehensive view of the machine's current state.
- Year: 2020
- Brand: Sumitomo
- Model: SH350-5
- Location: Hebei, China
- Condition: Excellent, used primarily for earthmoving
| Specifications | Value |
|---|---|
| No. | 1135727 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
