Product Description

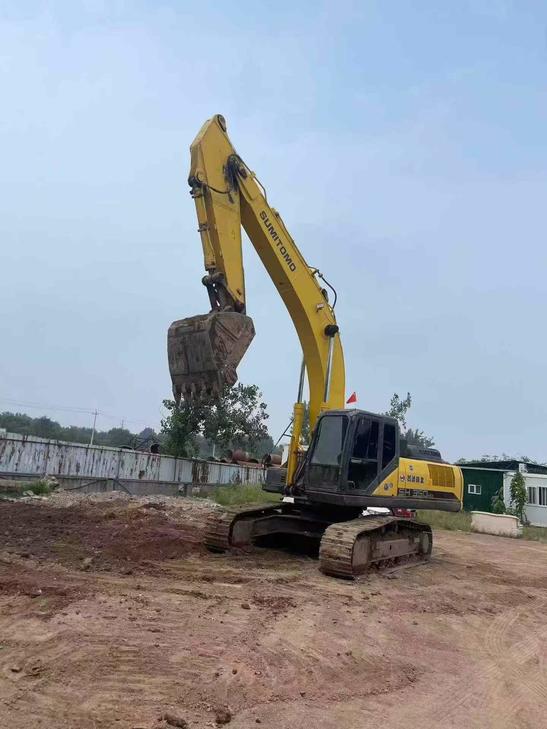

Discover the 2020 Sumitomo SH350-5, a premium excavator located in Hebei, China. This machine has been exclusively used for earthwork and has never engaged in hammering tasks, ensuring its structural integrity and reliability. Known for its exceptional performance, the SH350-5 boasts powerful digging capabilities and fast operation speeds, making it ideal for demanding projects. The excavator is in excellent condition, with no leaks from major components and an aesthetically pleasing undercarriage. Detailed images and videos are available upon request, showcasing the high quality and maintenance of this unit.
- Year: 2020
- Brand: Sumitomo
- Model: SH350-5
- Location: Hebei, China
- Condition: Excellent, no leaks, clean chassis
- Usage: Earthwork only, no hammer use
- Performance: Superior digging power and speed
| Specifications | Value |
|---|---|
| No. | 1135955 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
