Product Description

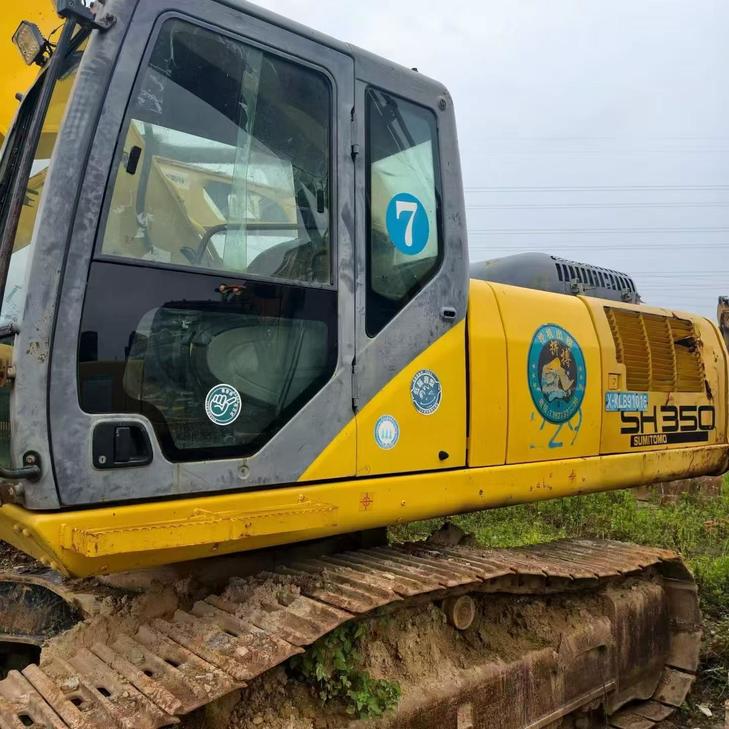

This 2020 Sumitomo SH350-5 hydraulic excavator is available in Guangdong, China. The machine retains its original boom assembly and presents in excellent working condition throughout. With a robust 35-ton operating weight class, the SH350-5 delivers reliable performance for quarry, demolition, and heavy earthmoving applications.
- Year: 2020
- Model: Sumitomo SH350-5
- Location: Guangdong Province, China
- Original boom configuration maintained
- Well-maintained condition with clean operational history
The SH350-5 series is recognized for fuel efficiency and hydraulic precision in demanding job sites. This unit is ready for immediate deployment. Inspection available by appointment. Suitable for contractors requiring proven excavation capacity with documented service records.
| Specifications | Value |
|---|---|
| No. | 1137750 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
