2020 Sumitomo SH350-5

1/3
Buy Sumitomo SH350-5 Used Excavator / 1
Buy Sumitomo SH350-5 Used Excavator / 2
Buy Sumitomo SH350-5 Used Excavator / 3

Product Description

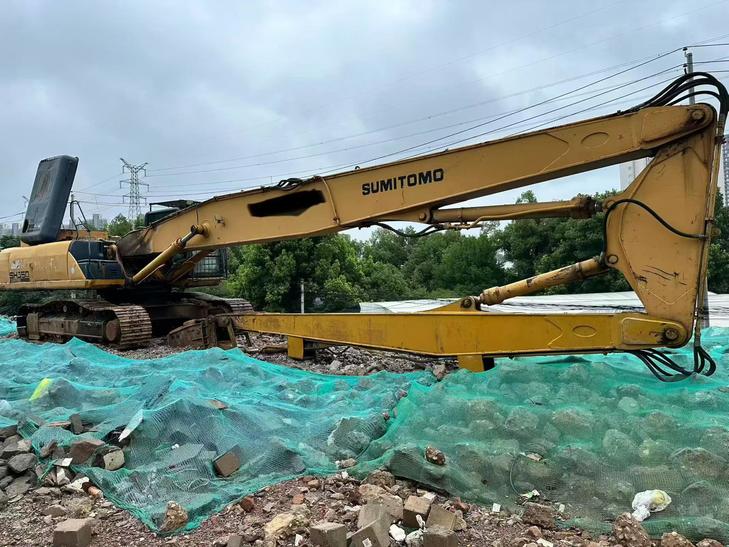

This 2020 Sumitomo SH350-5 demolition excavator is purpose-built for high-reach structural dismantling work. Currently located in Hunan, China, this machine offers reliable performance for contractors specializing in building demolition and urban deconstruction projects.

The SH350-5 features Sumitomo's proven hydraulic system and robust undercarriage designed to handle the demands of demolition applications. As a used unit, it provides a cost-effective solution for expanding your demolition fleet or replacing aging equipment.

  • Year: 2020
  • Model: Sumitomo SH350-5
  • Configuration: Demolition specification
  • Location: Hunan Province, China
  • Condition: Used

Suitable for commercial and industrial demolition contractors. Inspection recommended prior to purchase. Contact us for detailed equipment history and availability.

SpecificationsValue
No.1138159
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1138159

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Hunan China

Pub Date
