2020 Sumitomo SH350-5

1/9

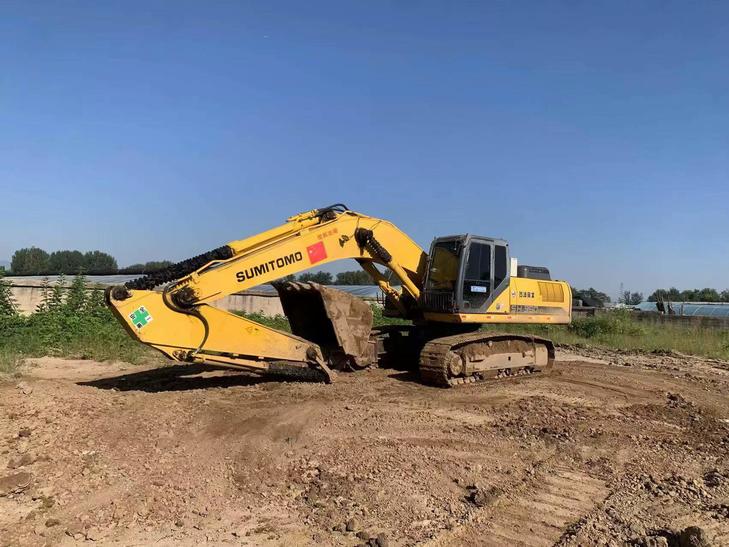

Buy Sumitomo SH350-5 Used Excavator / 1
Buy Sumitomo SH350-5 Used Excavator / 2
Buy Sumitomo SH350-5 Used Excavator / 3
Buy Sumitomo SH350-5 Used Excavator / 4
Buy Sumitomo SH350-5 Used Excavator / 5
Buy Sumitomo SH350-5 Used Excavator / 6
Buy Sumitomo SH350-5 Used Excavator / 7
Buy Sumitomo SH350-5 Used Excavator / 8
Buy Sumitomo SH350-5 Used Excavator / 9

Product Description

2020 Sumitomo SH350-5 hydraulic excavator available in Beijing, China. This genuine imported unit comes in original factory paint and has been primarily used for earthmoving applications. The machine features a responsive hydraulic system and reliable engine performance, with the undercarriage showing approximately 90% remaining life.

  • Year: 2020
  • Model: Sumitomo SH350-5
  • Location: Beijing, China
  • Condition: Original paint, well-maintained
  • Application history: Earthmoving operations
  • Major components: No previous dismantling or major repairs
  • Undercarriage: Excellent condition
  • Service history: Regular maintenance performed

This excavator is available for on-site inspection and testing. Suitable for contractors and operators seeking a reliable mid-size excavator for earthmoving and general construction applications.

SpecificationsValue
No.1138251
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
