Product Description
This 2020 Sumitomo SH350-5 hydraulic excavator represents a reliable mid-size solution for demanding excavation and earthmoving operations. Currently located in Hunan, China, this machine offers the proven performance and fuel efficiency that Sumitomo's SH series is known for in the construction and mining sectors.
The SH350-5 features Sumitomo's advanced hydraulic system, delivering responsive control and productive cycle times across a range of applications including trenching, material handling, and site development. Its robust undercarriage and well-maintained operating condition make it suitable for contractors seeking dependable equipment with established service support.
- Operating weight class: 35-ton range
- Sumitomo-engineered hydraulics for efficient performance
- Spacious operator cabin with ergonomic controls
- Available for inspection in Hunan, China
- Suitable for medium to heavy-duty applications
Contact us for detailed specifications, current operating hours, and competitive pricing on this available unit.
| Specifications | Value |
|---|---|
| No. | 1141295 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

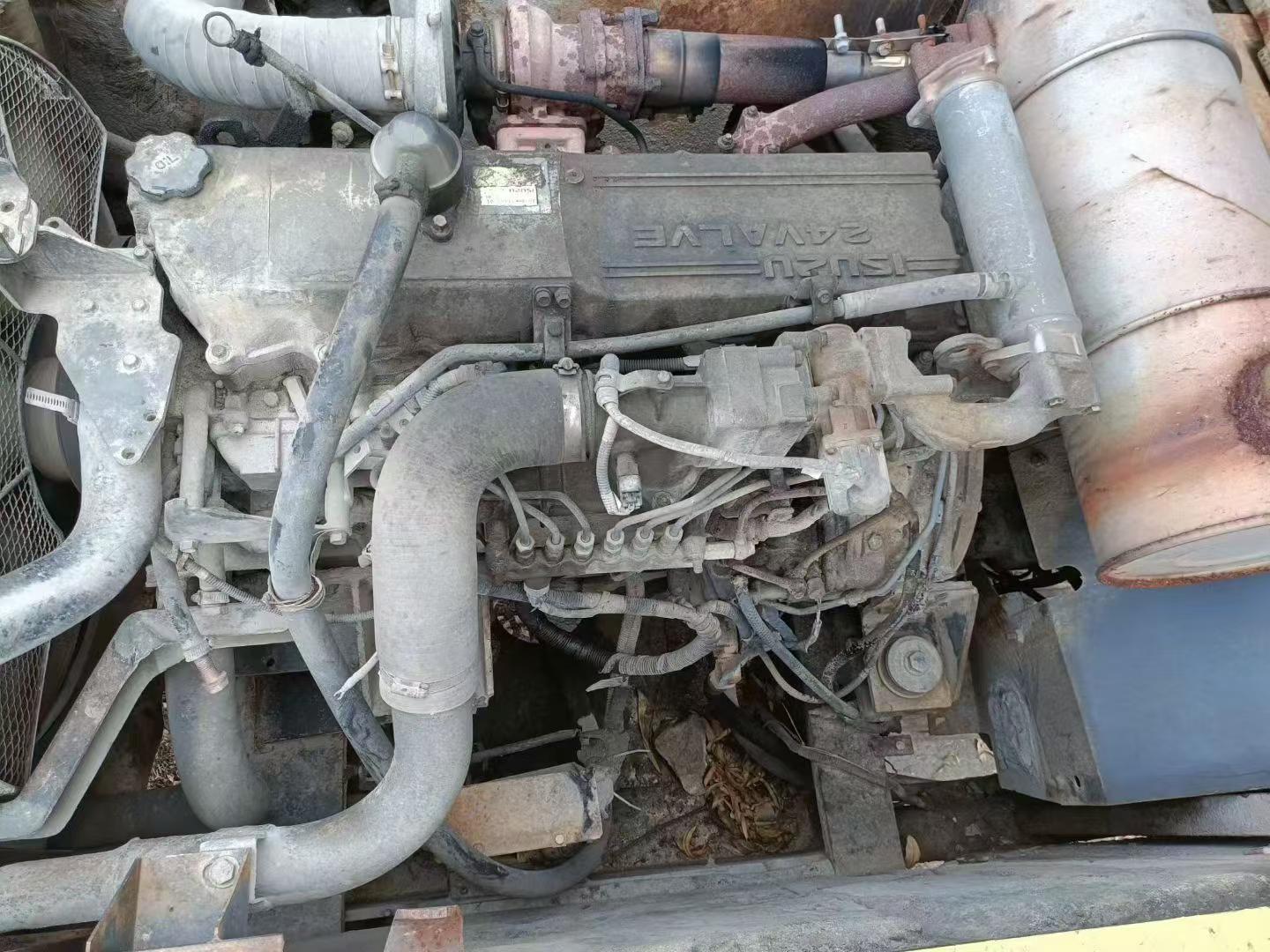

| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
