Product Description

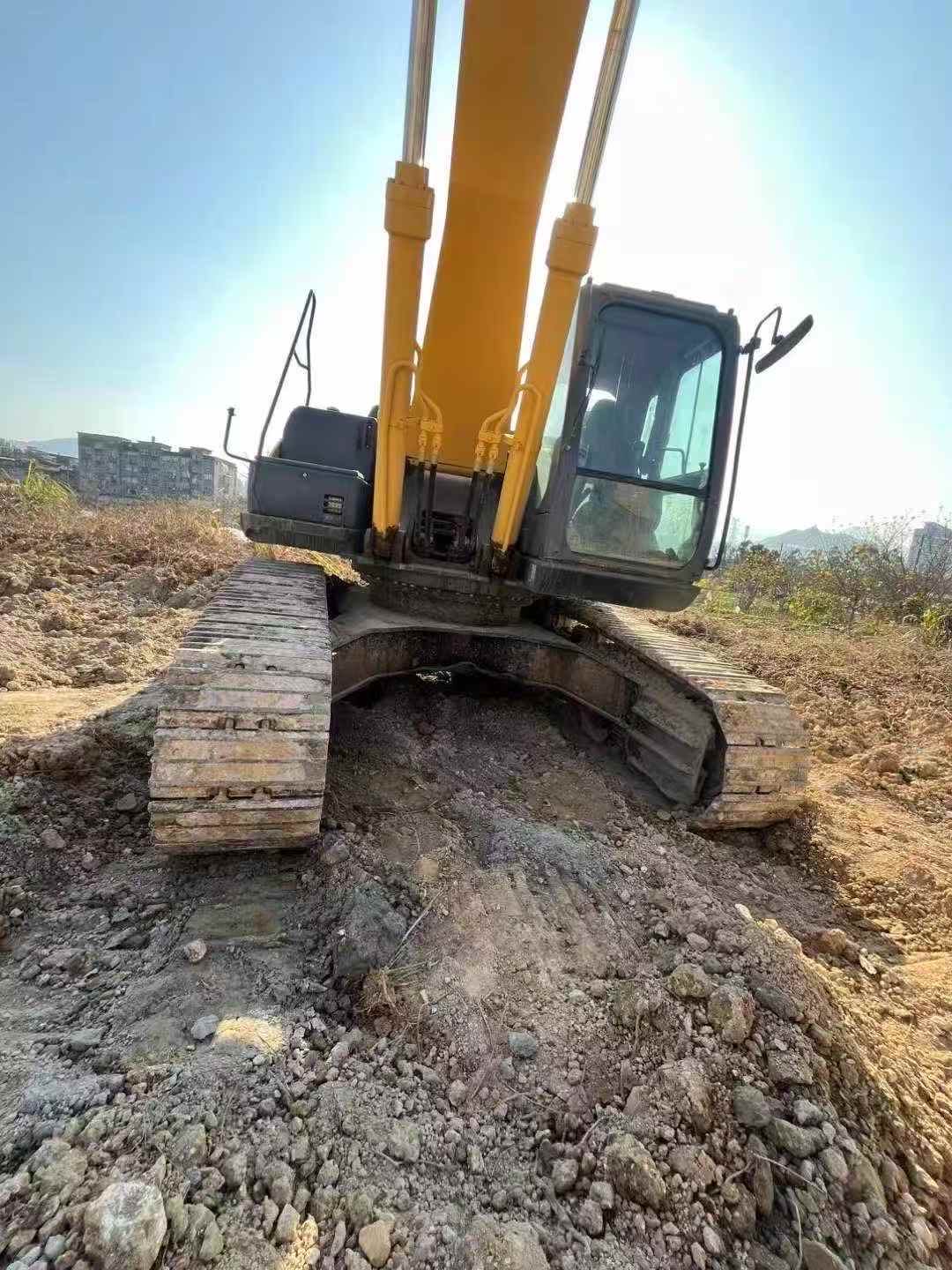

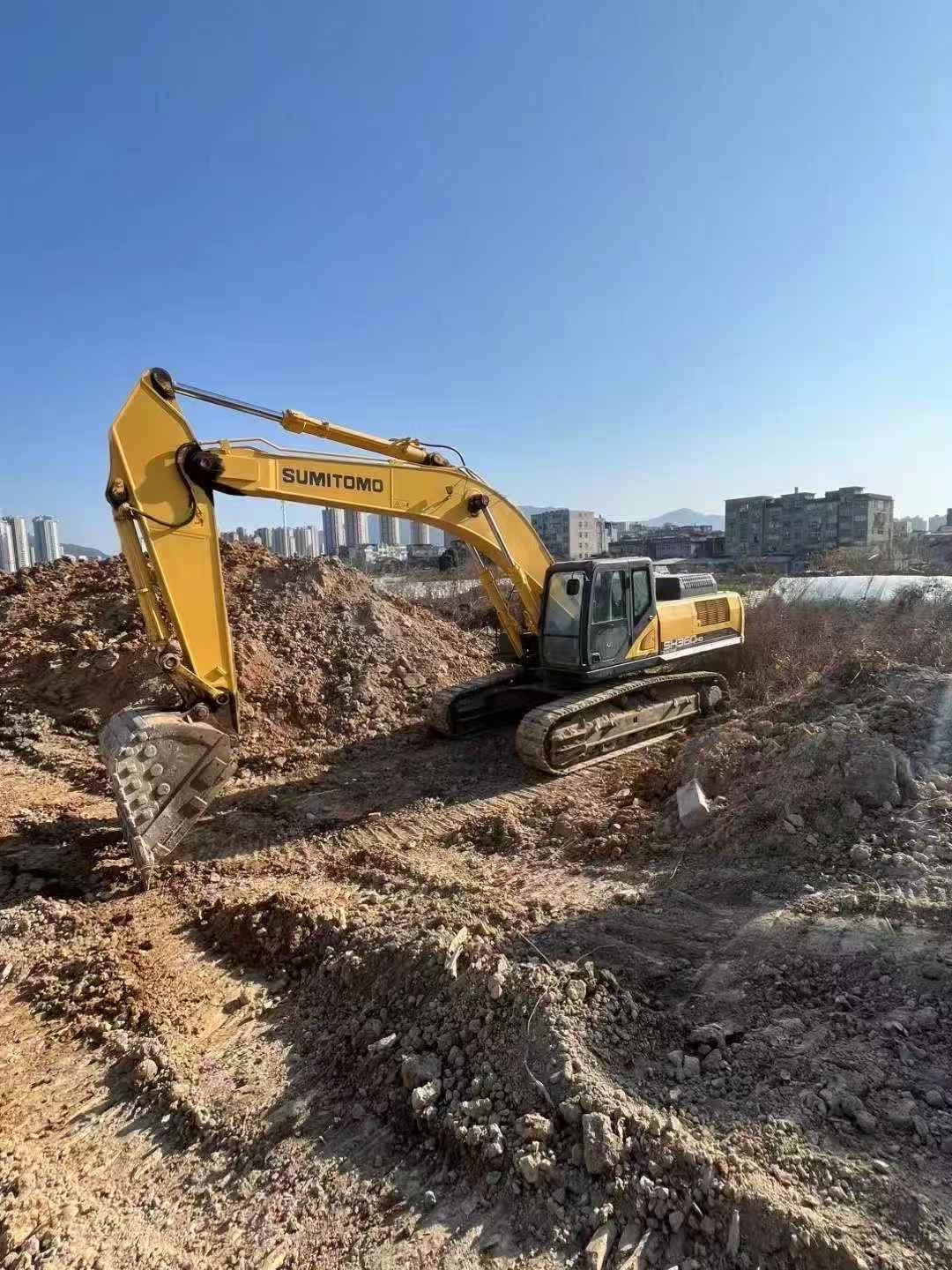

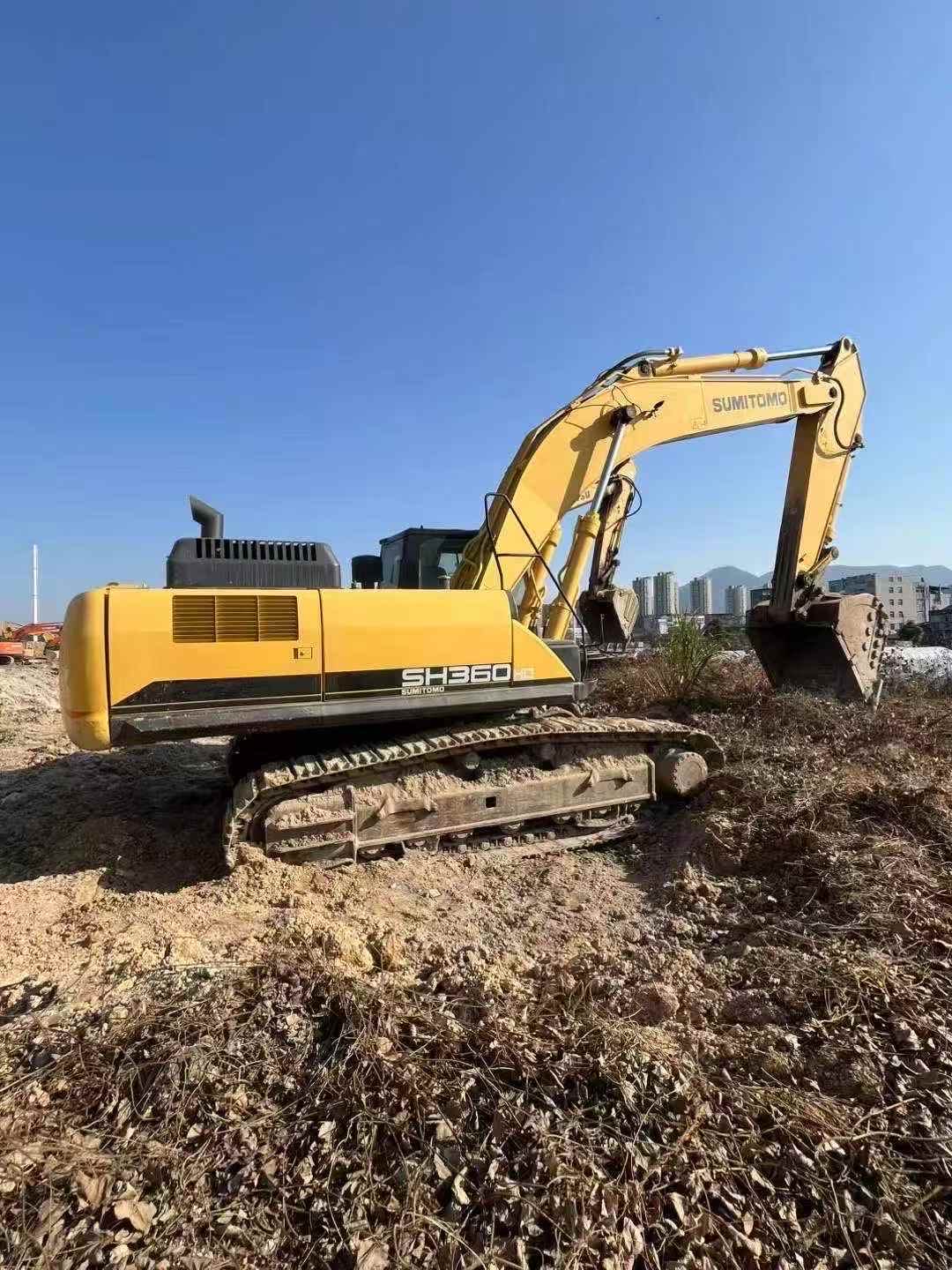

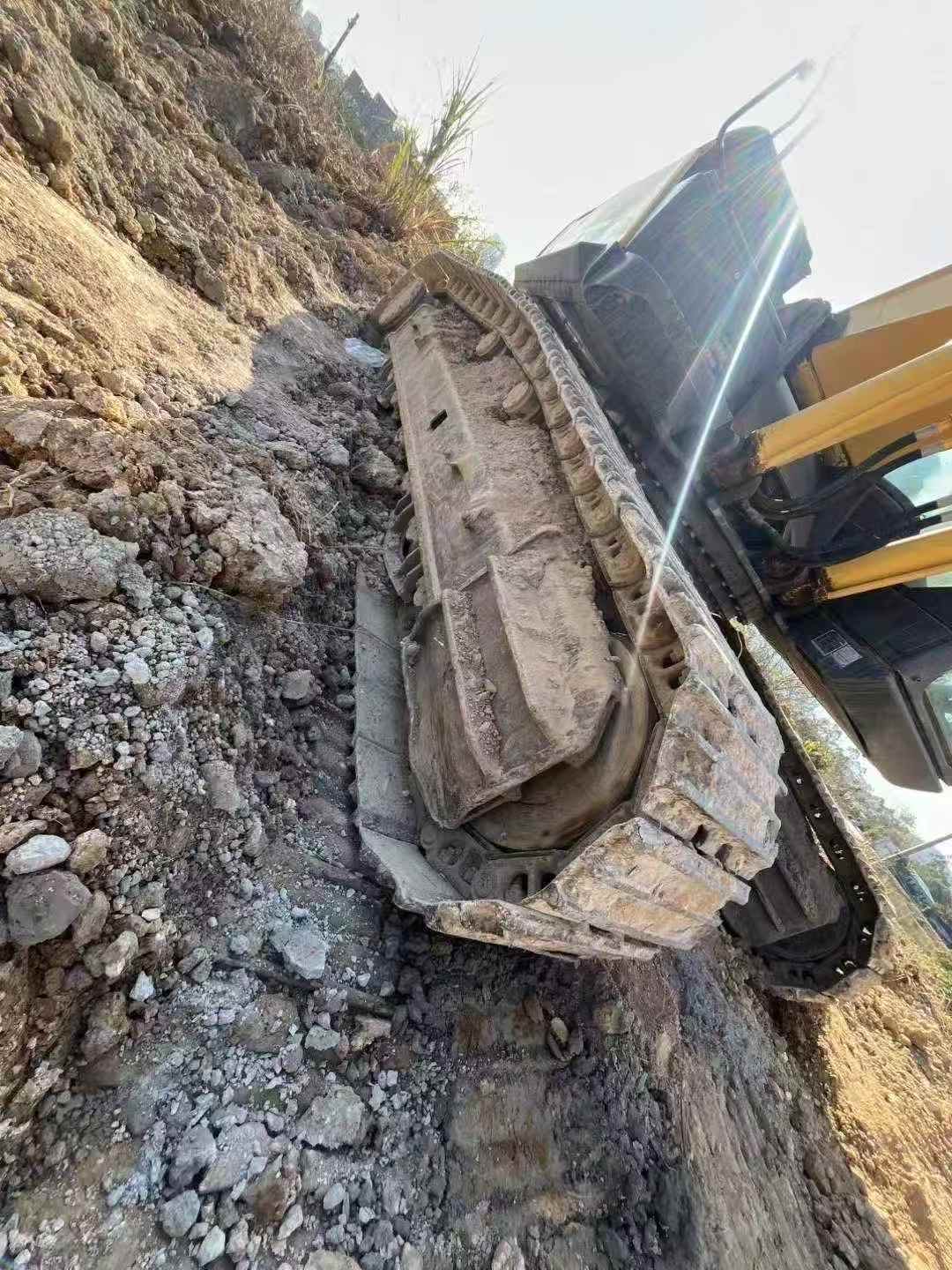

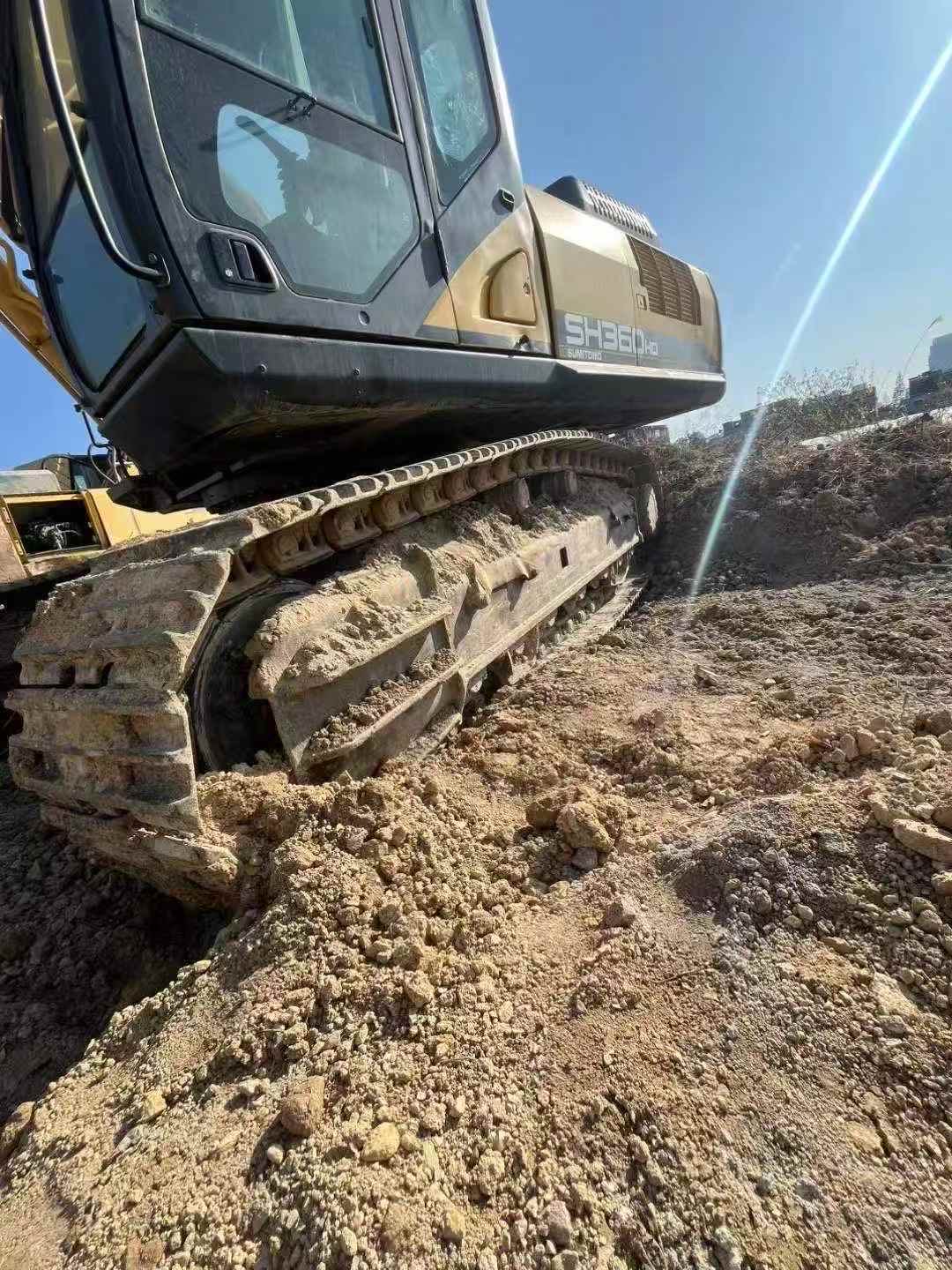

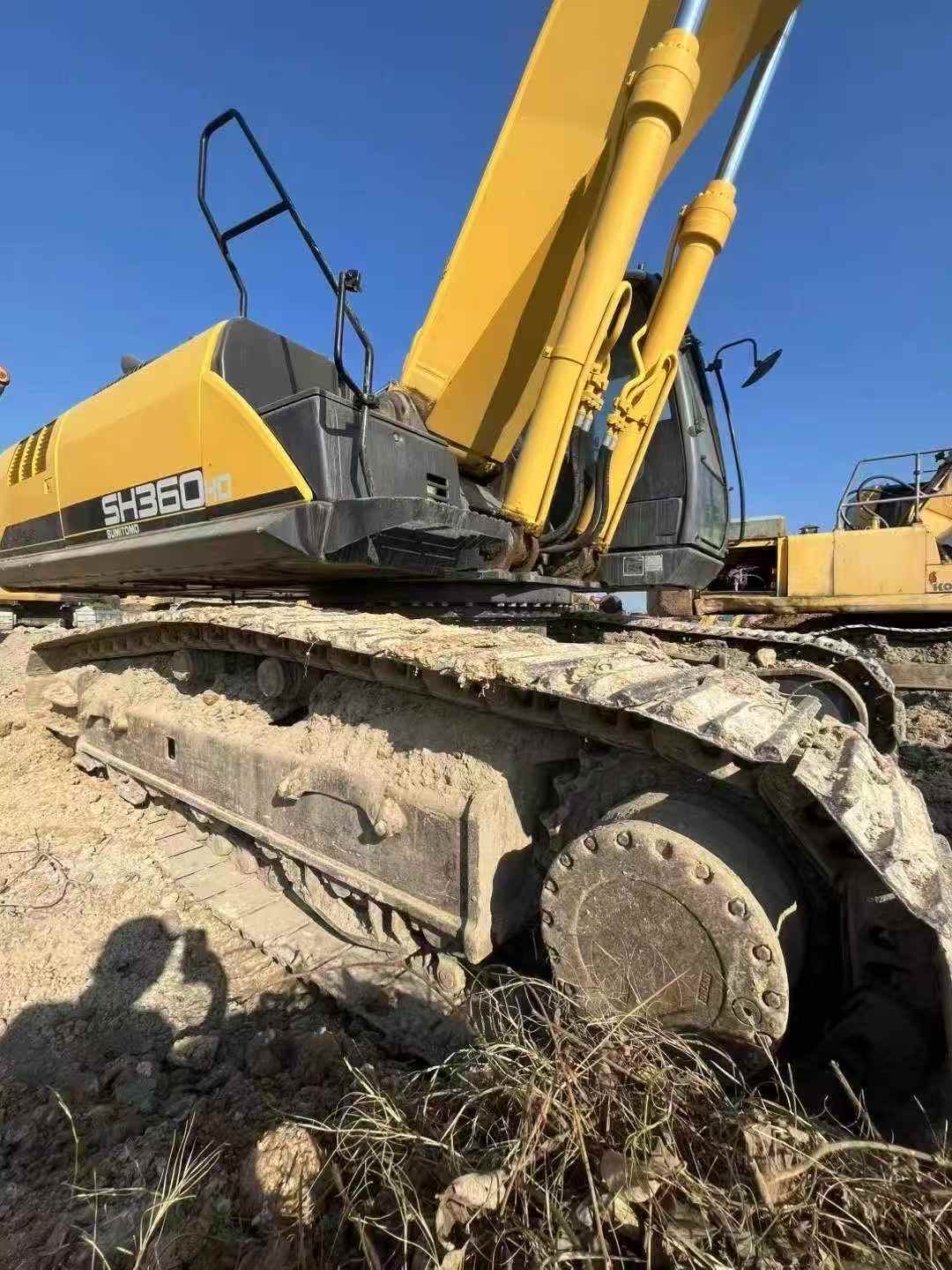

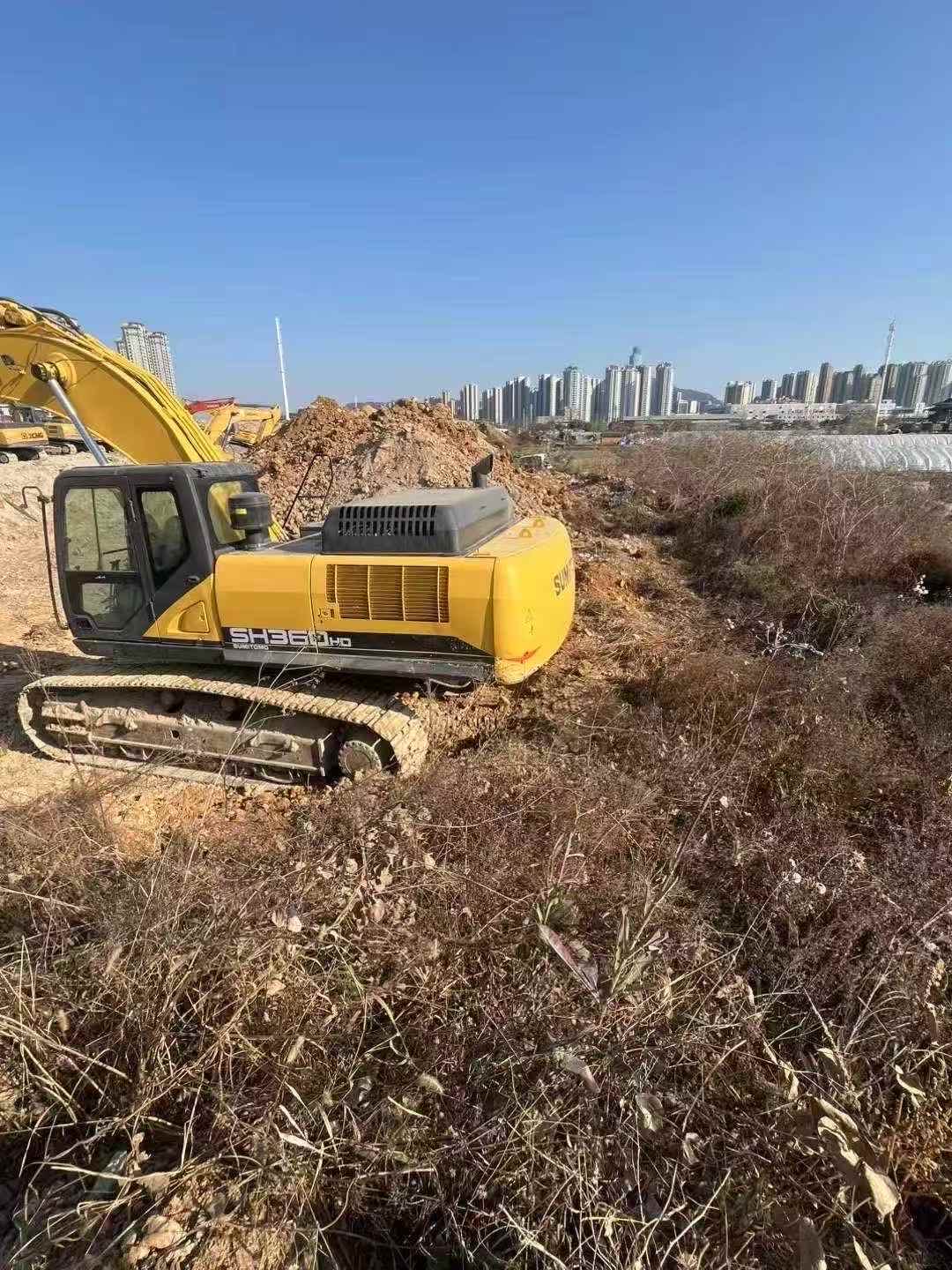

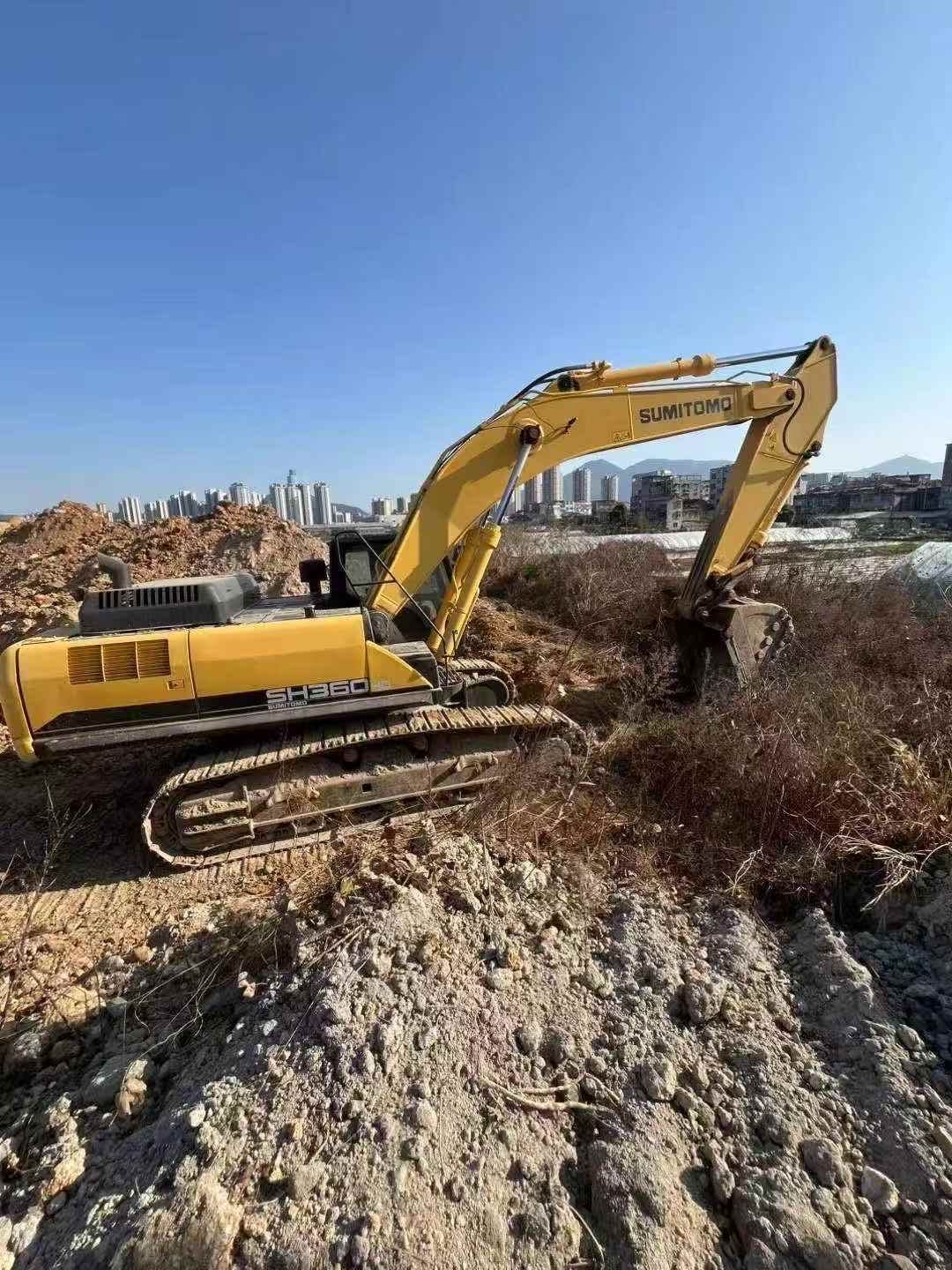

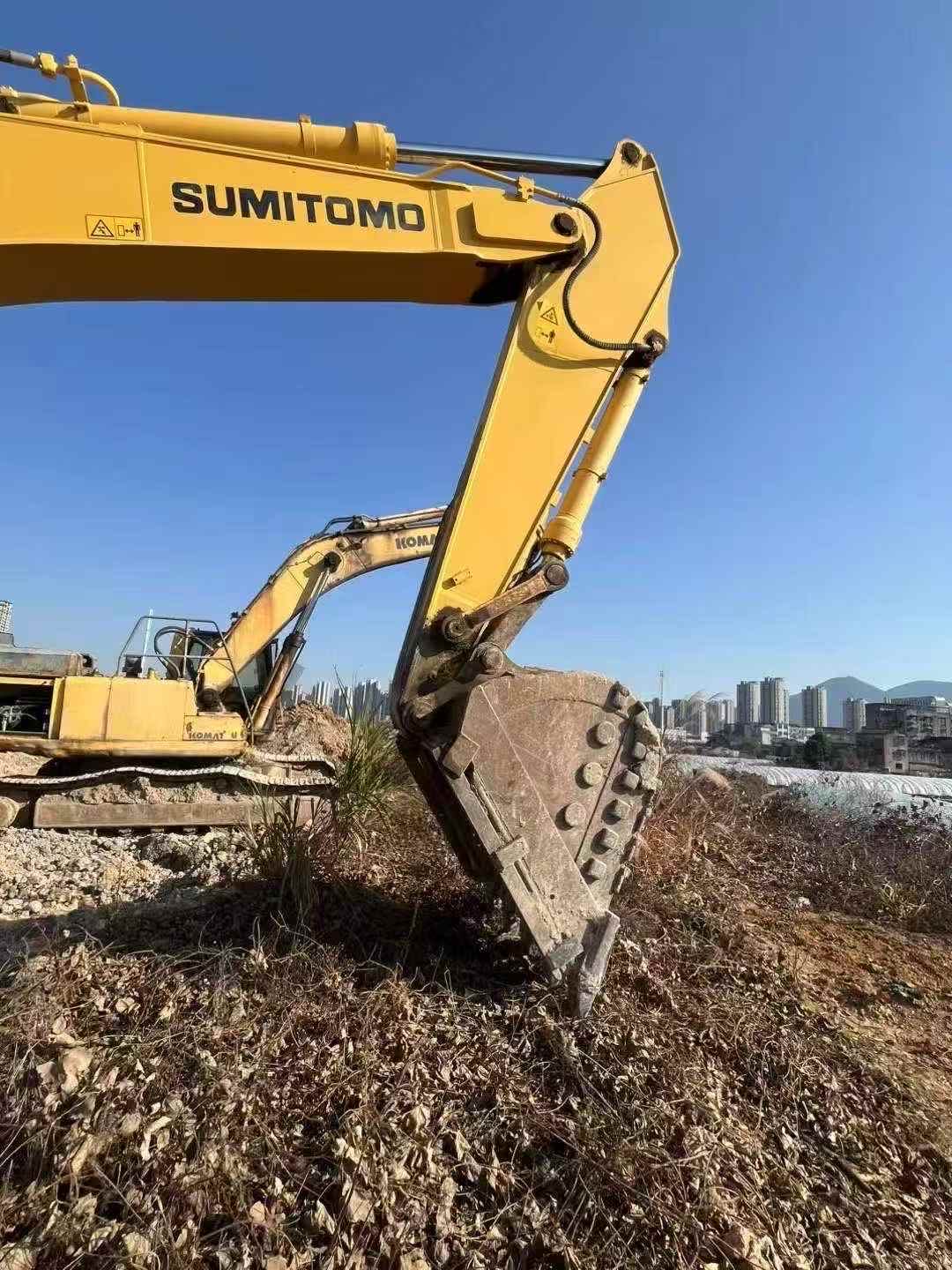

Discover the exceptional 2021 Sumitomo SH360HD-6, a robust and reliable excavator designed for demanding industrial applications. Located in Zhejiang, China, this machine is in impeccable condition, with no need for inspection, ensuring immediate operational readiness. Built to withstand the rigors of heavy construction, the SH360HD-6 offers superior performance and durability, making it an ideal choice for your project needs.
- Year: 2021
- Brand: Sumitomo
- Model: SH360HD-6
- Location: Zhejiang, China
- Condition: Excellent, inspection not required
| Specifications | Value |
|---|---|
| No. | 1056143 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36400 |
| Bucket capacity (m³) | 1.6-1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1X |
| Rated power (kw/rpm) | 200/2000 |
| Displacement (L) | 7.79 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 232 |
| Rod digging force (kN) | 164 |
| Travel speed (km/h) | 5.4/3.4 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11140 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3420 |
| Counterweight ground clearance (mm) | 1200 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3550 |
| Total track length (mm) | 4650 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
